Question 1

How to Replace a Rear Seat Cushion Pad and Cover for 60/40 and 50/50 Split Seats on GMC Yukon?

Accepted Answer

The process for changing the rear seat cushion cover and pad must start with removing the rear passenger seat followed by the removal of the rear passenger seat riser. The first step requires removing the seat cushion plastic cover from its frame before loosening hog rings or J-clips that bind the rear edge of the seat cushion cover . The technician should disconnect the rear heater connector along with removing the seat belt buckles if they are present. The next step requires you to disconnect all hog rings or J-clips from the seat cushion frame while detaching the hook and loop-strips between the seat cushion cover and foam pad. Take off the seat cushion cover by removing the center screw that holds the latch cover in place and stepping off the cover from the foam pad. The installation starts by using the foam pad to place the seat cushion cover while following the Fastener Notice in Service Precautions. Install the center screw that retains the latch cover by tightening it to 2 N.m (18 lb in). After that, wrap the hook and loop-strips around the foam pad for seat cushion cover attachment. Reinstallation requires the seat buckles to be reconnected along with the attachment of the heater connector to the rear part if present. Completing the installation requires fastening the hog rings or J-clips to fasten the seat cushion cover onto the seat cushion frame while the seat cushion plastic cover gets anchored to the seat cushion frame and the rear passenger seat risers are reinstalled before slotting the rear passenger seat back into its position.

Question 2

How to replace the front seat back cover and Seat Cushion Pad on GMC Sierra 1500?

Accepted Answer

The process of replacing the front seat back cover and pad requires the removal of the head restraint and seat trim panel followed by the lower Seat Belt anchor nut before disengaging the j-strip retainer at the bottom of the seat back cover and disconnecting the heater seat element connector if present. The armrest should be removed before lifting the seat cover over the air bag cover until you reach the top seating position. The bottom end of your seat back cover has a j-strip retainer which needs uninstallation followed by disconnecting all heater seats elements connectors if they exist. You should lift the seat back cover half off its foam pad to access the armrest clip along with the armrest (if equipped). Push a flat-bladed tool beneath the seat cover to slide it over the air bag cover before carrying out the seat cover removal up to the seat top. Remove the rear cardboard panel by disengaging its panel fasteners and release the head restraint retainers by unclipping them. You should remove the bolts that secure the Seat Belt tower cover before removing the cover from its position. Feed the Seat Belt along with the Seat Belt bezel through the seat cover opening before lifting the rest of the cover from the foam pad until the pad can be removed from the frame. Install the Seat Belt tower by affixing the foam pad on the frame first and then tighten the Seat Belt tower cover bolts to 1.9 n.m (17 lb in). After placing the rear cardboard panel and hooking its fasteners the seat back cover needs to be partially installed onto the frame top. After routing the Seat Belt and its bezel through the tower opening users must mount the armrest clip then gently pull the remaining cover portion using alternating side-to-side movements of the hand. Install the armrests and head restraint retainers before fitting the seat cover around the air bag cover and inserting the nut onto the lower Seat Belt anchor while tightening it to 53 n.m (39 lb ft). You need to put the seat trim panel in position and install the head restraints before pushing the seat cover down to check it has secure retention from the velcro in the seat cushion and to join the j-strip at seat bottom.

OEM GMC Seat Cushion Pad

353 Seat Cushion Pads found

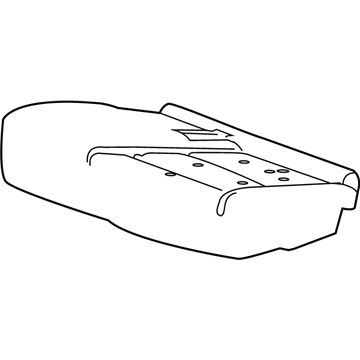

GMC Seat Cushion Pad, Rear Part Number: 84454565

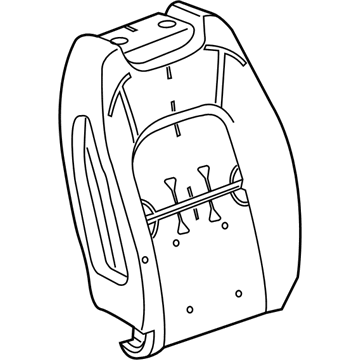

GMC Seat Back Pad, Front Part Number: 23360166

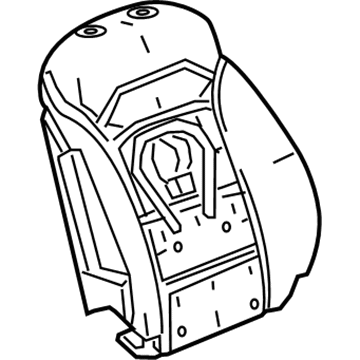

GMC Seat Back Pad, Front Part Number: 84611527

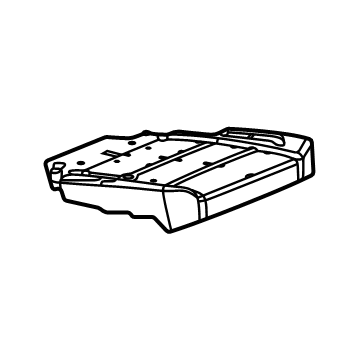

GMC Seat Cushion Pad, Rear Part Number: 85112729

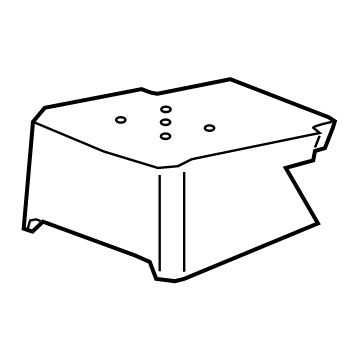

GMC Seat Cushion Pad, Front Center Part Number: 84553679

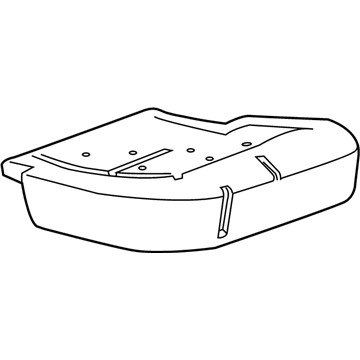

GMC Cushion Cover, Black, Rear Part Number: 84664221

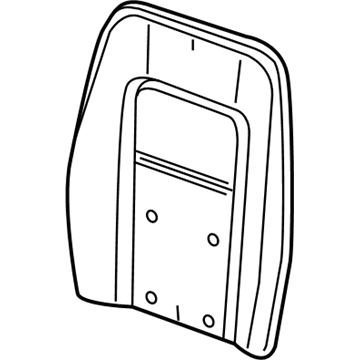

GMC Seat Back Pad, Rear Part Number: 23120425

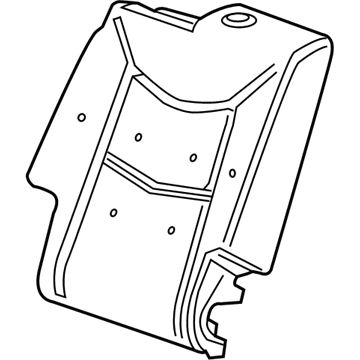

GMC Seat Back Pad, Rear Part Number: 84489895

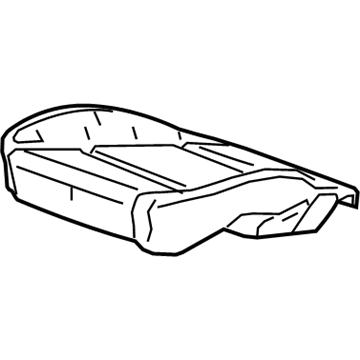

GMC Seat Cushion Pad Part Number: 84716924

GMC Seat Cushion Pad Part Number: 89026510

GMC Seat Back Pad, Front Part Number: 84736471

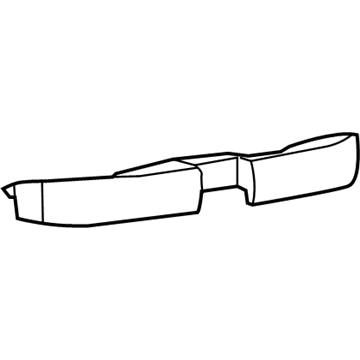

GMC Seat Cushion Pad Part Number: 89039558

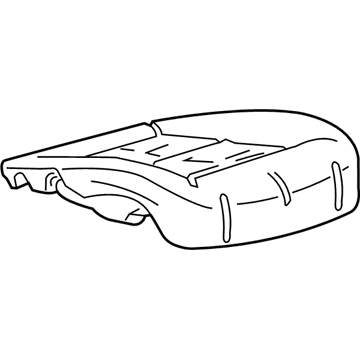

GMC Seat Cushion Pad Part Number: 84823332

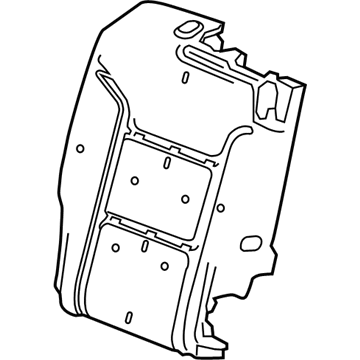

GMC Seat Back Pad, Rear Part Number: 84180426

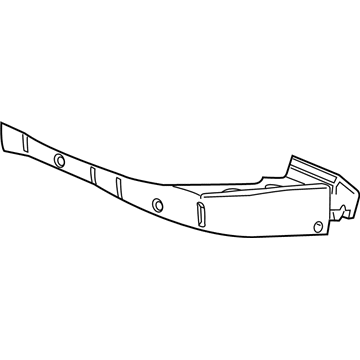

GMC Seat Cushion Pad, Rear Part Number: 22888653

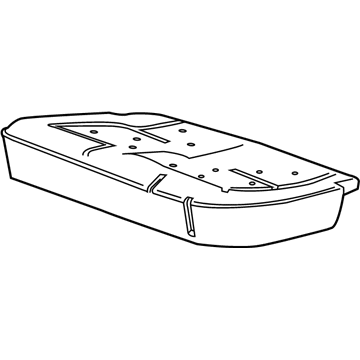

GMC Seat Cushion, Rear Part Number: 84664222

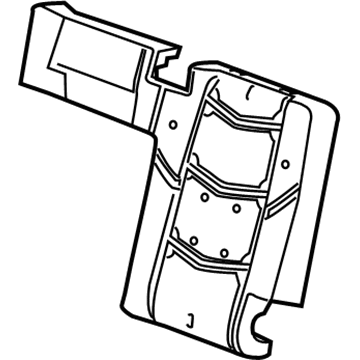

GMC Seat Back Pad, Rear Part Number: 23470761

GMC Seat Cushion Pad Part Number: 84572338

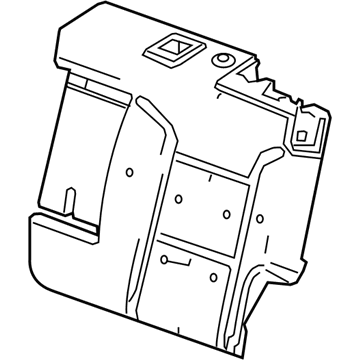

GMC Seat Back Pad, Rear Part Number: 84411506

GMC Seat Cushion Pad Part Number: 84572336
