How to replace a radiator and ensure a secure fit with new insulators on GMC Savana 3500?

When replacing the Radiator it is essential to use brand new insulators because old ones might be damaged or exhibit improper fitment. The first step includes air cleaner removal then coolant recovery reservoir extraction. You should use j 38185 hose clamp pliers to disconnect the Radiator inlet hose by removing its clamp. The outlet heater hose requires removal along with its clamp through use of the j 38185 hose clamp pliers method. Stop the flow of automatic transmission cooler lines along with engine oil cooler lines when necessary. Begin removing Fan Shroud bolts at the top while also removing them from the sides before removing the Radiator together with its Radiator insulators (1, 3). Examine every Radiator component along with sulfate tubes, hoses, clamps and fixture hardware before doing component replacements when needed. Place the Radiator insulators (1, 3) first followed by the installation of the Radiator. Fasten the Fan Shroud bolts at the top and at the sides by using 6 nm (53 lb in) torque. After tightening the engine oil cooler lines the technician should connect the automatic transmission oil cooler lines. Next place the inlet hose at the Radiator then fasten it using j 38185 hose clamp pliers. Use j 39529 to mount the outlet heater hose and its clamp to the vehicle. You should replace the coolant recovery reservoir after reinstalling the air cleaner assembly. Check the automatic transmission fluid level along with the engine oil level before completing the task.

How to service and repair a radiator safely and effectively on GMC Savana 3500?

The first step to service and repair the radiator is to ensure its complete coolness since spraying hot water on it will create dangerous steam that can harm people. The radiator's thermal efficiency depends on intact fins thus manual brush cleaning should be avoided as it causes destruction. The engine side of the radiator needs compressed air to vacuum out all bugs along with leaves and debris and dirt from its surface. Warming the water with mild detergent might be required sometimes for cleaning purposes. Clean both the A/C condenser fins in addition to the space between the A/C condenser and radiator and likewise the radiator cooling fins. As a final step check and straighten all fins which suffered damage to maintain proper operation.

OEM GMC Savana 3500 Radiator

Cooling Radiator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

13 Radiators found

View related parts

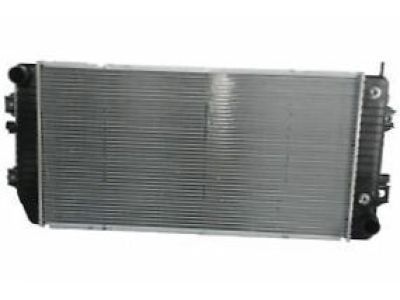

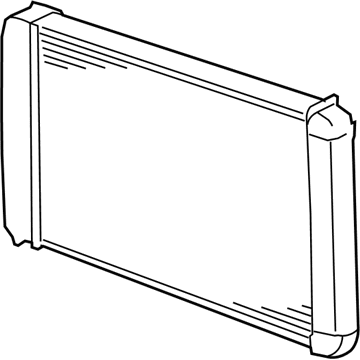

GMC Savana 3500 Radiator Part Number: 22805590
$448.18 MSRP: $672.96
You Save: $224.78 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assembly; Radiator, Radiator
- Replaces: 15897982, 15751216
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2022 GMC Savana 3500 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 8 Cyl 6.6 L DIESEL
View related parts
GMC Savana 3500 Radiator Part Number: 89019165
$333.33 MSRP: $502.77
You Save: $169.44 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assembly; Radiator, Radiator
- Replaces: 15751215
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2004 GMC Savana 3500 | Base, SLE | 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
View related parts
GMC Savana 3500 Radiator Part Number: 84916454
$372.11 MSRP: $556.22
You Save: $184.11 (34%)
ADD TO CART
Product Specifications
- Other Name: Radiator, Radiator
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2024 GMC Savana 3500 | Base, LS, LT | 8 Cyl 6.6 L GAS
View related parts
GMC Savana 3500 Radiator Part Number: 84494240
$374.16 MSRP: $559.28
You Save: $185.12 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator, Radiator
- Replaces: 15262433, 25912001, 15897981, 89019353
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2010 GMC Savana 3500 | Base, LS, LT | 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
View related parts
GMC Savana 3500 Radiator Part Number: 84462085
$315.60 MSRP: $471.75
You Save: $156.15 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator, Radiator
- Replaces: 25912003, 23378647, 22795300
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2020 GMC Savana 3500 | Base, LS, LT | 8 Cyl 4.8 L FLEX, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
View related parts

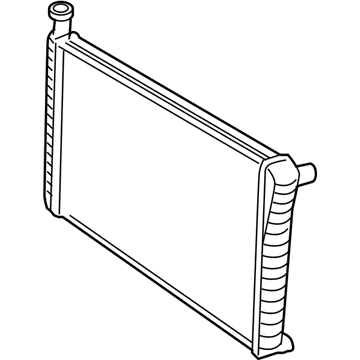

GMC Savana 3500 Radiator Part Number: 84310389
$268.83 MSRP: $401.83
You Save: $133.00 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator, Radiator
- Replaces: 84261847
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2024 GMC Savana 3500 | Base, LS, LT | 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS
View related parts
GMC Savana 3500 Radiator Part Number: 25912002
$246.11 MSRP: $385.14
You Save: $139.03 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assembly
- Replaced by: 84494241
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2010 GMC Savana 3500 | Base, LS, LT, SLE | 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts
GMC Savana 3500 Radiator Part Number: 15762438
Product Specifications
- Other Name: Radiator Assembly *Marked Print; Radiator, Radiator
- Replaces: 15762437, 52475987, 52475988
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2002 GMC Savana 3500 | Base, SLE, SLT | 6 Cyl 4.3 L GAS, 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L GAS
View related parts

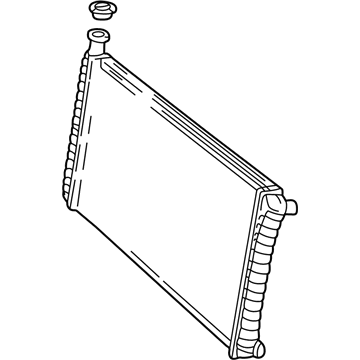

GMC Savana 3500 Radiator Part Number: 15766917
Product Specifications
- Other Name: Radiator Assembly *Marked Print; Radiator, Radiator
- Replaces: 52486308, 52473429
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2002 GMC Savana 3500 | Base, SLE, SLT | 8 Cyl 6.5 L DIESEL
View related parts
GMC Savana 3500 Radiator Part Number: 15766914
Product Specifications
- Other Name: Radiator, Radiator
- Replaces: 15766916, 52475990
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2002, 1997-1998 GMC Savana 3500 | Base, SLE, SLT | 6 Cyl 4.3 L GAS
View related parts

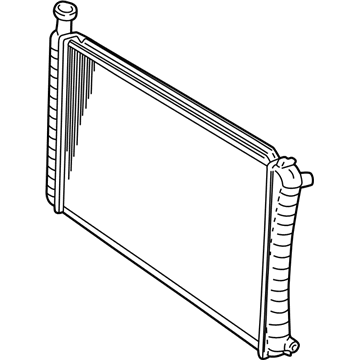

GMC Savana 3500 Radiator Part Number: 15766913
Product Specifications
- Other Name: Radiator Assembly *Marked Print; Radiator, Radiator
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2000 GMC Savana 3500 | Base, SLE | 8 Cyl 7.4 L GAS
View related parts
GMC Savana 3500 Radiator Part Number: 15762441
Product Specifications
- Other Name: Radiator Assembly *Marked Print; Radiator, Radiator
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2002 GMC Savana 3500 | Base, SLT | 8 Cyl 8.1 L GAS
View related parts
GMC Savana 3500 Radiator Part Number: 15762434
Product Specifications
- Other Name: Radiator Assembly *Marked Print; Radiator, Radiator
- Replaces: 52475986, 52477274
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2002, 1997-1998 GMC Savana 3500 | Base, SLE, SLT | 6 Cyl 4.3 L GAS

GMC Savana 3500 Radiator

Want to cut long-term maintenance and repair costs? Choose OEM Radiator. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine GMC Savana 3500 parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM GMC Savana 3500 Radiator includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

GMC Savana 3500 Radiator Parts and Q&A

Radiator
22805590
Q: How to replace a radiator and ensure a secure fit with new insulators on GMC Savana 3500?
A:
When replacing the Radiator it is essential to use brand new insulators because old ones might be damaged or exhibit improper fitment. The first step includes air cleaner removal then coolant recovery reservoir extraction. You should use j 38185 hose clamp pliers to disconnect the Radiator inlet hose by removing its clamp. The outlet heater hose requires removal along with its clamp through use of the j 38185 hose clamp pliers method. Stop the flow of automatic transmission cooler lines along with engine oil cooler lines when necessary. Begin removing Fan Shroud bolts at the top while also removing them from the sides before removing the Radiator together with its Radiator insulators (1, 3). Examine every Radiator component along with sulfate tubes, hoses, clamps and fixture hardware before doing component replacements when needed. Place the Radiator insulators (1, 3) first followed by the installation of the Radiator. Fasten the Fan Shroud bolts at the top and at the sides by using 6 nm (53 lb in) torque. After tightening the engine oil cooler lines the technician should connect the automatic transmission oil cooler lines. Next place the inlet hose at the Radiator then fasten it using j 38185 hose clamp pliers. Use j 39529 to mount the outlet heater hose and its clamp to the vehicle. You should replace the coolant recovery reservoir after reinstalling the air cleaner assembly. Check the automatic transmission fluid level along with the engine oil level before completing the task.
Radiator
15762438
Q: How to service and repair a radiator safely and effectively on GMC Savana 3500?
A:
The first step to service and repair the radiator is to ensure its complete coolness since spraying hot water on it will create dangerous steam that can harm people. The radiator's thermal efficiency depends on intact fins thus manual brush cleaning should be avoided as it causes destruction. The engine side of the radiator needs compressed air to vacuum out all bugs along with leaves and debris and dirt from its surface. Warming the water with mild detergent might be required sometimes for cleaning purposes. Clean both the A/C condenser fins in addition to the space between the A/C condenser and radiator and likewise the radiator cooling fins. As a final step check and straighten all fins which suffered damage to maintain proper operation.
