How to replace the Leaf Spring Bushing on GMC Sierra 1500?

Initial things to do to change the Leaf Spring Bushing include first raising and supporting the vehicle. Secondly, you need to take the Leaf Spring assembly out of the car. Then, insert the Leaf Spring in the press and press the bushing out being careful to clean the spring bushing bore of any foreign or old bushing material. Avoid exposing it to oil. For installation, apply rubber lubricant on the bushing and spring eye and reinstall the Leaf Spring to the press and press the bushing into the spring. Finally, reinstall the Leaf Spring assembly on the vehicle, take away the safety stands, and take down the vehicle.

How to replace the rear leaf spring bushing on GMC Jimmy?

The vehicle needs to be lifted and properly supported before replacing shackle bushings. When working on 2-door utilities first remove the Fuel Tank together with the evap canister. In case of required spare tire removal on pickups and 4-door utility models the mechanic should disconnect the rear exhaust hangers to achieve better exhaust system accessibility. First support the rear axle before taking out the spring shackle to frame mounting bolt and its associated nut. Keep the Leaf Spring with its attached lower spring shackle mounting bolt. Drop the axle to a suitable height which enables access to remove the spring shackle bushings. While removing the Fuel Tank use a blunt punch to straighten the bushing flange then replace both spring shackle bushings. Use control arm bushing service kit (J 21474-01) to remove spring shackle bushing before repeating this same process on the other bushing. The control arm bushing service kit (J 21474-01) enables installation of new spring shackle bushings by placing the bushing flange directly against the frame rail before using the stake tool on the inner flange. First position the axle in place and fasten the spring shackle to the frame through bolt and nut without tightening. After installing the second bushing insert the axle support to achieve a 164 - 176 mm (6.46 - 6.94 inches) gap between axle tube and bumper bracket metal surface. Tighten the rear spring shackle nuts to 122 nm (89 ft. Lbs.)you must first remove the rear axle support then possibly lift the exhaust system to install rear exhaust hangers. After lowering the car down install the spare tire followed by reinstalling both the evap canister for two-door utilities and the Fuel Tank.

OEM GMC Leaf Spring Bushing

Spring Bushing

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Leaf Spring Bushings found

View related parts

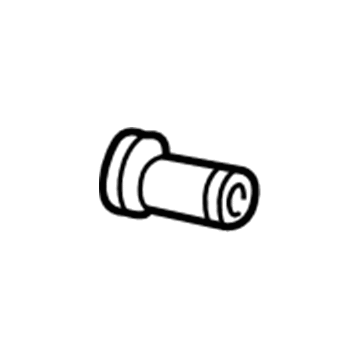

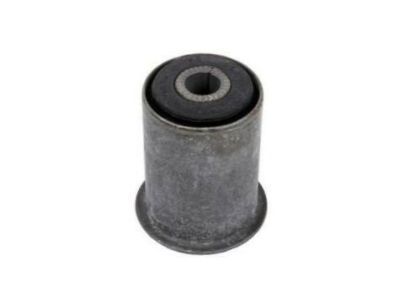

GMC Leaf Spring Bushing Part Number: 15963452
$12.28 MSRP: $21.08
You Save: $8.80 (42%)
ADD TO CART
Product Specifications
- Other Name: Bushing; Bushing, Rear Spring
- Position: Rear
Fits the following GMC Models:
- Sonoma | 1996-2004 | SL, SLE, SLS | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 6 Cyl 4.3 L GAS
View related parts
GMC Leaf Spring Bushing, Rear Part Number: 14027938
$14.63 MSRP: $24.10
You Save: $9.47 (40%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bushing, Rear Spring Shackle; Spring Bushing; Leaf Spring Rear Bushing; Bushing; Bushings
- Position: Rear
Fits the following GMC Models:
- Canyon | 2004-2012 | SL, SLE, SLT, WT, Z71 Fleet, Z71 SL, Z71 SLE, Z85 SL, Z85 SLE | 4 Cyl 2.8 L GAS, 4 Cyl 2.9 L GAS, 5 Cyl 3.5 L GAS, 5 Cyl 3.7 L GAS, 8 Cyl 5.3 L GAS
- Jimmy | 1995-2001 | Base, Diamond Edition, Envoy, SL, SLE, SLS, SLT | 6 Cyl 4.3 L GAS
View related parts

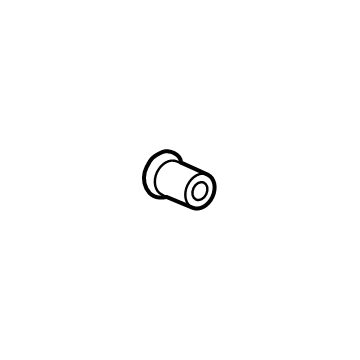

GMC Spring Bushing Part Number: 94772418
$29.89 MSRP: $47.41
You Save: $17.52 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Bushing, Rear Spring; Leaf Spring Bushing; Shackle Bushing; Leaf Spring Rear Bushing; Bushing; Bushing, Rear Spring Shackle
- Position: Rear
Fits the following GMC Models:
- Canyon | 2015-2023 | All Terrain, AT4, AT4X, Base, Denali, Elevation, Elevation Standard, SL, SLE, SLT | 4 Cyl 2.5 L GAS, 4 Cyl 2.7 L GAS, 4 Cyl 2.8 L DIESEL, 6 Cyl 3.6 L GAS
View related parts
GMC Leaf Spring Bushing, Rear Part Number: 468481
Product Specifications
- Other Name: Bushing, Rear Spring; Spring Bushing; Bushing; Bushing, Front Spring Front
- Position: Rear
Fits the following GMC Models:
- Jimmy | 1992-1994 | Base, SLE, SLS, SLT | 6 Cyl 4.3 L GAS
- S15 Jimmy | 1984-1991 | Base, Gypsy, High Sierra, Sierra Classic, SLE, SLS, SLT, Timberline | 4 Cyl 1.9 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 4.3 L GAS
- Sonoma | 1991-2004 | Base, GT, SL, SLE, SLS | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 4.3 L GAS
- Syclone | 1991 | Base | 6 Cyl 4.3 L GAS
- Typhoon | 1992-1993 | Base | 6 Cyl 4.3 L GAS
View More
View related parts

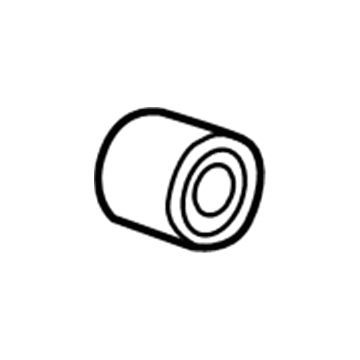

GMC Leaf Spring Front Bushing Part Number: 15739091
Product Specifications
- Other Name: Bushing; Leaf Spring Bushing; Bushing, Rear Spring
- Position: Rear
Fits the following GMC Models:
- Sierra 1500 | 2005-2006 | Hybrid | 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV)
- Sierra 1500 Classic | 2007 | Hybrid | 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV)
View related parts
GMC Leaf Spring Bushing Part Number: 15529515
Product Specifications
- Other Name: Bushing; Bushing, Rear Spring
- Position: Rear
Fits the following GMC Models:
- C1500 | 1988-1999 | Sierra, Sierra GT, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX, Sierra Special | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- C2500 | 1988-2000 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- C3500 | 1988-2000 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K1500 | 1988-1999 | Sierra, Sierra SL, Sierra SLE, Sierra SLS, Sierra SLT, Sierra SLX, Sierra Special, Sierra Sport | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- K2500 | 1988-2000 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K3500 | 1988-2000 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- Yukon | 1992-2000 | Base, Denali, GT, SL, SLE, SLT, Sport | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
View More
View related parts

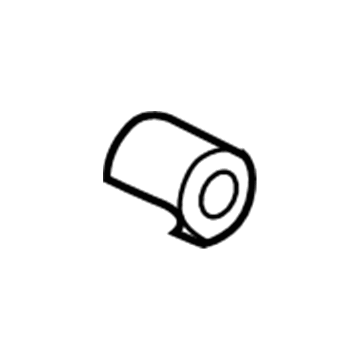

GMC Leaf Spring Bushing, Rear Part Number: 15050270
Product Specifications
- Other Name: Bushing, Rear Spring; Leaf Spring Rear Bushing
- Position: Rear
Fits the following GMC Models:
- Sierra 1500 | 1999-2006 | Base, C3, Denali, HT, Hybrid, SL, SLE, SLT, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Sierra 1500 Classic | 2007 | Hybrid | 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV)
- Sierra 1500 HD | 2005, 2001-2003 | SLE, SLT | 8 Cyl 6.0 L GAS
- Sierra 2500 | 1999-2004 | Base, SL, SLE, SLT, WT | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
- Sierra 2500 HD | 2001-2005 | Base, SL, SLE, SLT, WT | 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Sierra 3500 | 2001-2005 | Base, SL, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
View More

GMC Leaf Spring Bushing

Choose OEM Leaf Spring Bushing, you're making the optimal decision for superior quality and perfect performance. You can feel confident because each component goes through stringent quality checks. Every part is carefully built to comply with GMC's factory specifications. You'll enjoy a smooth, worry-free installation that fits just right. At ChevyPartsDeal.com, you'll find it easy to get top-quality OEM GMC Leaf Spring Bushing. You can shop at highly competitive prices and protect your budget. All our genuine GMC parts include a dependable manufacturer's warranty. You'll also appreciate our straightforward return policy and swift delivery services for extra convenience.

GMC Leaf Spring Bushing absorbs the road shock and maintains the suspension stable and composed. The brand has been in the business since 1901 producing pickups and SUVs that shake off the weight and rough backroads. GMC marries sturdy frames, joins them with a powertrain rich in torque, and tunes suspension to achieve a balance in cargo control. The cabins are quiet and the drivers feel prepared to work since the insulation does not numb the wheel but rather it resists vibration. Assistance tools such as surround vision and hitch guidance increase confidence during moments such as when the trailers are swaying or the parking spaces are narrow. The MultiPro tailgate folds, steps, and allows the hauling of long boards, making the process easier. The rust covers resist salt and high cooling ensures engines remain peaceful on steep slopes. GMC test grounds pound models until the squeaks disappear, and hinges cannot be made to dangle. Reliability is more important than glaring devices in this case. Leaf Spring Bushing helps eliminate jolts transmitted between axle and chassis and helps eliminate vibration that cracks mounts and wears shocks prematurely during smooth steering operation on cracked pavement. Ride remains immobile in cross winds or when the icy gullies push the truck off course as polyurethane does not squish and maintains alignment even during winter freeze/thaw and summer overweight. It is stronger than rubber and it wipes away road grime making replacement times longer and costs are reduced. The Leaf Spring Bushing is able to protect the metal eyes against rust as well, closed out slurry.

GMC Leaf Spring Bushing Parts and Q&A

Leaf Spring Bushing, Rear
15050270
Q: How to replace the Leaf Spring Bushing on GMC Sierra 1500?
A:
Initial things to do to change the Leaf Spring Bushing include first raising and supporting the vehicle. Secondly, you need to take the Leaf Spring assembly out of the car. Then, insert the Leaf Spring in the press and press the bushing out being careful to clean the spring bushing bore of any foreign or old bushing material. Avoid exposing it to oil. For installation, apply rubber lubricant on the bushing and spring eye and reinstall the Leaf Spring to the press and press the bushing into the spring. Finally, reinstall the Leaf Spring assembly on the vehicle, take away the safety stands, and take down the vehicle.
Leaf Spring Bushing, Rear
14027938
Q: How to replace the rear leaf spring bushing on GMC Jimmy?
A:
The vehicle needs to be lifted and properly supported before replacing shackle bushings. When working on 2-door utilities first remove the Fuel Tank together with the evap canister. In case of required spare tire removal on pickups and 4-door utility models the mechanic should disconnect the rear exhaust hangers to achieve better exhaust system accessibility. First support the rear axle before taking out the spring shackle to frame mounting bolt and its associated nut. Keep the Leaf Spring with its attached lower spring shackle mounting bolt. Drop the axle to a suitable height which enables access to remove the spring shackle bushings. While removing the Fuel Tank use a blunt punch to straighten the bushing flange then replace both spring shackle bushings. Use control arm bushing service kit (J 21474-01) to remove spring shackle bushing before repeating this same process on the other bushing. The control arm bushing service kit (J 21474-01) enables installation of new spring shackle bushings by placing the bushing flange directly against the frame rail before using the stake tool on the inner flange. First position the axle in place and fasten the spring shackle to the frame through bolt and nut without tightening. After installing the second bushing insert the axle support to achieve a 164 - 176 mm (6.46 - 6.94 inches) gap between axle tube and bumper bracket metal surface. Tighten the rear spring shackle nuts to 122 nm (89 ft. Lbs.)you must first remove the rear axle support then possibly lift the exhaust system to install rear exhaust hangers. After lowering the car down install the spare tire followed by reinstalling both the evap canister for two-door utilities and the Fuel Tank.
