OEM Chevrolet Venture Ride Height Sensor

Chevrolet Venture Ride Height Sensor Parts and Q&A

• Rear Sensor
  22189430
  Q: How to manually adjust the Ride Height Sensor on Chevrolet Venture?

  A:

  The first step for manual Ride Height Sensor adjustment requires placing 181 kg (400 lbs.) or more of even weight distribution from left to right across the rear passenger compartment to activate the compressor. During hoisting operations the rear axle must maintain its factory trim position by using rear wheel supports or axle housing supports together with two more jack stands that prevent Ride Height Sensor air compressor damage. Check for damage on the Ride Height Sensor before confirming that the Ride Height Sensor link connects properly between Tie Rod and Ride Height Sensor arm. Allow the ignition to be turned on and keep waiting for one minute until the arc finishes. Check the d dimension at the rear axle on both right and left sides before proceeding to adjust the Ride Height Sensor. To change the vehicle height the Ride Height Sensor arm adjustment bolt needs loosening while moving the plastic portion upwards for a higher position or downwards for a lower one. One degree of plastic rotation creates 4 mm (0.16 inch) d dimension variation. Complete the bolt tightening process of the Ride Height Sensor adjuster at 5 nm (44 inch lbs.) afterwards check the adjustment by reperforming previous procedures. The j 34825 Ride Height Sensor adjustment tool enables users to adjust the Ride Height Sensor under specified instructions found in the tool kit.
• Level Sensor

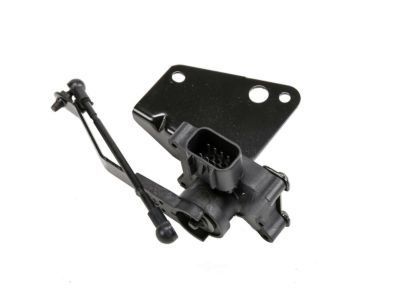

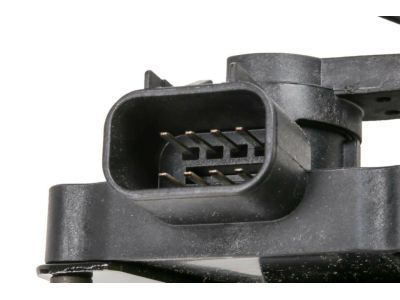

  88964311
  Q: How to replace the Ride Height Sensor on Chevrolet Venture?

  A:

  A diagnostic system check must be performed before changing the Ride Height Sensor (IRS). Start the process by mounting the vehicle elevated on stands. The ride height sensor electrical connector requires removal before separating the height sensor link from its ball stud position. The first step is to remove the ride height sensor bracket bolts before taking out the height sensor from the vehicle and then detaching the sensor link from the sensor arm. Correct installation starts with connecting the height sensor link to the sensor arm followed by the height sensor installation back on the vehicle. You should fasten the height sensor bracket bolts to 85 N.m (63 lb ft) torque setting. The ride height link should be connected to the tie rod ball stud followed by plugging in the height sensor electrical connector before the vehicle is lowered.
