OEM Chevrolet Venture EGR Valve

Chevrolet Venture EGR Valve Parts and Q&A

• EGR Valve
  12633889
  Q: How to replace the EGR valve on Chevrolet Venture?

  A:

  First step to replace the exhaust gas recirculation (EGR) valve starts by turning off ignition before disconnecting the EGR Valve electrical connector. Begin by taking out the transaxle fluid filler tube followed by the bolt which attains the pipe assembly to the EGR Valve then gently pull back the pipe assembly. Start by removing EGR Valve retaining bolts and afterwards remove the EGR Valve assembly before removing the gasket. The mating surface of the EGR Valve requires cleaning before you install both the new gasket and valve to the Intake Manifold. Place the bolts in the EGR Valve before fastening them to 30 n.m of torque (22 lb ft). Fasten the pipe assembly to the EGR Valve by using a bolt which should be tightened to 25 n.m (18 lb ft). The installation ends with reattaching the transaxle fluid filler tube while reconnecting the EGR Valve electrical connector.

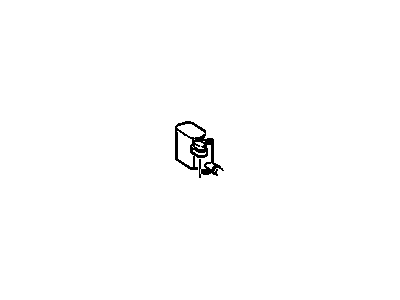

• Vent Control Solenoid
  10304152
  Q: How to service the EGR valve on Chevrolet Venture?

  A:

  Starting the repair of the EGR Valve requires you to disable ignition while also unplugging the exhaust gas recirculation (EGR) valve electrical connector. The service of the EGR Valve begins with the transaxle fluid filler tube removal along with the bolt retention of the pipe assembly at the EGR Valve while carefully pulling the assembly backward. Start by removing bolts from the EGR Valve assembly and the EGR Valve occupying position and complete the removal by dislodging the gasket. The EGR Valve mating surface requires cleaning before installing both a new gasket with the EGR Valve onto the Intake Manifold. Add the bolts to the EGR Valve before tightening them to 30 n.m (22 lb ft). Install the pipe assembly on the EGR Valve while tightening its bolt to 25 n.m (18 lb ft). After placing back the transaxle fluid filler tube you must connect the EGR Valve electrical connector.
