OEM Chevrolet Trailblazer Oil Pan
Oil Drain Pan- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
7 Oil Pans found
Chevrolet Trailblazer Oil Pan Part Number: 25204805
$95.14 MSRP: $156.72You Save: $61.58 (40%)Ships in 1-2 Business DaysChevrolet Trailblazer Oil Pan Part Number: 55509997
$31.27 MSRP: $48.97You Save: $17.70 (37%)Ships in 1-3 Business Days
Chevrolet Trailblazer Oil Pan Part Number: 25204203
$39.80 MSRP: $63.19You Save: $23.39 (38%)Ships in 1-3 Business Days

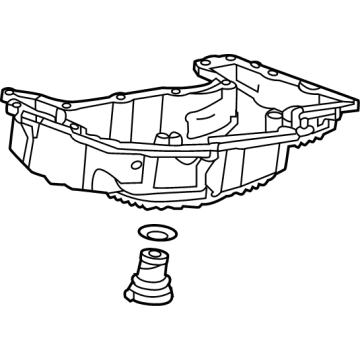

Chevrolet Trailblazer Oil Pan Part Number: 12718806
$33.73 MSRP: $55.57You Save: $21.84 (40%)
Chevrolet Trailblazer Oil Pan Part Number: 12613437
$318.00 MSRP: $523.85You Save: $205.85 (40%)Ships in 1-3 Business Days
Chevrolet Trailblazer Oil Pan Part Number: 24577551
Chevrolet Trailblazer Oil Pan Part Number: 12584321
$221.43 MSRP: $348.26You Save: $126.83 (37%)
Chevrolet Trailblazer Oil Pan
Want to cut long-term maintenance and repair costs? Choose OEM Oil Pan. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Trailblazer parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Trailblazer Oil Pan includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.
Originally used for storing oil, the Oil Pan present in Chevrolet Trailblazer containerised systems hold the necessary amount of oil for maintaining the lubrication and cooling of the engaged parts of a car's engine. Based on the wet sump type, the Oil Pan, receives the oil drawn through the pickup tube by the oil pump and circulates the oil in the engine before it falls to the pan. This design is crucial in order to achieve a high level of performance of the engine under different circumstances. In the past, the Chevrolet Trailblazer Oil Pans were produced by stamping thin steel to provide a shallow bed pan However, employing the latest cast aluminum on the engine is common on many engine models. The above evolution in the choice of materials promotes durability and efficiency. Whereas the essential role is the same, the change from steel to aluminum can be seen as a sign of the increase in the degree of engineering in the production of Chevrolet Trailblazer vehicles, the reliability of the Oil Pan system is fortified.
Chevrolet Trailblazer Oil Pan Parts and Q&A
- Q: How to replace the oil pan on Chevrolet Trailblazer?A:Beginning the Oil Pan replacement requires first removing the A/C Compressor bottom bolts while loosening top bolts (2, 3) followed by removing the oil level indicator and tube. To start the replacement procedure raise the vehicle then remove each wheel assembly followed by removing engine protection shield mounting bolts. Begin by taking out the front steering gear crossmember and the left and right wheel drive shafts and the front drive axle clutch fork assembly. First drain the oil by removing the Oil Pan Drain Plug while also disconnecting the prop shaft from the front axle pinion yoke. Begin by discharging the transmission cooler lines from their position on the engine block then remove all front Differential bolts before setting the Differential component to the side. First remove four bell housing attachment bolts connected to the Oil Pan then uninstall all Oil Pan bolts. Jiggle the Oil Pan with two bolts embedded in jack screws until evenly loose then remove it from the engine block for cleaning. The installation requires a 3 mm (0.12 inch) gm pn 12378521 sealer bead on the block followed by prompt transmission pan installation within ten minutes of bead application. Control the Oil Pan for clearance from the Oil Pump and screen assembly before installing Oil Pan bolts while checking alignment against a straight edge measuring between the block's back surface and Oil Pan transmission mounting surface. Tighten all side bolts of the Oil Pan to 25 nm (18 ft. Lbs.) and end bolts to 10 nm (89 inch lbs.). Reinstall the 4 transmission bell housing bolts while tightening each with a torque of 47 nm (35 ft. Lbs.) then torque the A/C Compressor bottom bolts to 50 nm (37 ft. Lbs.). Bit torque the front Differential bolts to 85 nm (63 ft. Lbs.) while fitting the front drive axle clutch fork assembly before connecting the transmission cooler lines to the block surface. Finished works include front Differential prop shaft installation followed by steering gear crossmember and left and right wheel drive shaft installation. Secure the engine protection shield with bolts at 25 nm (18 ft. Lbs.) then install the left and right front tires before lowering the vehicle to check for oil leaks before performing an oil service. Finish the installation by installing the Oil Pan Drain Plug with a torque of 26 nm (19 ft. Lbs.).
