How to replace the ABS Control Module on Chevrolet SSR?

The first step involves raising the vehicle before beginning ABS Control Module replacement. Disconnect the electrical connectors from the side of the ABS Control Module before opening the electrical connector lock tab on its back using a long flat-bladed screwdriver. The T 25-TORX bit installation process requires clean TORX screw heads because damaged or unremovable T 25-TORX screws necessitate new ABS Control Module and BPMV components. The process to remove the mounting screws begins with using a T 25-TORX bit while ensuring you subject them to only slight pressure which must not involve prying at the ABS Control Module or BPMV. After removal of the ABS Control Module proceed to extract it from its position within the BPMV. The installation process requires fresh mounting screws for the new ABS Control Module since avoidance of all adhesives and other sealing materials on the ABS Control Module gasket and mating area is necessary. The new ABS Control Module must be installed onto the BPMV before installing its four new T-25 TORX screws with a torque of 5 Nm (39 inch lbs.) in an X-pattern sequence. Complete both electrical connector attachments that run along the sides of the ABS Control Module and the one running along the back of the ABS Control Module. Complete the installation by lowering the vehicle then execute the Tire Size Calibration function through the Scan Tool.

OEM Chevrolet SSR ABS Control Module

Anti Lock Brake Control Module

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 ABS Control Modules found

View related parts

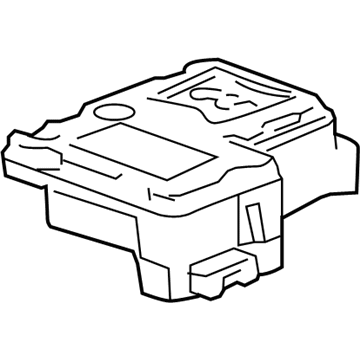

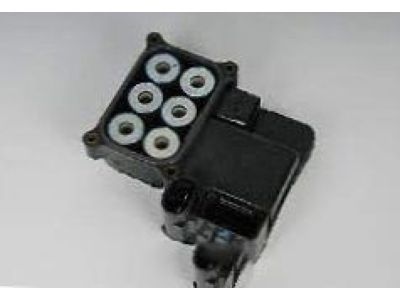

Chevrolet SSR Control Module Part Number: 19245462
Product Specifications
- Other Name: Module, Electronic Brake Control; ABS Control Module
- Replaces: 19301634, 88964244, 15804288
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2006 Chevrolet SSR | Base | 8 Cyl 6.0 L GAS
View related parts
Chevrolet SSR Control Module Part Number: 15804289
Product Specifications
- Other Name: Module, Electronic Brake Control; ABS Control Module
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2006 Chevrolet SSR | Base | 8 Cyl 6.0 L GAS
View related parts
Chevrolet SSR Control Module Part Number: 19299980
Product Specifications
- Other Name: Module, Electronic Brake Control; ABS Control Module
- Replaces: 15264970, 19153570, 89040386, 19301638
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2004 Chevrolet SSR | Base | 8 Cyl 5.3 L GAS
View related parts

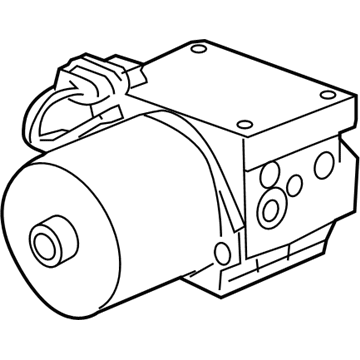

Chevrolet SSR Modulator Valve Part Number: 15804290
Product Specifications
- Other Name: Valve, Electronic Brake Control; ABS Control Module; Valve Assembly
- Replaces: 88964245, 89040387
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2006 Chevrolet SSR | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS

Chevrolet SSR ABS Control Module

Want to cut long-term maintenance and repair costs? Choose OEM ABS Control Module. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet SSR parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet SSR ABS Control Module includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Chevrolet SSR ABS Control Module is a vital party of the anti-lock brake system and the continuously improving Chevrolet SSR automobiles. It has a major function to contribute in the prevention of the wheel locked-up during the hard braking and thus offers control and safety in vehicles. The ABS control module uses advanced wheel speed sensors, it continually monitors wheel's rotation; the brake pressure is regulated by integrated valves and a pump to ensure that the car has optimum traction with the road. The Chevrolet SSR manufactured between 2003 and 2006 has two models and both of the models can experience the advanced functions of the ABS Control Module. For instance, the module has an electronic control unit (ECU) that controls the braking force according to the data, which increases the efficiency as well as safety. It also has units like the Chevrolet SSR ABS Control Module and other features such as electronic stability control and traction control, which help in controlling the manner and distribution of brakes on wheels during skids. Apart from the reduction of stopping distances on different types of the surfaces this innovation underlines the necessity to know how it works. Chevrolet SSR is in its class of its own, which blends a classy look of the car with the muscle to boot and the control module within the car's ABS system is essential for safety as well as performance. Hence, due to its versatility in being used on various SSR models, the Chevrolet SSR ABS Control Module is still to this date an embodiment of durability and power on the roads.

Chevrolet SSR ABS Control Module Parts and Q&A

Control Module
19299980
Q: How to replace the ABS Control Module on Chevrolet SSR?
A:
The first step involves raising the vehicle before beginning ABS Control Module replacement. Disconnect the electrical connectors from the side of the ABS Control Module before opening the electrical connector lock tab on its back using a long flat-bladed screwdriver. The T 25-TORX bit installation process requires clean TORX screw heads because damaged or unremovable T 25-TORX screws necessitate new ABS Control Module and BPMV components. The process to remove the mounting screws begins with using a T 25-TORX bit while ensuring you subject them to only slight pressure which must not involve prying at the ABS Control Module or BPMV. After removal of the ABS Control Module proceed to extract it from its position within the BPMV. The installation process requires fresh mounting screws for the new ABS Control Module since avoidance of all adhesives and other sealing materials on the ABS Control Module gasket and mating area is necessary. The new ABS Control Module must be installed onto the BPMV before installing its four new T-25 TORX screws with a torque of 5 Nm (39 inch lbs.) in an X-pattern sequence. Complete both electrical connector attachments that run along the sides of the ABS Control Module and the one running along the back of the ABS Control Module. Complete the installation by lowering the vehicle then execute the Tire Size Calibration function through the Scan Tool.
