How to replace the front door hinge on Chevrolet Silverado 2500?

Commence front door hinge replacement by first clearing all associated parts followed by removing excess sealer from the present hinge location and writing down the position on the hinge pillar. Scrape away the 100 grit or finer surface of the existing hinge to identify its four door weld locations while marking the weld centers for drilling later. Use a center punch to mark the centers of the four weld marks on the original hinge base while avoiding drill penetration of the door. Drive a 13 mm (1/2 in) rotabroach hole saw through the hinge base to match the punch points. Thoroughly remove the hinge by using a chisel as needed while clearing away all remaining weld material so the service hinge can fit without gaps to the door surface. After fixing any door harm caused by drilling or hinge removal you should clean and prepare both backing plate mounting surfaces with a flat profile fit. Set the service hinge inside the door scribe marks then use center punches to mark each hole position according to the hinge. Drill three center punch holes with a 3mm (1/8 inch) pilot drill starting from the exact drill bit size before moving to the 11.5mm (29/64 inch) hole at these pilot markings. All exposed metal parts need preparation followed by approved anti-corrosion primer coating before applying full-bodied caulk to create a secure boundary across entire hinge mounting surfaces. Use the hinge along with the backing plate to match up with the door holes before tightening bolts to 25 N.m (18 lb ft) tension. The last procedure includes applying the sealers before finishing the metal surfaces according to specifications while reattaching and aligning all functional components.

How to replace the rear door hinge on the body side on Chevrolet Silverado 2500?

The first step to install a new rear door hinge on the body side involves removing every associated panel followed by removing all sealer from around the existing hinge and marking its position on the hinge pillar. A 100 grit or finer sandpaper should lightly sand the existing hinge to reveal its four door welds while you puncture the centers to help with drilling future removal steps. Apply center punches to the four weld marks on the original hinge without penetrating into the hinge pillar material. The hole drilling process requires a 13 mm (1/2 in) rotabroach hole saw to penetrate each punch mark on the hinge structure. After using a chisel to remove the hinge you must clean the pillar surface until it becomes level with the service hinge. Set the service hinge inside scribe marks and mark each stud position on the pillar before drilling pilot holes at the center punch marks. The first drilling step involves using a 3 mm (1/8 in) bit for drilling pilot holes at center punch locations but this needs to be followed by drilling 11.5 mm (29/64 in) holes at these same pilot locations for the studs. The procedure requires preparation of uncoated metal surfaces along with the use of an authorized anti-corrosion primer on these areas. Feed fish wire, GM P/N 15017229, through the hinge, the hinge stud hole, and out of the conduit hole in the pillar. Using the wire end on the stud part GM P/N 15017230 you should position the stud while holding the hinge's hole and removing the fish wire. After fitting the pillar with supplied nut GM P/N 11516746 draw the stud tight through each pillar hole before proceeding with other stud installments. Remove each of the service nuts before applying full-bodied caulk to the entire mounting surface of the hinge. Reinstall the pillar-mounted hinge by using the supplied nuts but tighten them to 25 N.m (18 lb ft). First clean all necessary surfaces before sealant application for refinishing purposes after which surfaces need finishing before reinstalling components and lining up their related panels.

OEM Chevrolet Silverado 2500 Door Hinge

Interior Door Hinge

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

22 Door Hinges found

View related parts
Chevrolet Silverado 2500 Hinge, Passenger Side Part Number: 12472846
$264.57 MSRP: $395.55
You Save: $130.98 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hinge Kit, Door Hinge; Door Hinge
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2004 Chevrolet Silverado 2500 | Base, LS, LT, WT | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Silverado 2500 Lower Hinge, Front Part Number: 19354132
$157.07 MSRP: $245.85
You Save: $88.78 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hinge Kit, Front Side Door (Body Side); Door Hinge; Upper Hinge; Hinge; Hinge Kit, Door Hinge
- Position: Front
- Replaces: 12476447, 12477887, 12472841
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2004 Chevrolet Silverado 2500 | Base, LS, LT, WT | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Silverado 2500 Lower Hinge, Driver Side Part Number: 12472843
$64.29 MSRP: $92.79
You Save: $28.50 (31%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hinge Kit, Door Hinge; Upper Hinge; Hinge; Door Hinge
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2004 Chevrolet Silverado 2500 | Base, LS, LT, WT | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
View related parts

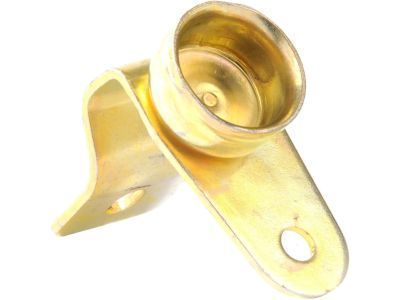

Chevrolet Silverado 2500 Hinge, Driver Side Part Number: 15074253
$45.24 MSRP: $67.33
You Save: $22.09 (33%)
ADD TO CART
Product Specifications
- Other Name: Door Hinge; Hinge, End Gate Closing
- Position: Driver Side
- Replaces: 15756842
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2004 Chevrolet Silverado 2500 | Base, LS, LT, WT | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
View related parts

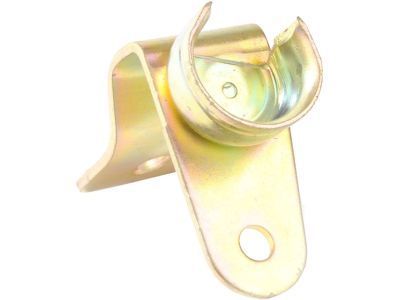

Chevrolet Silverado 2500 Hinge, Passenger Side Part Number: 15074252
$45.24 MSRP: $67.33
You Save: $22.09 (33%)
ADD TO CART
Product Specifications
- Other Name: Door Hinge; Hinge, End Gate Closing
- Position: Passenger Side
- Replaces: 15051750, 15051752, 15032976, 15711264, 15756848
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2004 Chevrolet Silverado 2500 | Base, LS, LT, WT | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Silverado 2500 Hinge, Driver Side Part Number: 15078745
$51.69 MSRP: $76.93
You Save: $25.24 (33%)
ADD TO CART
Product Specifications
- Other Name: Hinge, End Gate Closing; Door Hinge
- Position: Driver Side
- Replaces: 15711263, 15756845, 15051751, 15051753, 15032975
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2004 Chevrolet Silverado 2500 | Base, LS, LT, WT | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Silverado 2500 Hinge, Driver Side Part Number: 12476259
$186.60 MSRP: $269.32
You Save: $82.72 (31%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hinge Kit, Door Hinge; Door Hinge
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2004 Chevrolet Silverado 2500 | Base, LS, LT, WT | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Silverado 2500 Hinge Assembly, Passenger Side Part Number: 12476452
$222.71 MSRP: $332.97
You Save: $110.26 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hinge Kit, Door Hinge; Hinge; Door Hinge
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2004 Chevrolet Silverado 2500 | Base, LS, LT, WT | 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Silverado 2500 Lower Hinge, Front Part Number: 19354133
$161.30 MSRP: $252.48
You Save: $91.18 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hinge Kit, Front Side Door (Body Side); Door Hinge; Upper Hinge; Hinge; Hinge Kit, Door Hinge
- Position: Front
- Replaces: 12476448, 12477888, 12472842
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2004 Chevrolet Silverado 2500 | Base, LS, LT, WT | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Silverado 2500 Hinge Assembly, Rear Driver Side Part Number: 19354130
$152.76 MSRP: $239.11
You Save: $86.35 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hinge Kit, Rear Side Door (Body Side); Door Hinge; Hinge; Hinge Kit, Door Hinge
- Position: Rear Driver Side
- Replaces: 12476449
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2004 Chevrolet Silverado 2500 | Base, LS, LT, WT | 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Silverado 2500 Upper Hinge, Passenger Side Part Number: 12472844
$93.05 MSRP: $179.03
You Save: $85.98 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hinge Kit, Door Hinge; Lower Hinge; Hinge; Door Hinge
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2004 Chevrolet Silverado 2500 | Base, LS, LT, WT | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
View related parts

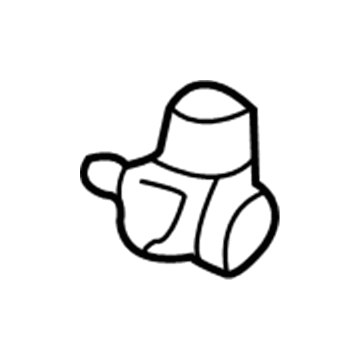

Chevrolet Silverado 2500 Hinge, Passenger Side Part Number: 15032976
$43.09 MSRP: $64.13
You Save: $21.04 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Door Hinge
- Position: Passenger Side
- Replaced by: 15074252
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999 Chevrolet Silverado 2500 | Base, LS, LT | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Silverado 2500 Hinge, Driver Side Part Number: 15711263
$49.22 MSRP: $73.26
You Save: $24.04 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Door Hinge
- Position: Driver Side
- Replaced by: 15078745
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999 Chevrolet Silverado 2500 | Base, LS, LT | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Silverado 2500 Hinge, Passenger Side Part Number: 15711264
$43.09 MSRP: $64.13
You Save: $21.04 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Door Hinge
- Position: Passenger Side
- Replaced by: 15074252
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999 Chevrolet Silverado 2500 | Base, LS, LT | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Silverado 2500 Hinge, Driver Side Part Number: 15032975
$49.22 MSRP: $73.26
You Save: $24.04 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Door Hinge
- Position: Driver Side
- Replaced by: 15078745
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999 Chevrolet Silverado 2500 | Base, LS, LT | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Silverado 2500 Hinge, Rear Driver Side Part Number: 19354129
$81.14 MSRP: $120.77
You Save: $39.63 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hinge Kit, Rear Side Door (Body Side); Door Hinge; Hinge Kit, Door Hinge
- Position: Rear Driver Side
- Replaces: 12476249
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2004 Chevrolet Silverado 2500 | Base, LS, LT, WT | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Silverado 2500 Hinge, Rear Passenger Side Part Number: 19353936
$42.27 MSRP: $62.91
You Save: $20.64 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hinge Kit, Rear Side Door (Body Side); Hinge Kit, Door Hinge
- Position: Rear Passenger Side
- Replaces: 12472840
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2004 Chevrolet Silverado 2500 | Base, LS, LT, WT | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
View related parts

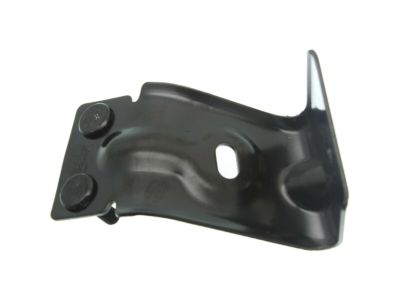

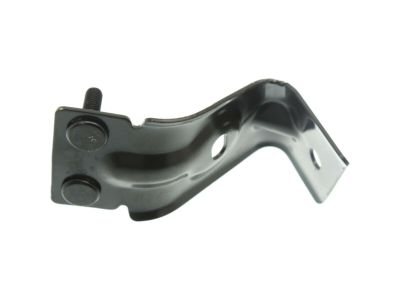

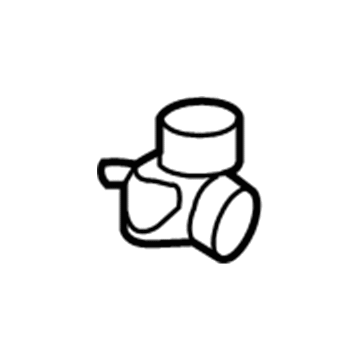

Chevrolet Silverado 2500 Hinge, Driver Side Part Number: 15757891
Product Specifications
- Other Name: Door Hinge; Hinge, End Gate Closing
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2004 Chevrolet Silverado 2500 | Base, LS, LT, WT | 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Silverado 2500 Hinge Assembly, Driver Side Part Number: 12476451
$160.60 MSRP: $240.11
You Save: $79.51 (34%)
Product Specifications
- Other Name: Hinge Kit, Door Hinge; Hinge; Door Hinge
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2004 Chevrolet Silverado 2500 | Base, LS, LT, WT | 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Silverado 2500 Hinge Assembly, Rear Passenger Side Part Number: 19354131
$183.76 MSRP: $274.74
You Save: $90.98 (34%)
Product Specifications
- Other Name: Hinge Kit, Rear Side Door (Body Side); Door Hinge; Hinge; Hinge Kit, Door Hinge
- Position: Rear Passenger Side
- Replaces: 12476450
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2004 Chevrolet Silverado 2500 | Base, LS, LT, WT | 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS

| Page 1 of 2 |Next >

1-20 of 22 Results

Chevrolet Silverado 2500 Door Hinge

Want to cut long-term maintenance and repair costs? Choose OEM Door Hinge. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Silverado 2500 parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Silverado 2500 Door Hinge includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Chevrolet Silverado 2500 Door Hinge Parts and Q&A

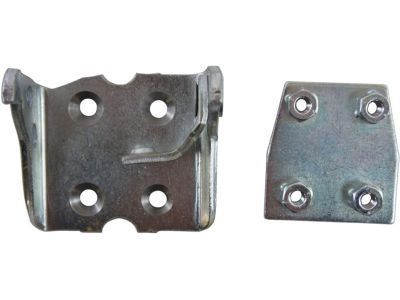

Lower Hinge, Driver Side
12472843
Q: How to replace the front door hinge on Chevrolet Silverado 2500?
A:
Commence front door hinge replacement by first clearing all associated parts followed by removing excess sealer from the present hinge location and writing down the position on the hinge pillar. Scrape away the 100 grit or finer surface of the existing hinge to identify its four door weld locations while marking the weld centers for drilling later. Use a center punch to mark the centers of the four weld marks on the original hinge base while avoiding drill penetration of the door. Drive a 13 mm (1/2 in) rotabroach hole saw through the hinge base to match the punch points. Thoroughly remove the hinge by using a chisel as needed while clearing away all remaining weld material so the service hinge can fit without gaps to the door surface. After fixing any door harm caused by drilling or hinge removal you should clean and prepare both backing plate mounting surfaces with a flat profile fit. Set the service hinge inside the door scribe marks then use center punches to mark each hole position according to the hinge. Drill three center punch holes with a 3mm (1/8 inch) pilot drill starting from the exact drill bit size before moving to the 11.5mm (29/64 inch) hole at these pilot markings. All exposed metal parts need preparation followed by approved anti-corrosion primer coating before applying full-bodied caulk to create a secure boundary across entire hinge mounting surfaces. Use the hinge along with the backing plate to match up with the door holes before tightening bolts to 25 N.m (18 lb ft) tension. The last procedure includes applying the sealers before finishing the metal surfaces according to specifications while reattaching and aligning all functional components.
Hinge, Passenger Side
12472846
Q: How to replace the rear door hinge on the body side on Chevrolet Silverado 2500?
A:
The first step to install a new rear door hinge on the body side involves removing every associated panel followed by removing all sealer from around the existing hinge and marking its position on the hinge pillar. A 100 grit or finer sandpaper should lightly sand the existing hinge to reveal its four door welds while you puncture the centers to help with drilling future removal steps. Apply center punches to the four weld marks on the original hinge without penetrating into the hinge pillar material. The hole drilling process requires a 13 mm (1/2 in) rotabroach hole saw to penetrate each punch mark on the hinge structure. After using a chisel to remove the hinge you must clean the pillar surface until it becomes level with the service hinge. Set the service hinge inside scribe marks and mark each stud position on the pillar before drilling pilot holes at the center punch marks. The first drilling step involves using a 3 mm (1/8 in) bit for drilling pilot holes at center punch locations but this needs to be followed by drilling 11.5 mm (29/64 in) holes at these same pilot locations for the studs. The procedure requires preparation of uncoated metal surfaces along with the use of an authorized anti-corrosion primer on these areas. Feed fish wire, GM P/N 15017229, through the hinge, the hinge stud hole, and out of the conduit hole in the pillar. Using the wire end on the stud part GM P/N 15017230 you should position the stud while holding the hinge's hole and removing the fish wire. After fitting the pillar with supplied nut GM P/N 11516746 draw the stud tight through each pillar hole before proceeding with other stud installments. Remove each of the service nuts before applying full-bodied caulk to the entire mounting surface of the hinge. Reinstall the pillar-mounted hinge by using the supplied nuts but tighten them to 25 N.m (18 lb ft). First clean all necessary surfaces before sealant application for refinishing purposes after which surfaces need finishing before reinstalling components and lining up their related panels.
