How to service the Throttle Position Sensor on Chevrolet S10?

You should remove the Throttle Body before extracting mounting screws from the throttle position (TP) sensor while being careful to keep the tp sensor dry from any liquid cleaner or solvent. Extract the tp sensor from the Throttle Body assembly. Place the tp sensor above the throttle shaft while matching the tp mounting holes to the Throttle Body assembly holes. The attaching screw threads require cleaning before applying thread locking material gm p/n 1052624 or equivalent because the screws have thread locking adhesive already applied. We must install the tp sensor mounting screws after tightening them to 2 n.m with an 18 lb in torque setting. Reconnect the Throttle Body afterwards and join the tp sensor harness connector.

How to replace the Throttle Position Sensor on Chevrolet S10?

Throttle position (TP) sensor replacement starts by removing the Throttle Body and afterwards uninstalling the mounting screws from the tp sensor while protecting the sensor from cleanser liquid and solvents to prevent damage. You should disconnect the tp sensor from the Throttle Body assembly. You should begin by placing the tp sensor over the throttle shaft and make sure its mounting holes match the Throttle Body assembly holes. Before installing the tp sensor you must clean its screw threads then apply gm p/n 1052624 thread locking material or an equivalent product because the attaching screws have thread locking adhesive already applied. Mount the tp sensor using screws which should be tightened at 2 n.m (18 lb in). The final step includes installing the Throttle Body followed by connecting the tp sensor harness connector.

OEM Chevrolet S10 Throttle Position Sensor

TPS Switch

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Throttle Position Sensors found

View related parts
Chevrolet S10 Throttle Position Sensor Part Number: 17113578
$46.58 MSRP: $84.30
You Save: $37.72 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Multi Portion Fuel Injection Throttle Position
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2000 Chevrolet S10 | Base, LS, Xtreme | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS
View related parts
Chevrolet S10 Throttle Position Sensor Part Number: 17106681
$46.66 MSRP: $94.76
You Save: $48.10 (51%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Multi Portion Fuel Injection Throttle Position; Sensor Kit, Multi Portion Fuel Injection Throttle Position; Throttle Body Sensors; Computer Control Sensors
- Replaces: 17112404, 17112679, 17087653
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-1997 Chevrolet S10 | Base, LS | 4 Cyl 2.2 L GAS
View related parts
Chevrolet S10 Throttle Position Sensor Part Number: 17078051
$21.93 MSRP: $68.42
You Save: $46.49 (68%)
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1985 Chevrolet S10 | Base, Durango, Sport, Tahoe | 6 Cyl 2.8 L GAS
View related parts
Chevrolet S10 Throttle Position Sensor Part Number: 17113625
$45.60 MSRP: $85.65
You Save: $40.05 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly, Throttle Position; Sensor, Multi Portion Fuel Injection Throttle Position
- Replaces: 25319901
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2003 Chevrolet S10 | Base, LS, Xtreme | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS
View related parts
Chevrolet S10 Throttle Position Sensor Part Number: 17123852
Product Specifications
- Other Name: Sensor, Multi Portion Fuel Injection Throttle Position
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2004 Chevrolet S10 | Base, LS, SS, Xtreme, ZR2, ZR5 | 6 Cyl 4.3 L GAS
View related parts

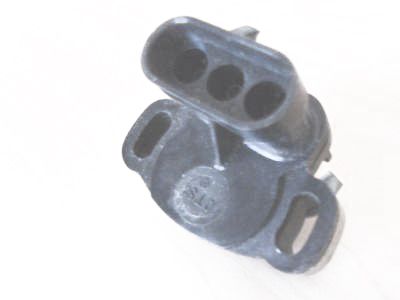

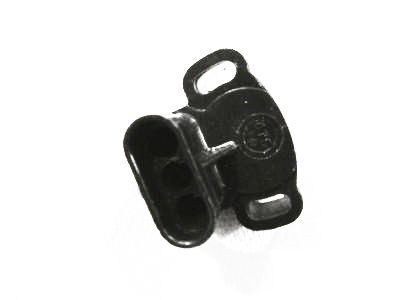

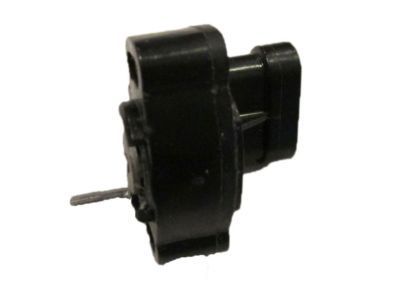

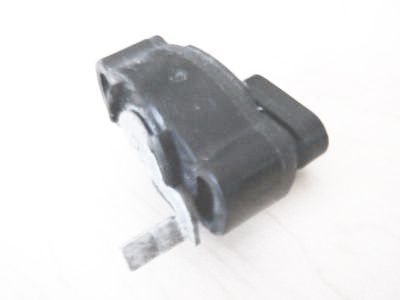

Chevrolet S10 Throttle Position Sensor Part Number: 17111725
Product Specifications
- Other Name: Sensor Kit, Multi Portion Fuel Injection Throttle Position
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1986-1991 Chevrolet S10 | Baja, Base, Durango, Sport, Tahoe | 6 Cyl 2.8 L GAS
View related parts
Chevrolet S10 Throttle Position Sensor Part Number: 17111471
Product Specifications
- Other Name: Sensor Kit, Multi Portion Fuel Injection Throttle Position; Sensor Kit, Throttle Body Throttle Position
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1988-1991 Chevrolet S10 | Baja, Base, Durango, Sport, Tahoe | 6 Cyl 4.3 L GAS
View related parts
Chevrolet S10 Throttle Position Sensor Part Number: 17106680
Product Specifications
- Other Name: Sensor, Multi Portion Fuel Injection Throttle Position; Sensor, Computer Control Sensors
- Replaces: 17087655, 17083333
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-1995 Chevrolet S10 | Base, EL, LS, SS, Tahoe, ZR2 | 6 Cyl 4.3 L GAS
View related parts
Chevrolet S10 Throttle Position Sensor Part Number: 17078274
Product Specifications
- Other Name: Sensor Kit, Multi Portion Fuel Injection Throttle Position; Throttle Sensor
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-1986 Chevrolet S10 | Base, Durango, Sport, Tahoe | 4 Cyl 2.5 L GAS

Chevrolet S10 Throttle Position Sensor

Want to cut long-term maintenance and repair costs? Choose OEM Throttle Position Sensor. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet S10 parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet S10 Throttle Position Sensor includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Throttle Position Sensor or TPS in Chevrolet S10 is an essential feature in the fuel management system that has the responsibility of monitoring the position of the throttle in relation to the air inflow into the vehicle in order to produce signals to alter the ratio of fuel and air that will be combustive for efficient functionality. In the electronic throttle control systems, the TPS transmits signals to the computer of the engine to control the position of the throttle. Various categories of TPS including the Closed Throttle Position Sensor (CTPS) guarantee the provision of correct readings, current Sensors, in this case, use Hall effect that do not come into contact with the motor. It is crucial to identify any problems with TPS and fix it as soon as possible so that the efficiency of the fuel is not reduced and performance of the car is not affected.

Chevrolet S10 Throttle Position Sensor Parts and Q&A

Throttle Position Sensor
17113625
Q: How to service the Throttle Position Sensor on Chevrolet S10?
A:
You should remove the Throttle Body before extracting mounting screws from the throttle position (TP) sensor while being careful to keep the tp sensor dry from any liquid cleaner or solvent. Extract the tp sensor from the Throttle Body assembly. Place the tp sensor above the throttle shaft while matching the tp mounting holes to the Throttle Body assembly holes. The attaching screw threads require cleaning before applying thread locking material gm p/n 1052624 or equivalent because the screws have thread locking adhesive already applied. We must install the tp sensor mounting screws after tightening them to 2 n.m with an 18 lb in torque setting. Reconnect the Throttle Body afterwards and join the tp sensor harness connector.
Throttle Position Sensor
17123852
Q: How to replace the Throttle Position Sensor on Chevrolet S10?
A:
Throttle position (TP) sensor replacement starts by removing the Throttle Body and afterwards uninstalling the mounting screws from the tp sensor while protecting the sensor from cleanser liquid and solvents to prevent damage. You should disconnect the tp sensor from the Throttle Body assembly. You should begin by placing the tp sensor over the throttle shaft and make sure its mounting holes match the Throttle Body assembly holes. Before installing the tp sensor you must clean its screw threads then apply gm p/n 1052624 thread locking material or an equivalent product because the attaching screws have thread locking adhesive already applied. Mount the tp sensor using screws which should be tightened at 2 n.m (18 lb in). The final step includes installing the Throttle Body followed by connecting the tp sensor harness connector.
