How to Service and Repair the Throttle Body on a Chevrolet S10?

To remove the Throttle Body assembly, first download the negative Battery Cable followed by the removal of air cleaner outlet duct and study the air cleaner adapter. Remove the cruise control cable and the accelerator cable from the Throttle Body, after which remove the nuts that hold the accelerator routing bracket in place and set it aside. Finally, take off the stud and nuts holding the accelerator control cable bracket and place it away also. Disconnect both the idle air control (IAC) valve harness connector and the throttle position (TP) sensor harness connector, remove Throttle Body retaining studs, and Throttle Body assembly, then eliminate Throttle Body seal. Clean the seal surface on the Intake Manifold and then fit the Throttle Body assembly with a new seal and fix in with the tightening of the retaining studs to 9 n.m (80 lb in). Mount the accelerator control cable bracket to the mounting stud and nuts using a torque of 12 n.m (106 lb in), and the accelerator cable routing bracket nuts using torque of 9 n.m goo ft lbs in). Connect the accelerator cable and check there is no jamming in the accelerator pedal, then attach cruise control cable. Connect the tp sensor and iac valve harness connectors, install the air cleaner adapter stud and tighten it to 8 n.m (71 lb in) and install the air cleaner outlet duct. To check the acceleration pedal movement, activate the ignition while the engine is off, and apply a scan tool to monitor the tp sensor parameter, step on the accelerator pedal to the floor, release it, and ensure that the throttle position should move from 0-100 percent to 0 percent confirming that the accelerator pedal should be free from binding between the closed and the wide open throttle (WOT).

OEM Chevrolet S10 Throttle Body

Fuel Injection Throttle Body

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

18 Throttle Bodies found

View related parts
Chevrolet S10 Throttle Body Part Number: 17113530
Product Specifications
- Other Name: Body, Fuel Injection Air Meter
- Replaces: 17113334
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-1999 Chevrolet S10 | Base, LS, SS, Xtreme, ZR2 | 6 Cyl 4.3 L GAS
View related parts
Chevrolet S10 Throttle Body Part Number: 17110769
Product Specifications
- Other Name: Body Kit, TBI Throttle; Overhaul Kit; Body Kit, Throttle Body/Carburetor
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985 Chevrolet S10 | Base, Durango, Sport, Tahoe | 4 Cyl 2.5 L GAS
View related parts
Chevrolet S10 Throttle Body Part Number: 17113656
Product Specifications
- Other Name: Body, Fuel Injection Air Meter
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000 Chevrolet S10 | Base, LS, Xtreme, ZR2 | 6 Cyl 4.3 L GAS
View related parts
Chevrolet S10 Throttle Body Part Number: 17112228
Product Specifications
- Other Name: Injector Assembly, Throttle Body; Injector, Fuel
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991 Chevrolet S10 | Baja, Base, Tahoe | 6 Cyl 2.8 L GAS
View related parts
Chevrolet S10 Throttle Body Part Number: 17112083
Product Specifications
- Other Name: Injector, Fuel
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-1993 Chevrolet S10 | Base, EL, Tahoe | 4 Cyl 2.5 L GAS
View related parts
Chevrolet S10 Throttle Body Part Number: 17112042
Product Specifications
- Other Name: Throttle Body Injection; Injector, Fuel
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991 Chevrolet S10 | Baja, Base, Tahoe | 6 Cyl 4.3 L GAS
View related parts
Chevrolet S10 Throttle Body Part Number: 17111756
Product Specifications
- Replaced by: 17111511
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1987-1989 Chevrolet S10 | Base, Durango, Sport, Tahoe | 6 Cyl 2.8 L GAS
View related parts
Chevrolet S10 Throttle Body Part Number: 17111511
Product Specifications
- Replaces: 17111756
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1986-1989 Chevrolet S10 | Base, Durango, Sport, Tahoe | 6 Cyl 2.8 L GAS
View related parts
Chevrolet S10 Fuel Pressure Regulator Part Number: 17111466
Product Specifications
- Other Name: Meter Kit, Throttle Body/Carburetor; Fuel Meter Assembly; Fuel Meter Kit, Throttle Body/Carburetor
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1988-1991 Chevrolet S10 | Baja, Base, Durango, Sport, Tahoe | 6 Cyl 4.3 L GAS
View related parts

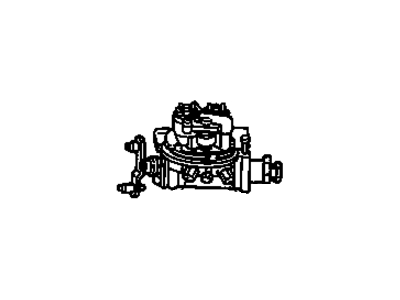

Chevrolet S10 Throttle Body Part Number: 17091037
Product Specifications
- Other Name: Injector, Throttle Body Injection; Injector, Fuel
- Replaces: 17112500
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-1993 Chevrolet S10 | Base, EL, Tahoe | 6 Cyl 2.8 L GAS
View related parts
Chevrolet S10 Throttle Body Part Number: 17113620
Product Specifications
- Other Name: Body, Fuel Injection Air Meter
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2001 Chevrolet S10 | Base, LS, Xtreme | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS
View related parts
Chevrolet S10 Throttle Body Part Number: 17113585
Product Specifications
- Other Name: Body, Fuel Injection Air Meter
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000 Chevrolet S10 | Base, LS, Xtreme | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS
View related parts
Chevrolet S10 Throttle Body Part Number: 17113348
Product Specifications
- Other Name: Body, Fuel Injection Air Meter
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-1999 Chevrolet S10 | Base, LS, Xtreme | 4 Cyl 2.2 L GAS
View related parts
Chevrolet S10 Throttle Body Part Number: 17112230
Product Specifications
- Other Name: Body Kit, Throttle Body/Carburetor
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1990 Chevrolet S10 | Base, Durango, Tahoe | 6 Cyl 2.8 L GAS
View related parts
Chevrolet S10 Throttle Body Part Number: 17112043
Product Specifications
- Other Name: Gasket Kit; Body Kit, Throttle Body/Carburetor
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1988-1990 Chevrolet S10 | Base, Durango, Sport, Tahoe | 6 Cyl 4.3 L GAS
View related parts
Chevrolet S10 Throttle Body Part Number: 17111913
Product Specifications
- Other Name: Gasket Kit; Body Kit, Throttle Body/Carburetor
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1987-1990 Chevrolet S10 | Base, Durango, Sport, Tahoe | 4 Cyl 2.5 L GAS
View related parts
Chevrolet S10 Throttle Body Part Number: 17096175
Product Specifications
- Other Name: Body, Fuel Injection Air Meter
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-1997 Chevrolet S10 | Base, LS, SS, ZR2 | 6 Cyl 4.3 L GAS
View related parts
Chevrolet S10 Throttle Body Part Number: 12595276
Product Specifications
- Other Name: Body, Fuel Injection Air Meter
- Replaces: 17113650, 88894295
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2004 Chevrolet S10 | Base, LS, Xtreme, ZR2, ZR5 | 6 Cyl 4.3 L GAS

Chevrolet S10 Throttle Body

Want to cut long-term maintenance and repair costs? Choose OEM Throttle Body. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet S10 parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet S10 Throttle Body includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Throttle Body is an important unit of the fuel injection and is popular owing to its effectiveness in different S10 models of Chevrolet. This essential part help to control the amount of air supplied to the engine, this depends on the position of a butterfly valve, which opens when the accelerator is pressed, thus increasing the efficiency of the engine. Chevrolet S10 has had throttle body styles from the Throttle Body Injection (TBI) and the complex multi-port fuel injection systems that improve the performance of the automobile. Incorporation of other sensors the Throttle Position Sensor (TPS), Idle Air Control (IAC) valve has also added to the efficiency of the Throttle Body in relation to supply of fuel and sensitivity. The shifting from a traditional throttle to the ECT has helped in improving the fuel efficiency and safety through integration of the system with the car's safety features. Moreover, this Throttle Body is compatible with a lot of S10 series, which is suitable for drivers who want to increase performance and safety of vehicles. It explains the way Chevrolet has provided this vehicle's design and engineering to guarantee market reliability of S10. Even to this date, the S10 throttle body gives this beast an edge in power, flexibility, and ergonomic comfort, which makes it a go-to vehicle for normal and hectic use.

Chevrolet S10 Throttle Body Parts and Q&A

Throttle Body
12595276
Q: How to Service and Repair the Throttle Body on a Chevrolet S10?
A:
To remove the Throttle Body assembly, first download the negative Battery Cable followed by the removal of air cleaner outlet duct and study the air cleaner adapter. Remove the cruise control cable and the accelerator cable from the Throttle Body, after which remove the nuts that hold the accelerator routing bracket in place and set it aside. Finally, take off the stud and nuts holding the accelerator control cable bracket and place it away also. Disconnect both the idle air control (IAC) valve harness connector and the throttle position (TP) sensor harness connector, remove Throttle Body retaining studs, and Throttle Body assembly, then eliminate Throttle Body seal. Clean the seal surface on the Intake Manifold and then fit the Throttle Body assembly with a new seal and fix in with the tightening of the retaining studs to 9 n.m (80 lb in). Mount the accelerator control cable bracket to the mounting stud and nuts using a torque of 12 n.m (106 lb in), and the accelerator cable routing bracket nuts using torque of 9 n.m goo ft lbs in). Connect the accelerator cable and check there is no jamming in the accelerator pedal, then attach cruise control cable. Connect the tp sensor and iac valve harness connectors, install the air cleaner adapter stud and tighten it to 8 n.m (71 lb in) and install the air cleaner outlet duct. To check the acceleration pedal movement, activate the ignition while the engine is off, and apply a scan tool to monitor the tp sensor parameter, step on the accelerator pedal to the floor, release it, and ensure that the throttle position should move from 0-100 percent to 0 percent confirming that the accelerator pedal should be free from binding between the closed and the wide open throttle (WOT).
