How to Service and Repair Spark Plug Wires on Chevrolet Monte Carlo?

Offset repairing or servicing the Spark Plug wires you must make sure the Ignition Switch stands in an off position. Start by taking out the fuel injector sight shield. Start by marking the positions of wires (2,4,6) leading to the rear spark plugs before using the j38491 Spark Plug heat shield removal tool to gently lift the heat shield. The wire boots can be released from the spark plugs by twisting them 1/2 turn counterclockwise. The same procedure should be followed for the Spark Plug wires at the engine front where they position numbers 1, 3 and 5. The next step involves pulling Spark Plug wires from ignition coils and extracting retaining clips from engine points at the rear, front and top. During Spark Plug wire replacement move all elements including boot heat shields and Spark Plug wire conduit and retaining clips. Begin installation by directing Spark Plug wire(s) to the proper engine locations then install retaining clips before connecting wires to ignition coils and finally position wires (1,3,5) to front spark plugs while wires (2,4,6) lead to rear spark plugs. Reinstall the fuel injector sight shield.

How to replace the Spark Plug Wires on Chevrolet Monte Carlo?

To replace the ignition cable, twist the ignition cable boot for one-half turn to disengage and pull only on the boot to prevent damage to the wire. Take the ignition cables 2, 4, and 6 out of the left side spark plugs of the engine, and remove them out of the holding clips as well. Next, unplug cables 1, 3, and 5 from the right side spark plugs and their respective retaining clips. Next, remove the ignition cables from the ignition coils and ultimately from the engine. If new ignition cables are to be installed, move the ignition cable conduit and retaining clips. For installation, initially connect the ignition cables to the engine then you can connect the coils to the ignition coils. Next replace the ignition cables 1, 3 and 5 on to the right side spark plugs and fasten with the clinching clip. Lastly, attach the ignition cables 2, 4, and 6 to the left side spark plugs and attach them to the retaining clips.

OEM Chevrolet Monte Carlo Spark Plug Wires

Spark Plug Ignition Wires

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

13 Spark Plug Wires found

View related parts
Chevrolet Monte Carlo Spark Plug Shield Part Number: 19329681
$6.85 MSRP: $12.86
You Save: $6.01 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shield, Spark Plug Wire; Plug Wire Shield; Shield; Shield, Spark Plug Ignition Wire; Wire, Spark Plug Or Coil
- Replaces: 12045580, 15336959, 12132258
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2005 Chevrolet Monte Carlo | LS, LS Competition, LS Sport, LT, SS, SS 35th Anniversary Edition, SS Dale Earnhardt Signature Edition, SS High Sport, SS Pace Car | 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
View related parts
Chevrolet Monte Carlo Cable Set Part Number: 19417604
$60.18 MSRP: $131.39
You Save: $71.21 (55%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Wire Kit, Spark Plug; Spark Plug Wire; Plug Wire Set; Wire Kit, Spark Or Glow Plug Ignition
- Replaces: 12192454, 12192191, 12192468
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2005 Chevrolet Monte Carlo | LT, SS, SS 35th Anniversary Edition, SS Dale Earnhardt Signature Edition, SS High Sport, SS Pace Car | 6 Cyl 3.8 L GAS
View related parts
Chevrolet Monte Carlo Wire Connector Part Number: 12579355
$115.03 MSRP: $248.98
You Save: $133.95 (54%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Wire Assembly-Ignition Coil; Wire Harness; Plug Wire; Harness; Wire; Wire, Spark Plug Or Coil
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2007 Chevrolet Monte Carlo | SS | 8 Cyl 5.3 L GAS
View related parts

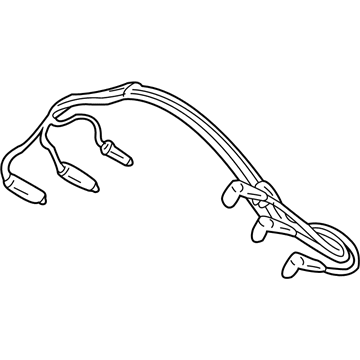

Chevrolet Monte Carlo Cable Set Part Number: 19170842
$28.93 MSRP: $90.27
You Save: $61.34 (68%)
ADD TO CART
Product Specifications
- Other Name: Wire Kit, Spark Plug; Spark Plug Wire; Plug Wire Set; Wire Kit, Spark Or Glow Plug Ignition
- Replaces: 12192285
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000 Chevrolet Monte Carlo | LS | 6 Cyl 3.4 L GAS
View related parts
Chevrolet Monte Carlo Cable Set Part Number: 19171850
$39.54 MSRP: $74.26
You Save: $34.72 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Wire Kit, Spark Plug; Spark Plug Wire; Plug Wire Set; Wire Kit, Spark Or Glow Plug Ignition
- Replaces: 12173543, 12192153
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-1999 Chevrolet Monte Carlo | LS, Z34 | 6 Cyl 3.8 L GAS
View related parts
Chevrolet Monte Carlo Cable Set Part Number: 19417612
$98.16 MSRP: $214.32
You Save: $116.16 (55%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Wire Kit, Spark Plug; Spark Plug Wire; Plug Wire Set; Wire Kit, Spark Or Glow Plug Ignition
- Replaces: 89018058, 19351593
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007 Chevrolet Monte Carlo | SS | 8 Cyl 5.3 L GAS
View related parts
Chevrolet Monte Carlo Cable Set Part Number: 19417611
$92.34 MSRP: $201.62
You Save: $109.28 (55%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Wire Kit, Spark Plug; Spark Plug Wire; Plug Wire Set; Wire Kit, Spark Or Glow Plug Ignition
- Replaces: 89017743, 19351586
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2007 Chevrolet Monte Carlo | LS, LT, LTZ | 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.9 L GAS
View related parts
Chevrolet Monte Carlo Cable Set Part Number: 19170849
$54.97 MSRP: $118.98
You Save: $64.01 (54%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Wire Kit, Spark Plug; Spark Plug Wire; Plug Wire Set; Wire Kit, Spark Or Glow Plug Ignition
- Replaces: 12192069
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1997-1999 Chevrolet Monte Carlo | LS | 6 Cyl 3.1 L GAS
View related parts
Chevrolet Monte Carlo Cable Set Part Number: 12192462
$60.11 MSRP: $131.24
You Save: $71.13 (55%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Wire Kit, Spark Plug; Spark Plug Wire; Plug Wire Set; Wire Kit, Spark Or Glow Plug Ignition
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2005 Chevrolet Monte Carlo | LS, LS Competition, LS Sport | 6 Cyl 3.4 L GAS
View related parts
Chevrolet Monte Carlo Cable Set Part Number: 19170848
Product Specifications
- Other Name: Wire Kit, Spark Plug; Spark Plug Wire; Plug Wire Set; Wire Kit, Spark Or Glow Plug Ignition
- Replaces: 12173542, 12192079
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996 Chevrolet Monte Carlo | LS | 6 Cyl 3.1 L GAS
View related parts
Chevrolet Monte Carlo Cable Set Part Number: 19170846
Product Specifications
- Other Name: Wire Kit, Spark Plug; Spark Plug Wire; Plug Wire Set; Wire Kit, Spark Or Glow Plug Ignition
- Replaces: 12096449
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995 Chevrolet Monte Carlo | LS | 6 Cyl 3.1 L GAS
View related parts

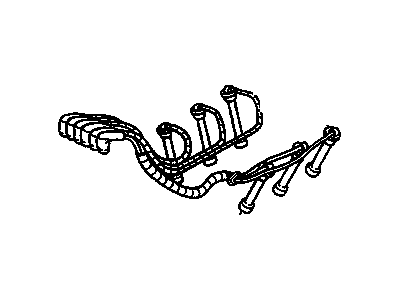

Chevrolet Monte Carlo Cable Set Part Number: 12192375
Product Specifications
- Other Name: Wire Kit, Spark Plug; Spark Plug Wire; Plug Wire Set; Wire Kit, Spark Or Glow Plug Ignition
- Replaces: 12173561
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-1997 Chevrolet Monte Carlo | Z34 | 6 Cyl 3.4 L GAS
View related parts

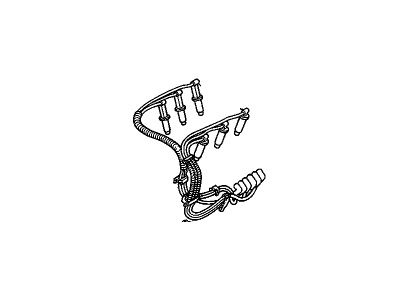

Chevrolet Monte Carlo Cable Set Part Number: 12096438
Product Specifications
- Other Name: Wire Kit, Spark Plug; Spark Plug Wire; Plug Wire Set; Wire Kit, Spark Or Glow Plug Ignition
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995 Chevrolet Monte Carlo | Z34 | 6 Cyl 3.4 L GAS

Chevrolet Monte Carlo Spark Plug Wires

Want to cut long-term maintenance and repair costs? Choose OEM Spark Plug Wires. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Monte Carlo parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Monte Carlo Spark Plug Wires includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Spark Plug Wires in Chevrolet Monte Carlo is one of the most important parts in car's ignition system as it delivers high voltage from the ignition coil to spark plugs to start the engine. These wires, termed high tension leads, are built with conducting material that has heavy outer coating which is flexible and heat proof to avoid arcing. They are accurately formed to length, and have metallic end rings for effective joints. From the earlier model to the most recent models of Chevrolet Monte Carlo Series, Spark Plug Wires varies from conventional wires and Coil Wires for aged engines. In current solutions, resistive conductors and inductor coils are implemented with an aim of reducing rf interference. Past designs may have had a coil wire, however current models usually incorporate coil pack or individual ignition coils thus cutting on the use of Traditional Spark Plug Wires. It helps in proper functioning of engines in Chevrolet Monte Carlo vehicles hence proper maintenance of these wires is very critical.

Chevrolet Monte Carlo Spark Plug Wires Parts and Q&A

Spark Plug Shield
19329681
Q: How to Service and Repair Spark Plug Wires on Chevrolet Monte Carlo?
A:
Offset repairing or servicing the Spark Plug wires you must make sure the Ignition Switch stands in an off position. Start by taking out the fuel injector sight shield. Start by marking the positions of wires (2,4,6) leading to the rear spark plugs before using the j38491 Spark Plug heat shield removal tool to gently lift the heat shield. The wire boots can be released from the spark plugs by twisting them 1/2 turn counterclockwise. The same procedure should be followed for the Spark Plug wires at the engine front where they position numbers 1, 3 and 5. The next step involves pulling Spark Plug wires from Ignition Coils and extracting retaining clips from engine points at the rear, front and top. During Spark Plug wire replacement move all elements including boot heat shields and Spark Plug wire conduit and retaining clips. Begin installation by directing Spark Plug wire(s) to the proper engine locations then install retaining clips before connecting wires to ignition coils and finally position wires (1,3,5) to front spark plugs while wires (2,4,6) lead to rear spark plugs. Reinstall the fuel injector sight shield.
Cable Set
19417604
Q: How to replace the Spark Plug Wires on Chevrolet Monte Carlo?
A:
To replace the ignition cable, twist the ignition cable boot for one-half turn to disengage and pull only on the boot to prevent damage to the wire. Take the ignition cables 2, 4, and 6 out of the left side Spark Plugs of the engine, and remove them out of the holding clips as well. Next, unplug cables 1, 3, and 5 from the right side spark plugs and their respective retaining clips. Next, remove the ignition cables from the Ignition Coils and ultimately from the engine. If new ignition cables are to be installed, move the ignition cable conduit and retaining clips. For installation, initially connect the ignition cables to the engine then you can connect the coils to the ignition coils. Next replace the ignition cables 1, 3 and 5 on to the right side spark plugs and fasten with the clinching clip. Lastly, attach the ignition cables 2, 4, and 6 to the left side spark plugs and attach them to the retaining clips.
