How to replace the ABS Control Module on Chevrolet Monte Carlo?

First use is setting the ignition switch to off before starting the brake pressure modulator valve (BPMV) replacement. You should remove the bolts that fasten the Cruise Control Module then move it to the side. The ebcm harness connector needs a user to push down the lock tab followed by moving the sliding connector cover to an open position while releasing the red locking tab from the connector. Record all brake pipe positions before installing the parts. The process begins with disconnecting the brake pipes from the bpmv. Then swing the tubes to the side and use coverings to protect the open pipes to avoid dripping or contamination. Attach protective covering to the open brass pipes managing the connection from the bpmv to the master cylinder before removing the pipes from the master cylinder. Two bpmv mounting bracket nuts along with one bolt near the bottom and one nut at the top of the bpmv mounting bracket need to be removed before releasing the bmpv from the strut tower. You should remove the bpmv mounting bracket and ebcm assembly from the vehicle by disconnecting the ebcm-to-chassis ground strap and protect the exterior from brake fluid spillage. Bolt removal from the bpmv is required when the mounting bracket is engaged through four bolts. The ebcm can be attached to the bpmv for installation when you replace only the bpmv. Screw the four bolts to 10 nm (89 inch lbs.) onto the bpmv and ebcm assembly before securing it to the mounting bracket . The bpmv bracket should be installed to the strut tower with one bolt secured to three nuts where the lower two nuts together with bolt need 10 nm (84 inch lbs.) torque while the top nut requires 3 nm (27 inch lbs.) torque. New bpmv setups require removal of shipping plugs from its valve openings. The wheel lockup prevention requires proper connection between brake pipes and bpmv. The master cylinder brake pipes should receive installation into the bmpv before securing all fittings at 24 nm (18 ft. Lbs.). The bpmv brake pipes must be installed and all four fittings should be tightened to 24 nm (18 ft. Lbs.). Install the ebcm harness connector while the ground strap leads between the ebcm assembly and chassis. Pull down the lock tab while moving the sliding connector cover into locked position and then put the red locking tab in place. Install the Cruise Control Module. Perform the automated abs bleed procedure as the last step.

How to remove and install the ABS Control Module on Chevrolet Monte Carlo?

The ABS Control Module requires a first step where users need to place the ignition switch in the OFF position to avoid equipment damage. Start the process by pushing down the lock tab and taking out the red locking tab from connector lock tab before sliding the connector cover to separate the ABS Control Module harness connector. The assembly requires proper cleaning followed by removal of the four screws connecting ABS Control Module to BPMV. The ABS Control Module and BPMV must be separated with light force which should be applied without tools to maintain the surface of the BPMV and its solenoid valves. The BPMV needs an alcohol-based liquid cleaned surface with a clean microfiber cloth before the ABS Control Module can install through the four screws that need 5 Nm torque. Insert the ABS Control Module harness connector after pushing its lock tab down while sliding the connector cover back to its locked position and then replacing the red locking tab. Perform the A diagnostic system check for ABS when the ignition switch is placed in the RUN position while avoiding engine start-up.

OEM Chevrolet Monte Carlo ABS Control Module

Anti Lock Brake Control Module

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

16 ABS Control Modules found

View related parts

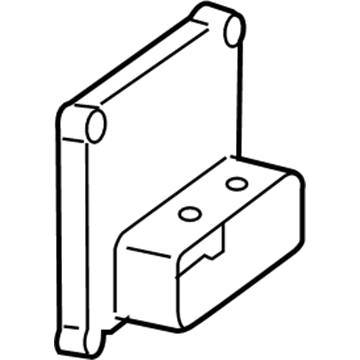

Chevrolet Monte Carlo Control Module Part Number: 15841937
$333.87 MSRP: $626.97
You Save: $293.10 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module, Electronic Brake Control; ABS Control Module
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2007 Chevrolet Monte Carlo | LS, LT, LTZ, SS | 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 5.3 L GAS
View related parts

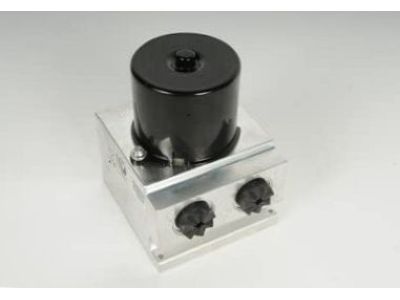

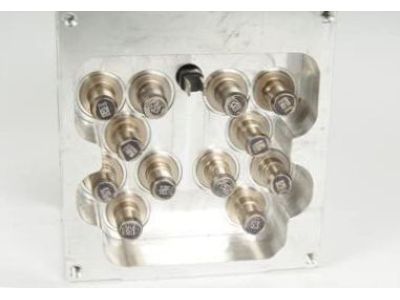

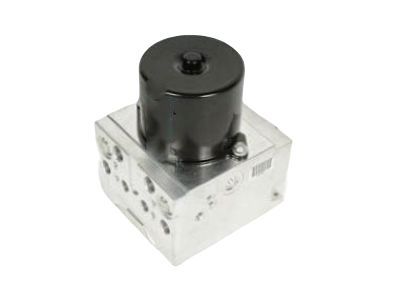

Chevrolet Monte Carlo Modulator Valve Part Number: 15895605
Product Specifications
- Other Name: Valve, Electronic Brake Control; Modulator
- Replaces: 15903775, 15258296
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2007 Chevrolet Monte Carlo | LS, LT, LTZ, SS | 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 5.3 L GAS
View related parts

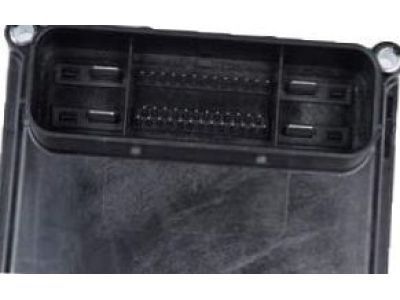

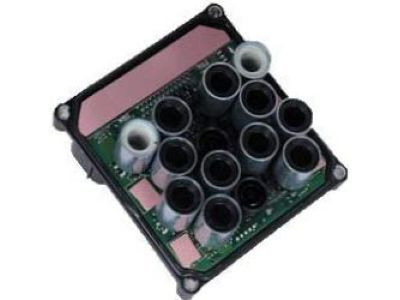

Chevrolet Monte Carlo Control Module Part Number: 15841969
$215.01 MSRP: $385.66
You Save: $170.65 (45%)
Product Specifications
- Other Name: Module, Electronic Brake Control; ABS Control Module
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2007 Chevrolet Monte Carlo | LS, LT, LTZ, SS | 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 5.3 L GAS
View related parts
Chevrolet Monte Carlo Control Module Part Number: 12221452
Product Specifications
- Other Name: Module Assembly, Electronic Brake & Traction Control; ABS Control Module
- Replaced by: 18078147
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2003 Chevrolet Monte Carlo | LS, LS Competition, LS Sport | 6 Cyl 3.4 L GAS
View related parts
Chevrolet Monte Carlo Control Module Part Number: 12221451
Product Specifications
- Other Name: Module Assembly, Electronic Brake & Traction Control; ABS Control Module
- Replaced by: 18078143
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2005 Chevrolet Monte Carlo | LT, SS, SS 35th Anniversary Edition, SS Dale Earnhardt Signature Edition, SS High Sport, SS Pace Car | 6 Cyl 3.8 L GAS
View related parts
Chevrolet Monte Carlo Control Module Part Number: 18078147
Product Specifications
- Other Name: Module Assembly, Electronic Brake & Traction Control; ABS Control Module; Module, Electronic Brake Control
- Replaces: 12221452, 12214201, 12201158
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2005 Chevrolet Monte Carlo | LS, LS Competition, LS Sport | 6 Cyl 3.4 L GAS
View related parts
Chevrolet Monte Carlo Control Module Part Number: 18078143
Product Specifications
- Other Name: Module Assembly, Electronic Brake Control; ABS Control Module; Module, Electronic Brake Control
- Replaces: 12201157, 12214200, 12221451
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2005 Chevrolet Monte Carlo | LS, LS Competition, LS Sport, LT, SS, SS 35th Anniversary Edition, SS Dale Earnhardt Signature Edition, SS High Sport, SS Pace Car | 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
View related parts
Chevrolet Monte Carlo Control Module Part Number: 18078136
Product Specifications
- Other Name: Module Assembly, Electronic Brake Control; ABS Control Module; Module, Electronic Brake Control
- Replaces: 12201160, 12221450, 12214520
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2005 Chevrolet Monte Carlo | LS, LS Competition, LS Sport, LT, SS, SS 35th Anniversary Edition, SS Dale Earnhardt Signature Edition, SS High Sport, SS Pace Car | 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
View related parts
Chevrolet Monte Carlo Motor Assembly Part Number: 18024456
Product Specifications
- Other Name: Motor Kit, Electronic Brake Control; ABS Pump And Motor Assembly; Motor & Pump; Motor
- Replaces: 18019214
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995-1999 Chevrolet Monte Carlo | LS, Z34 | 6 Cyl 3.1 L GAS, 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
View related parts
Chevrolet Monte Carlo Control Module Part Number: 16240001
Product Specifications
- Other Name: Module, Electronic Brake Control; ABS Control Module; ABS Control Unit
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-1999 Chevrolet Monte Carlo | LS, Z34 | 6 Cyl 3.1 L GAS, 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
View related parts
Chevrolet Monte Carlo Control Module Part Number: 16217718
Product Specifications
- Other Name: Module, Electronic Brake Control; ABS Control Module
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995 Chevrolet Monte Carlo | LS, Z34 | 6 Cyl 3.1 L GAS, 6 Cyl 3.4 L GAS
View related parts
Chevrolet Monte Carlo Control Module Part Number: 16203633
Product Specifications
- Other Name: Module Assembly, Electronic Brake Control; ABS Control Module; ABS Control Unit; Module, Electronic Brake Control
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995 Chevrolet Monte Carlo | LS, Z34 | 6 Cyl 3.1 L GAS, 6 Cyl 3.4 L GAS
View related parts

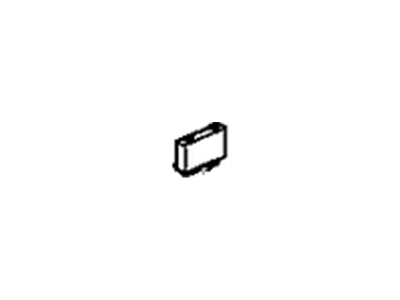

Chevrolet Monte Carlo Control Module Part Number: 16173018
Product Specifications
- Other Name: Module Assembly, Electronic Brake Control; ABS Control Module; Module, Electronic Brake Control
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995 Chevrolet Monte Carlo | LS, Z34 | 6 Cyl 3.1 L GAS, 6 Cyl 3.4 L GAS
View related parts
Chevrolet Monte Carlo Modulator Valve Part Number: 15903776
Product Specifications
- Other Name: Valve, Electronic Brake Control; Modulator
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2007 Chevrolet Monte Carlo | LS, LT, LTZ, SS | 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 5.3 L GAS
View related parts
Chevrolet Monte Carlo Control Module Part Number: 12214531
Product Specifications
- Other Name: Module, Electronic Brake Control; ABS Control Module
- Replaces: 09380558, 09378502, 9380558, 12203086, 9378502
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000 Chevrolet Monte Carlo | SS | 6 Cyl 3.8 L GAS
View related parts
Chevrolet Monte Carlo Control Module Part Number: 12214529
Product Specifications
- Other Name: Module, Electronic Brake Control; ABS Control Module
- Replaces: 09380557, 9380557
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000 Chevrolet Monte Carlo | LS | 6 Cyl 3.4 L GAS

Chevrolet Monte Carlo ABS Control Module

Want to cut long-term maintenance and repair costs? Choose OEM ABS Control Module. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Monte Carlo parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Monte Carlo ABS Control Module includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Chevrolet Monte Carlo ABS Control Module is one of the crucial components in the cars' anti-lock braking system, widely recognized for its quality and optimality in different versions of the Monte Carlo car. Due to very high braking torque, this module operates as a protective feature and unlocks the wheels thus offers better control and safety of a vehicle. The ABS Control Module performs this feat with the help of wheel speed sensors, valves, pump, and an Electronic Control Unit (ECU) to monitor and manage wheel speed for proper control of brake pressure. Throughout the years, Chevrolet has used different styles of the ABS Control Modules in the Monte Carlo model which has improved on performances by incorporating electrical stability control or also known as ESC and traction control which will have the capability of reducing specific wheels' braking. The Chevrolet Monte Carlo is a legendary model with production running from 1969 to 1987, and then from 1994 to 2007, and the car is characterized by luxurious and powerful, although still sporty characteristics; the role of the ABS Control Module cannot be overestimated for such a car. The compatibility of the module with various Monte Carlo generations means that people can have the premier driving experience with a unique braking system regardless of the car's year of production. Thanks to the enhanced stopping distances and control, Chevrolet Monte Carlo ABS Control Module is called to become the automotive industry's hallmark of the American car brand's dedication to its continuous moderation and advanced safety.

Chevrolet Monte Carlo ABS Control Module Parts and Q&A

Control Module
12214529
Q: How to replace the ABS Control Module on Chevrolet Monte Carlo?
A:
First use is setting the ignition switch to off before starting the brake pressure modulator valve (BPMV) replacement. You should remove the bolts that fasten the Cruise Control Module then move it to the side. The ebcm harness connector needs a user to push down the lock tab followed by moving the sliding connector cover to an open position while releasing the red locking tab from the connector. Record all brake pipe positions before installing the parts. The process begins with disconnecting the brake pipes from the bpmv. Then swing the tubes to the side and use coverings to protect the open pipes to avoid dripping or contamination. Attach protective covering to the open brass pipes managing the connection from the bpmv to the master cylinder before removing the pipes from the master cylinder. Two bpmv mounting bracket nuts along with one bolt near the bottom and one nut at the top of the bpmv mounting bracket need to be removed before releasing the bmpv from the strut tower. You should remove the bpmv mounting bracket and ebcm assembly from the vehicle by disconnecting the ebcm-to-chassis ground strap and protect the exterior from brake fluid spillage. Bolt removal from the bpmv is required when the mounting bracket is engaged through four bolts. The ebcm can be attached to the bpmv for installation when you replace only the bpmv. Screw the four bolts to 10 nm (89 inch lbs.) onto the bpmv and ebcm assembly before securing it to the mounting bracket . The bpmv bracket should be installed to the strut tower with one bolt secured to three nuts where the lower two nuts together with bolt need 10 nm (84 inch lbs.) torque while the top nut requires 3 nm (27 inch lbs.) torque. New bpmv setups require removal of shipping plugs from its valve openings. The wheel lockup prevention requires proper connection between brake pipes and bpmv. The master cylinder brake pipes should receive installation into the bmpv before securing all fittings at 24 nm (18 ft. Lbs.). The bpmv brake pipes must be installed and all four fittings should be tightened to 24 nm (18 ft. Lbs.). Install the ebcm harness connector while the ground strap leads between the ebcm assembly and chassis. Pull down the lock tab while moving the sliding connector cover into locked position and then put the red locking tab in place. Install the Cruise Control Module. Perform the automated abs bleed procedure as the last step.
Control Module
12214531
Q: How to remove and install the ABS Control Module on Chevrolet Monte Carlo?
A:
The ABS Control Module requires a first step where users need to place the ignition switch in the OFF position to avoid equipment damage. Start the process by pushing down the lock tab and taking out the red locking tab from connector lock tab before sliding the connector cover to separate the ABS Control Module harness connector. The assembly requires proper cleaning followed by removal of the four screws connecting ABS Control Module to BPMV. The ABS Control Module and BPMV must be separated with light force which should be applied without tools to maintain the surface of the BPMV and its solenoid valves. The BPMV needs an alcohol-based liquid cleaned surface with a clean microfiber cloth before the ABS Control Module can install through the four screws that need 5 Nm torque. Insert the ABS Control Module harness connector after pushing its lock tab down while sliding the connector cover back to its locked position and then replacing the red locking tab. Perform the A diagnostic system check for ABS when the ignition switch is placed in the RUN position while avoiding engine start-up.
