OEM Chevrolet Lumina Fuel Rail

Engine Fuel Rail
  • Select Vehicle by Model
  • Select Vehicle by VIN
Select Vehicle by Model
Make
Model
Year
or
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 Fuel Rails found

  • Chevy Lumina Fuel Rail - 17113256
    Chevy Lumina Fuel Rail Diagram - 17113256
    View related parts

    Chevrolet Lumina Fuel Rail Part Number: 17113256

    $113.11 MSRP: $229.18
    You Save: $116.07 (51%)
    Ships in 1-2 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Rail Kit, Fuel Injection
    • Replaces: 17113172
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 1995-1999 Chevrolet Lumina | Base, LS, LTZ | 6 Cyl 3.1 L GAS
  • Chevy Lumina Fuel Rail - 17113608
    Chevy Lumina Fuel Rail Diagram - 17113608
    View related parts

    Chevrolet Lumina Fuel Rail Part Number: 17113608

    $119.91 MSRP: $225.16
    You Save: $105.25 (47%)
    Ships in 1-2 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Rail Kit, Fuel Injection; Rail, Fuel Injection
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 2000-2001 Chevrolet Lumina | Base | 6 Cyl 3.1 L GAS
  • Chevy Lumina Fuel Rail - 17111794
    View related parts

    Chevrolet Lumina Fuel Rail Part Number: 17111794

    Product Specifications
    • Other Name: Rail Kit, Fuel Injection
    • Replaced by: 17113235
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 1990-1991 Chevrolet Lumina | Base, Euro | 6 Cyl 3.1 L GAS
  • Chevy Lumina Fuel Rail - 17111781
    View related parts

    Chevrolet Lumina Fuel Rail Part Number: 17111781

    Product Specifications
    • Other Name: Rail Kit, Fuel Injection
    • Replaced by: 17113236
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 1990-1991 Chevrolet Lumina | Base, Euro | 6 Cyl 3.1 L GAS
  • Chevy Lumina Fuel Rail - 24503754
    Chevy Lumina Fuel Rail Diagram - 24503754
    View related parts

    Chevrolet Lumina Fuel Rail Part Number: 24503754

    Product Specifications
    • Other Name: Rail, Fuel Injection
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 1998-1999 Chevrolet Lumina | Base, LS, LTZ | 6 Cyl 3.8 L GAS
  • Chevy Lumina Fuel Rail - 17113607
    Chevy Lumina Fuel Rail Diagram - 17113607
    View related parts

    Chevrolet Lumina Fuel Rail Part Number: 17113607

    Product Specifications
    • Other Name: Rail Kit, Fuel Injection; Rail, Fuel Injection
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 2000-2001 Chevrolet Lumina | Base | 6 Cyl 3.1 L GAS
  • Chevy Lumina Fuel Rail - 17113236
    Chevy Lumina Fuel Rail Diagram - 17113236
    View related parts

    Chevrolet Lumina Fuel Rail Part Number: 17113236

    Product Specifications
    • Other Name: Rail Kit, Fuel Injection
    • Replaces: 17111781
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 1990-1994 Chevrolet Lumina | Base, Euro | 6 Cyl 3.1 L GAS
  • Chevy Lumina Fuel Rail - 17113235
    Chevy Lumina Fuel Rail Diagram - 17113235
    View related parts

    Chevrolet Lumina Fuel Rail Part Number: 17113235

    Product Specifications
    • Other Name: Rail Kit, Fuel Injection
    • Replaces: 17111794
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 1994 Chevrolet Lumina
    • 1990-1992 Chevrolet Lumina | Base, Euro | 6 Cyl 3.1 L GAS
  • Chevy Lumina Fuel Rail - 17113223
    View related parts

    Chevrolet Lumina Fuel Rail Part Number: 17113223

    Product Specifications
    • Other Name: Rail Kit, Fuel Injection
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 1996-1997 Chevrolet Lumina | LS, LTZ | 6 Cyl 3.4 L GAS
  • Chevy Lumina Fuel Rail - 17113195
    Chevy Lumina Fuel Rail Diagram - 17113195
    View related parts

    Chevrolet Lumina Fuel Rail Part Number: 17113195

    Product Specifications
    • Other Name: Rail Kit, Fuel Injection
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 1995-1998 Chevrolet Lumina | Base, LS, LTZ | 6 Cyl 3.1 L GAS

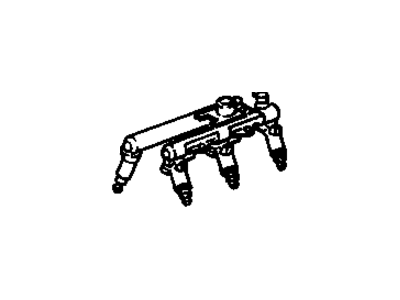

  • Chevy Lumina Fuel Rail - 17112755
    Chevy Lumina Fuel Rail Diagram - 17112755
    View related parts

    Chevrolet Lumina Fuel Rail Part Number: 17112755

    Product Specifications
    • Other Name: Rail, Fuel Injection
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 1993 Chevrolet Lumina | Base, Euro | 6 Cyl 3.1 L FLEX
  • Chevy Lumina Fuel Rail - 17112754
    Chevy Lumina Fuel Rail Diagram - 17112754
    View related parts

    Chevrolet Lumina Fuel Rail Part Number: 17112754

    Product Specifications
    • Other Name: Rail, Fuel Injection
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 1993 Chevrolet Lumina | Base, Euro | 6 Cyl 3.1 L FLEX

Chevrolet Lumina Fuel Rail

Want to cut long-term maintenance and repair costs? Choose OEM Fuel Rail. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Lumina parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Lumina Fuel Rail includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Chevrolet Lumina Fuel Rail Parts and Q&A

  • Chevrolet Lumina Fuel Rail - 17113608 Fuel Rail Fuel Rail
    17113608
    Q: How to service the fuel rail using the J 43013 fuel injector removal tool on Chevrolet Lumina?
    A:
    The j 43013 (Fuel Injector removal tool) needs to be used for Fuel Rail servicing. The service on a Fuel Rail requires initial steps to relieve pressure from fuel system followed by upper Intake Manifold removal. The service requires disconnection of the engine fuel feed pipe from the Fuel Rail followed by separation of engine fuel return pipe from the Fuel Pressure Regulator. The service also involves removal and disposal of the o-rings from both fuel feed pipe and fuel return pipe. Service begins by disconnecting both the main injector harness electrical connector followed by the coolant temperature sensor electrical connector. Utilize the j 43013 (Fuel Injector removal tool) to lift all fuel injectors before taking out the Fuel Rail assembly after removing the retaining bolts. You need to pull the lock release while pressing down on the lock tab so you can lift the connector from the injector. Remove the o-ring seals from injector spraying tips but keep and reuse the back up o-ring pieces. The procedure for Fuel Rail installation includes plugging its ports to stop contamination entry while also cautioning against compressing air or using solvent baths on the Fuel Rail assembly. The injector electrical harness should be reattached to the Fuel Rail while the electrical connectors are connected before pushing the slide lock into its final position. Before installing new o-rings for the injectors users must place each o-ring back up on its corresponding injector. Users should lubricate the o-rings with a small amount of clean engine oil while they position them at the spray tip end of each injector unit. The Fuel Rail assembly should be inserted into its Intake Manifold position while injector installation allows for proper seating and Fuel Rail attaching bolts must be tightened to 10 nm (7 lb ft). Installation requires connecting Fuel Rail electrical connectors followed by new o-rings insertion on fuel feed and fuel return pipes. The fuel feed pipe should be reinstalled on the Fuel Rail by tightening the engine fuel pipe nut to 17 nm (13 lb ft). The same tightening torque should be used to connect the fuel return pipe at the Fuel Pressure Regulator. Reinstall the upper Intake Manifold then fasten the fuel filler cap along with reconnecting the negative Battery Cable before checking for fuel leaks according to the specified procedures.
