How to disconnect and connect the negative battery cable on Chevrolet Lumina?

To disconnect and connect the battery negative cable, before, make sure the ignition key is in the off or lock position, and all electrical loads are off to avoid the personal injury or damage to the vehicle. We are to take hire all vehicle preset radio stations along with radio theftlock(R) code if documented. Turn off all lamps and accessories and then remove the lh diagonal brace and the air cleaner and duct assembly. Unplug the battery negative terminal from the battery. Prior to reconnecting, make sure to remove any existing oxidation from the contact point inside the battery terminal, and Battery Cable with the help of a wire brush. Attach the battery negative cable to the battery and tighten the terminal bolt of 15 n.m (11 Lb(ft). Reinstall the air cleaner and duct assembly, and next, the lh diagonal brace. Open the theftlock(R) radio if necessary, set radio stations into radio back and set clock to the time accordingly.

How to replace the negative battery cable on Chevrolet Lumina?

To replace the negative Battery Cable, unlatch the lh diagonal brace and the air cleaner assembly. Unplug the negative Battery Cable from the battery, and take off the negative Battery Cable bolt and the battery ground cable from the core support. Next, remove the transaxle stud nut and the negative Battery Cable from the from the transaxle stud. Remove the negative Battery Cable from the wiring harness conduit. For installation, start by inserting the negative Battery Cable to the wiring harness conduit. Mount the fuel sender cable onto its corresponding port and the negative Battery Cable and the transaxle stud nut on the transaxle stud, tightening the nut to 25 n.m (18 lb ft). Next, fasten the negative battery ground cable and the cable bolt to the core support, bolting with force of 10 n.m (89 lb in). Reattach the negative cable battery onto the battery, reinstall the air cleaner assembly, and the last thing you should do is reinstall the lh diagonal brace.

OEM Chevrolet Lumina Battery Cable

Car Battery Cable

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Battery Cables found

View related parts
Chevrolet Lumina Cable Assembly Part Number: 12148896
$11.79 MSRP: $21.35
You Save: $9.56 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Positive Cable; Battery Cables
- Replaced by: 12157272
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995-1997 Chevrolet Lumina | LS, LTZ | 6 Cyl 3.4 L GAS
View related parts
Chevrolet Lumina Positive Cable Part Number: 12157272
$11.79 MSRP: $21.35
You Save: $9.56 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable, Battery (Positive); Battery Cables; Cable, Battery(Positive)
- Replaces: 12148896, 12156618, 12156725
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-2001 Chevrolet Lumina | Base, Euro, LS, LTZ, Z34 | 6 Cyl 3.1 L GAS, 6 Cyl 3.4 L GAS
View related parts
Chevrolet Lumina Positive Cable Part Number: 88860110
Product Specifications
- Other Name: Cable Assembly, Battery; Battery Cables
- Replaces: 12157438, 12072973
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1990-1994 Chevrolet Lumina | Base, Euro, Z34 | 4 Cyl 2.2 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.1 L FLEX, 6 Cyl 3.1 L GAS, 6 Cyl 3.4 L GAS
View related parts
Chevrolet Lumina Positive Cable Part Number: 12072973
Product Specifications
- Other Name: Cable Assembly-Battery Positive; Battery Cables
- Replaced by: 88860110
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1990-1991 Chevrolet Lumina | Base, Euro | 4 Cyl 2.5 L GAS, 6 Cyl 3.1 L GAS
View related parts
Chevrolet Lumina Negative Cable Part Number: 12055207
Product Specifications
- Other Name: Cable Assembly-Battery Negative
- Replaced by: 12157322
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1990-1991 Chevrolet Lumina | Base, Euro, Z34 | 4 Cyl 2.5 L GAS, 6 Cyl 3.1 L GAS, 6 Cyl 3.4 L GAS
View related parts
Chevrolet Lumina Positive Cable Part Number: 12157326
Product Specifications
- Other Name: Cable Assembly, Battery Positive; Battery Cables; Cable, Battery(Positive)
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-1999 Chevrolet Lumina | Base, LS, LTZ | 6 Cyl 3.8 L GAS
View related parts

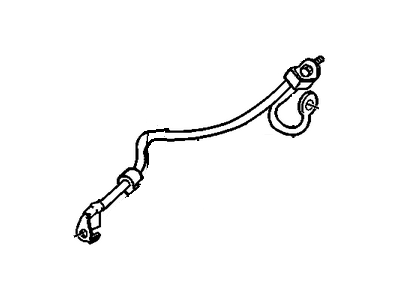

Chevrolet Lumina Negative Cable Part Number: 12157322
Product Specifications
- Other Name: Battery Cables; Ground Strap; Cable, Battery Ground(Negative)
- Replaces: 12055207
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1990-1994 Chevrolet Lumina | Base, Euro, Z34 | 4 Cyl 2.2 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.1 L FLEX, 6 Cyl 3.1 L GAS, 6 Cyl 3.4 L GAS
View related parts
Chevrolet Lumina Negative Cable Part Number: 12157271
Product Specifications
- Other Name: Cable Assembly, Battery Negative (20"Long); Battery Cables; Ground Strap; Cable, Battery Ground(Negative)
- Replaces: 12156726
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-2001 Chevrolet Lumina | Base, Euro, LS, LTZ, Z34 | 6 Cyl 3.1 L GAS, 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
View related parts
Chevrolet Lumina Cable Assembly Part Number: 12157116
Product Specifications
- Other Name: Cable Assembly, Battery Positive (31"Long); Battery Cables; Positive Cable; Cable, Battery(Positive)
- Replaces: 12144537, 12156746
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-1999 Chevrolet Lumina | Base, LS, LTZ | 6 Cyl 3.8 L GAS

Chevrolet Lumina Battery Cable

Want to cut long-term maintenance and repair costs? Choose OEM Battery Cable. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Lumina parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Lumina Battery Cable includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Chevrolet Lumina Battery Cable is one of the relevant parts that prove and Characteristic of Lumina known from 1989 to 2013. Being specifically intended to deliver electrical current from the battery to required systems such as the starter and ignition system in the Chevrolet Lumina, the Chevrolet Lumina Battery Cable helps the car to run effectively and without risks. However, the ordinary nature of these cables can be worn out and get corroded, which is why constant inspection of the cables will help in avoiding some damages that result from faulty starting systems, or system breakdowns. Chevrolet Lumina has both positive and negative battery cables that are created to offer a tight grip; this increases the efficiency of the vehicle. Lumina models compatibility guarantees that drivers will have the exact battery cables they require which re-affirms the Chevrolet brand's quality and performance. Of course, there are so many Battery Cable available in the automobile market, but Chevrolet Lumina Battery Cable is in different from those competitors based on their construction as well as they have some special feature that makes them long lasting and reliable for use in any severe environment. This does not only help in improving the performance of the vehicle but also has a paramount contribution in the safety of the passengers due to reduction in electrical faults. To conclude, the Chevrolet Lumina Battery Cable can be classified as one of the most vital components of the Chevrolet Lumina, which ensures its efficient work and safety, turning into the reliable tool for every owner of the car.

Chevrolet Lumina Battery Cable Parts and Q&A

Negative Cable
12157271
Q: How to disconnect and connect the negative battery cable on Chevrolet Lumina?
A:
To disconnect and connect the battery negative cable, before, make sure the ignition key is in the off or lock position, and all electrical loads are off to avoid the personal injury or damage to the vehicle. We are to take hire all vehicle preset radio stations along with radio theftlock(R) code if documented. Turn off all lamps and accessories and then remove the lh diagonal brace and the air cleaner and duct assembly. Unplug the battery negative terminal from the battery. Prior to reconnecting, make sure to remove any existing oxidation from the contact point inside the battery terminal, and Battery Cable with the help of a wire brush. Attach the battery negative cable to the battery and tighten the terminal bolt of 15 n.m (11 Lb(ft). Reinstall the air cleaner and duct assembly, and next, the lh diagonal brace. Open the theftlock(R) radio if necessary, set radio stations into radio back and set clock to the time accordingly.
Positive Cable
12157272
Q: How to replace the negative battery cable on Chevrolet Lumina?
A:
To replace the negative Battery Cable, unlatch the lh diagonal brace and the air cleaner assembly. Unplug the negative Battery Cable from the battery, and take off the negative Battery Cable bolt and the battery ground cable from the core support. Next, remove the transaxle stud nut and the negative Battery Cable from the from the transaxle stud. Remove the negative Battery Cable from the wiring harness conduit. For installation, start by inserting the negative Battery Cable to the wiring harness conduit. Mount the fuel sender cable onto its corresponding port and the negative Battery Cable and the transaxle stud nut on the transaxle stud, tightening the nut to 25 n.m (18 lb ft). Next, fasten the negative battery ground cable and the cable bolt to the core support, bolting with force of 10 n.m (89 lb in). Reattach the negative cable battery onto the battery, reinstall the air cleaner assembly, and the last thing you should do is reinstall the lh diagonal brace.
