OEM Chevrolet Corvette Exhaust Manifold
Engine Exhaust Manifold- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
26 Exhaust Manifolds found

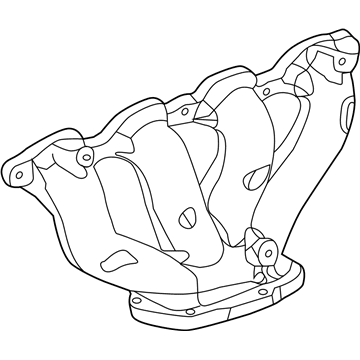

Chevrolet Corvette Exhaust Manifold, Driver Side Part Number: 12629726
$560.41 MSRP: $889.76You Save: $329.35 (38%)Ships in 1-3 Business Days

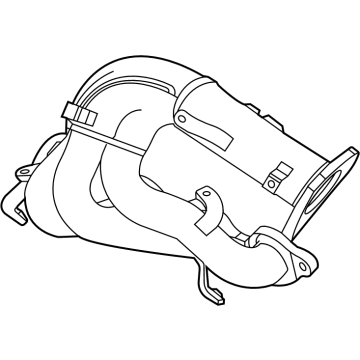

Chevrolet Corvette Exhaust Manifold, Passenger Side Part Number: 12724772
$412.05 MSRP: $654.07You Save: $242.02 (37%)Ships in 1-2 Business Days

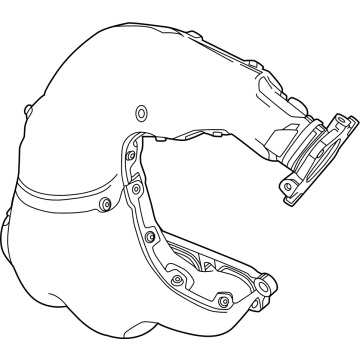

Chevrolet Corvette Exhaust Manifold, Passenger Side Part Number: 12716153
$810.87 MSRP: $1281.59You Save: $470.72 (37%)Ships in 1-2 Business DaysChevrolet Corvette Exhaust Manifold, Passenger Side Part Number: 12708506
$412.05 MSRP: $654.07You Save: $242.02 (37%)Ships in 1-3 Business DaysChevrolet Corvette Exhaust Manifold, Passenger Side Part Number: 12629725
$95.13 MSRP: $156.70You Save: $61.57 (40%)Ships in 1-3 Business DaysChevrolet Corvette Exhaust Manifold, Driver Side Part Number: 12708507
$398.52 MSRP: $656.34You Save: $257.82 (40%)Ships in 1-3 Business DaysChevrolet Corvette Exhaust Manifold, Driver Side Part Number: 12716154
$849.85 MSRP: $1343.20You Save: $493.35 (37%)Ships in 1-2 Business DaysChevrolet Corvette Exhaust Manifold, Passenger Side Part Number: 12629727
$518.34 MSRP: $853.86You Save: $335.52 (40%)Ships in 1-3 Business DaysChevrolet Corvette Exhaust Manifold, Driver Side Part Number: 12724771
$398.52 MSRP: $656.34You Save: $257.82 (40%)Ships in 1-2 Business Days
Chevrolet Corvette Exhaust Manifold, Driver Side Part Number: 12633124
$729.76 MSRP: $1202.14You Save: $472.38 (40%)Ships in 1-3 Business DaysChevrolet Corvette Exhaust Manifold, Passenger Side Part Number: 12633125
$718.98 MSRP: $1184.38You Save: $465.40 (40%)Ships in 1-3 Business DaysChevrolet Corvette Exhaust Manifold, Driver Side Part Number: 12629724
$126.59 MSRP: $200.98You Save: $74.39 (38%)Ships in 1-2 Business Days
Chevrolet Corvette Exhaust Manifold, Driver Side Part Number: 12561255

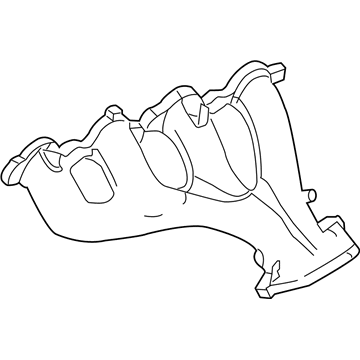

Chevrolet Corvette Exhaust Manifold, Driver Side Part Number: 12603758
Chevrolet Corvette Exhaust Manifold, Driver Side Part Number: 14087511
Chevrolet Corvette Exhaust Manifold, Driver Side Part Number: 25127591
| Page 1 of 2 |Next >
1-20 of 26 Results
Chevrolet Corvette Exhaust Manifold
Want to cut long-term maintenance and repair costs? Choose OEM Exhaust Manifold. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Corvette parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Corvette Exhaust Manifold includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.
Chevrolet Corvette vehicles' Exhaust Manifold helps in channeling hot exhaust gases from the engine to the exhaust system making it perform well. Located positionable in various locations on the engine block, the manifold is meant to minimize intake reversion and optimize the gases flow through end components such as the catalyst converter as well as the muffler. Through the years various Chevrolet Corvette car models have used varieties for styles of exhaust manifold like the cast iron, stainless steel besides headers that have a less restriction to flow and have higher gas velocity. Of these headers, the greatest benefit is derived from their efficiency in increasing engine efficiency through pressure variation in exhaust scavenging. Moreover, fresh evolution popularized by some Corvette models is Yamaha's EXUP system that enables variable control of back pressure to make new adjustment according to the speeds of engine.
Chevrolet Corvette Exhaust Manifold Parts and Q&A
- Q: How to replace the left exhaust manifold on Chevrolet Corvette?A:Start the left Exhaust Manifold replacement process by taking out the fuel rail cover along with the generator followed by lifting and supporting the vehicle. Start by taking off the Exhaust Manifold nuts and also removing the connector position assurance (CPA) lock along with disconnecting both the Oxygen Sensor electrical connector and the Oxygen Sensor connector clip from the body. The Oxygen Sensor needs removal before lowering the vehicle. You need to remove the Air Hose from the pipe by first detaching the hose clamp installed at the secondary air injection (AIR) pipe. Sever the hose clamps of right and left check valves to disconnect the air injection pipe components and from the corresponding check valves and extract the air pipe. Extreme care should be exercised before removing check valves from the air pipe. Loosen the air pipe holding bolts while taking off the air pipe equipment and old gasket for disposal. To commute the Exhaust Manifold start by removing the Brake Booster Vacuum Hose followed by ignition coil bracket studs and ignition coil bracket before extracting both Spark Plugs and Exhaust Manifold bolts for manifold removal with the existing gasket. When needed you should first uninstall Exhaust Manifold heat shield bolts before removing the heat shield. Start by installing the Exhaust Manifold heat shield followed by its bolts and tighten them to 9 nm torque values (80 inch lbs.). Position the Exhaust Manifold Gasket onto the bolts and apply a 5 mm (0.2 inch) widest threadlock gm p/n 12345493 (Canadian P/N 10953489) around their threads before installing the Exhaust Manifold. Start by applying thread-locking compound gm p/n 12345493 (Canadian P/N 10953489) to all Exhaust Manifold bolt threads. Following this, install the bolts beginning with the central pair then moving alternately between sides. Tighten the bolts in two steps: first to 15 nm (11 ft. Lbs.) focusing on the center points before finishing at 25 nm (18 ft. Lbs.) using the same side-to-side pattern. Bend the exposed part of the Exhaust Manifold Gasket at the cylinder head rear section before placing spark plugs and ignition coil bracket. Install the coil bracket studs after applying threadlock gm p/n 12345382 (Canadian P/N 10953489) then tighten them to 12 nm (106 inch lbs.). You need to reattach the Brake Booster Vacuum Hose followed by the installation of an air pipe with check valve and new gasket before tightening the air pipe bolts to 20 nm (15 ft. Lbs.). Place the air pipe and connect the air injection pipe hoses to function with their check valves after installing the hose clamps at both points. Reinstall the Air Hose to its position on the air pipe and install the corresponding hose clamp. The Oxygen Sensor threads need gm p/n 12377953 or equivalent anti-seize compound before installing the Oxygen Sensor by torqueing it to 42 nm (30 ft. Lbs.). Finish the procedure by attaching the Oxygen Sensor clip together with the electrical connection while installing the cpa lock before applying torque of 20 nm (15 ft. Lbs.) to the Exhaust Manifold nuts. The last step involves lowering the vehicle before reinstallation of the generator and fuel rail cover.
- Q: How to replace the right exhaust manifold on Chevrolet Corvette?A:The first step to replace the right Exhaust Manifold requires users to remove the fuel rail cover while supporting the vehicle via a raise system. Follow the Oxygen Sensor notice during this step to disconnect the electrical connector after breaking the Exhaust Manifold nuts and the connector position assurance (CPA) lock. The process starts by removing the Oxygen Sensor followed by lowering the vehicle before detaching the hose clamp that covers the right check valve. You should remove the secondary air injection (AIR) pipe hose from the right check valve but keep the air pipe bolt at the rear of the left Cylinder Head loose instead of removing the check valve unless absolutely necessary. The maintenance procedure requires removal of both air pipe bolts followed by positioning the air pipe in the correct spot and discarding the old air pipe gasket. The protocol begins by removing the ignition coil bracket studs and the ignition coil bracket and then follows with the Spark Plugs and Exhaust Manifold bolts and the oil level indicator tube. Remove the Exhaust Manifold along with the old gasket before discarding it and perform bolt removal of the Exhaust Manifold heat shield and shield if required. The Exhaust Manifold heat shield installation requires the bolts to be tightened to 9 nm (80 inch lbs.). Position the Exhaust Manifold with a new gasket after applying threadlock gm p/n 12345493 or equivalent to a 5 mm (0.2 in) band of thread on bolts and installing Exhaust Manifold bolts. Start by tightening the manifold bolts to 15 nm (11 ft. Lbs.) going from center to sides alternating between the left and right bolts before final tightening to 25 nm (18 ft. Lbs.) following the same pattern of operation. After bending the exposed front right Cylinder Head Exhaust Manifold Gasket toward the bottom, threadlock gm p/n 12345382 or equivalent should be applied to the bracket studs before installation at 12 nm (106 inch lbs.). Reinstall the spark plugs combined with the oil level indicator tube but ensure the air pipe bracket fits behind the bolt at the left Cylinder Head. The task involves installing the air pipe with check valve while using a new gasket followed by tightening both the air pipe bolts to 20 nm (15 ft. Lbs.) before torquing the air pipe bolt at the rear of the left Cylinder Head to match. Secure the hose clamp around the right check valve connection of the air pipe. Raise the vehicle once more while applying gm p/n 12377953 anti-seize compound to the Oxygen Sensor threads followed by installing the sensor then tightening it to 42 nm (30 ft. Lbs.). After connecting the Oxygen Sensor electrical connector, installing the cpa lock, users should secure the Exhaust Manifold nuts through torqueing them to 20 nm (15 ft. Lbs.) while lowering the vehicle and reinstalling the fuel rail cover.
