OEM Chevrolet Cobalt Control Arm Bushing

Chevrolet Cobalt Control Arm Bushing Parts and Q&A

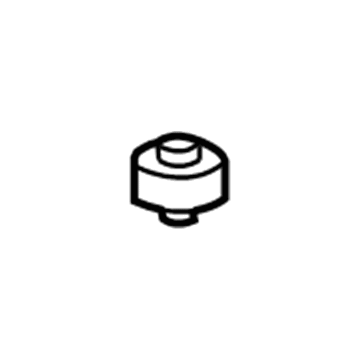

• Lower Control Arm Bushing
  25984679
  Q: How to replace the control arm bushing in the rear suspension on Chevrolet Cobalt?

  A:

  First elevate the vehicle with beneath it followed by wheel removal. Set two screw-type jack stands to support the rear axle's ends before removing nuts from the body which hold up the rear brake hose brackets. These brackets should then freely hang. Begin by taking off the lower shock bolts while watching for braking pipes not to twist as you lower the axle to uninstall the Coil Springs. Support the axle with the temporarilyinstalled lower shock bolts before removing the bushing bracket to body bolts from both ends of the rear axle. Allow the axle to lift with the stands until the bushing brackets pivot away to avoid body contact. Following this, remove both through bolts that anchor the axle bushing while taking notes on the old bushing depth and position. Use the j 44570 bushing remover/installer kit (J 44570) to apply the j 44570-1 tool by placing the lip against the flange between the axle sleeve and the bushing. Softly tap with a hammer as needed to have the tool properly set itself. Thread j 44570-3 into the j 44570-1 and axle bushing before installing the washer and nut manually. Tighten this assembly until a secure fit occurs. After using a hammer to drive out the bushing from the axle sleeve you should disassemble the tool and remove the bushing. For assembly position the bushings into the axle sleeve by lining up rubber ends toward the inner area as you place them in the same direction identified during extraction steps. Use j 44570-1 to position the bushing while inserting j 44570-3 through this bushing along with the axle bushing to finally apply the j 44570-2 bearing, washer and nut. Perform bushing insertion into the axle sleeve through hex shaft rotation with hand-tightening of the shaft nut followed by disassembly to remove the installation tools. Install the axle brackets to the axle bushings through the alignment slot on their outboard side before applying loose bushing bolts and park brake cable brackets and nuts. Use the jacking fixture to drop the axle until the bushing brackets rest on the body's surface. At this position tighten the axle bracket to body bolts by hand just to secure bracket contact. First properly adjust the axle height then apply 90 n.m (66 lb ft) torque while adding a 60 degree angle to the bushing through bolt tightening. Install the underbody pins through the axles brackets and tighten the left and right axle bracket bolts before adjusting torque to 90 n.m (66 lb ft) +30 degrees. After supporting the axle with jack stands, uninstall the lower shock bolts and drop the jacks down for coil spring installation with the colored tag oriented toward the back of the vehicle. Raise the jacks to compress the springs slightly for lower shock bolt installation while tightening them to 110 n.m (81 lb ft). After jack stand removal you should attach the brake hose brackets to their body locations and secure them with nuts. Then install the wheels before letting the vehicle rest on the ground.

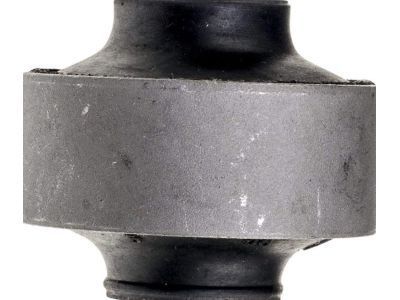

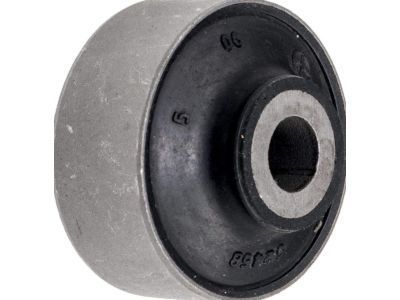

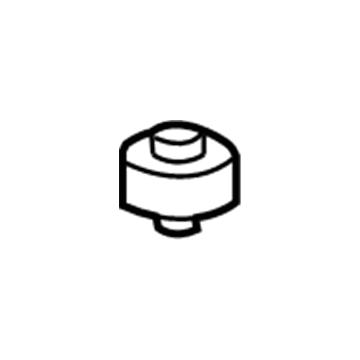

• Lower Control Arm Bushing
  15232501
  Q: How to replace the front lower control arm bushing on Chevrolet Cobalt?

  A:

  Begin the replacement of front lower Control Arm Bushing by raising and supporting the vehicle. Start by taking out the lower Control Arm from the vehicle. Place the Control Arm inside a vise with a shop towel before removing the bushing to record both depth measurement and orientation direction. Use the front Control Arm Bushing set (J 41211) to extract the bushing from the lower Control Arm followed by tool disassembly before removing the bushing. The new bushing mounts on the tapered side of the Control Arm before using the front Control Arm Bushing set (J 41211) to install the Control Arm Bushing in the lower Control Arm maintaining the initial depth and orientation discovered during removal. Use the front Control Arm Bushing set (J 41211) to remove the Control Arm Bushing from the lower Control Arm before installing the arm.
