OEM Cadillac XLR Coolant Pipe

Engine Cooler Pipe
  • Select Vehicle by Model
  • Select Vehicle by VIN
Select Vehicle by Model
Make
Model
Year
or
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Coolant Pipes found

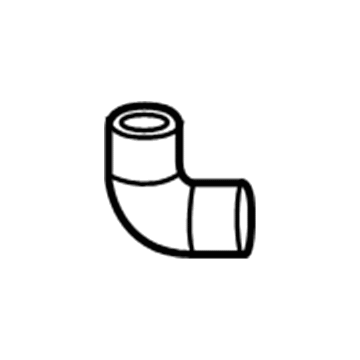

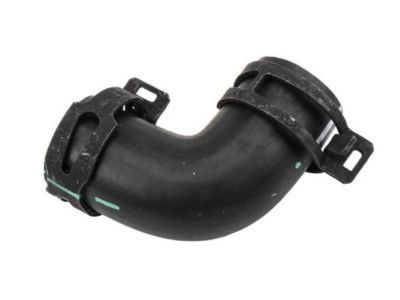

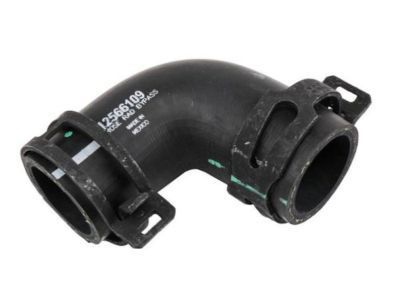

  • Cadillac XLR Coolant Pipe - 12566109
    Cadillac XLR Coolant Pipe - 12566109
    Cadillac XLR Coolant Pipe - 12566109
    Cadillac XLR Coolant Pipe Diagram - 12566109
    View related parts

    Cadillac XLR By-Pass Hose Part Number: 12566109

    $27.36 MSRP: $41.27
    You Save: $13.91 (34%)
    Ships in 1-2 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Hose, Engine Coolant By-Pass; Hose, Engine Coolant By - Pass
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 2004-2009 Cadillac XLR | Base, Platinum | 8 Cyl 4.6 L GAS

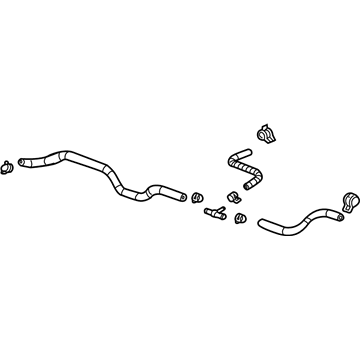

  • Cadillac XLR Coolant Pipe - 19129890
    Cadillac XLR Coolant Pipe Diagram - 19129890
    View related parts

    Cadillac XLR Inlet Hose Part Number: 19129890

    Product Specifications
    • Other Name: Hose, Radiator Surge Tank Inlet; Radiator Hose; Hose, Engine Coolant Recovery
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 2006-2009 Cadillac XLR | V | 8 Cyl 4.4 L GAS
  • Cadillac XLR Coolant Pipe - 19129889
    Cadillac XLR Coolant Pipe Diagram - 19129889
    View related parts

    Cadillac XLR Outlet Hose Part Number: 19129889

    Product Specifications
    • Other Name: Hose, Engine Coolant Recovery; Radiator Hose
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 2006-2009 Cadillac XLR | V | 8 Cyl 4.4 L GAS

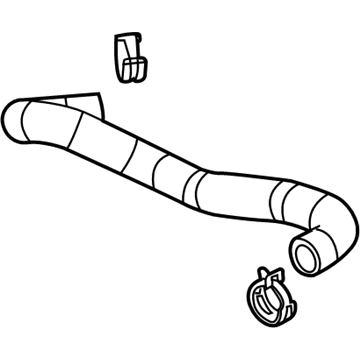

  • Cadillac XLR Coolant Pipe - 19129885
    Cadillac XLR Coolant Pipe Diagram - 19129885
    View related parts

    Cadillac XLR Upper Hose Part Number: 19129885

    Product Specifications
    • Other Name: Hose, Radiator Inlet; Multi Purpose Hose; Radiator Hose; Cooling Hose; Hose, Radiator Inlet (Upper)
    • Position: Upper
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 2006-2009 Cadillac XLR | V | 8 Cyl 4.4 L GAS
  • Cadillac XLR Coolant Pipe - 12608315
    Cadillac XLR Coolant Pipe Diagram - 12608315
    View related parts

    Cadillac XLR By-Pass Hose Part Number: 12608315

    Product Specifications
    • Other Name: Hose, Engine Coolant By-Pass; Hose, Engine Coolant By - Pass
    • Replaces: 12582234
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 2006-2009 Cadillac XLR | V | 8 Cyl 4.4 L GAS

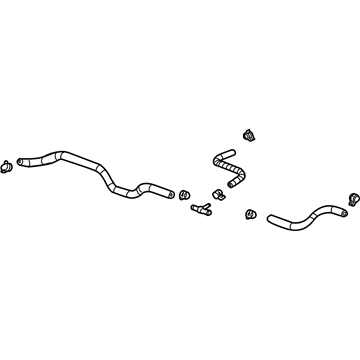

  • Cadillac XLR Coolant Pipe - 10441373
    Cadillac XLR Coolant Pipe Diagram - 10441373
    View related parts

    Cadillac XLR Inlet Hose Part Number: 10441373

    Product Specifications
    • Other Name: Hose Assembly-Radiator Surge Tank Inlet; Radiator Hose; Hose, Engine Coolant Recovery
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 2004 Cadillac XLR | Base | 8 Cyl 4.6 L GAS
  • Cadillac XLR Coolant Pipe - 10354454
    Cadillac XLR Coolant Pipe Diagram - 10354454
    View related parts

    Cadillac XLR Inlet Hose Part Number: 10354454

    Product Specifications
    • Other Name: Hose Assembly-Radiator Surge Tank Inlet; Radiator Hose; Hose, Engine Coolant Recovery
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 2005-2007 Cadillac XLR | Base | 8 Cyl 4.6 L GAS
  • Cadillac XLR Coolant Pipe - 10350996
    Cadillac XLR Coolant Pipe Diagram - 10350996
    View related parts

    Cadillac XLR Inlet Hose Part Number: 10350996

    Product Specifications
    • Other Name: Hose Assembly-Radiator Surge Tank Inlet; Radiator Hose; Hose, Engine Coolant Recovery
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 2008-2009 Cadillac XLR | Base, Platinum | 8 Cyl 4.6 L GAS

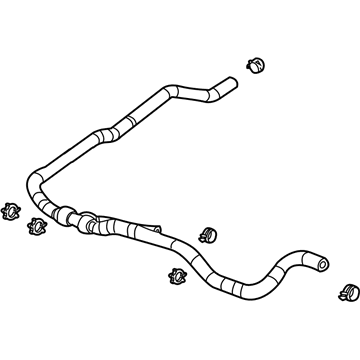

  • Cadillac XLR Coolant Pipe - 10304982
    Cadillac XLR Coolant Pipe Diagram - 10304982
    View related parts

    Cadillac XLR Outlet Hose Part Number: 10304982

    Product Specifications
    • Other Name: Hose, Engine Coolant Recovery; Radiator Hose
    • Replaces: 10441374
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 2004-2009 Cadillac XLR | Base, Platinum | 8 Cyl 4.6 L GAS

Cadillac XLR Coolant Pipe

Want to cut long-term maintenance and repair costs? Choose OEM Coolant Pipe. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac XLR parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac XLR Coolant Pipe includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Cadillac XLR Coolant Pipe Parts and Q&A

  • Cadillac XLR Coolant Pipe - 19129890 Inlet Hose Inlet Hose
    19129890
    Q: How to Change the Coolant Pipe for the Radiator Surge Tank Inlet on Cadillac XLR?
    A:
    To replace the Radiator surge tank inlet hose/pipe, drain the cooling system first. Remove the Radiator support. Remove the hose clamp pliers (J 38185) to drop the tension and redo the surge tank inlet hose clamp in surge tank, followed by disconnecting surge tank inlet hose from surge tank. Repeat this process with Throttle Body assembly and the Radiator using the hose clamp pliers (J 38185) each time to adjust the clamps while removing the hoses. After the removal of the surge tank inlet hose assembly in the vehicle, apply clean coolant on the inside diameters of the new hoses, and install them before using it. Looking for the hose clamp assembly, connect it to the Radiator and reposition the hose clamp at the Radiator; with the help of the hose clamp pliers (J 38185) replace the hose clamp and tighten. Therefore, connect the hose to the Throttle Body assembly again, repositioning the clamp again with the hose clamp pliers (J 38185), and, finally, connect the hose to the surge tank and secure the clamp using the hose clamp pliers (J 38185) for the last time. Reinstall the Radiator support and install the cooling system.
  • Cadillac XLR Coolant Pipe - 12566109 By-Pass Hose By-Pass Hose
    12566109
    Q: How to replace the LH2 Coolant Pipe on Cadillac XLR?
    A:
    The first step for bypass coolant hose (LH2) replacement involves draining the cooling system. First eliminate the surge tank outlet hose assembly from installation. Disengage clamp tension from both hose clamps using the j 38185 (Hose Clamp Pliers) before pulling out the vehicle's coolant bypass hose. Apply clean coolant along the inner diameters of the replacement hose before putting the hose onto the vehicle. Use j 38185 (Hose Clamp Pliers) to apply tension on both the lower coolant bypass hose clamp and the upper coolant bypass hose clamp. After completing the procedure you must reinstall the surge tank outlet hose assembly followed by a system coolant fill.

Related Cadillac XLR Parts

Browse Cadillac XLR Coolant Pipe by Years

+
2009 2008 2007 2006 2005 2004
