How to replace the rear sway bar link in the suspension on Cadillac STS?

The first step to replace the Sway Bar Link in the rear suspension requires a vehicle elevation followed by tire and wheel removal. While removing Sway Bar Link retaining nuts, the link stud needs to be supported by a hex tool to stop link seal damage from occurring. The Sway Bar Link needs separation from its engagement with both the sway bar and lower Control Arm. Attaching the Sway Bar Link starts with connecting it to the lower Control Arm before moving on to connecting it to the sway bar while maintaining the hex tool grip on the link stud to protect the link seal. Fasten Sway Bar Link retaining nuts while performing torque to a value of 90 nm (67 ft. Lbs.). The install process ends with reattaching the tire and wheel before letting the vehicle drop to the ground.

How to replace the front suspension sway bar link on Cadillac STS?

The first step for sway bar link front suspension replacement requires vehicle elevation and support. Use the hex tool to secure the sway bar link studs before you detach both nuts from the upper and lower retaining nut positions for complete removal of the sway bar link from the vehicle body. Install the sway bar link on the vehicle while keeping the nuts loose before securing the sway bar link studs with the hex tool to prevent link seal damage. As the next step install the sway bar link lower retaining nut while following the Fastener Notice to prevent accidents. After fitting the sway bar link upper retaining nut and lowering the vehicle start torquing both nuts to 115 N.m (95 lb ft).

OEM Cadillac STS Sway Bar Link

Stabilizer Sway Bar Link

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

3 Sway Bar Links found

View related parts
Cadillac STS Stabilizer Link, Rear Passenger Side Part Number: 15895320
$16.69 MSRP: $31.35
You Save: $14.66 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Link Assembly-Rear Stabilizer Shaft; Suspension Stabilizer Bar Link Kit; Stabilizer Bar Link Kit; Sway Bar Link; Link; Link, Stabilizer Shaft
- Position: Rear Passenger Side
- Replaces: 25768312, 15840472
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2011 Cadillac STS | Base, Platinum, V | 6 Cyl 3.6 L GAS, 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac STS Stabilizer Link Part Number: 15231140
$77.81 MSRP: $140.85
You Save: $63.04 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Link, Stabilizer Shaft; Suspension Stabilizer Bar Link Kit; Stabilizer Bar Link Kit; Sway Bar Link; Link
- Position: Front
- Replaces: 25768143
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2011 Cadillac STS | Base, Platinum, V | 6 Cyl 3.6 L GAS, 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts

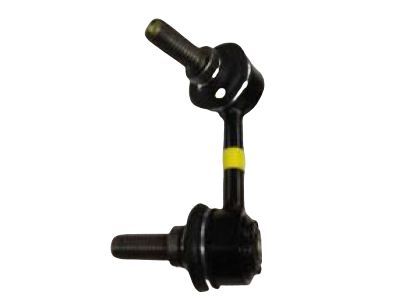

Cadillac STS Stabilizer Link, Rear Driver Side Part Number: 15895319
Product Specifications
- Other Name: Link Assembly-Rear Stabilizer Shaft; Suspension Stabilizer Bar Link Kit; Stabilizer Bar Link Kit; Sway Bar Link; Link; Link, Stabilizer Shaft
- Position: Rear Driver Side
- Replaces: 25768311, 15840471
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2011 Cadillac STS | Base, Platinum, V | 6 Cyl 3.6 L GAS, 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS

Cadillac STS Sway Bar Link

Want to cut long-term maintenance and repair costs? Choose OEM Sway Bar Link. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac STS parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac STS Sway Bar Link includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Sway Bar Link is an approved part that plays a crucial role of improving on the Cadillac STS vehicles stability. The Sway Bar Link links the sway bar to the control arm and substantially dictates the vehicle's body roll during cornering as well as the weight distribution in the Cadillac STS for improved handling. This residing enables the sway bar to resist movement on the inside tire coupled with compression of the opposite side that promotes vehicle stability. Sway Bar Link can fit into any of the STS model, so as to enable the drivers to have quality cornering in cases and safety is enhanced. However, the Sway Bar Link plays the crucial role of enhancing the smooth transferring movement between the sway bar and different suspension parts that are critical for a car's stability and thus the reduction of body roll that affects the ride comfort. The Cadillac STS has always been known to incorporate an assortment of luxurious components as well as performance elements, which is why the Sway Bar Link bolsters the STS's handling characteristics. In the Sway Bar Link, the customers will find a durable product with stable functionality; therefore it remains a significant factor for the automotive enthusiasts aiming at a luxurious car with powerful performance. All in all, Sway Bar Link is not only a part but an evidence of Cadillac's focussed area with superior product quality, efficiency and safety to its customers.

Cadillac STS Sway Bar Link Parts and Q&A

Stabilizer Link, Rear Passenger Side
15895320
Q: How to replace the rear sway bar link in the suspension on Cadillac STS?
A:
The first step to replace the Sway Bar Link in the rear suspension requires a vehicle elevation followed by tire and wheel removal. While removing Sway Bar Link retaining nuts, the link stud needs to be supported by a hex tool to stop link seal damage from occurring. The Sway Bar Link needs separation from its engagement with both the sway bar and lower Control Arm. Attaching the Sway Bar Link starts with connecting it to the lower Control Arm before moving on to connecting it to the sway bar while maintaining the hex tool grip on the link stud to protect the link seal. Fasten Sway Bar Link retaining nuts while performing torque to a value of 90 nm (67 ft. Lbs.). The install process ends with reattaching the tire and wheel before letting the vehicle drop to the ground.
Stabilizer Link
15231140
Q: How to replace the front suspension sway bar link on Cadillac STS?
A:
The first step for sway bar link front suspension replacement requires vehicle elevation and support. Use the hex tool to secure the sway bar link studs before you detach both nuts from the upper and lower retaining nut positions for complete removal of the sway bar link from the vehicle body. Install the sway bar link on the vehicle while keeping the nuts loose before securing the sway bar link studs with the hex tool to prevent link seal damage. As the next step install the sway bar link lower retaining nut while following the Fastener Notice to prevent accidents. After fitting the sway bar link upper retaining nut and lowering the vehicle start torquing both nuts to 115 N.m (95 lb ft).
