How to replace the intake manifold on Cadillac SRX?

Start by removing the power steering fluid reservoir upper bracket then proceed with the removal of power brake booster vacuum check valve and hose. Start by detaching the coolant air bleed pipe followed by removal of the Intake Manifold cover. The first step involves removing the positive crankcase ventilation (PCV) tube from the Intake Manifold and right camshaft cover while also extracting the evaporative emission (EVAP) hose from the Intake Manifold and evap solenoid. Start by removing the fuel pipe shield then unclip only the essential wire harnesses. The technician needs to remove the Intake Manifold bolts along with the Intake Manifold assembly while discarding the Intake Manifold Gasket. Clean all surfaces of the Intake Manifold first and take it apart if necessary. Install the Intake Manifold assembly after necessary assemblies and a new Intake Manifold Gasket. Follow the specified bolt sequence when tightening the manifold bolts to 17 lb ft (23 Nm) torque while making two tightening passes. Reinstall the fuel pipe shield then attach the evap hose to both the upper Intake Manifold and evap solenoid followed by connecting the pcv tube assembly to the upper Intake Manifold and right camshaft cover. Complete your installation by adding the coolant hose and Intake Manifold cover and coolant air bleed pipe and power steering fluid reservoir upper bracket and power brake booster vacuum check valve and hose.

OEM Cadillac SRX Intake Manifold

Engine Intake Manifold

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Intake Manifolds found

View related parts
Cadillac SRX Intake Manifold Part Number: 12699182
$275.51 MSRP: $473.16
You Save: $197.65 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold, Engine Fuel Intake Manifold; Intake Plenum; Manifold
- Replaces: 12648915, 12635243
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2016 Cadillac SRX | Base, Luxury, Performance, Premium | 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Cadillac SRX Intake Plenum, Upper Part Number: 55561791
$197.61 MSRP: $456.11
You Save: $258.50 (57%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold, Upper Intake; Manifold, Engine Fuel Intake Manifold
- Position: Upper
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2011 Cadillac SRX | Base, Luxury, Performance, Premium | 6 Cyl 3.0 L GAS
View related parts
Cadillac SRX Intake Manifold Part Number: 19330172
$500.04 MSRP: $851.30
You Save: $351.26 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold; Manifold, Engine Fuel Intake Manifold
- Replaces: 19303933, 12588847, 12564771
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac SRX | Base | 8 Cyl 4.6 L GAS
View related parts
Cadillac SRX Intake Manifold Part Number: 12611155
$348.50 MSRP: $574.12
You Save: $225.62 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold, Engine Fuel Intake Manifold; Engine Intake Manifold
- Position: Lower
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2012-2016 Cadillac SRX | Base, Luxury, Performance, Premium | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Cadillac SRX Intake Manifold Part Number: 12634205
Product Specifications
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2011 Cadillac SRX | Base, Luxury, Performance, Premium | 6 Cyl 3.0 L GAS
View related parts
Cadillac SRX Intake Manifold Part Number: 19371505
Product Specifications
- Other Name: Manifold, Engine Fuel Intake Manifold
- Replaces: 12571079, 92068635
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac SRX | Base | 6 Cyl 3.6 L GAS
View related parts
Cadillac SRX Intake Plenum Part Number: 12597853
Product Specifications
- Other Name: Manifold, Engine Fuel Intake Manifold
- Position: Upper
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2009 Cadillac SRX | Base | 6 Cyl 3.6 L GAS
View related parts

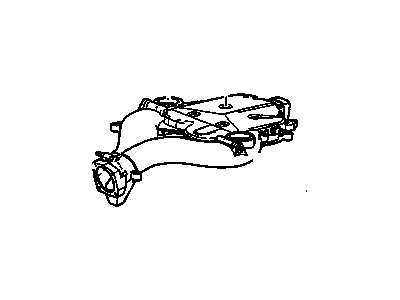

Cadillac SRX Intake Plenum Part Number: 12587556
Product Specifications
- Other Name: Manifold, Engine Fuel Intake Manifold
- Position: Upper
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2006 Cadillac SRX | Base | 6 Cyl 3.6 L GAS

Cadillac SRX Intake Manifold

Want to cut long-term maintenance and repair costs? Choose OEM Intake Manifold. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac SRX parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac SRX Intake Manifold includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

As one of the many parts of a Cadillac SRX, the Intake Manifold is an incredibly important part that greatly improves the Cadillac's mid-size luxury SUV capabilities and durability. As responsible for supplying air or air/fuel mixture to each cylinder in the most effective manner possible, the SRX Intake Manifold is an integral component that predetermines the engine's power-to-weight ratio and standard coefficient of efficiency. Cadillac has designed this feature the SRX Intake Manifold and uses contemporary materials: chiefly a lightweight plastic composite; effective at getting better fuel economy, and cool. The design also has variable length intake manifolds (VLIM) which changes depending with the loading of the engine; thus ensuring that there is the right amount of air movement within the engines depending on the driving condition. The SRX began in 2003 and up to the release of the second generation in 2016 the Intake Manifold is used, on this car the Intake Manifold fits the high feature V6 engine and the direct injection engines in the second generation Cadillac SRX. This reflects Cadillac's flexibility as the SRX Intake Manifold also enhances safety and fuel efficiency; acceleration, towing capacity and power. Luxurious interiors and safety technologies make this car a target to discriminating buyers in the automotive industry due to the combination of power and elegance represented by Cadillac SRX. The role of the Intake Manifold for reliability and performance seals the necessity of its existence to the total engineering of Cadillac cars and hence, has become part of what makes a Cadillac SRX go.

Cadillac SRX Intake Manifold Parts and Q&A

Intake Manifold
12699182
Q: How to replace the intake manifold on Cadillac SRX?
A:
Start by removing the power steering fluid reservoir upper bracket then proceed with the removal of power brake booster vacuum check valve and hose. Start by detaching the coolant air bleed pipe followed by removal of the Intake Manifold cover. The first step involves removing the positive crankcase ventilation (PCV) tube from the Intake Manifold and right camshaft cover while also extracting the evaporative emission (EVAP) hose from the Intake Manifold and evap solenoid. Start by removing the fuel pipe shield then unclip only the essential wire harnesses. The technician needs to remove the Intake Manifold bolts along with the Intake Manifold assembly while discarding the Intake Manifold Gasket. Clean all surfaces of the Intake Manifold first and take it apart if necessary. Install the Intake Manifold assembly after necessary assemblies and a new Intake Manifold Gasket. Follow the specified bolt sequence when tightening the manifold bolts to 17 lb ft (23 Nm) torque while making two tightening passes. Reinstall the fuel pipe shield then attach the evap hose to both the upper Intake Manifold and evap solenoid followed by connecting the pcv tube assembly to the upper Intake Manifold and right camshaft cover. Complete your installation by adding the coolant hose and Intake Manifold cover and coolant air bleed pipe and power steering fluid reservoir upper bracket and power brake booster vacuum check valve and hose.
