How to replace the harmonic balancer on Cadillac SRX?

The first step to replace the crankshaft balancer includes removing accessory drive belts and safely supporting and elevating the vehicle. The proper installation of the en-48018 flywheel holding tool (EN-48018) happens after you have removed the transmission bell housing inspection hole cover. Use j 38416-2 crankshaft button (J 38416-2) to insert into the end of the crankshaft and then remove the crankshaft balancer bolt. You should employ the j 24420-c crankshaft balancer remover (J 24420-C) to extract the crankshaft balancer alongside j 24420-c instruction for removal and subsequent cleaning and inspection. The crankshaft balancer needs to be placed on the crankshaft nose then installed through the j 41998-b crankshaft balancer installer (J 41998-B). Apply engine oil to threads of the crankshaft balancer bolt before cleaning them. Screw the crankshaft balancer bolt into place and tighten it to 50 n.m (37 lb ft) during the first stage and add 120 degrees using the j 45059 angle meter (J 45059) for the second stage of tightening. Afterward you must reinstall the transmission bell housing inspection hole cover followed by vehicle descent before installing the accessory drive belts.

OEM Cadillac SRX Harmonic Balancer

Engine Harmonic Balancer

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Harmonic Balancers found

View related parts
Cadillac SRX Crank Pulley Part Number: 12697768
$45.61 MSRP: $109.97
You Save: $64.36 (59%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pulley; Harmonic Balancer; Vibration Damper; Crankshaft Balance; Balancer; Balancer, Engine Crankshaft And Camshaft Balancer
- Replaces: 12626355, 12674685, 12603181
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2016 Cadillac SRX | Base, Luxury, Performance, Premium | 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Cadillac SRX Crank Pulley Part Number: 12603180
$61.01 MSRP: $104.78
You Save: $43.77 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Balancer, Crankshaft; Harmonic Balancer Puller; Harmonic Balancer; Vibration Damper; Crankshaft Balance; Balancer; Balancer, Engine Crankshaft And Camshaft Balancer
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2009 Cadillac SRX | Base | 6 Cyl 3.6 L GAS
View related parts

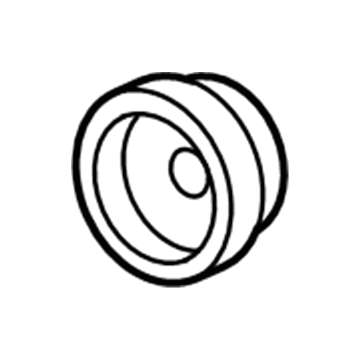

Cadillac SRX Crank Pulley Part Number: 12597654
$93.56 MSRP: $154.12
You Save: $60.56 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Balancer, Crankshaft; Harmonic Balancer Puller; Harmonic Balancer; Vibration Damper; Crankshaft Balance; Balancer, Engine Crankshaft And Camshaft Balancer
- Replaced by: 12702119
- Replaces: 12588222
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2007 Cadillac SRX | Base | 6 Cyl 3.6 L GAS
View related parts

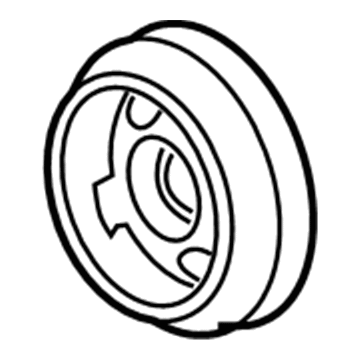

Cadillac SRX Crank Pulley Part Number: 12584576
$49.07 MSRP: $77.90
You Save: $28.83 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Balancer, Crankshaft; Harmonic Balancer Puller; Harmonic Balancer; Vibration Damper; Crankshaft Balance; Balancer, Engine Crankshaft And Camshaft Balancer
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac SRX | Base | 8 Cyl 4.6 L GAS

Cadillac SRX Harmonic Balancer

Want to cut long-term maintenance and repair costs? Choose OEM Harmonic Balancer. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac SRX parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac SRX Harmonic Balancer includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

A Cadillac SRX Harmonic Balancer is an important part, which can be regarded as a proof of Cadillac's concern on reliability and performance. In essence, the harmonic balancer works as a vibration absorber or isolator and it helps in balancing the Cadillac SRX's engine and reducing those vibrations resulting from the cyclic process of combustion to improve efficiency and safety of the car model. This component includes a strong metal centre with the crankshaft fastened to it which in contact with a stiff inertia ring and also a rubber ring that opposes twisting forces. There are a number of different models of Cadillac SRX vehicles; all of which makes use of a variety of standard original equipment (OE) harmonic balancers as well as performance parts made for tuned engines. These performance harmonic balancers are made in a way that they allow increased vibrations at different RPM for efficient engine performance. For instance, Cadillac SRX Harmonic Balancer includes characteristics, which may include 360-degree timing marks that make it easier to adjust. Current model Cadillac SRX has been produced for two generations, they noted the luxuriousmaterials used for the interior, the security systems introduced, and the handling capacity this car has, for instance the towing capacity being able to pull up to 3,500 pounds. This Cadillac SRX is a great luxurious large SUV that will surely would love its excellent ride balance and its daring exterior design. Therefore, it can be concluded that the Cadillac SRX Harmonic Balancer is not only about improving performance, but also about offering reliability and safety of a car, making it an attractive asset on the auto market.

Cadillac SRX Harmonic Balancer Parts and Q&A

Crank Pulley
12584576
Q: How to replace the harmonic balancer on Cadillac SRX?
A:
The first step to replace the crankshaft balancer includes removing accessory Drive Belts and safely supporting and elevating the vehicle. The proper installation of the en-48018 flywheel holding tool (EN-48018) happens after you have removed the transmission bell housing inspection hole cover. Use j 38416-2 crankshaft button (J 38416-2) to insert into the end of the crankshaft and then remove the crankshaft balancer bolt. You should employ the j 24420-c crankshaft balancer remover (J 24420-C) to extract the crankshaft balancer alongside j 24420-c instruction for removal and subsequent cleaning and inspection. The crankshaft balancer needs to be placed on the crankshaft nose then installed through the j 41998-b crankshaft balancer installer (J 41998-B). Apply engine oil to threads of the crankshaft balancer bolt before cleaning them. Screw the crankshaft balancer bolt into place and tighten it to 50 n.m (37 lb ft) during the first stage and add 120 degrees using the j 45059 angle meter (J 45059) for the second stage of tightening. Afterward you must reinstall the transmission bell housing inspection hole cover followed by vehicle descent before installing the accessory drive belts.
