How to replace the left Blend Door Actuator on Cadillac SRX?

Remove the left Air Temperature Actuator by pulling off the left side closeout panel, then the left knee bolster and its bracket. In case the vehicle has a movable pedal, remove then detach the three nuts fixing the adjustable accelerator pedal and move the accelerator pedal to the desired location. Next, unscrew the left air temperature actuator in and the harness screw, pull the electrical connector from the actuator and unscrew the actuator itself. For installation, please install the new left air temperature actuator on the harness screw and tighten it up to 1 N.m (9 lb in). Reconnect the electrical connector, fit the actuator screws, whether to 1N.m (9 lb in). If they apply, reinstall the adjustable accelerator pedal, knee bolster bracket, knee bolster, and the final system closeout panel.

How to replace the LH Blend Door Actuator on Cadillac SRX?

After removing the instrument panel (I/P) carrier start by removing screws from the left air temperature actuator and harness screw. The electrical connector must detach from the actuator before you can remove the actuator unit. The new left air temperature actuator needs position installation following the Fastener Notice. Secure the harness screw with 1 N.m (9 lb in) torque specifications. Connect the electrical connector to the actuator followed by securing the actuator screws with a 1 N.m torque setting (9 lb in). The instrument panel (I/P) carrier should be installed as the final step of the replacement.

OEM Cadillac SRX Blend Door Actuator

Air Blend Door Actuator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Blend Door Actuators found

View related parts
Cadillac SRX Temperature Motor Part Number: 92215208
$100.41 MSRP: $206.34
You Save: $105.93 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Actuator, Air Conditioner Control; HVAC Heater Blend Door Actuator; Actuator; Actuator, A/C Control
- Replaces: 20782697
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2016 Cadillac SRX | Base, Luxury, Performance, Premium | 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Cadillac SRX Temperature Motor Part Number: 89024960
$54.63 MSRP: $112.26
You Save: $57.63 (52%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Actuator, Air Conditioner Vacuum Control; HVAC Heater Blend Door Actuator; HVAC Blend Door Actuator; Actuator, A/C Control
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2009 Cadillac SRX | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac SRX Temperature Motor, Passenger Side Part Number: 13332582
$22.49 MSRP: $42.24
You Save: $19.75 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Actuator, Air Conditioner Control; Actuator; Actuator, A/C Control
- Position: Passenger Side
- Replaces: 20782698, 13316344, 92215207
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2016 Cadillac SRX | Base, Luxury, Performance, Premium | 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Cadillac SRX Door Actuator, Driver Side Part Number: 13393291
$48.34 MSRP: $99.34
You Save: $51.00 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Actuator, Air Conditioner Control; HVAC Air Adjustment Control Motor; HVAC Heater Blend Door Actuator; Gear; Actuator; Actuator, A/C Control
- Position: Driver Side
- Replaces: 13333726, 20782699
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2016 Cadillac SRX | Base, Luxury, Performance, Premium | 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts

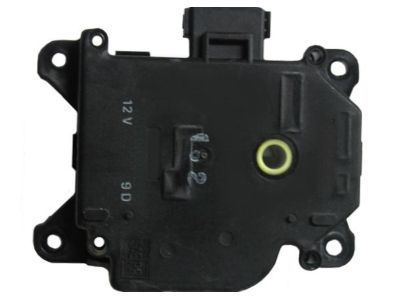

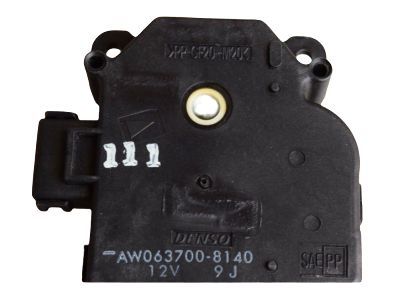

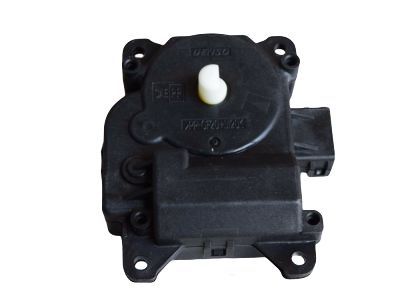

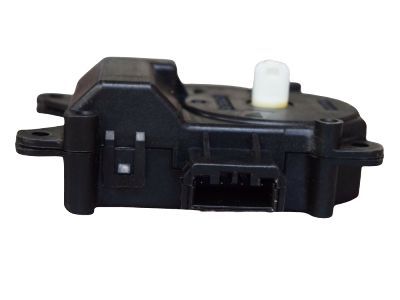

Cadillac SRX Actuator Part Number: 25740409
Product Specifications
- Other Name: Actuator, Air Conditioner Control; HVAC Heater Blend Door Actuator; HVAC Blend Door Actuator; Actuator, A/C Control
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac SRX | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac SRX Mode Motor Part Number: 89023388
Product Specifications
- Other Name: Actuator, Air Conditioner Control; HVAC Heater Blend Door Actuator; HVAC Blend Door Actuator; Actuator; Actuator, A/C Control
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2008 Cadillac SRX | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac SRX Mode Motor Part Number: 89023402
Product Specifications
- Other Name: Actuator Assembly, Mode Valve; HVAC Heater Blend Door Actuator; HVAC Blend Door Actuator; Actuator, A/C Control
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2005 Cadillac SRX | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac SRX Temperature Motor Part Number: 25740395
Product Specifications
- Other Name: Actuator, Air Conditioner Vacuum Control; HVAC Heater Blend Door Actuator; HVAC Blend Door Actuator; Actuator; Actuator, A/C Control
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2005 Cadillac SRX | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS

Cadillac SRX Blend Door Actuator

Want to cut long-term maintenance and repair costs? Choose OEM Blend Door Actuator. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac SRX parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac SRX Blend Door Actuator includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Cadillac SRX Blend Door Actuator Parts and Q&A

Temperature Motor
89024960
Q: How to replace the left Blend Door Actuator on Cadillac SRX?
A:
Remove the left Air Temperature Actuator by pulling off the left side closeout panel, then the left knee bolster and its bracket. In case the vehicle has a movable pedal, remove then detach the three nuts fixing the adjustable accelerator pedal and move the accelerator pedal to the desired location. Next, unscrew the left air temperature actuator in and the harness screw, pull the electrical connector from the actuator and unscrew the actuator itself. For installation, please install the new left air temperature actuator on the harness screw and tighten it up to 1 N.m (9 lb in). Reconnect the electrical connector, fit the actuator screws, whether to 1N.m (9 lb in). If they apply, reinstall the adjustable accelerator pedal, knee bolster bracket, knee bolster, and the final system closeout panel.
Actuator
25740409
Q: How to replace the LH Blend Door Actuator on Cadillac SRX?
A:
After removing the instrument panel (I/P) carrier start by removing screws from the left air temperature actuator and harness screw. The electrical connector must detach from the actuator before you can remove the actuator unit. The new left air temperature actuator needs position installation following the Fastener Notice. Secure the harness screw with 1 N.m (9 lb in) torque specifications. Connect the electrical connector to the actuator followed by securing the actuator screws with a 1 N.m torque setting (9 lb in). The instrument panel (I/P) carrier should be installed as the final step of the replacement.
