How to replace the harmonic balancer on Cadillac Escalade?

The first step to replace a Crankshaft balancer requires removing the air conditioning Drive Belt and cooling fan and shroud and Starter motor with proper alignment of the j 42386-a (Flywheel Holding Tool) teeth to the engine Flywheel. Users must install the j 42386-a using one m10-1.5 x 120 mm and one m10-1.5 x 45 mm bolt before tightening them to 50 nm (37 lb ft). The Crankshaft balancer bolt (139) must be taken off for reinstall usage later on. This operation requires the purchaser to connect the j 41816 (Crankshaft Balancer Remover) and j 41816-2 (Crankshaft End Protector) to the Crankshaft balancer (138) before removing the component. Position the Crankshaft balancer onto the Crankshaft then use j 41665 (Crankshaft Balancer and Sprocket Installer) together with j 41478 (Crankshaft Front Oil Seal Installer)'s threaded rod for balancer installation. The balancer must be straight before tightening the Crankshaft balancer bolt (139) to 330 nm (240 lb ft) during the first bolt torque stage then continuing with the bolt removal process. A correct installation of the balancer must be confirmed through measurements before repeating the installation steps again. The j 45059 (Angle Meter) enables the technician to torque the new Crankshaft balancer bolt (139) to 50 nm (37 lb ft) and 140 degrees. After removing j 42386-a and all its bolts you can reinstall the Starter motor and cooling fan with shroud and the a/c Drive Belt and execute the Crankshaft position (CKP) system variation learn procedure.

OEM Cadillac Escalade Harmonic Balancer

Engine Harmonic Balancer

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Harmonic Balancers found

View related parts
Cadillac Escalade Crankshaft Pulley Part Number: 12684590
$85.02 MSRP: $144.73
You Save: $59.71 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pulley; Harmonic Balancer Puller; Harmonic Balancer; Vibration Damper; Balancer, Engine Crankshaft And Camshaft Balancer
- Replaces: 12620312, 12662037
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2015-2020 Cadillac Escalade | Base, Luxury, Platinum, Premium, Premium Luxury | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts

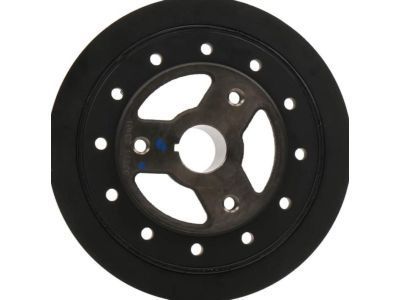

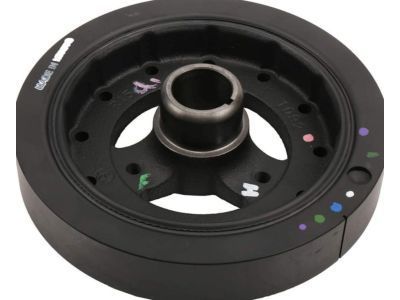

Cadillac Escalade Vibration Damper Part Number: 10243271
$91.05 MSRP: $156.37
You Save: $65.32 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pulley; Balancer, Engine Crankshaft And Camshaft Balancer
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2000 Cadillac Escalade | Base | 8 Cyl 5.7 L GAS
View related parts
Cadillac Escalade Crankshaft Pulley Part Number: 12690108
$243.71 MSRP: $386.84
You Save: $143.13 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pulley; Vibration Damper; Balancer, Engine Crankshaft And Camshaft Balancer
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2023 Cadillac Escalade | V | 8 Cyl 6.2 L GAS
View related parts
Cadillac Escalade Crankshaft Pulley Part Number: 12680364
$79.01 MSRP: $134.48
You Save: $55.47 (42%)
ADD TO CART
Product Specifications
- Other Name: Pulley; Harmonic Balancer Puller; Harmonic Balancer; Vibration Damper; Balancer, Engine Crankshaft And Camshaft Balancer
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2023 Cadillac Escalade | Luxury, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum | 8 Cyl 6.2 L GAS
View related parts
Cadillac Escalade Vibration Damper Part Number: 12634105
Product Specifications
- Other Name: Pulley; Harmonic Balancer; Crankshaft Balance; Balancer
- Replaces: 12576652, 12553112
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2014 Cadillac Escalade | Base, Hybrid, Hybrid Platinum, Luxury, Platinum, Premium | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS

Cadillac Escalade Harmonic Balancer

Want to cut long-term maintenance and repair costs? Choose OEM Harmonic Balancer. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac Escalade parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac Escalade Harmonic Balancer includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

In Cadillac Escalade vehicles, the Harmonic Balancer has been designed to ensure the proper balancing of the engine as well as to absorb vibrations that are as a result of the combustion process. This component also known as a vibration damper made of metal with crankshaft in the middle of it and has an inertia ring, a rubber ring that either revolve or is free to flex in the plane perpendicular to the oscillating twisting force. As it helps maintain smooth operation of the engine, damage on the rubber may result to fatigue and may cause, excessive vibrations may lead to crankshaft damages. Currently, Cadillac Escalade has had the opportunity to incorporate different kinds of harmonic balancers ranging from the OEM types to the performance types. While the traditional standard balancer is meant for factory engine ratings, performance harmonic balancers are for tuned up automobiles giving better protection against elevated vibrations at fast revolutions per minute ratings. Among the performance options are traditional, viscous, and multi-piece models, all of which are safety-tested at high RPMs and have such features as 360-degree timing marks for engine tuning.

Cadillac Escalade Harmonic Balancer Parts and Q&A

Vibration Damper
12634105
Q: How to replace the harmonic balancer on Cadillac Escalade?
A:
The first step to replace a Crankshaft balancer requires removing the air conditioning Drive Belt and cooling fan and shroud and Starter motor with proper alignment of the j 42386-a (Flywheel Holding Tool) teeth to the engine Flywheel. Users must install the j 42386-a using one m10-1.5 x 120 mm and one m10-1.5 x 45 mm bolt before tightening them to 50 nm (37 lb ft). The Crankshaft balancer bolt (139) must be taken off for reinstall usage later on. This operation requires the purchaser to connect the j 41816 (Crankshaft Balancer Remover) and j 41816-2 (Crankshaft End Protector) to the Crankshaft balancer (138) before removing the component. Position the Crankshaft balancer onto the Crankshaft then use j 41665 (Crankshaft Balancer and Sprocket Installer) together with j 41478 (Crankshaft Front Oil Seal Installer)'s threaded rod for balancer installation. The balancer must be straight before tightening the Crankshaft balancer bolt (139) to 330 nm (240 lb ft) during the first bolt torque stage then continuing with the bolt removal process. A correct installation of the balancer must be confirmed through measurements before repeating the installation steps again. The j 45059 (Angle Meter) enables the technician to torque the new Crankshaft balancer bolt (139) to 50 nm (37 lb ft) and 140 degrees. After removing j 42386-a and all its bolts you can reinstall the Starter motor and cooling fan with shroud and the a/c Drive Belt and execute the Crankshaft position (CKP) system variation learn procedure.
