How to replace the steering knuckle in a coil spring suspension system on Cadillac Escalade ESV?

The coil spring suspension replacement of a Steering Knuckle requires first lifting and supporting the vehicle and then removing the tire followed by the wheel. A suitable jack should be used to support the lower Control Arm during Wheel Hub and bearing removal. First disconnect the electronic suspension control (ESC) link rod from its sensor before detaching the outer tie rod from the knuckle. First remove the brake hose bracket retaining bolt from the knuckle and then use j 43631 Ball Joint remover with j 45851 Ball Joint separator protector adapters to remove the upper retaining nut which isolates the upper Ball Joint from the Steering Knuckle followed by removing the lower Ball Joint. The mechanic should remove the Steering Knuckle followed by a cleaning step which removes contaminants from the upper and lower ball joints as well as the Tie Rod End while checking the tapered areas of the knuckle. Steering knuckles must be replaced when tapered holes show signs of elongation or out-of-roundness or damage. Lay the Steering Knuckle into position then attach the lower Ball Joint next and finish with the retaining nut tightened to 100 nm (74 ft. Lbs.). The upper Ball Joint requires installation on the Steering Knuckle before implementing its retaining nut which should get tightened to 50 nm (37 ft. Lbs.). The brake hose bracket retaining bolt fits onto the knuckle and receives a torque of 9 nm (80 inch lbs.). Now secure the outer tie rod into position on the Steering Knuckle and the Wheel Hub and bearing assembly. Attach esc link rod to sensor before installing tire and wheel and removing vehicle stands before lowering the car.

OEM Cadillac Escalade ESV Steering Knuckle

Front Steering Knuckle

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

14 Steering Knuckles found

View related parts

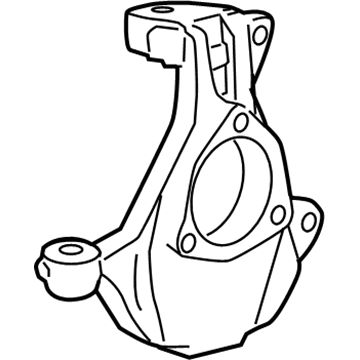

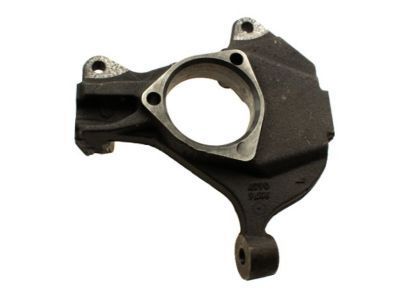

Cadillac Escalade ESV Knuckle, Driver Side Part Number: 22912208
$306.71 MSRP: $490.06
You Save: $183.35 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle, Steering
- Position: Driver Side
- Replaces: 15942236, 15125944
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2014 Cadillac Escalade ESV | Base, Luxury, Platinum, Premium | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts

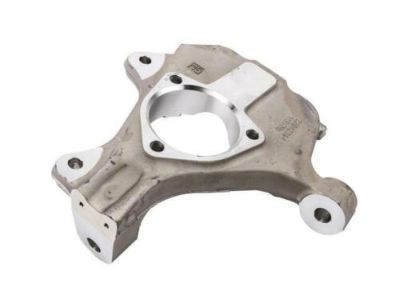

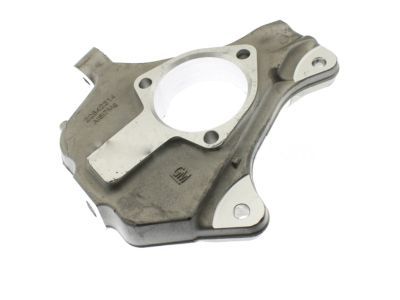

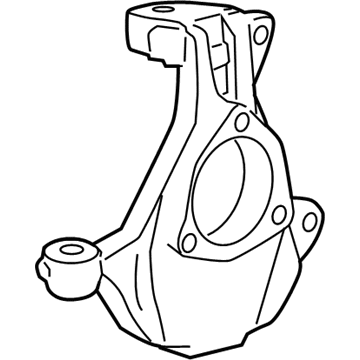

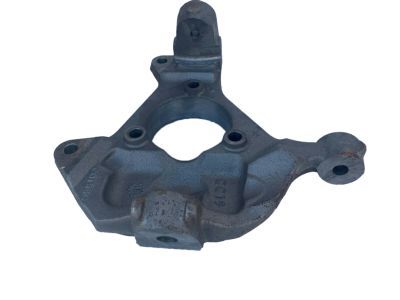

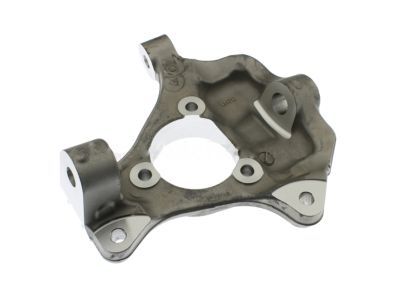

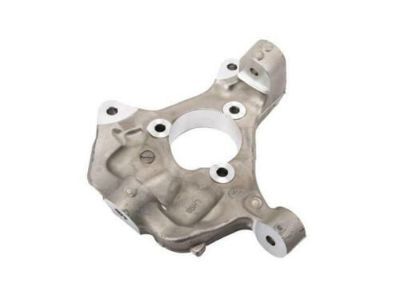

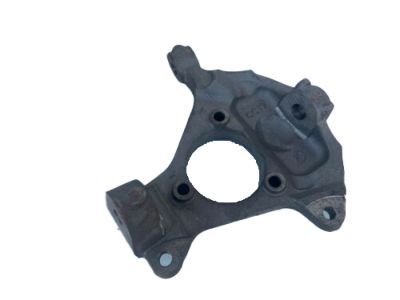

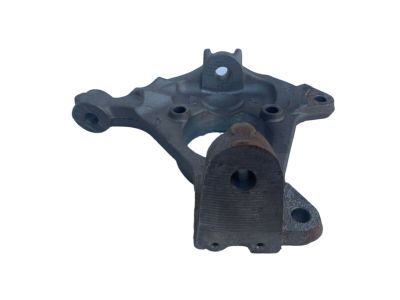

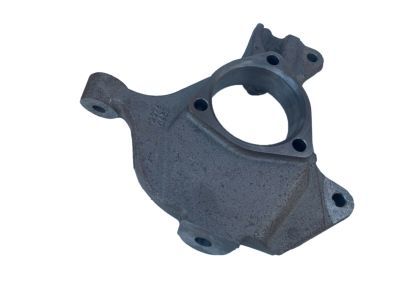

Cadillac Escalade ESV Knuckle, Driver Side Part Number: 22842314
$88.71 MSRP: $152.35
You Save: $63.64 (42%)
ADD TO CART
Product Specifications
- Other Name: Knuckle, Steering
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2015-2020 Cadillac Escalade ESV | Base, Luxury, Platinum, Premium, Premium Luxury | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts

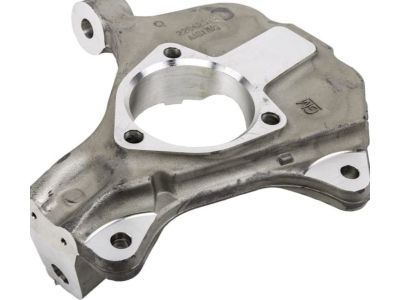

Cadillac Escalade ESV Knuckle, Passenger Side Part Number: 22842315
$88.71 MSRP: $152.35
You Save: $63.64 (42%)
ADD TO CART
Product Specifications
- Other Name: Knuckle, Steering
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2015-2020 Cadillac Escalade ESV | Base, Luxury, Platinum, Premium, Premium Luxury | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts

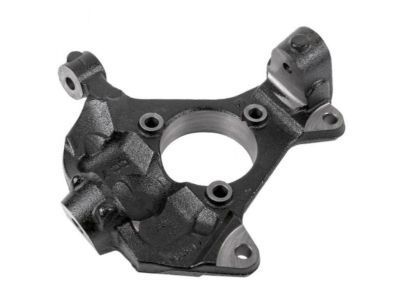

Cadillac Escalade ESV Knuckle, Passenger Side Part Number: 23242660
$258.59 MSRP: $410.57
You Save: $151.98 (38%)
ADD TO CART
Product Specifications
- Other Name: Knuckle, Steering
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2019-2020 Cadillac Escalade ESV | Base, Luxury, Platinum, Premium Luxury | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts

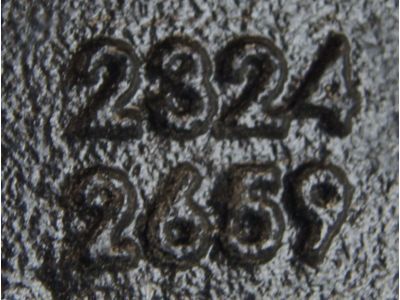

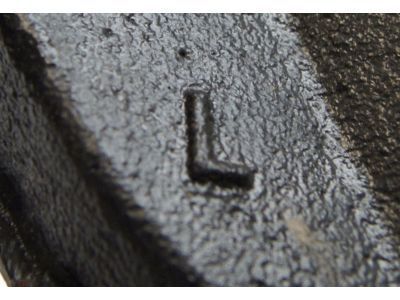

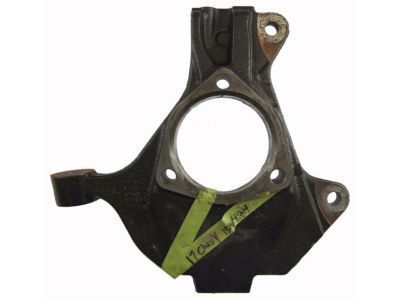

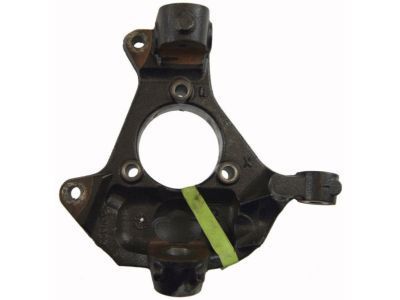

Cadillac Escalade ESV Knuckle, Driver Side Part Number: 23242659
$292.32 MSRP: $497.68
You Save: $205.36 (42%)
ADD TO CART
Product Specifications
- Other Name: Knuckle, Steering
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2019-2020 Cadillac Escalade ESV | Base, Luxury, Platinum, Premium Luxury | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
Cadillac Escalade ESV Knuckle, Rear Passenger Side Part Number: 85116618
$103.10 MSRP: $177.09
You Save: $73.99 (42%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle, Rear Wheel
- Position: Rear Passenger Side
- Replaced by: 85562433
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2023 Cadillac Escalade ESV | Luxury, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum, V | 6 Cyl 3.0 L DIESEL, 8 Cyl 6.2 L GAS
View related parts
Cadillac Escalade ESV Knuckle, Rear Driver Side Part Number: 85116617
$108.48 MSRP: $184.70
You Save: $76.22 (42%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle, Rear Wheel
- Position: Rear Driver Side
- Replaced by: 85562432
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2023 Cadillac Escalade ESV | Luxury, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum, V | 6 Cyl 3.0 L DIESEL, 8 Cyl 6.2 L GAS
View related parts

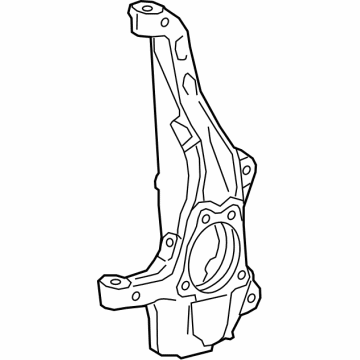

Cadillac Escalade ESV Knuckle, Driver Side Part Number: 84673207
$88.20 MSRP: $150.15
You Save: $61.95 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle, Steering
- Position: Driver Side
- Replaces: 84453668
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2023 Cadillac Escalade ESV | Luxury, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum, V | 6 Cyl 3.0 L DIESEL, 8 Cyl 6.2 L GAS
View related parts

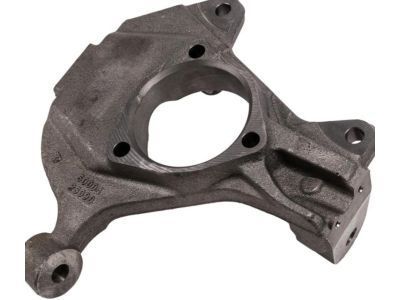

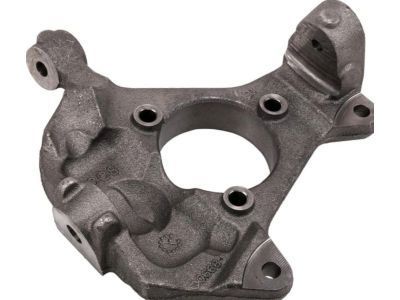

Cadillac Escalade ESV Knuckle, Passenger Side Part Number: 22912209
Product Specifications
- Other Name: Knuckle, Steering
- Position: Passenger Side
- Replaces: 15125945, 15942237
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2014 Cadillac Escalade ESV | Base, Luxury, Platinum, Premium | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts

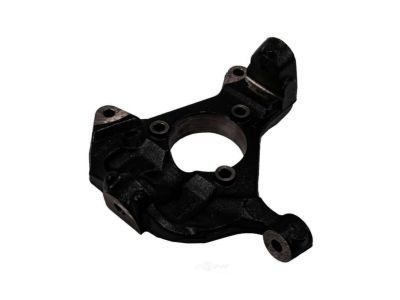

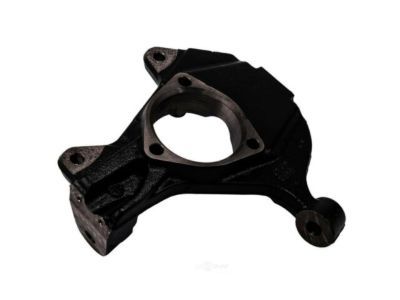

Cadillac Escalade ESV Knuckle, Driver Side Part Number: 22760659
Product Specifications
- Other Name: Knuckle, Steering
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2015 Cadillac Escalade ESV | Base, Luxury, Platinum, Premium | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts

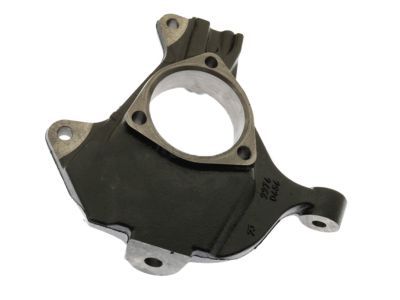

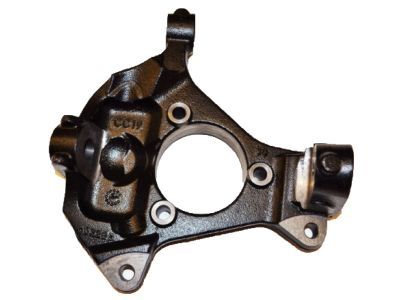

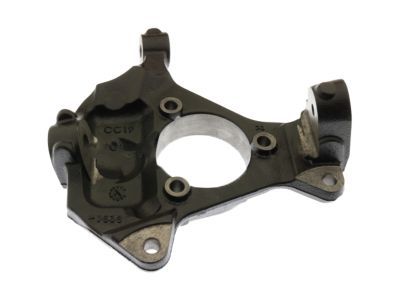

Cadillac Escalade ESV Knuckle, Passenger Side Part Number: 22760658
Product Specifications
- Other Name: Knuckle, Steering
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2015 Cadillac Escalade ESV | Base, Luxury, Platinum, Premium | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts

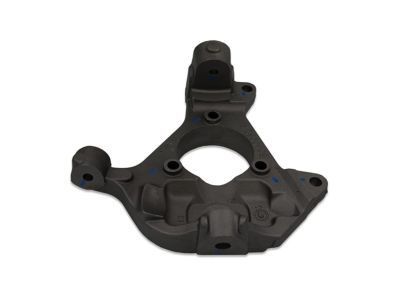

Cadillac Escalade ESV Knuckle, Passenger Side Part Number: 19257047
Product Specifications
- Other Name: Knuckle, Steering
- Position: Passenger Side
- Replaces: 18048229, 18060556
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2005 Cadillac Escalade ESV | Base | 8 Cyl 6.0 L GAS
View related parts
Cadillac Escalade ESV Knuckle, Driver Side Part Number: 19257048
Product Specifications
- Other Name: Knuckle, Steering
- Position: Driver Side
- Replaces: 18048228, 18060555
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2005 Cadillac Escalade ESV | Base | 8 Cyl 6.0 L GAS
View related parts
Cadillac Escalade ESV Knuckle, Passenger Side Part Number: 84673210
$95.86 MSRP: $150.15
You Save: $54.29 (37%)
Product Specifications
- Other Name: Knuckle, Steering
- Position: Passenger Side
- Replaces: 84453669
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2023 Cadillac Escalade ESV | Luxury, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum, V | 6 Cyl 3.0 L DIESEL, 8 Cyl 6.2 L GAS

Cadillac Escalade ESV Steering Knuckle

Want to cut long-term maintenance and repair costs? Choose OEM Steering Knuckle. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac Escalade ESV parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac Escalade ESV Steering Knuckle includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Cadillac Escalade ESV Steering Knuckle Parts and Q&A

Knuckle, Passenger Side
19257047
Q: How to replace the steering knuckle in a coil spring suspension system on Cadillac Escalade ESV?
A:
The coil spring suspension replacement of a Steering Knuckle requires first lifting and supporting the vehicle and then removing the tire followed by the wheel. A suitable jack should be used to support the lower Control Arm during Wheel Hub and bearing removal. First disconnect the electronic suspension control (ESC) link rod from its sensor before detaching the outer tie rod from the knuckle. First remove the brake hose bracket retaining bolt from the knuckle and then use j 43631 Ball Joint remover with j 45851 Ball Joint separator protector adapters to remove the upper retaining nut which isolates the upper Ball Joint from the Steering Knuckle followed by removing the lower Ball Joint. The mechanic should remove the Steering Knuckle followed by a cleaning step which removes contaminants from the upper and lower ball joints as well as the Tie Rod End while checking the tapered areas of the knuckle. Steering knuckles must be replaced when tapered holes show signs of elongation or out-of-roundness or damage. Lay the Steering Knuckle into position then attach the lower Ball Joint next and finish with the retaining nut tightened to 100 nm (74 ft. Lbs.). The upper Ball Joint requires installation on the Steering Knuckle before implementing its retaining nut which should get tightened to 50 nm (37 ft. Lbs.). The brake hose bracket retaining bolt fits onto the knuckle and receives a torque of 9 nm (80 inch lbs.). Now secure the outer tie rod into position on the Steering Knuckle and the Wheel Hub and bearing assembly. Attach esc link rod to sensor before installing tire and wheel and removing vehicle stands before lowering the car.
