How to replace the Air Bag Clockspring in the steering wheel module on Cadillac Eldorado?

In order to replace the inflatable restraint Steering Wheel module coil, it's not before turning off the ignition and deactivating the sir system. Pull off the Steering Wheel inflator module then remove Steering Wheel retaining nut and Steering Wheel from column shaft then set column at the clock position and 12 o'clock place pulling out the ignition switch and turning the Steering Shaft until a click is heard. The Turn Signal Switch assembly has to be set to the "up." remove the sir connector from the fused jumper assembly-connector and inspect the steering column for accident damage. Displace the retaining ring, wire protector and air bag clock spring assembly. For installment, keep the wheels straight ahead and align the block tooth and centering mark of the race and upper shaft assembly at the 12 o'clock position. The new air bag clock spring assembly will be pre centered; the following instructions to use the existing one are to use the no ice of the air bag clock spring assembly (Grand Motor Company). You should adjust the steering column to the 12 o'clock position, and mount the hanging air bag clock spring assembly to the race and upper shaft assembly. Once it is installed, pull a tab to remove the pre centered feature. Install the wire protector with the support bracket and followed by retaining ring. Connect the air bag clock spring assembly connector with the fused jumper assembly connector. Mount the Steering Wheel and the Steering Wheel nut onto the steering column shaft and tighten it to 41 n.m (30 lb ft). Lastly, install the Steering Wheel inflator module and set the sir system in position.

OEM Cadillac Eldorado Air Bag Clockspring

Steering Wheel Airbag Coil

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Air Bag Clocksprings found

View related parts

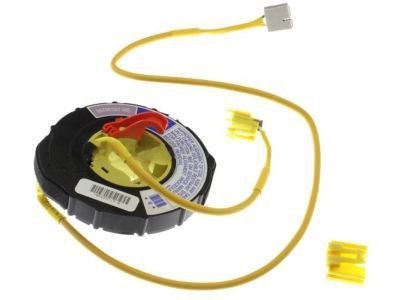

Cadillac Eldorado Coil Assembly Part Number: 26041005
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint Steering Wheel Module; Air Bag Clockspring; Coil; Clockspring; Coil Kit, Inflatable Restraint System
- Replaces: 26053264
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-1995 Cadillac Eldorado | Base, ETC, Touring | 8 Cyl 4.6 L GAS
View related parts
Cadillac Eldorado Air Bag Module Part Number: 26013854
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint Steering Wheel Module; Air Bag Clockspring; Coil Assembly; Clockspring; Coil Kit, Inflatable Restraint System; Front Door Trim
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1990-1992 Cadillac Eldorado | Base, Biarritz, Spring Edition, Touring | 8 Cyl 4.5 L GAS, 8 Cyl 4.9 L GAS
View related parts
Cadillac Eldorado Clockspring Part Number: 26051659
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint Steering Wheel Module; Air Bag Clockspring; Coil Kit, Inflatable Restraint System
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2002 Cadillac Eldorado | Base, ESC, ETC | 8 Cyl 4.6 L GAS
View related parts
Cadillac Eldorado Clockspring Part Number: 26046083
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint Steering Wheel Module; Air Bag Clockspring; Coil Kit, Inflatable Restraint System
- Replaces: 26024818, 26039628
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1993 Cadillac Eldorado | Base, Sport, Touring | 8 Cyl 4.6 L GAS, 8 Cyl 4.9 L GAS

Cadillac Eldorado Air Bag Clockspring

Want to cut long-term maintenance and repair costs? Choose OEM Air Bag Clockspring. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac Eldorado parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac Eldorado Air Bag Clockspring includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Air Bag Clockspring is a part of the Supplemental Restraint System (SRS), thus making this component to play a major role for improving the safety of passengers in case of an accident. Catered for its dependability and productivity in auto-mobiles, the Air Bag Clockspring guarantees smooth electrical flow from the airbag module to the vehicle's electrical circuitry, should the airbag be needed in the future. This piece suits different Cadillac Eldorado models well highlighting that Cadillac was protective of its cars for fifty years before it stopped producing them in 2002. The Cadillac ELdorado that reflects luxury and richness comes with different designs of the Air Bag Clockspring generally made of strong substances such as plastic or a blend of metal and plastic part, reveals refined designs aimed at improving the general reliability and performance part. The Air Bag Clockspring is quite symbolic as it separates the brand's function as a car manufacture from its morality; the cars are efficient and safe to protect the driver and other people on the road. Due to certain technical characteristics and possibilities for using it in Cadillac models of different generations, the Air Bag Clockspring is unique in the framework of automotive parts. Indeed, this component, a vivid example of Cadillac's engineering, both enriches the driving experience and underlines Cadillac Eldorado legend as the emblem of comfort and safety.

Cadillac Eldorado Air Bag Clockspring Parts and Q&A

Clockspring
26051659
Q: How to replace the Air Bag Clockspring in the steering wheel module on Cadillac Eldorado?
A:
In order to replace the inflatable restraint Steering Wheel module coil, it's not before turning off the ignition and deactivating the sir system. Pull off the Steering Wheel inflator module then remove Steering Wheel retaining nut and Steering Wheel from column shaft then set column at the clock position and 12 o'clock place pulling out the ignition switch and turning the Steering Shaft until a click is heard. The Turn Signal Switch assembly has to be set to the "up." remove the sir connector from the fused jumper assembly-connector and inspect the steering column for accident damage. Displace the retaining ring, wire protector and air bag clock spring assembly. For installment, keep the wheels straight ahead and align the block tooth and centering mark of the race and upper shaft assembly at the 12 o'clock position. The new air bag clock spring assembly will be pre centered; the following instructions to use the existing one are to use the no ice of the air bag clock spring assembly (Grand Motor Company). You should adjust the steering column to the 12 o'clock position, and mount the hanging air bag clock spring assembly to the race and upper shaft assembly. Once it is installed, pull a tab to remove the pre centered feature. Install the wire protector with the support bracket and followed by retaining ring. Connect the air bag clock spring assembly connector with the fused jumper assembly connector. Mount the Steering Wheel and the Steering Wheel nut onto the steering column shaft and tighten it to 41 n.m (30 lb ft). Lastly, install the Steering Wheel inflator module and set the sir system in position.
