How to replace the Return Power Steering Hose on Cadillac DTS?

Initiating the repair of the power steering return hose begins with installing a drain pan under the vehicle followed by power steering return hose removal from the Power Steering Pump. Remove the mounting bracket retaining bolt from the power steering return hose which sits in the Cylinder Head before raising and supporting the vehicle. The removal sequence requires the front air deflector and the power steering gear heat shield. First detach the power steering return hose from its connectors to the wiring harness tie strap and frame brackets as well as power steering gear before removing the hose from under the vehicle. The first step for installation includes fitting the new power steering return hose and attaching it to the frame brackets. The hose should be securely fixed to the power steering gear at 30 nm (22 lb ft) before being fastened to the wiring harness through a new tie strap. First reinstall both the front air deflector and power steering gear heat shield similar to their original position then proceed to remove the drain pan while lowering the vehicle. Close the process by mounting the power steering return hose bracket onto the Cylinder Head using a retaining bolt which needs to be tightened up to 50 nm (37 lb ft). After that connect the hose to the Power Steering Pump while bleeding the system.

OEM Cadillac DTS Power Steering Hose

Power Steering Pressure Hose

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Power Steering Hoses found

View related parts

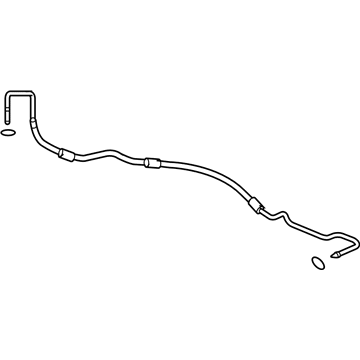

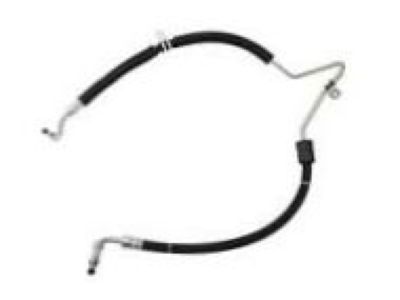

Cadillac DTS Power Steering Pressure Hose Part Number: 15794414
$119.02 MSRP: $202.64
You Save: $83.62 (42%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly-Power Steering Gear Inlet; Power Steering Hose; Pressure Hose; Hose, Steering Gear Oil Pressure
- Replaces: 15786639
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts

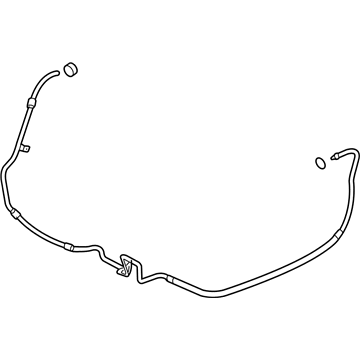

Cadillac DTS Power Steering Return Hose Part Number: 15794420
$118.05 MSRP: $200.99
You Save: $82.94 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly-Power Steering Gear Outlet; Power Steering Hose; Return Hose; Hose, Steering Gear Oil Return
- Replaced by: 19436429
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts

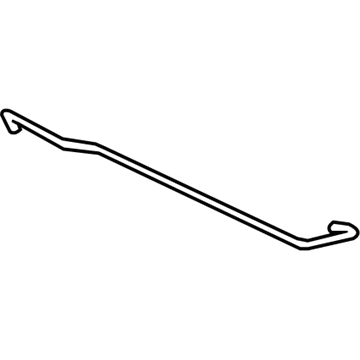

Cadillac DTS Oil Line, Passenger Side Part Number: 26087551
Product Specifications
- Other Name: Pipe Kit, Steering Gear; Power Steering Hose; Pipe Kit; Line Kit; Pipe Kit, Steering Gear Oil Pressure
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts

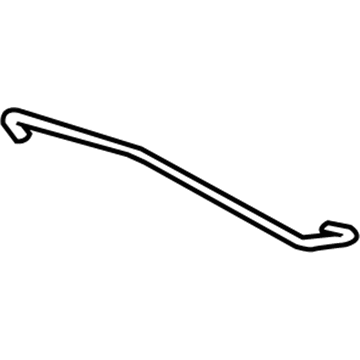

Cadillac DTS Oil Line, Driver Side Part Number: 26087550
Product Specifications
- Other Name: Pipe Kit, Steering Gear; Power Steering Hose; Pipe Kit; Line Kit; Pipe Kit, Steering Gear Oil Pressure
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS

Cadillac DTS Power Steering Hose

Want to cut long-term maintenance and repair costs? Choose OEM Power Steering Hose. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac DTS parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac DTS Power Steering Hose includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Power Steering Hose is one of the important parts that make Cadillac DTS models powerful and reliable with very good steaming control. (Meant to connect the power steering pump to the steering gear and transfer hydraulic fluid), this Power Steering Hose is made from high pressure resistant rubber to guarantee customers a top quality product that they can confidently use for their Cadillac. Cadillac DTS from 2005 to 2011 has multiple options of Power Steering Hose, consisting of rubber hoses and combined metal tubing assemblies which are specified for the particular structure of the car and its engine MOTION. This is not only a plus point from the point of rate of the steering system but they play a crucial role in the safety of driver as the fluid leakage which is easy to occur due to wear and tear or even due to some environmental effect are controlled. Power Steering Hose is suitable for all the DTS models, including the sophisticated DTS Platinum model with upgraded performance characteristics. Thus, its design does not hinder the functioning of other elements in the car, thus strengthening its popularity in the automotive industry. The Power Steering Hose which is highly durable, performs well, and is compatible with Cadillac DTS is among the most outstanding features that make Cadillac DTS to be unique and very attractive to drivers as it provides them with the ultimate steering control while at the same time providing the comfort that is expected from Cadillac autos.

Cadillac DTS Power Steering Hose Parts and Q&A

Power Steering Pressure Hose
15794414
Q: How to replace the Return Power Steering Hose on Cadillac DTS?
A:
Initiating the repair of the power steering return hose begins with installing a drain pan under the vehicle followed by power steering return hose removal from the Power Steering Pump. Remove the mounting bracket retaining bolt from the power steering return hose which sits in the Cylinder Head before raising and supporting the vehicle. The removal sequence requires the front air deflector and the power steering gear heat shield. First detach the power steering return hose from its connectors to the wiring harness tie strap and frame brackets as well as power steering gear before removing the hose from under the vehicle. The first step for installation includes fitting the new power steering return hose and attaching it to the frame brackets. The hose should be securely fixed to the power steering gear at 30 nm (22 lb ft) before being fastened to the wiring harness through a new tie strap. First reinstall both the front air deflector and power steering gear heat shield similar to their original position then proceed to remove the drain pan while lowering the vehicle. Close the process by mounting the power steering return hose bracket onto the Cylinder Head using a retaining bolt which needs to be tightened up to 50 nm (37 lb ft). After that connect the hose to the Power Steering Pump while bleeding the system.
