How to replace the front brake calipers (J55) on Cadillac DTS?

When replacing the front brake caliper (J55), one should first check the fluid level in the brake master cylinder reservoir. If the level is above the midway between the maximum-full point and the minimum allowable level, drain the brake fluid to the midway point. Raise and support the vehicle and mark the relation of the wheel on relation convent to the axle flange and removes the tire and wheel assembly. Place a big c-clamp on the brake caliper body, and tighten it until the caliper pistons will slide over the brake rotor, then take off the c-clamp. Unscrew the brake hose to caliper bolt and remove the 2 copper brake hose gasketsmak recycling the 2 coppers brake hose gasket, and plug the openings to plug the fluid loss and the contamination. You need to remove brake caliper pin bolts and remove brake caliper. In case of reusing brake caliper pin bolts and retainers, clean it out with denatured alcohol and let it air dry with non-lubricated, filtered air. Mount the brake caliper onto the brake pads into the bracket and apply a thin layer of high temperature silicone brake lubricant to pin bolts and mount them and tighten to 113 n.m (83 lb ft). Clamp together the new copper brake hose gaskets to the brake hose bolt, then securely mount it onto the brake caliper, tightening it to 45 n.m (33 lb ft). Slowly bleed the brake system then, after turning off the engine, gradually press the Brake Pedal to about 2/3 its travel, release it, and keep repeating this until you have a firm pedal. Finally, lowered the vehicle, reinstall the tire and wheel assembly.

OEM Cadillac DTS Brake Calipers

Caliper

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 Brake Calipers found

View related parts
Cadillac DTS Caliper, Front Driver Side Part Number: 84394384
$109.82 MSRP: $213.14
You Save: $103.32 (49%)
ADD TO CART
Product Specifications
- Other Name: Caliper Assembly-Front Brake (W/O Brake Pads & Bracket; Caliper, Wheel Brake Cylinder/Caliper
- Position: Front Driver Side
- Replaced by: 87859910
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts
Cadillac DTS Caliper, Passenger Side Part Number: 84803425
$137.69 MSRP: $256.99
You Save: $119.30 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Caliper Assembly-Front Brake (W/O Brake Pads & Bracket); Caliper, Wheel Brake Cylinder/Caliper
- Position: Passenger Side
- Replaced by: 87859911
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts
Cadillac DTS Overhaul Kit, Rear Part Number: 18048081
$53.84 MSRP: $104.47
You Save: $50.63 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Caliper Kit, Rear Brake; Brake Caliper Repair Kit; Disc Brake Hardware Kit; Caliper Kit, Wheel Brake Cylinder/Caliper
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts
Cadillac DTS Caliper, Front Passenger Side Part Number: 25983763
$120.22 MSRP: $217.61
You Save: $97.39 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Caliper Assembly-Front Brake (W/O Brake Pads & Bracket; Brake Caliper; Caliper, Wheel Brake Cylinder/Caliper
- Position: Front Passenger Side
- Replaces: 21993095
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts
Cadillac DTS Overhaul Kit Part Number: 88964135
Product Specifications
- Other Name: Caliper Kit, Rear Brake; Brake Caliper Repair Kit; Disc Brake Hardware Kit; Caliper Overhaul Kit; Caliper Kit, Wheel Brake Cylinder/Caliper Piston; Caliper Kit, Wheel Cylinder Piston
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts
Cadillac DTS Caliper, Rear Passenger Side Part Number: 19368936
Product Specifications
- Other Name: Caliper Assembly, Rear Brake; Brake Caliper; Caliper, Wheel Brake Cylinder/Caliper
- Position: Rear Passenger Side
- Replaces: 21993764
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts
Cadillac DTS Caliper, Rear Driver Side Part Number: 19368935
Product Specifications
- Other Name: Caliper Assembly, Rear Brake; Brake Caliper; Caliper, Wheel Brake Cylinder/Caliper
- Position: Rear Driver Side
- Replaces: 21993763
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts
Cadillac DTS Caliper, Driver Side Part Number: 25983762
$121.31 MSRP: $217.61
You Save: $96.30 (45%)
Product Specifications
- Other Name: Caliper, Wheel Brake Cylinder/Caliper; Brake Caliper
- Position: Driver Side
- Replaces: 21993094
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts

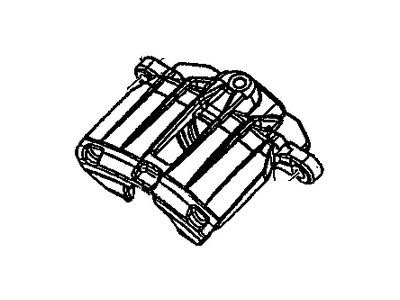

Cadillac DTS Caliper Part Number: 18048080
$191.55 MSRP: $343.58
You Save: $152.03 (45%)
Product Specifications
- Other Name: Caliper, Wheel Brake Cylinder/Caliper; Brake Caliper
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts
Cadillac DTS Caliper Part Number: 18048079
$192.39 MSRP: $343.58
You Save: $151.19 (44%)
Product Specifications
- Other Name: Brake Caliper; Caliper, Wheel Brake Cylinder/Caliper
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS

Cadillac DTS Brake Calipers

Want to cut long-term maintenance and repair costs? Choose OEM Brake Calipers. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac DTS parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac DTS Brake Calipers includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Brake calipers are key components of Cadillac DTS brake systems to transmit the hydraulic pressure produced by the master cylinder and exert mechanical force on brake pad to seize brake rotors, and thereby slow or stop the vehicle. The DTS models feature two primary types of brake calipers: The two types of devices are fixed and floating. Held within the mount and typically employing multiple piston on either side of the rotor, are the fixed variety, which perform better, but are more complicated. Sliding or floating calipers have a piston on one side which moves to the other and applies pressure, which while being substantially simpler can also stick and wear unevenly. Usually, Cadillac DTS brake calipers consist of cast iron body with steel or phenolic pistons. There are basic types of the calipers and there are performance calipers that offer better braking ability and looks too. Some of the elements of performance calipers may be lightweight construction, high temperature sealing, and designed to suit general and racing use. These brake calipers should, therefore, be inspected and serviced regularly in Cadillac DTS vehicles to promote efficiency in braking and minimize on any risks.

Cadillac DTS Brake Calipers Parts and Q&A

Caliper
18048080
Q: How to replace the front brake calipers (J55) on Cadillac DTS?
A:
When replacing the front brake caliper (J55), one should first check the fluid level in the brake master cylinder reservoir. If the level is above the midway between the maximum-full point and the minimum allowable level, drain the brake fluid to the midway point. Raise and support the vehicle and mark the relation of the wheel on relation convent to the axle flange and removes the tire and wheel assembly. Place a big c-clamp on the brake caliper body, and tighten it until the caliper pistons will slide over the brake rotor, then take off the c-clamp. Unscrew the brake hose to caliper bolt and remove the 2 copper brake hose gasketsmak recycling the 2 coppers brake hose gasket, and plug the openings to plug the fluid loss and the contamination. You need to remove brake caliper pin bolts and remove brake caliper. In case of reusing brake caliper pin bolts and retainers, clean it out with denatured alcohol and let it air dry with non-lubricated, filtered air. Mount the brake caliper onto the Brake Pads into the bracket and apply a thin layer of high temperature silicone brake lubricant to pin bolts and mount them and tighten to 113 n.m (83 lb ft). Clamp together the new copper brake hose gaskets to the brake hose bolt, then securely mount it onto the brake caliper, tightening it to 45 n.m (33 lb ft). Slowly bleed the brake system then, after turning off the engine, gradually press the Brake Pedal to about 2/3 its travel, release it, and keep repeating this until you have a firm pedal. Finally, lowered the vehicle, reinstall the tire and wheel assembly.
