OEM Cadillac DeVille CV Boot
Axle Boot- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
19 CV Boots found
Cadillac DeVille Boot Kit, Front Part Number: 20984614
$36.52 MSRP: $92.67You Save: $56.15 (61%)Ships in 1-2 Business Days
Cadillac DeVille Boot Kit, Front Part Number: 15269918
Cadillac DeVille Seal Kit, Front Part Number: 26059842
Cadillac DeVille Axle Boots, Front Part Number: 26030761
Cadillac DeVille Boot Kit Part Number: 89060343
Cadillac DeVille Seal Kit, Passenger Side Part Number: 7847110
Cadillac DeVille Seal Kit Part Number: 7845021
Cadillac DeVille Seal Kit, Driver Side Part Number: 7843924
Cadillac DeVille Seal Kit Part Number: 26044380
Cadillac DeVille CV Joint Boot Kit Part Number: 26020951

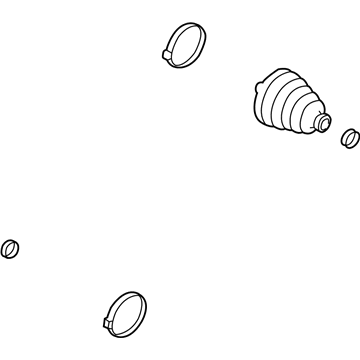

Cadillac DeVille Inner Boot, Front Part Number: 26075586

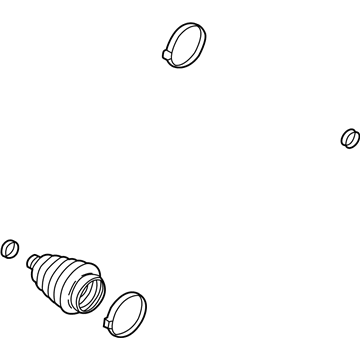

Cadillac DeVille Outer Boot, Front Part Number: 26063829
Cadillac DeVille Boot Kit, Front Part Number: 26060112
Cadillac DeVille Boot Kit, Front Part Number: 26044385
Cadillac DeVille Boot Kit, Front Part Number: 26044384
Cadillac DeVille Boot Kit, Front Part Number: 26044383
Cadillac DeVille Axle Boots, Front Part Number: 26030762
Cadillac DeVille Seal Kit, Front Part Number: 26007428
Cadillac DeVille Seal Kit, Front Part Number: 26001938
Cadillac DeVille CV Boot
Want to cut long-term maintenance and repair costs? Choose OEM CV Boot. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac DeVille parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac DeVille CV Boot includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.
The CV Boot of Cadillac DeVille vehicles is an essential part that shields the Constant Velocity (CV) Joint that transfers power from transaxle to wheels. The CV Boot is an expandable rubber or plastic casing which contains lubricant for the joints and which protects those joints from environmental conditions. Some of the CV Joints applied on DeVille vehicles include the non-adjustable joints on the outer part of the axle, and sideways plunging joints on the internal part. Rzeppa joint is often used in the application of outboard CV Joint while tripod and double offset joints are used for the inboard ones. Thereby, the CONSTREET CV Boot needs to be inspected regularly as damaged boots lead to CV Joint problems such as squeaking or knocking sounds whenever the vehicle is turning and jolting with every acceleration.
Cadillac DeVille CV Boot Parts and Q&A
- Q: How to replace the outer CV Boot and CV Joint on Cadillac DeVille?A:You need these tools to change the wheel drive shaft outer joint and boot: snap ring pliers (J8059), earred clamp tool (J35910), small swage tool (J41048), breaker bar, and torque wrench. You need snap ring pliers (J8059), earred clamp tool (J35910), small swage tool (J41048), breaker bar and torque wrench among the required tools. Start the replacement by first slicing off and discarding the large cv joint boot retaining clamp with a side cutter tool followed by removing and disposing of the small clamp securing the halfshaft bar. First remove the cv joint outer race retainer from the cv joint before sliding the outboard boot away from the joint along the bar. Clean the grease off the cv joint inner race while using snap ring pliers (J8059) to activate the retaining ring's ear section until you can pull out the cv joint assembly from the bar. Using a brass drift tool and hammer strike the cv joint cage inside the bar to displace the chrome alloy balls for removal. Soak inner race assemblies as well as outer race assemblies, cv joint cage, and balls in cleaning solvent to fully remove old grease and contaminants. Follow with drying of all parts before moving forward. The joint boot assembly process begins with putting a new swage ring onto the small end followed by joint boot insertion onto the halfshaft bar. During installation position the boot into its designated boot groove before putting the small swage tool (J41048) into a vise. Align the outboard end of the halfshaft assembly within the tool's opening. The boot needs a pinch point-free area prior to applying bolts that must be tightened securely. Begin by aligning the boot against the swage ring before tightening each bolt with a ratchet wrench at 180-degree intervals on the small swage tool (J41048). The service-kit grease should receive a thin application onto the ball-groove areas of the inner race and outer race. Next, place the inner race into the cage by keeping the correct alignment. The cv joint needs both cage and inner race components in the outer race position while adding chrome balls after which you'll grease the joint assembly. Utilize the cv joint to push onto the halfshaft bar while making sure the outboard boot maintains its proper shape as the retaining ring properly seats. Use the earred clamp tool (J35910) with a breaker bar and torque wrench to crimp the boot retaining clamp to 176 nm (130 ft. Lbs.) while adjusting the clamp ear gap as needed after the large boot diameter slides over the cv joint outer race.
