How to Service and Repair a Rack and Pinion for On Vehicle on Buick LeSabre?

Start by raising and supporting the vehicle then take off the tire and wheel for Rack And Pinion service and repair work. The universal steering linkage puller (J24319-B) helps extract the outer tie rod followed by removal of the hex jam nut from the inner tie rod. Begin by removing the Tie Rod End clamp from the Rack and Pinion Boot and after that remove the Rack and Pinion Boot clamp from the Rack and Pinion Boot. Detach the Rack and Pinion Boot from the Rack And Pinion at this point. Installation begins with positioning a new Rack and Pinion Boot onto the Rack And Pinion then adding a new Rack and Pinion Boot clamp. Crimp the Rack and Pinion Boot clamp with the keystone clamp plier (J22610). The installation sequence starts with attaching the Tie Rod End clamp to the Rack and Pinion Boot before torquing the hex jam nut onto the inner tie rod assembly. Reposition the tire followed by reattaching the wheel and lower the vehicle then adjust toe alignment settings.

How to replace the Rack and Pinion steering gear on Buick LeSabre?

To change the Rack And Pinion, start by using the steering column anti rotation pin (J 42640) to lock the steering column. The intermediate shaft lower coupling can be removed, raise the vehicle and remove the Rack And Pinion heat shield. Disconnect the pressure and return pipes (1&2) from the Rack And Pinion and if so equipped, the magnasteer(TM) electric connector. Unscrew the stabilizer shaft links from the lower control arms and swing the stabilizer shaft to gain access to the steering rack bolts. Disengage the tie rod ends from the cylinder knuckles, then unbolt the Rack And Pinion attachment bolts and the Rack And Pinion assembly. For installation, locate the Rack And Pinion assembly and mount it back to its position and install the Rack And Pinion bolt and tighten the bolts to 95 nm (70 ft. Lbs.). For the equipped magnasteer(TM), reconnect the electrical magnasteer(TM), and 2 and 1, pressure and return lines to the Rack And Pinion with a162 179 part number tightening to 137 49 nm, 22 ft. Lbs. Race the heat shield and bolts as well as tighten the heat shield bolts to 10 nm (7 ft. Lbs.). Position the stabilizer shaft and attach the links to the lower control arms, and attach the tie rod ends to the knuckles. Lower the vehicle and install the intermediate shaft to the Rack And Pinion, tightening the intermediate shaft pinch bolt to 45 nm (33 ft. Lbs). Finally, take out the steering column anti rotation pin (J 42640), fill and bleed the power steering system, and in case the Rack And Pinion was replaced, inspect the front toe-in settings.

OEM Buick LeSabre Rack And Pinion

Steering Rack And Pinion

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

14 Rack And Pinions found

View related parts
Buick LeSabre Steering Gear Part Number: 7848137
$413.31 MSRP: $586.37
You Save: $173.06 (30%)
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1988 Buick LeSabre | Collector's Edition, Custom, Estate Wagon, Limited | 6 Cyl 3.8 L GAS, 6 Cyl 4.1 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L DIESEL
View related parts
Buick LeSabre Gear Assembly Part Number: 26048672
$137.58 MSRP: $979.04
You Save: $841.46 (86%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Kit, Steering; Steering Gear Assembly
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-1998 Buick LeSabre | Custom, Limited | 6 Cyl 3.8 L GAS
View related parts
Buick LeSabre Worm Gear Part Number: 7817528
Product Specifications
- Other Name: Rack Kit-Piston & Nut Assembly; Steering Rack; Rack & Pinion; Input Shaft; Worm & Ball; Rack Assembly; Steering Gear Kit.
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1990 Buick LeSabre | Collector's Edition, Custom, Estate Wagon, Limited | 6 Cyl 3.8 L GAS, 6 Cyl 4.1 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L DIESEL
View related parts
Buick LeSabre Worm Gear Part Number: 7817526
Product Specifications
- Other Name: Rack-Piston Nut Kit-Hydraulic Steering Gear; Steering Rack; Rack & Pinion Steering Gear; Input Shaft, Worm & Ball, Worm Shaft, Rack Assembly, Rack Package, Worm Assembly, Piston.
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1985 Buick LeSabre | Collector's Edition, Custom, Limited | 6 Cyl 3.8 L GAS, 6 Cyl 4.1 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L DIESEL
View related parts
Buick LeSabre Steering Gear Part Number: 26091005
Product Specifications
- Other Name: Gear Kit, Steering (Remanufacture); Gear Assembly; Gear, Steering
- Replaces: 07833154, 7833154
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1987 Buick LeSabre | Collector's Edition, Custom, Estate Wagon, Limited | 6 Cyl 3.8 L GAS, 6 Cyl 4.1 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L DIESEL
View related parts
Buick LeSabre Steering Gear Part Number: 26045885
Product Specifications
- Other Name: Gear Kit, Steering; Gear Assembly; Steering Gear Assembly
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-1999 Buick LeSabre | Custom, Limited | 6 Cyl 3.8 L GAS
View related parts
Buick LeSabre Steering Gear Part Number: 26100148
Product Specifications
- Other Name: Gear Kit, Steering (Remanufacture); Gear Assembly; Gear Kit, Steering
- Replaces: 26077034
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000 Buick LeSabre | Custom, Limited | 6 Cyl 3.8 L GAS
View related parts
Buick LeSabre Steering Gear Part Number: 26100147
Product Specifications
- Other Name: Gear Kit, Steering (Remanufacture); Gear Assembly; Gear Kit, Steering
- Replaces: 26077201
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000 Buick LeSabre | Custom, Limited | 6 Cyl 3.8 L GAS
View related parts
Buick LeSabre Steering Gear Part Number: 26087072
Product Specifications
- Other Name: Gear Kit, Steering (Remanufacture); Gear Assembly; Gear, Steering
- Replaces: 07833143, 7833143
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1990 Buick LeSabre | Collector's Edition, Custom, Estate Wagon, Limited | 6 Cyl 3.8 L GAS, 6 Cyl 4.1 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L DIESEL
View related parts
Buick LeSabre Gear Assembly Part Number: 26077026
Product Specifications
- Other Name: Gear Kit, Steering (Remanufacture); Gear Kit, Steering
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999 Buick LeSabre | Custom, Limited | 6 Cyl 3.8 L GAS
View related parts

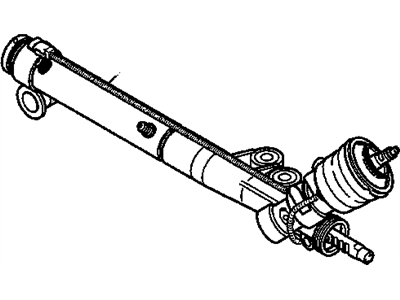

Buick LeSabre Gear Assembly Part Number: 26077022
Product Specifications
- Other Name: Gear Kit, Steering (Remanufacture); Gear Kit, Steering
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999 Buick LeSabre | Custom, Limited | 6 Cyl 3.8 L GAS
View related parts
Buick LeSabre Steering Gear Part Number: 26045878
Product Specifications
- Other Name: Gear Kit, Steering; Gear Assembly; Steering Gear Assembly
- Replaces: 26024873
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1986-1995 Buick LeSabre | Base, Custom, Limited, T-Type | 6 Cyl 3.0 L GAS, 6 Cyl 3.8 L GAS
View related parts
Buick LeSabre Steering Gear Part Number: 26044316
Product Specifications
- Other Name: Gear Kit, Steering; Gear Assembly; Steering Gear Assembly
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-1999 Buick LeSabre | Custom, Limited | 6 Cyl 3.8 L GAS
View related parts
Buick LeSabre Steering Gear Part Number: 19330450
Product Specifications
- Other Name: Gear Kit, Steering (Remanufacture); Gear Assembly; Gear Kit, Steering
- Replaces: 26087416, 19153559, 26099975
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2005 Buick LeSabre | Custom, Limited | 6 Cyl 3.8 L GAS

Buick LeSabre Rack And Pinion

Want to cut long-term maintenance and repair costs? Choose OEM Rack And Pinion. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Buick LeSabre parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Buick LeSabre Rack And Pinion includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Buick LeSabre Rack And Pinion is a critical input mechanism of the power steering of many Buick LeSabre models that are popular for their efficiency and durability. This highly sophisticated actuates the rotation of the steering wheel and translates it smoothly into rotational movement at the front wheels. It is fitted with a hydraulic power system which makes the steering easier; thus, it is among the most sought-after cars in the Buick LeSabre Rack And Pinion market. It supports numerous LeSabre generations and is suitable for the classic models that debuted in 1959 and the latest ones before the car was phased out in 2005. The Rack And Pinion system not only enhances the levels of efficiency in the car but also enhances the safety of the vehicle apart from enhancing the control and the feedback that is vital in driving the car under several traffic conditions. Some of the unique characteristics of Buick LeSabre Rack And Pinion it is operate by high-pressure hydraulic and it also comes with O-Ring seal this makes it hard to leak and hence it has an extended life span. Also, the structure eliminates other problems like a rigid steering wheel and drifting that might develop over time. All in all, the Buick LeSabre Rack And Pinion is a perfect example of how Buick has kept the tradition of producing reliable and high-performance cars throughout 47 years of the car's manufacturing.

Buick LeSabre Rack And Pinion Parts and Q&A

Steering Gear
19330450
Q: How to Service and Repair a Rack and Pinion for On Vehicle on Buick LeSabre?
A:
Start by raising and supporting the vehicle then take off the tire and wheel for Rack And Pinion service and repair work. The universal steering linkage puller (J24319-B) helps extract the outer tie rod followed by removal of the hex jam nut from the inner tie rod. Begin by removing the Tie Rod End clamp from the Rack and Pinion Boot and after that remove the Rack and Pinion Boot clamp from the Rack and Pinion Boot. Detach the Rack and Pinion Boot from the Rack And Pinion at this point. Installation begins with positioning a new Rack and Pinion Boot onto the Rack And Pinion then adding a new Rack and Pinion Boot clamp. Crimp the Rack and Pinion Boot clamp with the keystone clamp plier (J22610). The installation sequence starts with attaching the Tie Rod End clamp to the Rack and Pinion Boot before torquing the hex jam nut onto the inner tie rod assembly. Reposition the tire followed by reattaching the wheel and lower the vehicle then adjust toe alignment settings.
Steering Gear
26100148
Q: How to replace the Rack and Pinion steering gear on Buick LeSabre?
A:
To change the Rack And Pinion, start by using the steering column anti rotation pin (J 42640) to lock the steering column. The intermediate shaft lower coupling can be removed, raise the vehicle and remove the Rack And Pinion heat shield. Disconnect the pressure and return pipes (1&2) from the Rack And Pinion and if so equipped, the magnasteer(TM) electric connector. Unscrew the stabilizer shaft links from the lower Control Arms and swing the stabilizer shaft to gain access to the steering rack bolts. Disengage the Tie Rod Ends from the cylinder knuckles, then unbolt the Rack And Pinion attachment bolts and the Rack And Pinion assembly. For installation, locate the Rack And Pinion assembly and mount it back to its position and install the Rack And Pinion bolt and tighten the bolts to 95 nm (70 ft. Lbs.). For the equipped magnasteer(TM), reconnect the electrical magnasteer(TM), and 2 and 1, pressure and return lines to the Rack And Pinion with a162 179 part number tightening to 137 49 nm, 22 ft. Lbs. Race the heat shield and bolts as well as tighten the heat shield bolts to 10 nm (7 ft. Lbs.). Position the stabilizer shaft and attach the links to the lower control arms, and attach the tie rod ends to the knuckles. Lower the vehicle and install the intermediate shaft to the Rack And Pinion, tightening the intermediate shaft pinch bolt to 45 nm (33 ft. Lbs). Finally, take out the steering column anti rotation pin (J 42640), fill and bleed the power steering system, and in case the Rack And Pinion was replaced, inspect the front toe-in settings.
