How to Service and Replace the Radiator Cooling Fan Motor on Buick LaCrosse?

The replacement of electric cooling Fan Motor ly7 starts with removing the Fan Shroud assembly from the vehicle. Warning should be taken because the electric fan operates spontaneously when the motor is off which creates potential hazards for users. Always check that the ignition key contains the off position or lock setting before you disconnect the negative Battery Cable to protect from live electrical terminals. The ge-47827 (GE-47827) socket enables you to turn the Fan Motor drive plate in an opposite direction to the Fan Blade arrow until complete disengagement. Prevent Fan Blade rotation by holding it securely in place. Regularly check that the cooling Fan Motor has no openings by securing them with tape and dispose of the Fan Blade. Utilize center punching and drilling with a 6.35 mm (0.25 inch) drill bit to remove Fan Motor rivets from their positions before tidying up by taping out the rivets from the Fan Shroud so you can eliminate the Fan Motor. Remove any loose debris afterward and eliminate all discarded tape from the entry points. Install the new engine cooling Fan Motor inside the Fan Shroud by inserting bolts from its front side until the cooling Fan Motor nuts reach 6 nm (53 inch lbs. Of torque). Before putting the new Fan Blade hub into place, heat it in hot tap water reaching at least 49°c (120°F) hot for sixty seconds to stop cracking from forming. Act swiftly to place the heated Fan Blade onto the Fan Motor drive plate through alignment of the ge-47827 (GE-47827) socket for turning the Fan Motor drive plate with arrow orientation on the Fan Blade. The vehicle requires reinstalling of the Fan Shroud assembly after properly rotating the cooling Fan Blade into position.

OEM Buick LaCrosse Fan Motor

Cooling Fan Motor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Fan Motors found

View related parts
Buick LaCrosse Fan & Motor Part Number: 22137318
$91.86 MSRP: $188.78
You Save: $96.92 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Kit, Engine Air Cooling (Electrical); Fan Motor; Motor; Motor Kit, Engine Air Cooling(Electrical)
- Replaces: 22120616, 22081940, 22092353
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2006 Buick LaCrosse | CX, CXL | 6 Cyl 3.8 L GAS
View related parts
Buick LaCrosse Fan Motor Part Number: 89018696
$125.97 MSRP: $258.88
You Save: $132.91 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Kit, Engine Air Cooling (Electrical); Motor Kit, Engine Air Cooling(Electrical)
- Replaces: 89018692
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2009 Buick LaCrosse | CXS, Super | 6 Cyl 3.6 L GAS, 8 Cyl 5.3 L GAS
View related parts
Buick LaCrosse Fan Motor Part Number: 89018695
$87.49 MSRP: $259.00
You Save: $171.51 (67%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Kit, Engine Air Cooling (Electrical); Motor Kit, Engine Air Cooling(Electrical)
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2009 Buick LaCrosse | Super | 8 Cyl 5.3 L GAS
View related parts
Buick LaCrosse Fan Motor Part Number: 22136414
$37.46 MSRP: $110.88
You Save: $73.42 (67%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Kit, Engine Coolant Fan; Motor; Motor Kit, Engine Air Cooling(Electrical)
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2006 Buick LaCrosse | CX, CXL | 6 Cyl 3.8 L GAS
View related parts

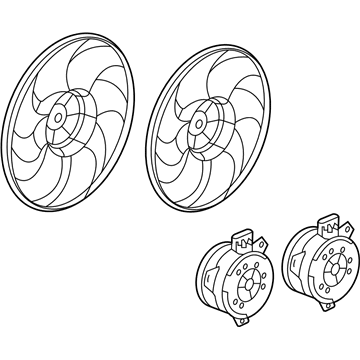

Buick LaCrosse Fan & Motor, Driver Side Part Number: 84000792
$165.68 MSRP: $311.13
You Save: $145.45 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly-Engine Cooling Fan; Radiator Fan Assembly; Motor, Engine Air Cooling(Electrical)
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2017-2019 Buick LaCrosse | Avenir, Base, Essence, Preferred, Premium, Sport Touring | 6 Cyl 3.6 L GAS
View related parts
Buick LaCrosse Fan & Motor, Passenger Side Part Number: 84000791
$165.68 MSRP: $311.13
You Save: $145.45 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly-Engine Cooling Fan; Radiator Fan Assembly; Motor, Engine Air Cooling(Electrical)
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2017-2019 Buick LaCrosse | Avenir, Base, Essence, Preferred, Premium, Sport Touring | 6 Cyl 3.6 L GAS
View related parts

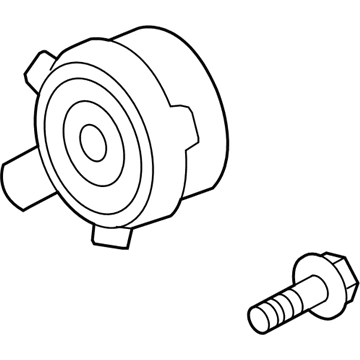

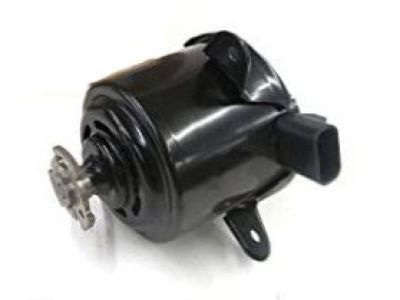

Buick LaCrosse Fan Motor Part Number: 89018690
Product Specifications
- Other Name: Motor Kit, Engine Air Cooling (Electrical); Motor Kit, Engine Air Cooling(Electrical)
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2008 Buick LaCrosse | CXS | 6 Cyl 3.6 L GAS
View related parts

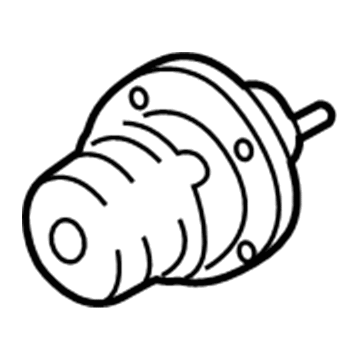

Buick LaCrosse Fan Motor Part Number: 89019110
Product Specifications
- Other Name: Motor Kit, Engine Air Cooling (Electrical); Motor Kit, Engine Air Cooling(Electrical)
- Replaces: 88987272
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2009 Buick LaCrosse | CX, CXL | 6 Cyl 3.8 L GAS
View related parts
Buick LaCrosse Fan Motor Part Number: 89019109
Product Specifications
- Other Name: Motor Kit, Engine Air Cooling (Electrical); Motor Kit, Engine Air Cooling(Electrical)
- Replaces: 88987271
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2009 Buick LaCrosse | CX, CXL | 6 Cyl 3.8 L GAS

Buick LaCrosse Fan Motor

Want to cut long-term maintenance and repair costs? Choose OEM Fan Motor. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Buick LaCrosse parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Buick LaCrosse Fan Motor includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Buick LaCrosse Fan Motor is one of the significant components that work in helping the car to regulate its engine temperature to enhance optimal performance. Receiving high appreciation for its quality, the Fan Motor enables the cooling fan to run smoothly, thus relieving the car from overheating and improving its performance of Buick LaCrosse. This is rather important keeping in mind that the LaCrosse has been changing from one model to the other over the years and while some of the models used different types of the Fan Motors each being customized to meet the needs of the engine type. The versatility of the Fan Motor in the various models of the LaCrosse shows how it plays a crucial role in the company's portfolio because it enhances the safety and efficacy of the vehicle. The Buick LaCrosse Fan Motor not only serves the need of cooling its big engine but also compatible with are extensive components such as the eAssist hybrid system, which regulates the expenditure of fuel while at the same time providing power. This approach in engineering makes Buick LaCrosse unique in the automobile market for those young customers who enjoy performance with efficiency. Also, the structure of the Fan Motor demonstrates Buick's propriety focusing on providing staple guarantees to car buyers to help them win customer loyalty among LaCrosse drivers. All in all, it can be said that the Buick LaCrosse Fan Motor was part and parcel of the series which embraces reliability and performance of the cars.

Buick LaCrosse Fan Motor Parts and Q&A

Fan & Motor
22137318
Q: How to Service and Replace the Radiator Cooling Fan Motor on Buick LaCrosse?
A:
The replacement of electric cooling Fan Motor ly7 starts with removing the Fan Shroud assembly from the vehicle. Warning should be taken because the electric fan operates spontaneously when the motor is off which creates potential hazards for users. Always check that the ignition key contains the off position or lock setting before you disconnect the negative Battery Cable to protect from live electrical terminals. The ge-47827 (GE-47827) socket enables you to turn the Fan Motor drive plate in an opposite direction to the Fan Blade arrow until complete disengagement. Prevent Fan Blade rotation by holding it securely in place. Regularly check that the cooling Fan Motor has no openings by securing them with tape and dispose of the Fan Blade. Utilize center punching and drilling with a 6.35 mm (0.25 inch) drill bit to remove Fan Motor rivets from their positions before tidying up by taping out the rivets from the Fan Shroud so you can eliminate the Fan Motor. Remove any loose debris afterward and eliminate all discarded tape from the entry points. Install the new engine cooling Fan Motor inside the Fan Shroud by inserting bolts from its front side until the cooling Fan Motor nuts reach 6 nm (53 inch lbs. Of torque). Before putting the new Fan Blade hub into place, heat it in hot tap water reaching at least 49°c (120°F) hot for sixty seconds to stop cracking from forming. Act swiftly to place the heated Fan Blade onto the Fan Motor drive plate through alignment of the ge-47827 (GE-47827) socket for turning the Fan Motor drive plate with arrow orientation on the Fan Blade. The vehicle requires reinstalling of the Fan Shroud assembly after properly rotating the cooling Fan Blade into position.
