9 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
- 1.Electrical - Electrical Components (Parking Assist)
- 2.Front bumper - Electrical components
- 3.Front Door - Outside Mirrors (Double & Crew Cab,Power Extending)
- 4.Pick Up Box - Tail Gate (6.9 Ft Box,Multipro Gate,Upper)
- 5.Pick Up Box - Tail Gate (6.9 Ft Box,Standard Gate)
- 6.Pick Up Box - Tail Gate (8 Ft Box,Multipro Gate,Upper)
- 7.Pick Up Box - Tail Gate (8 Ft Box,Standard Gate)
- 8.Rear bumper - Electrical components
- 9.Rear Lamps - High Mounted Stop Lamp (Crew Cab,Double)
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1
84419006
High Mount LampLamp Assembly-High Mount Stop & Cargo- Part Notes: Double, Crew Cab, W/O Pickup Box Camera, W/O Inside Mirror Display Camera
MSRP: $157.58 Your Price: $104.461 - 184601056
High Mount LampLamp Assembly-High Mount Stop & Cargo- Part Notes: Double, Crew Cab, W/Pickup Box Camera, W/Inside Mirror Display Camera, W/O Hd
MSRP: $146.91 Your Price: $97.381 - 184699123
High Mount LampLamp Assembly-High Mount Stop & Cargo- Part Notes: Double, Crew Cab, W/Pickup Box Camera, W/Inside Mirror Display Camera, W/Hd
MSRP: $514.05 Your Price: $328.411 - 184699124
High Mount LampLamp Assembly-High Mount Stop & Cargo- Part Notes: Double, Crew Cab, W/Pickup Box Camera, W/O Inside Mirror Display Camera
MSRP: $252.15 Your Price: $167.141 - 184929551
High Mount Lamp- Part Notes: Double, Crew Cab, W/O Pickup Box Camera, W/Inside Mirror Display Camera
MSRP: $220.64 Your Price: $140.961
- 1
84879444
Mirror AssemblyMirror Assembly-Outside Rear View *Black- Part Notes: Double & Crew Cab, Power Extending, W/O Blind Spot, Black, From 01/06/2020
- Location: Driver Side
MSRP: $896.83 Your Price: $597.171 - 184879445
Mirror AssemblyMirror Assembly-Outside Rear View *Black- Part Notes: Double & Crew Cab, Power Extending, W/O Blind Spot, Black, From 01/06/2020
- Location: Passenger Side
MSRP: $896.83 Your Price: $597.171 - 184879492
Mirror AssemblyMirror Assembly-Outside Rear View *Black- Part Notes: Double & Crew Cab, Power Extending, W/Blind Spot, W/O Suround View, Black, From 01/06/2020
- Location: Driver Side
- Replaced By: 84944523
MSRP: $1070.86 Your Price: $713.051 - 184879493
Mirror AssemblyMirror Assembly-Outside Rear View *Black- Part Notes: Double & Crew Cab, Power Extending, W/Blind Spot, W/O Suround View, Black, From 01/06/2020
- Location: Passenger Side
- Replaced By: 84944524
MSRP: $1055.04 Your Price: $702.521 - 184944511
Mirror AssemblyMirror Assembly-Outside Rear View *Bright Chromm- Part Notes: Double & Crew Cab, Power Extending, W/O Blind Spot, Chrome, W/O Blind Spot, Chrome
- Location: Driver Side
MSRP: $634.14 Your Price: $424.161 - 184944512
Mirror AssemblyMirror Assembly-Outside Rear View *Bright Chromm- Part Notes: Double & Crew Cab, Power Extending, W/O Blind Spot, Chrome, W/O Blind Spot, Chrome
- Location: Passenger Side
MSRP: $634.14 Your Price: $424.161 - 184944517
Mirror AssemblyMirror Assembly-Outside Rear View *Black- Part Notes: Double & Crew Cab, Power Extending, W/Blind Spot, W/Suround View, Black, W/Blind Spot, W/Suround View, Black
- Location: Driver Side
MSRP: $1441.07 Your Price: $959.561 - 184944518
Mirror AssemblyMirror, Inside/Outside Rear View- Part Notes: Double & Crew Cab, Power Extending, W/Blind Spot, W/Suround View, Black, W/Blind Spot, W/Suround View, Black
- Location: Passenger Side
MSRP: $1152.85 Your Price: $767.641 - 184944519
Mirror AssemblyMirror Assembly-Outside Rear View *Bright Chromm- Part Notes: Double & Crew Cab, Power Extending, W/Blind Spot, W/Suround View, Chrome, W/Blind Spot, W/Suround View, Chrome
- Location: Driver Side
- Replaced By: 86823983
MSRP: $1547.33 Your Price: $1030.311 - 184944520
Mirror AssemblyMirror Assembly-Outside Rear View *Chrome M- Part Notes: Double & Crew Cab, Power Extending, W/Blind Spot, W/Suround View, Chrome, W/Blind Spot, W/Suround View, Chrome
- Location: Passenger Side
MSRP: $1152.85 Your Price: $767.641 - 184944527
Mirror AssemblyMirror Assembly-Outside Rear View *Chrome M- Part Notes: Double & Crew Cab, Power Extending, W/Blind Spot, W/O Suround View, Chrome, W/Blind Spot, W/O Suround View, Chrome
- Location: Driver Side
MSRP: $1060.50 Your Price: $706.151 - 184944528
Mirror AssemblyMirror Assembly-Outside Rear View *Chrome M- Part Notes: Double & Crew Cab, Power Extending, W/Blind Spot, W/O Suround View, Chrome, W/Blind Spot, W/O Suround View, Chrome
- Location: Passenger Side
MSRP: $1044.83 Your Price: $695.711
- 1
MSRP: $64.48 Your Price: $42.741
- 1
- 1
85518592
Upper GateGate Assembly-Pick Up Box End *Paint To Mat- Part Notes: 6.9 Ft Box, Multipro Gate, Upper;8 Ft Box, Multipro Gate, Upper
MSRP: $462.03 Your Price: $309.031
- 1
84540583
Wire HarnessHarness Assembly-Front Object Alarm Sensor Wiring- Part Notes: 2020-23, W/Fog Lamps, Labeled 84540583
MSRP: $130.82 Your Price: $83.521 - 184540586
Wire HarnessHarness Assembly-Front Object Alarm Sensor Wiring- Part Notes: 2020-23, W/Fog Lamps, Labeled 84540586
MSRP: $123.97 Your Price: $79.141 - 184540587
Wire HarnessHarness Assembly-Front Object Alarm Sensor Wiring- Part Notes: 2020-23, W/O Fog Lamps, Labeled 84540587
- Replaced By: 84933329
MSRP: $111.69 Your Price: $71.301 - 184933327
Wire HarnessHarness Assembly-Front Object Alarm Sensor Wiring- Part Notes: 2020-23, W/O Fog Lamps, Labeled 84933327
MSRP: $107.51 Your Price: $68.631
- 2
11546459
Mirror Assembly NutNut *Black- Part Notes: Double & Crew Cab, Power Extending
- Location: Driver Side;Passenger Side
MSRP: $9.68 Your Price: $6.18
- 2
MSRP: $64.48 Your Price: $42.741
- 2
MSRP: $10.92 Your Price: $7.341
- 2
84676845
Rear CameraCamera Assembly-Rear View Driver Information- Part Notes: Double, Crew Cab, Pickup Box Display
MSRP: $179.10 Your Price: $118.721
- 2
84377026
Upper Gate BumperBumper-Pick Up Box Auxiliary End Gate- Part Notes: 6.9 Ft Box, Multipro Gate, Upper;8 Ft Box, Multipro Gate, Upper
MSRP: $8.65 Your Price: $5.811
- 3
84524615
Access CoverCover-Pick Up Box End Gate Access Hole- Part Notes: 6.9 Ft Box, Multipro Gate, Upper;8 Ft Box, Multipro Gate, Upper
MSRP: $10.72 Your Price: $7.201
- 3
- 3
84944453
Mirror Assembly GasketGasket-Outside Rear View Mirror- Part Notes: Double & Crew Cab, Power Extending
- Location: Driver Side
MSRP: $68.53 Your Price: $46.041 - 384944455
Mirror Assembly GasketGasket-Outside Rear View Mirror- Part Notes: Double & Crew Cab, Power Extending
- Location: Passenger Side
MSRP: $16.95 Your Price: $11.391
- 3
- 3
84695394
Parking Sensor BracketBracket-Rear Parking Assist Alarm Sensor *Service Primer- Part Notes: Outer
- Location: Driver Side
MSRP: $64.13 Your Price: $35.441 - 384695395
Parking Sensor BracketBracket-Rear Parking Assist Alarm Sensor *Chrome Bumpe- Part Notes: Inner
- Location: Driver Side
MSRP: $67.19 Your Price: $37.131 - 384695396
Parking Sensor BracketBracket-Rear Parking Assist Alarm Sensor *Chrome Bumpe- Part Notes: Inner
- Location: Passenger Side
MSRP: $67.83 Your Price: $37.481 - 384695397
Parking Sensor BracketBracket-Rear Parking Assist Alarm Sensor *Chrome Bumpe- Part Notes: Outer
- Location: Passenger Side
MSRP: $64.13 Your Price: $35.441
- 3
MSRP: $10.92 Your Price: $7.341
- 4
- 4
- 4
- 4
- 4
- 4
- 4
85119820
Hinge BushingBushing-Pick Up Box End Gate Hinge- Part Notes: 6.9 Ft Box, Standard Gate, Body Side Hinge, Right Side Only;8 Ft Box, Standard Gate, Body Side Hinge, Right Side Only
- Location: Passenger Side
MSRP: $57.39 Your Price: $38.561
- 4
19419606
Parking Sensor BracketBracket, Front Parking Assist Alarm Sensor- Part Notes: 2020-23, Inner
- Location: Driver Side
MSRP: $51.66 Your Price: $28.541 - 419419607
Parking Sensor BracketBracket, Front Parking Assist Alarm Sensor *Service Primary- Part Notes: 2020-23, Inner
- Location: Passenger Side
MSRP: $51.66 Your Price: $28.541 - 419419609
Parking Sensor BracketBracket, Front Parking Assist Alarm Sensor- Part Notes: 2020-23, Outer, From 02/15/20
- Location: Driver Side
MSRP: $51.66 Your Price: $28.541 - 419419612
Parking Sensor BracketBracket, Front Parking Assist Alarm Sensor- Part Notes: 2020-23, Outer, From 02/15/20
- Location: Passenger Side
MSRP: $51.66 Your Price: $28.541
- 4
- 5
22777212
Hinge ShimSpacer-Pick Up Box End Gate Hinge (Body Side)- Part Notes: 6.9 Ft Box, Standard Gate, Body Side Hinge, 1.0mm;8 Ft Box, Standard Gate, Body Side Hinge, 1.0mm
- Location: Driver Side;Passenger Side
MSRP: $11.00 Your Price: $7.391 - 5
22777213
Hinge ShimSpacer-Pick Up Box End Gate Hinge (Body Side)- Part Notes: 6.9 Ft Box, Standard Gate, Body Side Hinge, 0.5mm;8 Ft Box, Standard Gate, Body Side Hinge, 0.5mm
- Location: Driver Side;Passenger Side
MSRP: $11.00 Your Price: $7.391
- 5
- 5
MSRP: $219.56 Your Price: $140.271 - 584729107
Object SensorModule Assembly-Side Object Sensing Alert (Right-Hand Pair- Location: Passenger Side
MSRP: $198.62 Your Price: $131.661
- 5
85522051
Step AssemblyStep Assembly-Pick Up Box Auxiliary End Gate- Part Notes: 6.9 Ft Box, Multipro Gate, Upper;8 Ft Box, Multipro Gate, Upper
- Replaced By: 87859029
MSRP: $441.35 Your Price: $295.211
- 6
- 6
84301410
Mirror GlassMirror-Outside Rear View (Reflector Glass & Backing Plate)- Part Notes: Double & Crew Cab, Power Extending, Upper, W/Blind Spot
- Location: Driver Side
MSRP: $230.90 Your Price: $154.441 - 684301408
Mirror GlassMirror-Outside Rear View (Reflector Glass & Backing Plate)- Part Notes: Double & Crew Cab, Power Extending, Upper, W/O Blind Spot
- Location: Driver Side
MSRP: $130.01 Your Price: $87.351 - 684301409
Mirror GlassMirror-Outside Rear View (Reflector Glass & Backing Plate)- Part Notes: Double & Crew Cab, Power Extending, Upper, W/O Blind Spot
- Location: Passenger Side
MSRP: $130.01 Your Price: $87.351 - 684301411
Mirror GlassMirror-Outside Rear View (Reflector Glass & Backing Plate)- Part Notes: Double & Crew Cab, Power Extending, Upper, W/Blind Spot
- Location: Passenger Side
MSRP: $230.90 Your Price: $154.441
- 6
MSRP: $44.71 Your Price: $24.701 - 6MSRP: $47.27 Your Price: $26.111
- 7
- 7
- 7
84468914
Mirror GlassMirror-Outside Rear View (Lower Convex Glass Only- Part Notes: Double & Crew Cab, Power Extending, Lower
- Location: Driver Side
MSRP: $118.99 Your Price: $79.951 - 784468913
Mirror GlassMirror-Outside Rear View (Lower Convex Glass Only- Part Notes: Double & Crew Cab, Power Extending, Lower
- Location: Passenger Side
MSRP: $87.07 Your Price: $60.851
- 7
- 8
85146161
Check CableCable Assembly-Pick Up Box End Gate- Part Notes: 6.9 Ft Box, Standard Gate;8 Ft Box, Standard Gate
- Location: Driver Side
- Replaced By: 87843669
MSRP: $23.92 Your Price: $15.281 - 8
85146162
Check CableCable Assembly-Pick Up Box End Gate- Part Notes: 6.9 Ft Box, Standard Gate;8 Ft Box, Standard Gate
- Location: Passenger Side
- Replaced By: 87843670
MSRP: $23.92 Your Price: $15.281
- 8
84676845
Rear CameraCamera Assembly-Rear View Driver Information- Part Notes: 6.9 Ft Box, Multipro Gate, Upper, W/Hd Camera, W/Surround View;8 Ft Box, Multipro Gate, Upper, W/Hd Camera, W/Surround View
MSRP: $179.10 Your Price: $118.721 - 884884484
Rear CameraCamera Assembly-Rear View Driver Information- Part Notes: 6.9 Ft Box, Multipro Gate, Upper, W/Hd Camera, W/O Surround View;8 Ft Box, Multipro Gate, Upper, W/Hd Camera, W/O Surround View
MSRP: $145.68 Your Price: $101.811 - 8
23390515
Rear CameraCamera Assembly-Rear View Driver Information- Part Notes: 6.9 Ft Box, Multipro Gate, Upper, W/O Hd Camera;8 Ft Box, Multipro Gate, Upper, W/O Hd Camera
MSRP: $127.94 Your Price: $84.811
- 8
84468924
Signal LampLamp, Front Clearance- Part Notes: Double & Crew Cab, Power Extending
- Location: Passenger Side
MSRP: $241.92 Your Price: $161.811 - 884468925
Signal LampLamp Assembly-Front Clearance- Part Notes: Double & Crew Cab, Power Extending
- Location: Driver Side
MSRP: $264.90 Your Price: $177.181
- 9
11561763
Check Cable BoltBolt, Front Door Upper Hinge- Part Notes: 6.9 Ft Box, Standard Gate;8 Ft Box, Standard Gate
- Location: Driver Side;Passenger Side
MSRP: $9.96 Your Price: $6.351
- 9
23463326
Puddle LampLamp, Inside/Outside Rear View- Part Notes: Double & Crew Cab, Power Extending
- Location: Passenger Side
MSRP: $30.51 Your Price: $20.501 - 984660175
Puddle LampLamp Assembly-Exterior Flood- Part Notes: Double & Crew Cab, Power Extending
- Location: Driver Side
MSRP: $37.06 Your Price: $24.901
- 10
- 10
- 10
- 11
- 11
85626238
Release SwitchSwitch Assembly-Lift Gate Exterior Release- Part Notes: 6.9 Ft Box, Multipro Gate, Upper, Upper;8 Ft Box, Multipro Gate, Upper, Upper
- Replaced By: 85877552
MSRP: $12.60 Your Price: $8.351
- 11
13583411
Temperature SensorSensor, Ambient Outside Air Temperature- Part Notes: Double & Crew Cab, Power Extending, Right Side Only
- Location: Passenger Side
MSRP: $17.16 Your Price: $9.141
- 12
84055548
Control RodRod-Pick Up Box Auxiliary End Gate Latch- Part Notes: 6.9 Ft Box, Standard Gate, W/O Power Release;8 Ft Box, Standard Gate, W/O Power Release
MSRP: $8.23 Your Price: $5.261
- 12

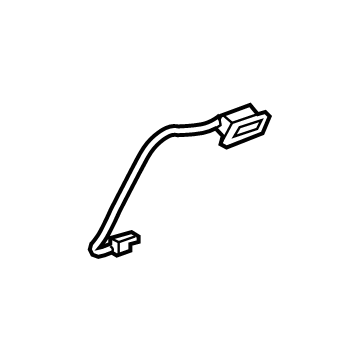

85626239
Release SwitchSwitch Assembly-Lift Gate Exterior Release- Part Notes: 6.9 Ft Box, Multipro Gate, Upper, Lower;8 Ft Box, Multipro Gate, Upper, Lower
- Replaced By: 85877553
MSRP: $7.00 Your Price: $4.701
- 12
84676845
Side CameraCamera Assembly-Rear View Driver Information- Part Notes: Double & Crew Cab, Power Extending
- Location: Driver Side;Passenger Side
MSRP: $179.10 Your Price: $118.721
- 13
- 14
84751410
Torque RodRod Assembly-Pick Up Box End Gate Torque- Part Notes: 6.9 Ft Box, Standard Gate, W/Ez Lift;8 Ft Box, Standard Gate, W/Ez Lift
MSRP: $81.87 Your Price: $52.301
- 14
84468908
Upper CoverCover, Outside Rear View Remote (Electrical)- Part Notes: Double & Crew Cab, Power Extending, Black
- Location: Passenger Side
MSRP: $97.07 Your Price: $65.221 - 1484468909
Upper CoverCover-Outside Rear View Mirror Housing Upper *Exterior Bright- Part Notes: Double & Crew Cab, Power Extending, Chrome
- Location: Passenger Side
MSRP: $130.43 Your Price: $87.631 - 1484468910
Upper CoverCover, Outside Rear View Remote (Electrical)- Part Notes: Double & Crew Cab, Power Extending, Black
- Location: Driver Side
MSRP: $97.07 Your Price: $65.221 - 1484468911
Upper CoverCover-Outside Rear View Mirror Housing Upper *Exterior Bright- Part Notes: Double & Crew Cab, Power Extending, Chrome
- Location: Driver Side
MSRP: $130.43 Your Price: $87.631
- 15
- 15
- 15
- 15
84468904
Lower CoverCover-Outside Rear View Mirror Housing Lower *Black- Part Notes: Double & Crew Cab, Power Extending, W/O Surround View, Black
- Location: Driver Side
MSRP: $92.34 Your Price: $62.041 - 1584468905
Lower CoverCover-Outside Rear View Mirror Housing Lower *Exterior Bright- Part Notes: Double & Crew Cab, Power Extending, W/O Surround View, Chrome
- Location: Driver Side
MSRP: $165.43 Your Price: $111.151 - 1584468906
Lower CoverCover-Outside Rear View Mirror Housing Lower *Black- Part Notes: Double & Crew Cab, Power Extending, W/O Surround View, Black
- Location: Passenger Side
MSRP: $92.34 Your Price: $62.041 - 1584468907
Lower CoverCover-Outside Rear View Mirror Housing Lower *Exterior Bright- Part Notes: Double & Crew Cab, Power Extending, W/O Surround View, Chrome
- Location: Passenger Side
MSRP: $166.23 Your Price: $111.691
- 16
84676845
Rear CameraCamera Assembly-Rear View Driver Information- Part Notes: 6.9 Ft Box, Standard Gate, W/Surround View;8 Ft Box, Standard Gate, W/Surround View
MSRP: $179.10 Your Price: $118.721 - 1684884484
Rear CameraCamera Assembly-Rear View Driver Information- Part Notes: 6.9 Ft Box, Standard Gate, W/O Surround View, W/Hd Camera;8 Ft Box, Standard Gate, W/O Surround View, W/Hd Camera
MSRP: $145.68 Your Price: $101.811 - 1623390515
Rear CameraCamera Assembly-Rear View Driver Information- Part Notes: 6.9 Ft Box, Standard Gate, W/O Surround View, W/O Hd Camera;8 Ft Box, Standard Gate, W/O Surround View, W/O Hd Camera
MSRP: $127.94 Your Price: $84.811
- 18
- 19
85626239
Release SwitchSwitch Assembly-Lift Gate Exterior Release- Part Notes: 6.9 Ft Box, Standard Gate;8 Ft Box, Standard Gate
- Replaced By: 85877553
MSRP: $7.00 Your Price: $4.701
- 20
13536169
Lock CylinderCylinder Kit-Pick Up Box End Gate Lock (Uncoded)- Part Notes: 6.9 Ft Box, Standard Gate;8 Ft Box, Standard Gate
MSRP: $131.13 Your Price: $88.101
- 21
84179275
Cover PanelCover-Pick Up Box End Gate Access Hole- Part Notes: 6.9 Ft Box, Standard Gate;8 Ft Box, Standard Gate
MSRP: $59.31 Your Price: $39.851
