2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

1.Rear Suspension - Suspension Components
2.Rear Suspension - Suspension Components (Express,Savana)

Sort by:

Ref No.

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
84950709
Leaf Spring
- Part Notes: 3/4 Ton, 8500 & 8600 Gvw
- Location: Driver Side;Passenger Side
MSRP: $371.50 Your Price: $207.11
1
Add To Cart

1
84301665
Shock Absorber
Part Notes: Express, Savana; 3/4 Ton; 8500 & 8600 Gvwr; 155" Wheelbase
Replaced By: 85717960
MSRP: $211.69 Your Price: $106.40
1
Add To Cart
1
84301664
Shock Absorber
- Part Notes: Express, Savana; 3/4 Ton; 8500 & 8600 Gvwr; 135" Wheelbase
- Replaced By: 85717956
MSRP: $111.01 Your Price: $59.11
1
Add To Cart

2
84205631
Leaf Spring
Part Notes: Express, Savana; 3/4 Ton; 9900 Gvwr
MSRP: $507.82 Your Price: $283.11
1
Add To Cart
2
84950709
Leaf Spring
- Part Notes: Express, Savana; 3/4 Ton; 8600 Gvwr
MSRP: $371.50 Your Price: $207.11
1
Add To Cart

2

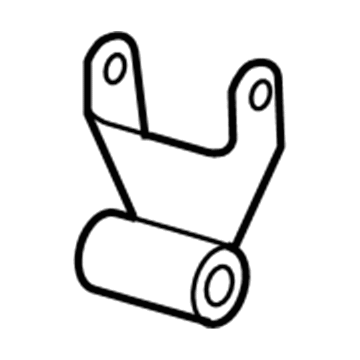

84232565
Shackle
Shackle Assembly-Rear Spring
- Location: Driver Side;Passenger Side
MSRP: $80.97 Your Price: $40.59
1
Add To Cart

3
84232565
Shackle
Shackle Assembly-Rear Spring
Part Notes: Express, Savana; Cargo, Passenger Van
MSRP: $80.97 Your Price: $40.59
1
Add To Cart
3
11612281
Shackle Bolt
Bolt/Screw
- Location: Driver Side;Passenger Side
MSRP: $8.11 Your Price: $5.19
1
Add To Cart

4
11518426
U-Bolt
Bolt U, Rear Spring U Bolt
- Part Notes: 3/4 & 1 Ton
- Location: Driver Side;Passenger Side
MSRP: $49.63 Your Price: $24.95
1
Add To Cart

5
15733656
Spacer Plate
Spacer-Rear Spring U Bolt
- Part Notes: 3/4 & 1 Ton
- Location: Driver Side;Passenger Side
MSRP: $12.64 Your Price: $7.67
1
Add To Cart

6

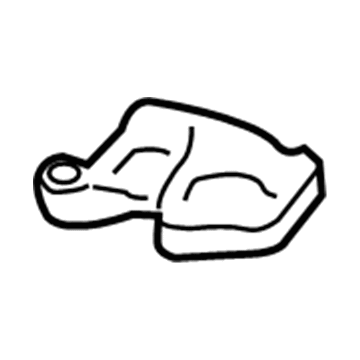

25761310
Anchor Plate
Plate, Rear Spring And Shock Absorber Anchor
- Part Notes: 3/4 & 1 Ton
- Location: Driver Side;Passenger Side
MSRP: $39.02 Your Price: $21.57
1
Add To Cart

8
6263975
Bumper
Bumper-Rear Axle
- Part Notes: Type 2, 3/4 & 1 Ton
- Location: Driver Side;Passenger Side
MSRP: $15.74 Your Price: $11.07
1
Add To Cart

9
84301665
Shock
Shock Absorber
Part Notes: Cargo Van, 155" Wheelbase
Location: Driver Side;Passenger Side
Replaced By: 85717960
MSRP: $211.69 Your Price: $106.40
1
Add To Cart
9
84301663
Shock
Shock Absorber
- Part Notes: Passenger Van
- Location: Driver Side;Passenger Side
- Replaced By: 85717957
MSRP: $122.05 Your Price: $61.36
1
Add To Cart
9
84301664
Shock
Shock Absorber
- Part Notes: Cargo Van, 135" Wheelbase
- Location: Driver Side;Passenger Side
- Replaced By: 85717956
MSRP: $111.01 Your Price: $59.11
1
Add To Cart

11516072
NUT, M10X1.5X9, 7111M(FRONT STABILIZER SHAFT INSULATOR CLA)
- Require Quantity: 04
- Package Quantity: 5
MSRP: $6.00 Your Price: $3.83
View Details

11609233
WASHER,FLAT, 17X34X4MM, SAE 1050-1080 STEEL, GMW3044(REAR SPRING U BOLT)
- Require Quantity: 08
- Package Quantity: 1
MSRP: $8.12 Your Price: $5.19
View Details

11589357
BOLT,REAR SHOCK ABSORBER(M14X2.0X80)(5.416)
- Fitting Vehicle Options: G2,3
- Require Quantity: 02
- Package Quantity: 1
MSRP: $15.44 Your Price: $9.86
View Details

15715641
NUT,REAR SHOCK ABSORBER(M8X1.25)
- Fitting Vehicle Options: G2,3
- Require Quantity: 04
- Package Quantity: 1
MSRP: $8.90 Your Price: $5.40
View Details
