Diagram (1 of 1): Fuel System - Fuel System Components

2005 Chevy Express 2500 Fuel Supply Diagram

Enlarge Diagram

Sort by:

Ref No.

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
84009042
Fuel Tank
Tank, Fuel
Part Notes: 6.6L Diesel, Without Left 60/40 Doors
MSRP: $1103.31 Your Price: $734.80
1
Add To Cart
1
23315308
Fuel Tank
Tank, Fuel
- Part Notes: 6.6L Diesel, With Left 60/40 Doors
MSRP: $429.33 Your Price: $287.22
1
Add To Cart

2
84479911
Shield
Shield-Fuel Tank
- Part Notes: 6.6L Diesel
MSRP: $127.22 Your Price: $81.29
1
Add To Cart

3
84498703
Strap
Strap-Fuel Tank Front
Part Notes: 6.6L Diesel, Front
MSRP: $22.47 Your Price: $14.37
1
Add To Cart
3
84498704
Strap
Strap, Fuel Tank Mounting Strap
- Part Notes: 6.6L Diesel, Rear
MSRP: $22.56 Your Price: $15.16
1
Add To Cart

4
22940655
Filler Pipe
Pipe Assembly-Fuel Tank Filler
- Part Notes: 6.6L Diesel, With Left 60/40 Doors
MSRP: $624.08 Your Price: $417.50

5
15057804
Filler Pipe Strap
Strap, Fuel Tank Filler
- Part Notes: 6.6L Diesel

6
20914961
Fuel Cap
Cap, Fuel Tank Filler
- Part Notes: 6.6L Diesel
MSRP: $51.60 Your Price: $27.48
1
Add To Cart

7
89060659
Fuel Pump Assembly
Module Kit, Fuel Tank Fuel Pump
Part Notes: 6.6L Diesel, Without Left 60/40 Doors
MSRP: $520.04 Your Price: $287.32
1
Add To Cart
7
89060662
Fuel Pump Assembly
Module Kit, Fuel Tank Fuel Pump
- Part Notes: 6.6L Diesel, With Left 60/40 Doors
MSRP: $550.00 Your Price: $292.88
1
Add To Cart

8
22682111
Fuel Pump Assembly Seal
Seal, Fuel Gage To Tank
- Part Notes: 6.6L Diesel
MSRP: $15.92 Your Price: $8.48
1
Add To Cart

9
15734494
Fuel Pump Assembly Retainer Ring
Ring, Fuel Tank Meter/Pump
- Part Notes: 6.6L Diesel
MSRP: $54.12 Your Price: $28.82
1
Add To Cart

10
19133513
Level Sensor
Sensor Kit, Fuel Tank Meter/Pump
- Part Notes: 6.6L Diesel
MSRP: $393.38 Your Price: $209.47
1
Add To Cart

11
16238399
Pressure Sensor
Sensor, Fuel Tank Pressure
- Part Notes: 6.6L Diesel
- Replaced By: 19540725
MSRP: $103.58 Your Price: $58.02
1
Add To Cart

87848344
Fuel Pump
Tank, Fuel
Part Notes: Express, Savana; In Tank; GAS Engines; Cargo, Passenger Van; Commercial Cutaway; With 55 Gallon Tank; California;Express, Savana; In Tank; GAS Engines; Cargo, Passenger Van; Commercial Cutaway; With 55 Gallon Tank; Federal
MSRP: $3558.44 Your Price: $2369.94
1
Add To Cart
89060657
Fuel Pump
Module Kit, Fuel Tank Fuel Pump
- Part Notes: Express, Savana; In Tank; GAS Engines; Cargo, Passenger Van; Commercial Cutaway; Without 55 Gallon Tank; All
MSRP: $520.04 Your Price: $287.32
1
Add To Cart

13500126
Fuel Pump Relay
Relay Assembly, Windshield Wiper Motor *Black
- Part Notes: Express, Savana
MSRP: $22.42 Your Price: $11.94
1
Add To Cart

84009041

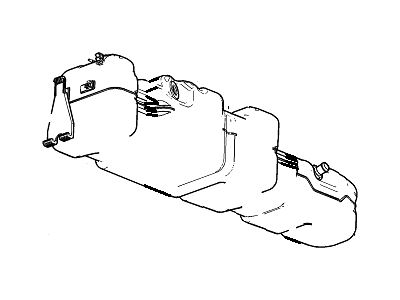

Fuel Tank
Tank, Fuel
Part Notes: Express, Savana; GAS Engine; Cargo, Passenger Van; 4.3L; Without LH Side Door Hinged;Express, Savana; GAS Engine; Cargo, Passenger Van; 4.8L; Without LH Side Door Hinged;Express, Savana; GAS Engine; Cargo, Passenger Van; 5.3L; Without LH Side Door Hinged;Express, Savana; GAS Engine; Cargo, Passenger Van; 6.0L; Without LH Side Door Hinged
MSRP: $1322.73 Your Price: $880.93
1
Add To Cart
84164753
Fuel Tank
Tank, Fuel
- Part Notes: Express, Savana; GAS Engine; Commercial Cutaway; Without 55 Gallon Tank
MSRP: $922.33 Your Price: $614.26
1
Add To Cart

15281171
Throttle Cable
Cable Assembly-Accelerator Control
Part Notes: Express, Savana; 4.8L, 5.3L, 6.0L; Without Speed Governor
15130491
Throttle Cable
Cable Assembly-Accelerator Control
- Part Notes: Express, Savana; 4.8L, 5.3L, 6.0L; With Speed Governor
15281170
Throttle Cable
Cable Assembly-Accelerator Control
- Part Notes: Express, Savana; 4.3L

19331949
MODULE KIT,FUEL TANK FUEL PUMP(INCLUDES LEVEL SENSOR)(INCLUDES 9,12)
- Fitting Vehicle Options: G1,2,3(05-06)(LM7,LQ4,LR4,LU3,E26)
MSRP: $708.98 Your Price: $345.01
View Details
