Make sure this part fits

GM 15234846
Wheel Nut

1997-2018 GM

Customer Questions & Expert Answers (19)
GM 15234846 Wheel Nut
GM 15234846 Wheel Nut
GM 15234846 Wheel Nut
GM 15234846 Wheel Nut
  • Part Description
    Nut, Tire Pressure; TPMS Sensor Service Kit
  • Replaces
    10268439, 15825474, 15125473, 25708165
  • Manufacturer
    General Motors
Make sure this part fits
$7.26 MSRP: $13.64
You Save: $6.38 (47%)
Ships in 1-3 Business Days
1
ADD TO CART

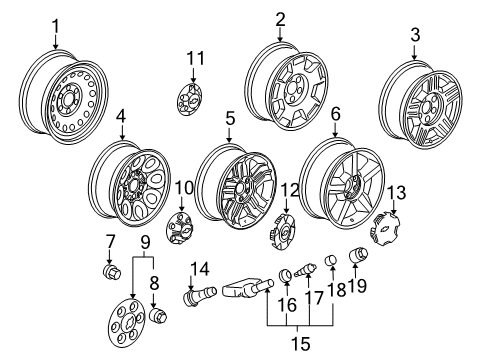

  • 15234846 Wheel Nut is Ref No. 19 in the diagram below

    2007 Chevy Tahoe Wheel Nut Diagram for 15234846
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 15234846

  • Vehicle Fitment

    Year Make Model Trim Engine
    2006-2007 Buick RainierCXL6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
    2014-2015 Cadillac ATSBase, Luxury, Performance, Premium4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.6 L FLEX
    2014-2018 Cadillac CTSBase, Luxury, Performance, Premium, Premium Luxury, V, Vsport, Vsport Premium, Vsport Premium Luxury4 Cyl 2.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
    2006 Cadillac DTSBase8 Cyl 4.6 L GAS
    2001-2005 Cadillac DeVilleBase, DHS, DTS, Protection Series8 Cyl 4.6 L GAS
    2004-2008 Cadillac EscaladeBase, Platinum8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS
    2004-2007 Cadillac Escalade ESVBase8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS
    2004-2007 Cadillac Escalade EXTBase8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS
    2004-2006 Cadillac SRXBase6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
    2005-2011 Cadillac STSBase, Platinum, V6 Cyl 3.6 L GAS, 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
    View More
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Is this 15234846 designed for my car? Posted by ChevyPartsDeal Specialist
    A:
    Please Select Your Vehicle model to see if part number 15234846 is suitable before ordering.
    Posted by ChevyPartsDeal Specialist
    Q:
    What is the first step to replace the Tire Pressure Sensor for the 2006 Buick Rainier? Posted by Customer
    A:
    Raise the vehicle on a suitable support and remove the tire/wheel assembly.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this TPMS sensor
    Q:
    How should the tire bead be separated from the wheel for the 2006 Cadillac DTS? Posted by Customer
    A:
    Position the bead breaking fixture 90 degrees from the valve stem and insert the tire iron or pry bar slightly clockwise of the sensor body while prying the tire bead over the mounting/dismounting head.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this TPMS sensor
    Q:
    How do you install the new TPM sensor for the 2002 Cadillac DeVille? Posted by Customer
    A:
    Position the sensor and install the sensor nut, tightening it to 4 Nm (35 inch lbs.) for domestic vehicles or 12 Nm (106 inch lbs.) for export vehicles.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this TPMS sensor
    Q:
    How do you remove the tire pressure sensor for the 2007 Cadillac Escalade? Posted by Customer
    A:
    Remove the tire pressure sensor nut and the sensor itself.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this TPMS sensor
    Q:
    What is the final step after installing the tire/wheel assembly for the 2007 Cadillac Escalade ESV? Posted by Customer
    A:
    Lower the vehicle and learn the tire pressure sensors.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this TPMS sensor
    Q:
    What is the final step after installing the tire/wheel assembly for the 2006 Cadillac Escalade EXT? Posted by Customer
    A:
    Lower the vehicle and learn the tire pressure sensors.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this TPMS sensor
    Q:
    How should the tire bead be separated from the wheel for the 2006 Chevrolet Avalanche 1500? Posted by Customer
    A:
    Position the bead breaking fixture 90 degrees from the valve stem and place the mounting/dismounting head so that the tire iron or pry bar can be inserted slightly clockwise of the sensor body while prying the tire bead up and over the head.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this TPMS sensor
    Q:
    What is the first step to replace the Tire Pressure Sensor for the 2005 Cadillac SRX? Posted by Customer
    A:
    Raise the vehicle on a suitable support and remove the tire/wheel assembly.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this TPMS sensor
    Q:
    How should the bead breaking fixture be positioned when using the tire machine for the 2008 Cadillac XLR? Posted by Customer
    A:
    Position the bead breaking fixture 90 degrees from the valve stem and maintain a tolerance between the tire machine fixture or irons, tire bead, and the sensor during removal.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this TPMS sensor
    Q:
    What is the next step after removing the tire for the 2006 Cadillac STS? Posted by Customer
    A:
    Remove the tire pressure sensor nut and the sensor itself.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this TPMS sensor
    Q:
    What is the installation process for the new sensor for the 2006 Chevrolet Avalanche 2500? Posted by Customer
    A:
    Clean any dirt or debris from the grommet sealing area, insert the sensor into the wheel hole with the air passage facing away from the wheel, and install the sensor nut while positioning the sensor body parallel to the inside wheel surface, tightening it to 7 Nm (62 inch lbs.).
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this TPMS sensor
    Q:
    How should the sensor be installed for the 2007 Chevrolet Corvette? Posted by Customer
    A:
    Clean the sensor grommet sealing area of the wheel, insert the sensor into the valve stem hole with the air passage facing away from the wheel, and install the sensor nut while positioning the sensor body parallel to the inside wheel surface, tightening the nut to 7 N.m (62 lb in).
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this TPMS sensor
    Q:
    How should the sensor be installed for the 2007 Chevrolet Impala? Posted by Customer
    A:
    Clean any dirt or debris from the grommet sealing area, insert the sensor in the wheel hole with the air passage facing away from the wheel, and install the sensor nut while positioning the sensor body parallel to the inside wheel surface, tightening it to 7 N.m (62 lb in).
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this TPMS sensor
    Q:
    What is the process for using the tire machine for the 2006 Chevrolet Trailblazer? Posted by Customer
    A:
    Rotate the tire/wheel assembly clockwise while transferring the tire bead to the outside of the wheel rim, and repeat for the inner bead.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this TPMS sensor
    Q:
    What is the final step after installing the tire/wheel assembly for the 2006 Chevrolet Tahoe? Posted by Customer
    A:
    Lower the vehicle and learn the tire pressure sensors.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this TPMS sensor
    Q:
    What should be done when transferring the tire bead to the inside of the wheel rim for the 2006 Chevrolet Suburban 1500? Posted by Customer
    A:
    Use the tire machine to rotate the tire/wheel assembly clockwise and repeat this for the outer bead before installing the tire on the wheel.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this TPMS sensor
    Q:
    How should the tire bead be separated from the wheel for the 2006 GMC Envoy? Posted by Customer
    A:
    Position the bead breaking fixture 90 degrees from the valve stem and place the mounting/dismounting head slightly clockwise of the sensor body.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this TPMS sensor
    Q:
    How should the tire be positioned before reinstalling it for the 2006 GMC Yukon? Posted by Customer
    A:
    Position the mounting/dismounting head 180 degrees from the valve stem and the bead transition area 45 degrees counterclockwise of the valve stem.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this TPMS sensor
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Wheel Nut 15234846 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 15234846 Wheel Nut is available in the market under the name GM TPMS Sensor. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 15234846 Wheel Nut fits certain Chevrolet Tahoe, Camaro, Impala models, as well as GMC Yukon, Envoy, Envoy XL. Additionally, it is compatible with Cadillac Escalade, CTS, XLR and Buick Rainier models.
The original GM component designated by Manufacturer Part Number 15234846 maintains top performance when functioning as the Nut, Tire Pressure; TPMS Sensor Service Kit unit. The component 15234846 is constructed from durable material and its dimensions span 4.1 x 4.2 x 0.7 inches while weighing 0.30 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. This component receives the designation of Valve Stem Nut; TPMS Sensor Valve; TPMS Sensor Nut; Pressure Sensor Nut; Tire Sensor Nut; Transmitter Nut; Nut, Wheel. The part 15234846 has available replacement options 10268439, 15825474, 15125473, 25708165. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
