GM 12561721
Camshaft

2001-2007 GM

Customer Questions & Expert Answers (24)

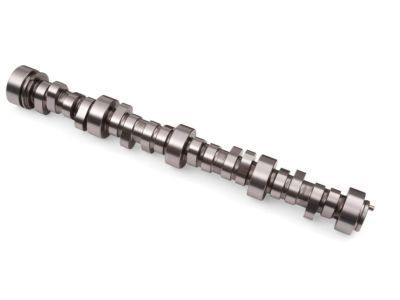

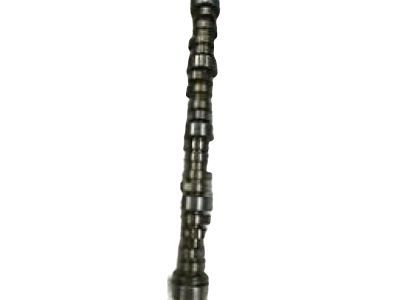

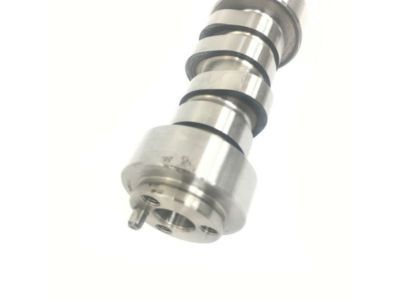

GM 12561721 Camshaft
GM 12561721 Camshaft
GM 12561721 Camshaft
GM 12561721 Camshaft
GM 12561721 Camshaft
  • Part Description
    Camshaft, Engine
  • Manufacturer
    General Motors
Make sure this part fits
$495.61 MSRP: $816.41
You Save: $320.80 (40%)
Ships in 1-3 Business Days
1
ADD TO CART

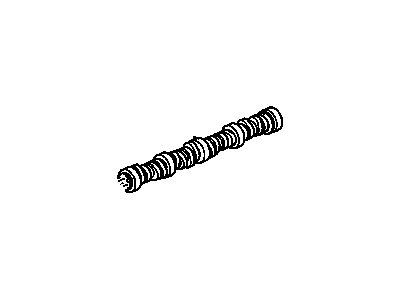

  • 12561721 Camshaft is Ref No. 14 in the diagram below

    2005 Cadillac Escalade ESV Camshaft Diagram for 12561721
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 12561721

  • Vehicle Fitment

    Year Make Model Trim Engine
    2002-2006 Cadillac EscaladeBase8 Cyl 6.0 L GAS
    2003-2006 Cadillac Escalade ESVBase8 Cyl 6.0 L GAS
    2002-2006 Cadillac Escalade EXTBase8 Cyl 6.0 L GAS
    2001-2002 Chevrolet CamaroZ28, Z28 SS8 Cyl 5.7 L GAS
    2001-2004 Chevrolet Corvette50th Anniversary Edition, 50th Anniversary Edition Pace Car, Base, Z068 Cyl 5.7 L GAS
    2003-2007 Chevrolet Express 2500Base, LS, LT8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
    2003-2007 Chevrolet Express 3500Base, LS, LT8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
    2003-2006 Chevrolet Silverado 1500LS, LT, SS8 Cyl 6.0 L GAS
    2007 Chevrolet Silverado 1500 ClassicLT, SS8 Cyl 6.0 L GAS
    2005-2006, 2001-2003 Chevrolet Silverado 1500 HDBase, LS, LT8 Cyl 6.0 L GAS
    View More
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Is this 12561721 designed for my car? Posted by ChevyPartsDeal Specialist
    A:
    Please Select Your Vehicle model to see if part number 12561721 is suitable before ordering.
    Posted by ChevyPartsDeal Specialist
    Q:
    What should be done after removing the camshaft for the 2002 Cadillac Escalade? Posted by Customer
    A:
    Clean and inspect the camshaft and bearings, and if replacement is necessary, ensure the valve lifters are also replaced.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this Camshaft
    Q:
    What is important regarding the retainer plate during installation for the 2004 Cadillac Escalade ESV? Posted by Customer
    A:
    Ensure the retainer plate is installed with the sealing gasket facing the engine block, keeping the gasket surface clean.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this Camshaft
    Q:
    What should be done with the crankshaft before removing the camshaft sprocket for the 2006 Cadillac Escalade EXT? Posted by Customer
    A:
    Rotate the crankshaft until the timing marks on the crankshaft and camshaft sprockets align, then remove the camshaft sprocket bolts.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this Camshaft
    Q:
    What should be done after removing the camshaft for the 2002 Chevrolet Camaro? Posted by Customer
    A:
    Inspect the camshaft and bearings.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this Camshaft
    Q:
    What is the final assembly process for the 2004 Chevrolet Corvette? Posted by Customer
    A:
    Install a NEW crankshaft front oil seal, followed by the valve lifters, right and left cylinder heads, valve rocker arms, push rods, and right and left valve rocker arm covers. Finally, install the coolant air bleed pipe, intake manifold, water pump, left and right exhaust manifolds, oil level indicator tube, crankshaft balancer, and the engine assembly.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this Camshaft
    Q:
    How should the camshaft be lubricated during installation for the 2006 Chevrolet Express 2500? Posted by Customer
    A:
    Lubricate the camshaft journals and bearings with clean engine oil.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this Camshaft
    Q:
    What should be done with the camshaft retainer bolts and retainer for the 2006 Chevrolet Express 3500? Posted by Customer
    A:
    Remove them carefully to avoid damaging the camshaft bearings.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this Camshaft
    Q:
    What should be done after removing the balance shaft drive gear for the 2004 Chevrolet Silverado 1500? Posted by Customer
    A:
    Take out the camshaft retainer bolts and retainer, then remove the engine camshaft carefully to avoid damaging the camshaft bearings.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this Camshaft
    Q:
    What is the next step after installing the camshaft retainer for the 2004 Chevrolet Silverado 2500? Posted by Customer
    A:
    Install the camshaft sprocket and position the timing chain, followed by the camshaft sprocket bolts, tightening them to 35 Nm (26 ft. lbs.).
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this Camshaft
    Q:
    What is important to ensure when installing the retainer plate for the 2004 Chevrolet Silverado 3500? Posted by Customer
    A:
    Ensure the sealing gasket is facing the engine block, keeping the gasket surface clean and free of debris.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this Camshaft
    Q:
    What is the torque specification for the camshaft retainer bolts for the 2007 Chevrolet Silverado 3500 Classic? Posted by Customer
    A:
    Tighten them to 25 Nm (18 ft. lbs.).
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this Camshaft
    Q:
    Why is it important not to turn the crankshaft assembly after removing the timing chain for the 2006 Chevrolet Suburban 1500? Posted by Customer
    A:
    To prevent damage to the piston assemblies or valves.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this Camshaft
    Q:
    What is the first step to replace the camshaft for the 2007 Chevrolet Silverado 1500 Classic? Posted by Customer
    A:
    First, remove the radiator, air conditioning (A/C) condenser, lifters, timing chain, and camshaft sprocket, followed by the balance shaft drive gear.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this Camshaft
    Q:
    How do you install the camshaft for the 2002 Chevrolet Suburban 2500? Posted by Customer
    A:
    Install three 8 - 1.25 x 100 mm bolts into the camshaft threaded bolt holes and use them as a handle to carefully install the camshaft.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this Camshaft
    Q:
    What should be done if necessary after removing the camshaft for the 2003 GMC Savana 3500? Posted by Customer
    A:
    Clean and inspect the camshaft and bearings.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this Camshaft
    Q:
    How should the camshaft be installed for the 2004 GMC Sierra 1500? Posted by Customer
    A:
    Lubricate the camshaft journals and bearings with clean engine oil, then use the same three bolts to carefully install the camshaft into the engine block and remove the bolts.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this Camshaft
    Q:
    What is the torque specification for securing the camshaft sprocket bolts for the 2005 GMC Savana 2500? Posted by Customer
    A:
    35 Nm (26 ft. lbs.).
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this Camshaft
    Q:
    What steps should be taken when installing a new camshaft for the 2007 GMC Sierra 1500 Classic? Posted by Customer
    A:
    Change the engine oil and filter, add engine oil supplement, and lubricate the engine camshaft lobes, camshaft bearing journals, and camshaft bearings.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this Camshaft
    Q:
    What should be done if necessary after extracting the camshaft for the 2004 GMC Yukon XL 2500? Posted by Customer
    A:
    Clean and inspect the camshaft and bearings.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this Camshaft
    Q:
    What is the next step after installing the camshaft retainer for the 2006 GMC Yukon? Posted by Customer
    A:
    Install the camshaft sprocket and position the timing chain, followed by installing and tightening the camshaft sprocket bolts to 35 Nm (26 ft. lbs.).
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this Camshaft
    Q:
    How should the camshaft journals and bearings be prepared before installation for the 2001 GMC Yukon XL 1500? Posted by Customer
    A:
    Lubricate the camshaft journals and bearings with clean engine oil.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this Camshaft
    Q:
    What is the correct way to install the camshaft for the 2005 GMC Sierra 3500? Posted by Customer
    A:
    Use the same three bolts to carefully install the camshaft into the engine block and then remove the bolts afterward.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this Camshaft
    Q:
    What should be done before reinstalling the camshaft for the 2007 GMC Sierra 3500 Classic? Posted by Customer
    A:
    Lubricate the camshaft journals and bearings with clean engine oil.
    Posted by ChevyPartsDeal Specialist
    See vehicle specific detailed answers for this Camshaft
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Camshaft 12561721 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 12561721 Camshaft is available in the market under the name GM Camshaft. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 12561721 Camshaft fits certain Chevrolet Camaro, Silverado 1500, Silverado 2500 HD models, as well as GMC Sierra 1500, Yukon, Sierra 2500 HD. Additionally, it is compatible with Cadillac Escalade, Escalade ESV, Escalade EXT and Pontiac Firebird, GTO models.
The original GM component designated by Manufacturer Part Number 12561721 maintains top performance when functioning as the Camshaft, Engine unit. The component 12561721 is constructed from durable material and its dimensions span 3.4 x 3.4 x 29.2 inches while weighing 10.60 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. The part 12561721 has available replacement options. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
