23 Transmission Pans found

View related parts

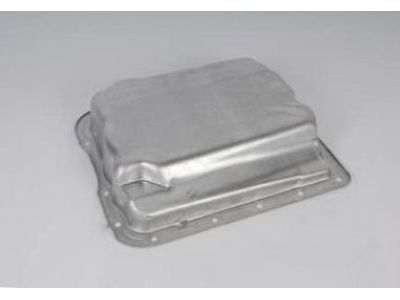

GMC Transmission Pan Part Number: 24240206
$26.76 MSRP: $41.91
You Save: $15.15 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assembly-Automatic Transmission Fluid; Automatic Transmission Oil Pan; Pan, Transmission Oil Pan
- Replaces: 24211638
Fits the following GMC Models:
- Canyon | 2004-2012 | SL, SLE, SLT, WT, Z71 Fleet, Z71 SL, Z71 SLE, Z85 SL, Z85 SLE | 4 Cyl 2.8 L GAS, 4 Cyl 2.9 L GAS, 5 Cyl 3.5 L GAS, 5 Cyl 3.7 L GAS, 8 Cyl 5.3 L GAS
View related parts

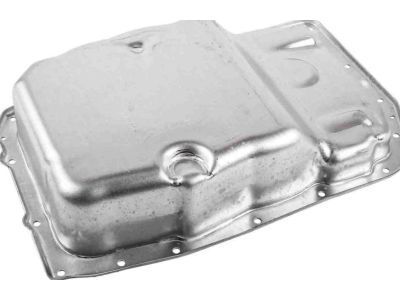

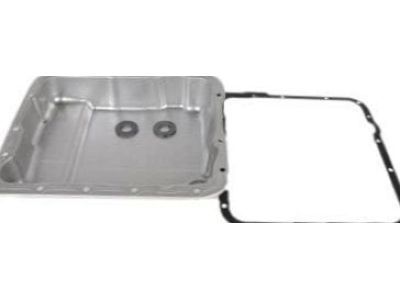

GMC Oil Pan Part Number: 24222657
$21.48 MSRP: $33.64
You Save: $12.16 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan, Automatic Transmission Fluid; Automatic Transmission Oil Pan; Transmission Pan; Pan, Transmission Oil Pan
Fits the following GMC Models:
- Sierra 1500 | 2007-2021 | AT4, Base, Denali, Elevation, Hybrid, SL, SLE, SLT, WT, XFE | 4 Cyl 2.7 L GAS, 6 Cyl 3.0 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 5.3 L MILD HYBRID EV-GAS (MHEV), 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Yukon | 2007-2020 | Denali, SLE, SLT | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Yukon XL | 2015-2020 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Yukon XL 1500 | 2007-2014 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View More
View related parts

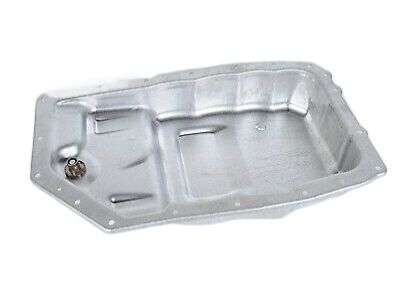

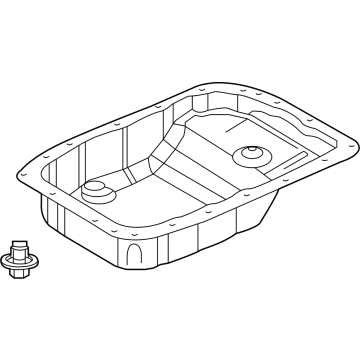

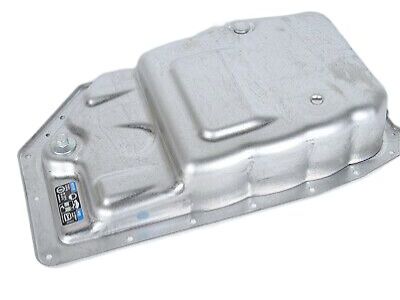

GMC Oil Pan Part Number: 24297102
$30.84 MSRP: $48.31
You Save: $17.47 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assembly-Automatic Transmission Fluid; Automatic Transmission Oil Pan; Transmission Pan; Pan, Transmission Oil Pan
- Replaces: 24290415, 24248164
Fits the following GMC Models:
- Savana 2500 | 2021-2023 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 6.6 L GAS
- Savana 3500 | 2021-2023 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 6.6 L GAS
- Sierra 2500 HD | 2020-2023 | AT4, Base, Denali, Pro, SLE, SLT | 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L FLEX, 8 Cyl 6.6 L GAS
- Sierra 3500 HD | 2020-2023 | AT4, Base, Denali, Pro, SLE, SLT | 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L FLEX, 8 Cyl 6.6 L GAS
View More
View related parts

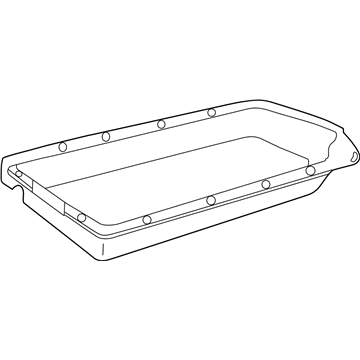

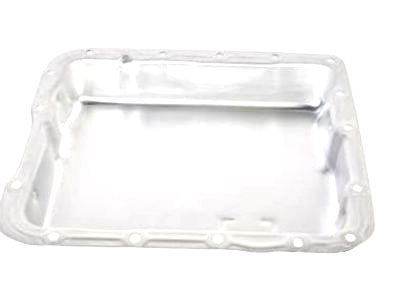

GMC Oil Pan Part Number: 8667545
$48.73 MSRP: $70.97
You Save: $22.24 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan-Automatic Transmission Oil; Automatic Transmission Oil Pan; Transmission Pan; Filter; Pan Kit, Transmission Oil Pan; Pan, Transmission Oil Pan
Fits the following GMC Models:
- C1500 | 1988-1999 | Sierra, Sierra GT, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX, Sierra Special | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- C2500 | 1988-2000 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- C3500 | 1988-2000 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- Canyon | 2004-2005 | SL, SLE, Z71 Fleet, Z71 SL, Z71 SLE, Z85 SL, Z85 SLE | 4 Cyl 2.8 L GAS, 5 Cyl 3.5 L GAS
- Envoy | 2002-2005 | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
- Envoy XL | 2002-2005 | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
- Envoy XUV | 2004-2005 | SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
- Jimmy | 1995-1998, 1992-1993 | Base, Envoy, SL, SLE, SLS, SLT | 6 Cyl 4.3 L GAS
- K1500 | 1988-1999 | Sierra, Sierra SL, Sierra SLE, Sierra SLS, Sierra SLT, Sierra SLX, Sierra Special, Sierra Sport | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- K2500 | 1988-2000 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
View More
View related parts
GMC Oil Pan Part Number: 24204278
$77.18 MSRP: $120.90
You Save: $43.72 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Kit, Transmission Oil Pan; Automatic Transmission Oil Pan; Transmission Pan; Pan, Transmission Oil Pan; Transmission Oil Pan
Fits the following GMC Models:
- C1500 Suburban | 1997-1999 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- C2500 Suburban | 1997-1999 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K1500 Suburban | 1997-1999 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- K2500 Suburban | 1997-1999 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- Savana 1500 | 1997-2009 | Base, LS, LT, SLE, SLT | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 5.7 L GAS
- Savana 2500 | 1997-2009 | Base, LS, LT, SLE, SLT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 6.6 L DIESEL
- Savana 3500 | 1997-2009 | Base, LS, LT, SLE, SLT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 6.6 L DIESEL, 8 Cyl 7.4 L GAS, 8 Cyl 8.1 L GAS
- Sierra 2500 | 1999-2004 | Base, SL, SLE, SLT, WT | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
- Sierra 2500 HD | 2001-2005 | Base, SL, SLE, SLT, WT | 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Sierra 3500 | 2001-2005 | Base, SL, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
View More
View related parts

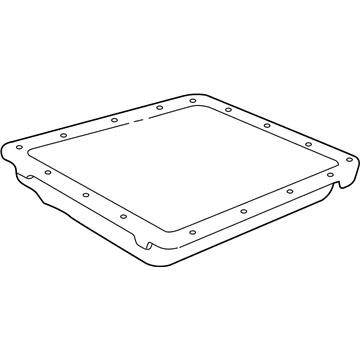

GMC Oil Pan Part Number: 24226851
$19.19 MSRP: $31.62
You Save: $12.43 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan-Automatic Transmission Fluid; Automatic Transmission Oil Pan; Transmission Pan; Pan, Transmission Oil Pan
Fits the following GMC Models:
- Savana 1500 | 2010-2014 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX
- Savana 2500 | 2010-2020 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Savana 3500 | 2010-2020 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Sierra 2500 HD | 2007-2019 | Base, Denali, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Sierra 3500 HD | 2007-2019 | Base, Denali, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Yukon XL 2500 | 2007-2013 | SLE, SLT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
View More
View related parts
GMC Oil Pan Part Number: 24045034
$35.17 MSRP: $52.45
You Save: $17.28 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assembly-Automatic Transmission Fluid; Transmission Pan; Pan, Transmission Oil Pan
- Replaces: 24274734, 24274616
Fits the following GMC Models:
- Canyon | 2015-2021 | All Terrain, AT4, Base, Denali, Elevation, Elevation Standard, SL, SLE, SLT | 4 Cyl 2.5 L GAS, 4 Cyl 2.8 L DIESEL, 6 Cyl 3.6 L GAS
View related parts

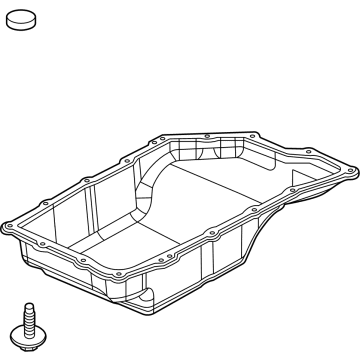

GMC Oil Pan Part Number: 24286058
$116.46 MSRP: $183.25
You Save: $66.79 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assembly-Automatic Transmission Fluid; Transmission Pan; Pan, Transmission Oil Pan
- Replaces: 24291905
Fits the following GMC Models:
- Sierra 2500 HD | 2020-2024 | AT4, AT4X, Base, Denali, Denali Ultimate, Pro, SLE, SLT | 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L FLEX, 8 Cyl 6.6 L GAS
- Sierra 3500 HD | 2020-2024 | AT4, Base, Denali, Denali Ultimate, Pro, SLE, SLT | 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L FLEX, 8 Cyl 6.6 L GAS
View related parts

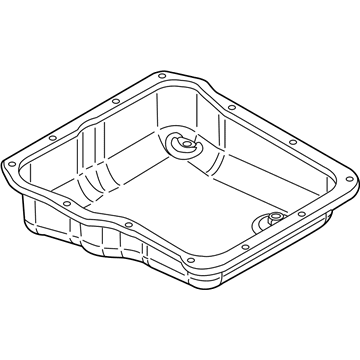

GMC Transmission Pan Part Number: 29536524
$63.40 MSRP: $99.31
You Save: $35.91 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assembly, Automatic Transmission Fluid; Automatic Transmission Oil Pan; Pan, Transmission Oil Pan
Fits the following GMC Models:
- Sierra 1500 | 2007-2010 | Denali, Hybrid, SL, SLE, SLT, WT, XFE | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Sierra 2500 HD | 2006-2019 | Base, Denali, SL, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Sierra 2500 HD Classic | 2007 | SL, SLE, SLT, WT | 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Sierra 3500 | 2006 | SL, SLE, SLT, WT | 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Sierra 3500 Classic | 2007 | SL, SLE, SLT, WT | 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Sierra 3500 HD | 2007-2019 | Base, Denali, SLE, SLT, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View More
View related parts
GMC Transmission Pan Part Number: 24288491
$104.31 MSRP: $171.82
You Save: $67.51 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assembly-Automatic Transmission Fluid; Automatic Transmission Oil Pan; Pan, Transmission Oil Pan
Fits the following GMC Models:
- Yukon | 2018-2020 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Yukon XL | 2018-2020 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts

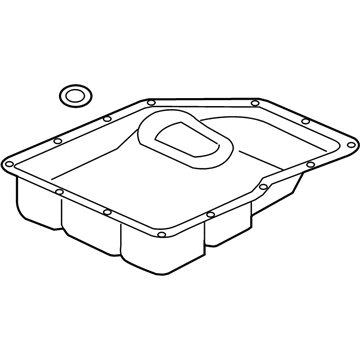

GMC Transmission Pan Part Number: 29544374
$23.95 MSRP: $39.45
You Save: $15.50 (40%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan, Transmission Oil Pan; Automatic Transmission Oil Pan
Fits the following GMC Models:
- Sierra 1500 | 2009-2013 | Hybrid | 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV)
- Yukon | 2008-2013 | Denali Hybrid, Hybrid | 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV)
View related parts
GMC Oil Pan Part Number: 24045041
$37.08 MSRP: $61.09
You Save: $24.01 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assembly-Automatic Transmission Fluid; Transmission Pan; Pan, Transmission Oil Pan
Fits the following GMC Models:
- Canyon | 2023 | AT4, AT4X, Denali, Elevation | 4 Cyl 2.7 L GAS
View related parts
GMC Oil Pan Part Number: 24297104
$28.27 MSRP: $42.17
You Save: $13.90 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan-Automatic Transmission Fluid; Automatic Transmission Oil Pan; Transmission Pan; Pan, Transmission Oil Pan
- Replaces: 24235511, 24239530, 24250062, 24290418
Fits the following GMC Models:
- Sierra 1500 | 2019-2022 | AT4, AT4X, Base, Denali, Denali Ultimate, Elevation, Pro, SLE, SLT | 4 Cyl 2.7 L GAS, 6 Cyl 3.0 L DIESEL, 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
View related parts

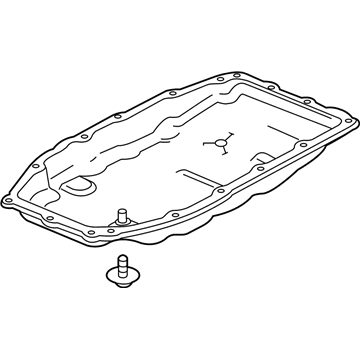

GMC Oil Pan Part Number: 24045035
$31.04 MSRP: $48.61
You Save: $17.57 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assembly-Automatic Transmission Fluid; Transmission Pan; Pan, Transmission Oil Pan
- Replaces: 24273680, 24272989, 24278774, 24274614
Fits the following GMC Models:
- Savana 2500 | 2017-2024 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L GAS
- Savana 3500 | 2017-2024 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L GAS
- Sierra 1500 | 2015-2018 | Base, Denali, SLE, SLT | 6 Cyl 4.3 L FLEX, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 5.3 L MILD HYBRID EV-GAS (MHEV), 8 Cyl 6.2 L GAS
- Yukon | 2015-2017 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Yukon XL | 2015-2020 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View More
View related parts

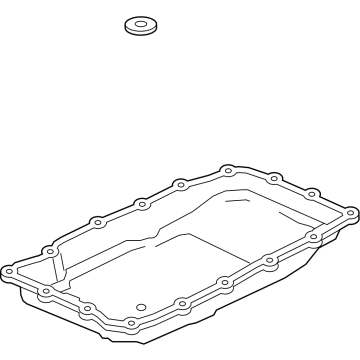

GMC Oil Pan Part Number: 24043538
$54.42 MSRP: $89.64
You Save: $35.22 (40%)
ADD TO CART
Product Specifications
- Other Name: Pan Assembly-Automatic Transmission Fluid; Transmission Pan; Pan, Transmission Oil Pan
- Replaces: 24293671
Fits the following GMC Models:
- Sierra 1500 | 2019-2023 | AT4, AT4X, Base, Denali, Denali Ultimate, Elevation, Pro, SLE, SLT | 4 Cyl 2.7 L GAS, 6 Cyl 3.0 L DIESEL, 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
- Yukon | 2021-2023 | AT4, Denali, SLE, SLT | 6 Cyl 3.0 L DIESEL, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
- Yukon XL | 2021-2023 | AT4, Denali, SLE, SLT | 6 Cyl 3.0 L DIESEL, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
View More
View related parts

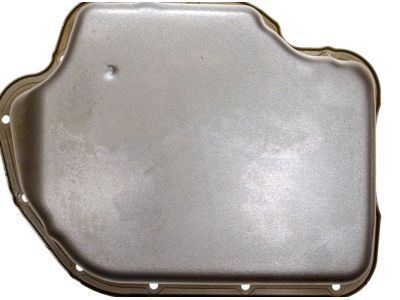

GMC Transmission Pan Part Number: 8679994
Product Specifications
- Other Name: Pan, Trans Oil; Automatic Transmission Oil Pan; Pan, Transmission Oil Pan
Fits the following GMC Models:
- C1500 | 1988-1990 | Sierra, Sierra SLE, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- C2500 | 1988-1990 | Sierra, Sierra SLE, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- C3500 | 1988-1990 | Sierra, Sierra SLE, Sierra SLX | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 7.4 L GAS
- K1500 | 1988-1990 | Sierra, Sierra SLE, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K2500 | 1988-1990 | Sierra, Sierra SLE, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K3500 | 1988-1990 | Sierra, Sierra SLE, Sierra SLX | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 7.4 L GAS
View More
View related parts
GMC Oil Pan Part Number: 24229658
$97.15 MSRP: $152.17
You Save: $55.02 (37%)
Product Specifications
- Other Name: Pan Kit, Transmission Oil Pan; Automatic Transmission Oil Pan; Transmission Pan; Filter; Transmission Oil Pan
- Replaces: 24209295, 24215535, 24210915
Fits the following GMC Models:
- Canyon | 2004-2005 | SL, SLE, Z71 Fleet, Z71 SL, Z71 SLE, Z85 SL, Z85 SLE | 4 Cyl 2.8 L GAS, 5 Cyl 3.5 L GAS
- Envoy | 2002-2005 | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
- Envoy XL | 2002-2005 | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
- Envoy XUV | 2004-2005 | SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
- Jimmy | 1998-2001 | Diamond Edition, Envoy, SL, SLE, SLS, SLT | 6 Cyl 4.3 L GAS
- Safari | 1999-2005 | Base, SL, SLE, SLT | 6 Cyl 4.3 L GAS
- Savana 1500 | 2003-2009 | Base, LS, LT, SLE | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
- Savana 2500 | 2003-2009 | Base, LS, LT, SLE | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Savana 3500 | 2003-2009 | Base, LS, LT, SLE | 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Sierra 1500 | 1999-2007 | Base, C3, Denali, HT, SL, SLE, SLT, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS
View More
View related parts

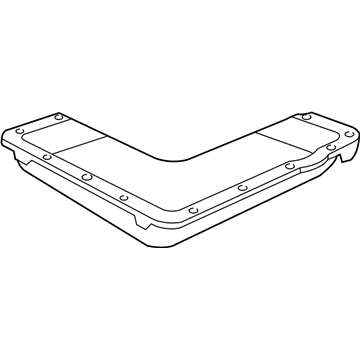

GMC Transmission Pan Part Number: 24229660
Product Specifications
- Other Name: Pan Kit, Transmission Oil Pan; Automatic Transmission Oil Pan
- Replaces: 24229791
Fits the following GMC Models:
- Sierra 1500 | 2005-2006 | Hybrid | 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV)
- Sierra 1500 Classic | 2007 | Hybrid | 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV)
View related parts
GMC Oil Pan Part Number: 8679931
Product Specifications
- Other Name: Pan Kit, W/Magnet; Automatic Transmission Oil Pan; Transmission Pan; Pan Gasket; Pan Kit, Transmission Oil Pan
Fits the following GMC Models:
- C1500 Suburban | 1992-1996 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- C2500 Suburban | 1992-1996 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K1500 Suburban | 1992-1996 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- K2500 Suburban | 1992-1996 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- Savana 1500 | 1996 | Base, SLE | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- Savana 2500 | 1996 | Base, SLE | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- Savana 3500 | 1996 | Base, SLE | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- Yukon | 1992-1995 | Base, GT, SLE, SLT, Sport | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
View More
View related parts
GMC Oil Pan Part Number: 8685921
Product Specifications
- Other Name: Pan Kit, W/Gasket & Magnet; Pan Kit, Transmission Oil Pan
Fits the following GMC Models:
- Savana 1500 | 1996 | Base, SLE | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- Savana 2500 | 1996 | Base, SLE | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- Savana 3500 | 1996 | Base, SLE | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
View More

| Page 1 of 2 |Next >

1-20 of 23 Results

GMC Transmission Pan

Choose OEM Transmission Pan, you're making the optimal decision for superior quality and perfect performance. You can feel confident because each component goes through stringent quality checks. Every part is carefully built to comply with GMC's factory specifications. You'll enjoy a smooth, worry-free installation that fits just right. At ChevyPartsDeal.com, you'll find it easy to get top-quality OEM GMC Transmission Pan. You can shop at highly competitive prices and protect your budget. All our genuine GMC parts include a dependable manufacturer's warranty. You'll also appreciate our straightforward return policy and swift delivery services for extra convenience.

GMC Transmission Pan ensures transmission fluid is cool and contained and increases the durability when working and travelling hard. GMC manufactures trucks and SUVs which come with boxed frames that shake off heavy loads and still provide drivers with good trim cabins. The company was founded in 1901 and now its lineup is a combination of brute towing muscle, polished suspensions and cabin technology that make long hauls peaceful. Each model goes through vicious proving-ground circuits, water wades and corrosion baths so their buyers can drive away already with confidence. Praise is given to simple controls, rock stable steering and safety assists that monitor blind spots and assist in hitch hook ups. Extended warranty and the availability of parts everywhere ensure that the owners continue to have the mileage on the increase without worrying about any downtime. The fluid that cools and lubricates the clutches is stored in a Transmission Pan which is located under each automatic gearbox; its deep stamped-steel shell prevents stones and heat and an internal filter filters the grit before being cut into passages through the valve body. GMC backs this rough bottom with reusable gaskets and simple bolt designs to get driveway swaps done before the engine gets hot. Since the Transmission Pan is low in the frame, the drips are blocked by tight sealing flanges and the additional volume of fluid levels the pressure in the hydraulic when traffic turns cruel and the brakes are pressed down in stop and go.

GMC Transmission Pan Parts and Q&A

Oil Pan
24229658
Q: How to service and repair the Transmission Pan for the 4L60-E/4L65-E/4L70-E automatic transmission on GMC Savana 2500?
A:
Start your fluid pan service or repair of the 4l60-e/4l65-e/4l70-e automatic transmission by supporting the vehicle and placing a drain pan underneath the transmission oil pan. The range selector cable bracket must be positioned to one side by removing its bolts if required prior to lowering the pan. This should occur without detaching the cable from the lever or bracket while the oil pan Drain Plug remains in place. Begin by taking out the Catalytic Converter but keep the oil pan bolts situated at the front portion of the pan and sides until you loosen the bolts located at the back by about 4 turns. A rubber mallet should be used to tap the oil pan lightly so fluid drains out before you can remove the remaining bolts and the oil pan together with its gasket. Use pliers to detach the filter seal from the pump only if the seal gets stuck before you can grasp the filter for proper rotation to remove both pieces. Then discard the seal. Check the fluid tone and filter state for signs of clutch material as well as analyze if it contains bronze flakes or steel chips. Solvent should be used for cleaning transmission case and oil pan gasket surfaces until all residue from the old gasket disappears. Apply automatic transmission fluid on the new filter seal before installing it into the transmission case while tapping it in position with an appropriate socket size. Next install the new filter using automatic transmission fluid for lubrication; afterward install the oil pan with its new gasket before tightening all bolts between 11 n.m (97 lb in) to 11 n.m (97 lb in). Secure the range selector cable bracket and Catalytic Converter through bolts which need 25 n.m (18 lb ft) torque. Use gm p/n 12346004 sealant on the threads of the oil pan Drain Plug when present before installing it at 18 n.m (13 lb ft). Lower the vehicle before filling the transmission with dexron(R) vi transmission fluid to the correct level while checking the cold fluid mark for the first time only. Perform an inspection for any oil pan gasket leaks afterward.
Transmission Pan
24229660
Q: How to replace the transmission pan on GMC Sierra 1500?
A:
The first step to change an Oil Pan requires increasing the vehicle height. Remove the Drain Plug and its Drain Plug seal from the Oil Pan so fluid can drain into a suitable contained while you record fluid amount loss since reusable fluid remains in good condition. The drainage process should begin with fluid inspection before removing 12 bolts where the Oil Pan remains fixed once the last bolt becomes loose. Remove the Oil Pan along with its gasket so you can check the magnet for big metallic pieces that would signal transmission failure. You should pull down the transmission internal oil filter to remove it from the suction tube in the transmission case but keep both filter and seal intact when handling only the Oil Pan or gasket replacement operation. After removing the transmission internal oil filter seal from its position either in the filter bore or the transmission case you must discard both elements when replacing anything. Remove all gasket residue from the transmission case while also fixing any damage which might result in leakage. Fitting a new seal onto the transmission internal oil filter tube's tube requires placing it against its shoulder before pushing filter and new seal into the transmission case's seal bore. Position 2 m8 x 1.25 headless guide bolts into the transmission case Oil Pan mounting face corners before placing a gasket over the pan and correctly setting the bolt holes. Set the gasket and Oil Pan over the guide bolts before keeping them steady to fasten 2 bolts . Guide bolts removal should be followed by tightening ten remaining Oil Pan bolts to 27 nm (20 ft. Lbs.). Insert the Drain Plug followed by its Drain Plug seal before tightening it to 35 nm (26 ft. Lbs.). Lower the vehicle while filling it with dexron(r)vi automatic transmission fluid which requires clean and approved fluid type only before inspecting the transmission fluid level since drained fluid remains in exterior circuits and transmission cavities.
