How to replace the left engine mount on GMC Sonoma?

Before beginning the left Engine Mount replacement process start by raising the car and eliminating underbody shields when they appear. You must first take off the through-bolt and its nut from the Engine Mount of the side being replaced before using a jack on the square tab (left side shown) at the engine block rear for engine lift while removing the Starter if you need to access the right side tab. After raising the engine to its clearance height for removing the mount proceed with unthreading the bracket bolts from their frame brackets to complete bracket removal. Moove the Engine Mount through-bolt and nut from the mount as you take away the Engine Mount and its protective shield. Install the Engine Mount and shield as a unit after sub-assembly using one bolt before installing them onto the engine. Begin by mounting the engine to its location with 54 nm (40 ft. Lbs.), then proceed with mounting the frame bracket to the frame while tightening its bolts to 45 nm (33 ft. Lbs.). Physical workers should lower the engine with bolts at 74 nm (55 ft. Lbs.), then tighten the through-bolts at 74 nm (55 ft. Lbs.) and the nuts at 63 nm (46 ft. Lbs.). Reinstall the Starter only if it needed removal before lowering down the vehicle.

How to replace the right engine mount on GMC Sonoma?

The first step to change the right Engine Mount calls for vehicle lift and shield removal from beneath. Start by removing the through-bolt and nut from the Engine Mount of the target side and place a jack on the engine block's rear square tab to lift the engine sufficiently to remove the Starter if needed for access to the right side square tab. Raising the engine slightly until you can remove the Engine Mount and then unfasten brackets that connect the mount to the frame and finally remove all brackets. The procedure begins with removing bolts that secure the Engine Mount to both the engine and vice-versa. You can then remove the Engine Mount together with its shield. You should start by sub-assembly of the Engine Mount and shield with one bolt before mounting them to the engine. Tighten the Engine Mount engine bolts to 54 nm (40 ft. Lbs.). Install the Engine Mount frame bracket onto the frame before securing it with bolts and referencing an 45 nm torque value (33 ft.lb.). Lower the engine from the jack support and fasten the Engine Mount through-bolts then nuts at 74 nm (55 ft. Lbs.) and 63 nm (46 ft. Lbs.) levels respectively. Reinstall the Starter only when it was taken out during the process and lower the vehicle back down.

OEM GMC Sonoma Engine Mount

Engine Motor Mount

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

21 Engine Mounts found

View related parts
GMC Sonoma Motor Mount Part Number: 22188284
$51.94 MSRP: $88.43
You Save: $36.49 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Mount; Engine Mount Torque Strut; Engine Mount Bracket; Engine Mount; Side Mount; Front Mount; Mount, Engine Mount Dampening; Mount, Engine Mounting
- Replaces: 17989409, 22145879, 14082803, 17996145, 22112974, 22146241, 22145863, 17981702
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991-1993 GMC Sonoma | Base, SLE, SLS | 6 Cyl 2.8 L GAS
View related parts
GMC Sonoma Mount Bracket, Passenger Side Part Number: 15725994
$16.28 MSRP: $26.77
You Save: $10.49 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Bracket; Motor Mount; Motor Mount Bracket
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2004 GMC Sonoma | SL, SLE, SLS | 6 Cyl 4.3 L GAS
View related parts
GMC Sonoma Mount Bracket, Driver Side Part Number: 15725995
$19.08 MSRP: $29.13
You Save: $10.05 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Bracket; Motor Mount; Motor Mount Bracket
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2004 GMC Sonoma | SL, SLE, SLS | 6 Cyl 4.3 L GAS
View related parts
GMC Sonoma Mount Bracket, Driver Side Part Number: 15980139
$3.40 MSRP: $5.34
You Save: $1.94 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Bracket; Motor Mount
- Position: Driver Side
- Replaced by: 15991067
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-1995 GMC Sonoma | SL, SLE, SLS | 4 Cyl 2.2 L GAS
View related parts

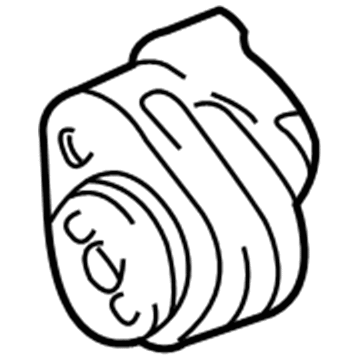

GMC Sonoma Front Mount, Driver Side Part Number: 15149543
$43.33 MSRP: $71.39
You Save: $28.06 (40%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Mount Assembly-Engine; Engine Mount Bracket; Motor Mount; Mount; Mount, Engine Mount Dampening; Mount, Engine Mounting
- Position: Driver Side
- Replaces: 15967993
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-2003 GMC Sonoma | SL, SLE, SLS | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS
View related parts
GMC Sonoma Motor Mount, Passenger Side Part Number: 15638410
$30.13 MSRP: $62.42
You Save: $32.29 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Mount Assembly-Engine; Engine Mount Torque Strut; Engine Mount Bracket; Front Mount; Mount; Mount, Engine Mount Dampening; Mount, Engine Mounting
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991-1993 GMC Sonoma | Base, SLE, SLS | 4 Cyl 2.5 L GAS
View related parts
GMC Sonoma Mount Bracket, Driver Side Part Number: 15967991
$24.15 MSRP: $48.49
You Save: $24.34 (51%)
ADD TO CART
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Bracket; Motor Mount
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995-2003 GMC Sonoma | SL, SLE, SLS | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS
View related parts
GMC Sonoma Mount Bracket, Driver Side Part Number: 15725993
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Bracket; Motor Mount; Motor Mount Bracket
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2003 GMC Sonoma | SL, SLE, SLS | 6 Cyl 4.3 L GAS
View related parts
GMC Sonoma Motor Mount Part Number: 22188970
Product Specifications
- Other Name: Mount; Engine Mount Torque Strut; Engine Mount Bracket; Front Mount; Mount, Engine Mount Dampening; Mount, Engine Mounting
- Replaces: 22113326
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991-1995 GMC Sonoma | Base, GT, SL, SLE, SLS | 6 Cyl 4.3 L GAS
View related parts
GMC Sonoma Mount Bracket, Driver Side Part Number: 14027913
Product Specifications
- Other Name: Bracket; Engine Mount Bracket; Motor Mount; Bracket, Engine Mounting
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991-1993 GMC Sonoma | Base, SLE, SLS | 6 Cyl 2.8 L GAS
View related parts
GMC Sonoma Mount Bracket, Passenger Side Part Number: 15531862
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Bracket; Motor Mount
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991-1993 GMC Sonoma | Base, SLE, SLS | 6 Cyl 2.8 L GAS
View related parts

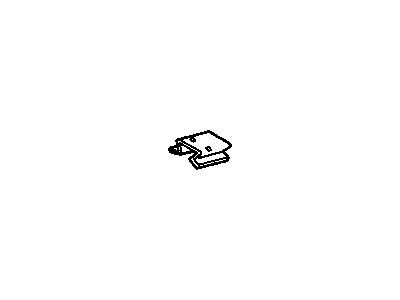

GMC Sonoma Console Bracket Part Number: 14062314
Product Specifications
- Other Name: Support, Seat Separator Console; Console Mount Bracket; Support
- Position: Front and Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991-1993 GMC Sonoma | Base, GT, SLE, SLS | 4 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 4.3 L GAS
View related parts
GMC Sonoma Mount Bracket, Driver Side Part Number: 15602787
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Bracket; Motor Mount; Motor Mount Bracket; Front Mount Bracket
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991-1995 GMC Sonoma | Base, GT, SL, SLE, SLS | 6 Cyl 4.3 L GAS
View related parts
GMC Sonoma Mount Bracket, Passenger Side Part Number: 15598558
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Torque Strut; Engine Mount Bracket; Motor Mount; Motor Mount Bracket
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991-1993 GMC Sonoma | Base, SLE, SLS | 4 Cyl 2.5 L GAS
View related parts
GMC Sonoma Mount Bracket, Driver Side Part Number: 15602789
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Bracket; Motor Mount; Motor Mount Bracket; Front Mount Bracket
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991-1995 GMC Sonoma | Base, GT, SL, SLE, SLS | 6 Cyl 4.3 L GAS
View related parts
GMC Sonoma Mount Bracket, Passenger Side Part Number: 15674856
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Bracket; Motor Mount; Motor Mount Bracket; Front Mount Bracket
- Position: Passenger Side
- Replaces: 15602788
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991-1995 GMC Sonoma | Base, GT, SL, SLE, SLS | 6 Cyl 4.3 L GAS
View related parts
GMC Sonoma Mount Bracket, Driver Side Part Number: 15590285
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Torque Strut; Engine Mount Bracket; Motor Mount; Motor Mount Bracket
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991-1993 GMC Sonoma | Base, SLE, SLS | 4 Cyl 2.5 L GAS
View related parts
GMC Sonoma Mount Bracket, Passenger Side Part Number: 15967992
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Bracket; Motor Mount
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995-2003 GMC Sonoma | SL, SLE, SLS | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS
View related parts
GMC Sonoma Motor Mount, Driver Side Part Number: 15638409
Product Specifications
- Other Name: Mount Assembly-Engine; Engine Mount Torque Strut; Engine Mount Bracket; Front Mount; Mount; Mount, Engine Mount Dampening; Mount, Engine Mounting
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991-1993 GMC Sonoma | Base, SLE, SLS | 4 Cyl 2.5 L GAS
View related parts

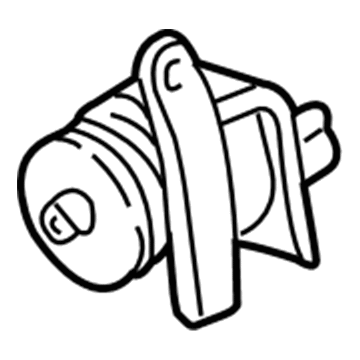

GMC Sonoma Front Mount, Passenger Side Part Number: 15967994
Product Specifications
- Other Name: Mount Assembly-Engine; Engine Mount Bracket; Motor Mount; Mount; Mount, Engine Mount Dampening; Mount, Engine Mounting
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995-2003 GMC Sonoma | SL, SLE, SLS | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS

| Page 1 of 2 |Next >

1-20 of 21 Results

GMC Sonoma Engine Mount

Want to cut long-term maintenance and repair costs? Choose OEM Engine Mount. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine GMC Sonoma parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM GMC Sonoma Engine Mount includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

GMC Sonoma Engine Mount Parts and Q&A

Front Mount, Driver Side
15149543
Q: How to replace the left engine mount on GMC Sonoma?
A:
Before beginning the left Engine Mount replacement process start by raising the car and eliminating underbody shields when they appear. You must first take off the through-bolt and its nut from the Engine Mount of the side being replaced before using a jack on the square tab (left side shown) at the engine block rear for engine lift while removing the Starter if you need to access the right side tab. After raising the engine to its clearance height for removing the mount proceed with unthreading the bracket bolts from their frame brackets to complete bracket removal. Moove the Engine Mount through-bolt and nut from the mount as you take away the Engine Mount and its protective shield. Install the Engine Mount and shield as a unit after sub-assembly using one bolt before installing them onto the engine. Begin by mounting the engine to its location with 54 nm (40 ft. Lbs.), then proceed with mounting the frame bracket to the frame while tightening its bolts to 45 nm (33 ft. Lbs.). Physical workers should lower the engine with bolts at 74 nm (55 ft. Lbs.), then tighten the through-bolts at 74 nm (55 ft. Lbs.) and the nuts at 63 nm (46 ft. Lbs.). Reinstall the Starter only if it needed removal before lowering down the vehicle.
Mount Bracket, Passenger Side
15725994
Q: How to replace the right engine mount on GMC Sonoma?
A:
The first step to change the right Engine Mount calls for vehicle lift and shield removal from beneath. Start by removing the through-bolt and nut from the Engine Mount of the target side and place a jack on the engine block's rear square tab to lift the engine sufficiently to remove the Starter if needed for access to the right side square tab. Raising the engine slightly until you can remove the Engine Mount and then unfasten brackets that connect the mount to the frame and finally remove all brackets. The procedure begins with removing bolts that secure the Engine Mount to both the engine and vice-versa. You can then remove the Engine Mount together with its shield. You should start by sub-assembly of the Engine Mount and shield with one bolt before mounting them to the engine. Tighten the Engine Mount engine bolts to 54 nm (40 ft. Lbs.). Install the Engine Mount frame bracket onto the frame before securing it with bolts and referencing an 45 nm torque value (33 ft.lb.). Lower the engine from the jack support and fasten the Engine Mount through-bolts then nuts at 74 nm (55 ft. Lbs.) and 63 nm (46 ft. Lbs.) levels respectively. Reinstall the Starter only when it was taken out during the process and lower the vehicle back down.
