OEM GMC Sierra 3500 Brake Caliper Bracket
Caliper Bracket- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
7 Brake Caliper Brackets found
GMC Sierra 3500 Caliper Bracket, Passenger Side Part Number: 25997055
$127.26 MSRP: $246.98You Save: $119.72 (49%)Ships in 1-2 Business Days
GMC Sierra 3500 Caliper Bracket, Driver Side Part Number: 25997053
$141.36 MSRP: $255.84You Save: $114.48 (45%)Ships in 1-2 Business Days
GMC Sierra 3500 Caliper Mount, Rear Part Number: 25997051
$93.76 MSRP: $188.25You Save: $94.49 (51%)

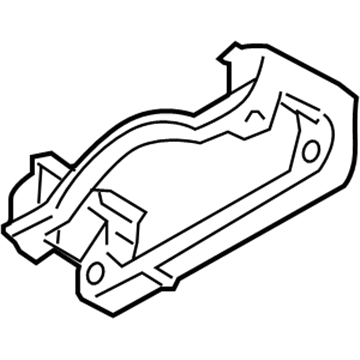

GMC Sierra 3500 Caliper Support, Passenger Side Part Number: 25997056
$90.62 MSRP: $141.96You Save: $51.34 (37%)Ships in 1-3 Business Days
GMC Sierra 3500 Caliper Mount Part Number: 18048917
GMC Sierra 3500 Mount Bracket, Rear Part Number: 18043519
GMC Sierra 3500 Caliper Support, Driver Side Part Number: 25997054
$96.63 MSRP: $151.37You Save: $54.74 (37%)
GMC Sierra 3500 Brake Caliper Bracket
Want to cut long-term maintenance and repair costs? Choose OEM Brake Caliper Bracket. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine GMC Sierra 3500 parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM GMC Sierra 3500 Brake Caliper Bracket includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.
GMC Sierra 3500 Brake Caliper Bracket Parts and Q&A
- Q: How to replace the rear brake caliper bracket on the 1500 Series w/NYS and 25/3500 Series on GMC Sierra 3500?A:Before starting the 1500 series w/nys and 25/3500 series rear Brake Caliper Bracket replacement you need to check the brake master cylinder reservoir fluid level; drain fluid when it exceeds half the maximum to minimum mark line. After taking out the wheel you need to depress the caliper pistons by pressing a c-clamp over the housing towards the back of the pad until the pistons are fully compressed. Unbolt the brake caliper mounting points by loosening them instead of removing them. Then take out the two bracket bolts and extract the caliper bracket assembly with the brake caliper. Set the brake caliper on mechanical wire without taking off the brake hose before you replace the Brake Pads and anti-rattle clips. After fixing the anti-rattle clips to caliper bracket, seat the brake pads inside and connect caliper to bracket. Place the brake caliper on the caliper bracket without tight force while connecting both parts. Before securing the bolts you clean the original adhesive surface and bolt threads with denatured alcohol. Use threadlocker gm p/n 12345493 (Canadian P/N 10953488) on the adhesive surface and directly install both Brake Caliper Bracket bolts. Finally normalize the bolts to 300 nm (221 ft. Lbs.). Apply torque to the brake caliper bolts at 108 nm (80 ft. Lbs.), readd the tire wheel setup, and on an idle engine start, extend the brake pedal to 2/3 its height before returning it to normal position. Press the brake pedal once every 15 seconds until you feel solid resistance to check whether the brake caliper pistons and brake pads sit correctly. Expel brake fluid from the reservoir before pouring in clean fluid up to the proper mark.
- Q: How to replace the front brake caliper bracket on GMC Sierra 3500?A:When replacing the front Brake Caliper Bracket check the brake master cylinder reservoir fluid. Regular fluid level means no removal needed but excess fluid requires lowering to the center point. Feed the wheel set aside and push brake caliper pistons back with two large c-clamps pressed against the housing from behind the inboard pad until all pistons are fully compressed. Hold the caliper with mechanics wire and keep the hydraulic brake hose connected during the removal of caliper bolts, Brake Pads, anti-rattle clips, Brake Caliper Bracket bolts and finally the Brake Caliper Bracket . Wipe away residue after thoroughly cleaning the surface of both Brake Caliper Bracket inner ends and assembly mounting brackets. Re-attach the Brake Caliper Bracket in its rightful position after cleaning every bolt-thread surface with denatured alcohol and covering threads with threadlocker gm p/n 12345493 (Canadian P/N 10953488). Install the Brake Caliper Bracket bolts at 300 nm torque then add the anti-rattle clips and brake pads while pressing them against the rotor surface. Place the brake caliper bolts into place and tighten them to 108 nm (80 foot pounds). Install the tire and wheel after this step. Push the brake pedal slowly to two-thirds of its range while the engine is off then let go as part of a braking setup process to properly park the pistons and pads into position. Close up the master cylinder reservoir by pouring clean brake fluid to match the required fluid level.
