Why is it important to inspect the Steering Shaft after a collision on GMC Sierra 1500?

A post-collision vehicle inspection requires evaluation of the Steering Column Intermediate Shaft due to its convoluted assembly. Model C1500 contains just a single convoluted area whereas the others feature two of these areas. It is mandatory to check the convoluted areas for damage right after deploying the Air Bags. A straight edge should be applied to different portions of the intermediate shaft to evaluate its straightness during inspection. Any identified bending or damage to the shaft requires replacing it.

How to replace the upper intermediate steering shaft on GMC Sierra 1500?

To replace the upper intermediate Steering Shaft, install the Steering Column anti-rotation pin (J 42640) in the Steering Column you had first pass through the lower access hole. See that the wheels of the vehicle move straight ahead, and the Steering Column is in the lock position to avoid causing the sir coil assembly to be damaged. Mark the relationships of the bolt and clamp on both ends of the upper intermediate shaft and connection between the upper and lower intermediate shafts for proper installation. Unscrew the nut and bolt from the lower shaft to upper shaft join and the one from the upper shaft to the Steering Column. Extract and remove the accelerator pedal position sensor, and slide the intermediate shaft down and out of the Steering Column connection. After that, slide the upper intermediate shaft towards the instrument panel out of the lower intermediate shaft, and extract out the vehicle. For installation, feed the lower end of your upper intermediate shaft into the lower side through the bulkhead aligning the marks done in its course to bring it out to install the same if reuse the same shaft. Mount the upper end of the upper intermediate shaft to the Steering Column and lock it using the bolt and nut until the nut is tightened to 62 nm (46 ft. Lbs.). Finity the accelerator pedal position sensor and reconnect the upper and lower intermediate shaft as securely as possible with the bolt and nut, tightening the nut achieving 50 nm (37 ft. Lbs.). Finally, pull off the Steering Column anti-rotation pin (J 42640) from the Steering Column lower access hole.

OEM GMC Sierra 1500 Steering Shaft

Steering Stem Shaft

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

14 Steering Shafts found

View related parts

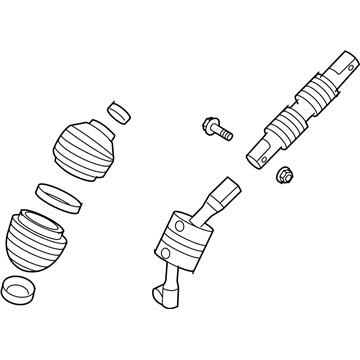

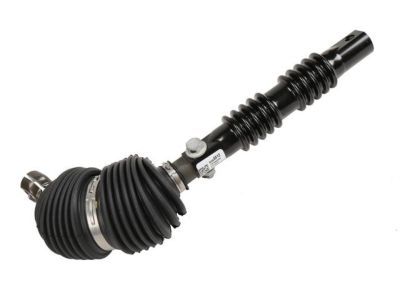

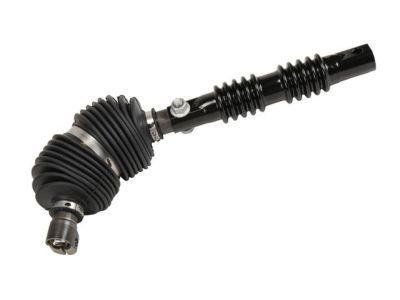

GMC Sierra 1500 Coupling Shaft Part Number: 84386512
$306.08 MSRP: $525.67
You Save: $219.59 (42%)
ADD TO CART
Product Specifications
- Other Name: Shaft, Steering Column Intermediate; Steering Shaft
- Replaces: 22902696, 84321745, 23381956, 23177395
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2014-2019 GMC Sierra 1500 | AT4, Base, Denali, Elevation, SLE, SLT | 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 5.3 L MILD HYBRID EV-GAS (MHEV), 8 Cyl 6.2 L GAS
View related parts
GMC Sierra 1500 Coupling Shaft Part Number: 26078078
$244.53 MSRP: $381.33
You Save: $136.80 (36%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft Assembly-Steering Gear Coupling; Steering Shaft; Coupling; Shaft, Steering Column Intermediate; Shaft, Steering Column
- Replaces: 26073805
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2007 GMC Sierra 1500 | Base, C3, Denali, HT, Hybrid, SL, SLE, SLT, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS
View related parts
GMC Sierra 1500 Intermediate Shaft Part Number: 84370714
$107.27 MSRP: $184.22
You Save: $76.95 (42%)
ADD TO CART
Product Specifications
- Other Name: Shaft, Steering Column Intermediate; Steering Shaft; Lower Shaft; Upper Shaft; Intermed Shaft; Coupling
- Position: Upper
- Replaced by: 85104192
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2019 GMC Sierra 1500 | AT4, Base, Denali, Elevation, Hybrid, SL, SLE, SLT, WT, XFE | 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 5.3 L MILD HYBRID EV-GAS (MHEV), 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
GMC Sierra 1500 Coupling Shaft Part Number: 25958109
$171.69 MSRP: $282.83
You Save: $111.14 (40%)
ADD TO CART
Product Specifications
- Other Name: Shaft Assembly-Steering Gear Coupling; Steering Shaft; Lower Shaft; Coupling; Shaft, Steering Column Intermediate; Shaft, Steering Column
- Replaced by: 85104193
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2007 GMC Sierra 1500 | Base, C3, Denali, HT, Hybrid, SL, SLE, SLT, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS
View related parts
GMC Sierra 1500 Intermediate Shaft Part Number: 85153846
$128.83 MSRP: $221.22
You Save: $92.39 (42%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft Assembly, Intermediate Steering; Steering Shaft; Lower Shaft; Shaft, Steering Column Intermediate
- Replaced by: 85713051
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2019-2023 GMC Sierra 1500 | AT4, AT4X, Base, Denali, Denali Ultimate, Elevation, Pro, SLE, SLT | 4 Cyl 2.7 L GAS, 6 Cyl 3.0 L DIESEL, 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
View related parts
GMC Sierra 1500 Intermediate Shaft Part Number: 84488135
$63.31 MSRP: $100.49
You Save: $37.18 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft, Steering Column Intermediate; Steering Shaft; Intermed Shaft
- Position: Upper
- Replaced by: 85713052
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2019-2023 GMC Sierra 1500 | AT4, AT4X, Base, Denali, Denali Ultimate, Elevation, Pro, SLE, SLT | 4 Cyl 2.7 L GAS, 6 Cyl 3.0 L DIESEL, 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
View related parts
GMC Sierra 1500 Coupling Shaft Part Number: 19420044
$436.34 MSRP: $692.76
You Save: $256.42 (38%)
ADD TO CART
Product Specifications
- Other Name: Shaft Assembly, Steering Gear Coupling; Coupling; Shaft, Steering Column Intermediate; Shaft, Steering Column
- Replaces: 15827205, 19210226, 25862740
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2008 GMC Sierra 1500 | Denali, SL, SLE, SLT, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS
View related parts
GMC Sierra 1500 Coupling Shaft Part Number: 19420043
$500.09 MSRP: $823.81
You Save: $323.72 (40%)
ADD TO CART
Product Specifications
- Other Name: Shaft Assembly, Steering Gear Coupling; Lower Shaft; Coupling; Shaft, Steering Column Intermediate; Shaft, Steering Column
- Replaces: 25862789, 15186859, 25979051
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2013 GMC Sierra 1500 | Denali, Hybrid, SL, SLE, SLT, WT, XFE | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX
View related parts
GMC Sierra 1500 Coupling Shaft Part Number: 19420042
$268.66 MSRP: $426.55
You Save: $157.89 (38%)
ADD TO CART
Product Specifications
- Other Name: Shaft Assembly, Steering Gear Coupling; Lower Shaft; Shaft, Steering Column Intermediate; Shaft, Steering Column
- Replaces: 15906559, 20788671, 25862788, 25979050
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2013 GMC Sierra 1500 | Hybrid | 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV)
View related parts
GMC Sierra 1500 Steering Shaft Part Number: 26090770
Product Specifications
- Other Name: Shaft Assembly, Steering; Lower Shaft; Shaft, Steering Column
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2007 GMC Sierra 1500 | Base, Denali, Hybrid, SL, SLE, SLT, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS
View related parts
GMC Sierra 1500 Steering Shaft, Lower Part Number: 26083370
Product Specifications
- Other Name: Shaft, Lower Steering; Lower Shaft; Shaft, Steering Column
- Position: Lower
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2002 GMC Sierra 1500 | Base, C3, Denali, HT, SL, SLE, SLT, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
GMC Sierra 1500 Steering Shaft Part Number: 19329330
$95.65 MSRP: $149.83
You Save: $54.18 (37%)
Product Specifications
- Other Name: Shaft, Steering Column Intermediate; Intermediate Shaft; Intermed Shaft
- Position: Upper
- Replaces: 26049343, 26088325, 26104449, 26083324, 26085548, 19149105, 26104447, 88965505, 89060582, 26093694, 88963611, 19153614
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2007 GMC Sierra 1500 | Base, C3, Denali, HT, Hybrid, SL, SLE, SLT, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS
View related parts
GMC Sierra 1500 Lower Shaft Part Number: 26082130
Product Specifications
- Other Name: Shaft Assembly, Steering; Steering Shaft; Shaft, Steering Column
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003 GMC Sierra 1500 | Base, Denali, SL, SLE, SLT, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
GMC Sierra 1500 Steering Shaft Part Number: 26064247
Product Specifications
- Other Name: Shaft, Steering Column; Shaft Assembly; Upper Shaft; Shaft
- Position: Upper
- Replaces: 26036514
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2002 GMC Sierra 1500 | Base, C3, Denali, HT, SL, SLE, SLT, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS

GMC Sierra 1500 Steering Shaft

Want to cut long-term maintenance and repair costs? Choose OEM Steering Shaft. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine GMC Sierra 1500 parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM GMC Sierra 1500 Steering Shaft includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

GMC Sierra 1500 Steering Shaft Parts and Q&A

Coupling Shaft
25958109
Q: Why is it important to inspect the Steering Shaft after a collision on GMC Sierra 1500?
A:
A post-collision vehicle inspection requires evaluation of the Steering Column Intermediate Shaft due to its convoluted assembly. Model C1500 contains just a single convoluted area whereas the others feature two of these areas. It is mandatory to check the convoluted areas for damage right after deploying the Air Bags. A straight edge should be applied to different portions of the intermediate shaft to evaluate its straightness during inspection. Any identified bending or damage to the shaft requires replacing it.
Coupling Shaft
26078078
Q: How to replace the upper intermediate steering shaft on GMC Sierra 1500?
A:
To replace the upper intermediate Steering Shaft, install the Steering Column anti-rotation pin (J 42640) in the Steering Column you had first pass through the lower access hole. See that the wheels of the vehicle move straight ahead, and the Steering Column is in the lock position to avoid causing the sir coil assembly to be damaged. Mark the relationships of the bolt and clamp on both ends of the upper intermediate shaft and connection between the upper and lower intermediate shafts for proper installation. Unscrew the nut and bolt from the lower shaft to upper shaft join and the one from the upper shaft to the Steering Column. Extract and remove the accelerator pedal position sensor, and slide the intermediate shaft down and out of the Steering Column connection. After that, slide the upper intermediate shaft towards the instrument panel out of the lower intermediate shaft, and extract out the vehicle. For installation, feed the lower end of your upper intermediate shaft into the lower side through the bulkhead aligning the marks done in its course to bring it out to install the same if reuse the same shaft. Mount the upper end of the upper intermediate shaft to the Steering Column and lock it using the bolt and nut until the nut is tightened to 62 nm (46 ft. Lbs.). Finity the accelerator pedal position sensor and reconnect the upper and lower intermediate shaft as securely as possible with the bolt and nut, tightening the nut achieving 50 nm (37 ft. Lbs.). Finally, pull off the Steering Column anti-rotation pin (J 42640) from the Steering Column lower access hole.
