How to replace the EGR valve on GMC Savana 3500?

Start the replacement process of the exhaust gas recirculation (EGR) valve by eliminating the air cleaner assembly followed by egr electrical connector separation. After uninstalling the valve to flange attaching fasteners remove the EGR Valve by using caution to prevent disassembling the component and avoiding submersion in liquid solvents because they may damage the electrical part. First cut the EGR Valve free then disassemble the flange gasket before cleaning its surface. To install the EGR Valve begin by applying a new flange gasket then position the EGR Valve. According to the fastener notice in service precautions the valve to flange fasteners must be tightened first to 10 n.m (89 lb in) each before achieving final tightening at 25 n.m (18 lb ft) each. The final procedure involves reconnecting the electrical connector as well as installing the air cleaner assembly in place.

How to service the EGR valve on GMC Savana 3500?

The initial step for EGR Valve service begins with turning off ignition before eliminating the air cleaner assembly while keeping note of the exhaust gas recirculation (EGR) valve position to prevent 180-degree rotation. The EGR Valve harness connector needs removal and the linear EGR Valve requires protection against damaging liquids since it functions as an electrical device. Before disassembling you must remove all EGR Valve to flange attaching bolts because the linear EGR Valve requires complete assembly service. You should remove the linear EGR Valve followed by the flange gasket while cleaning its surface. The procedure begins with the replacement of the new flange gasket before setting down the linear EGR Valve. Tighten the EGR Valve to the flange bolts first to 10 n.m (89 lb in) and then to the final torque of 25 n.m (18 lb ft). Connect the EGR Valve harness to its connector then put back the air cleaner assembly.

OEM GMC Savana 3500 EGR Valve

Emissions EGR Valve

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 EGR Valves found

View related parts
GMC Savana 3500 Actuator Part Number: 55597899
$33.47 MSRP: $60.58
You Save: $27.11 (45%)
ADD TO CART
Product Specifications
- Other Name: Actuator, Emission Control System
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2017-2022 GMC Savana 3500 | Base, LS, LT | 4 Cyl 2.8 L DIESEL
View related parts
GMC Savana 3500 EGR Solenoid Part Number: 55574896
$28.18 MSRP: $52.92
You Save: $24.74 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Solenoid; Exhaust Gas Recirculation (EGR) Valve; EGR Vacuum Solenoid; Vacuum Control Solenoid; Valve, Emission Control System
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2022 GMC Savana 3500 | Base, LS, LT | 4 Cyl 2.8 L DIESEL
View related parts
GMC Savana 3500 EGR Valve Part Number: 12660270
$305.63 MSRP: $620.76
You Save: $315.13 (51%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve Assembly-EGR; EGR Vacuum Solenoid; Valve, Emission Control System
- Replaces: 12639422
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2016 GMC Savana 3500 | Base, LS, LT | 8 Cyl 6.6 L DIESEL
View related parts
GMC Savana 3500 EGR Valve Part Number: 98025781
$397.19 MSRP: $624.95
You Save: $227.76 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve Assembly-EGR; EGR Vacuum Solenoid; Valve, Emission Control System
- Replaces: 97379347
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2010 GMC Savana 3500 | Base | 8 Cyl 6.6 L DIESEL
View related parts
GMC Savana 3500 EGR Valve Part Number: 12640017
$280.47 MSRP: $526.70
You Save: $246.23 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve Kit, Emission Control System; EGR Vacuum Solenoid
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2017-2022 GMC Savana 3500 | Base, LS, LT | 4 Cyl 2.8 L DIESEL
View related parts
GMC Savana 3500 Throttle Position Sensor Part Number: 12576918
Product Specifications
- Other Name: Valve, Emission Control System; EGR Vacuum Solenoid; EGR Valve; Valve, Emission Control System(EGR Control)
- Replaces: 17113278, 17113575, 12568582, 17093020, 17096188, 17113619, 17113618, 17113303, 17113615, 17113405
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2003 GMC Savana 3500 | Base, SLE, SLT | 6 Cyl 4.3 L GAS, 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
View related parts
GMC Savana 3500 EGR Valve Part Number: 12578038
$52.55 MSRP: $93.84
You Save: $41.29 (44%)
Product Specifications
- Other Name: Valve, Emission Control System; EGR Vacuum Solenoid; Valve, Emission Control System(EGR Control)
- Replaces: 17096200, 17113613, 17113535
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2000 GMC Savana 3500 | Base, SLE | 8 Cyl 7.4 L GAS
View related parts

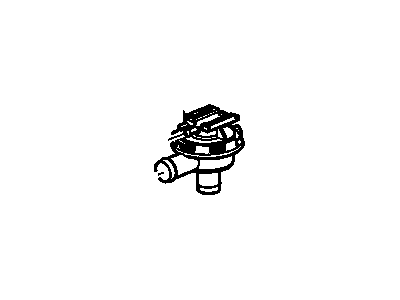

GMC Savana 3500 EGR Valve Part Number: 88894094
Product Specifications
- Other Name: Valve Assembly, EGR; EGR Vacuum Solenoid; Valve, Emission Control System
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2002 GMC Savana 3500 | Base, SLT | 8 Cyl 8.1 L GAS

GMC Savana 3500 EGR Valve

Want to cut long-term maintenance and repair costs? Choose OEM EGR Valve. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine GMC Savana 3500 parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM GMC Savana 3500 EGR Valve includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

GMC Savana 3500 EGR Valve Parts and Q&A

Throttle Position Sensor
12576918
Q: How to replace the EGR valve on GMC Savana 3500?
A:
Start the replacement process of the exhaust gas recirculation (EGR) valve by eliminating the air cleaner assembly followed by egr electrical connector separation. After uninstalling the valve to flange attaching fasteners remove the EGR Valve by using caution to prevent disassembling the component and avoiding submersion in liquid solvents because they may damage the electrical part. First cut the EGR Valve free then disassemble the flange gasket before cleaning its surface. To install the EGR Valve begin by applying a new flange gasket then position the EGR Valve. According to the fastener notice in service precautions the valve to flange fasteners must be tightened first to 10 n.m (89 lb in) each before achieving final tightening at 25 n.m (18 lb ft) each. The final procedure involves reconnecting the electrical connector as well as installing the air cleaner assembly in place.
EGR Valve
88894094
Q: How to service the EGR valve on GMC Savana 3500?
A:
The initial step for EGR Valve service begins with turning off ignition before eliminating the air cleaner assembly while keeping note of the exhaust gas recirculation (EGR) valve position to prevent 180-degree rotation. The EGR Valve harness connector needs removal and the linear EGR Valve requires protection against damaging liquids since it functions as an electrical device. Before disassembling you must remove all EGR Valve to flange attaching bolts because the linear EGR Valve requires complete assembly service. You should remove the linear EGR Valve followed by the flange gasket while cleaning its surface. The procedure begins with the replacement of the new flange gasket before setting down the linear EGR Valve. Tighten the EGR Valve to the flange bolts first to 10 n.m (89 lb in) and then to the final torque of 25 n.m (18 lb ft). Connect the EGR Valve harness to its connector then put back the air cleaner assembly.
