How to replace a one-piece Drive Shaft on GMC Savana 1500?

Vehicle elevation must occur by using suitable lifting tools prior to replacing the one-piece propeller shaft. Notice how the propeller shaft aligns with the yoke after which you should remove both the retainer bolts and retainers. U-joint bearing caps will stay bonded to the u-joint cross while maintaining needle bearings by applying tape to them. When working on 4wd systems remove the propeller shaft from the Transfer Case whereas 2wd systems require removing the shaft from the transmission. The installation process starts by inserting the propeller shaft into either the Transfer Case (for 4WD) or the transmission (for 2WD). After that, users need to remove tape from the u-joint and match its reference points. Sliding the propeller shaft inside the yoke you must then fasten it with u-joint retainers. Screw the retaining bolts into place before lowering the vehicle while applying torque of 25 nm (18 lb ft).

OEM GMC Savana 1500 Drive Shaft

Axle Shaft

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

3 Drive Shafts found

View related parts

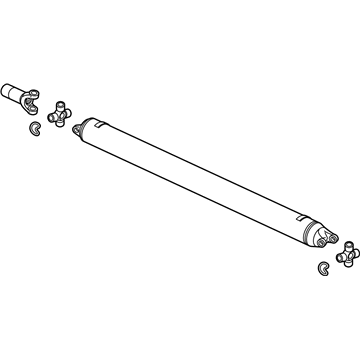

GMC Savana 1500 Drive Shaft Part Number: 84675732
$454.37 MSRP: $780.39
You Save: $326.02 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft Assembly-Propeller; Driveshaft; Drive Shaft Assembly; Shaft, Propeller
- Replaces: 15794278, 20912343, 22922243, 23509060, 20912698, 25957030
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2014 GMC Savana 1500 | Base, LS, LT, SLE | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
View related parts

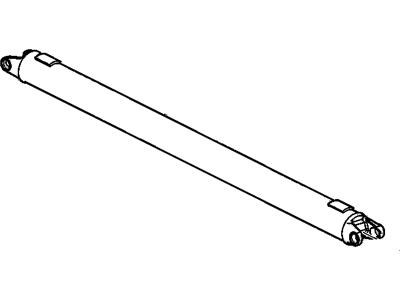

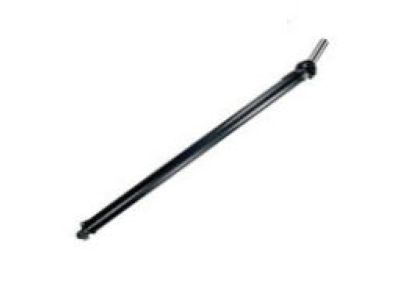

GMC Savana 1500 Drive Shaft Part Number: 22889825
Product Specifications
- Other Name: Shaft Assembly-Propeller; Driveshaft; Shaft, Propeller
- Replaces: 15751412, 20912345
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2011 GMC Savana 1500 | Base, LS, LT, SLE | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
View related parts

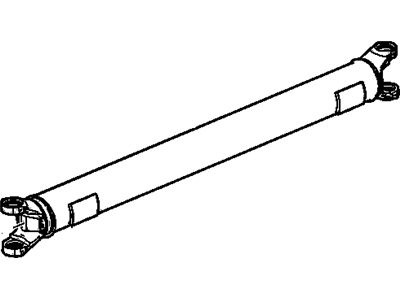

GMC Savana 1500 Drive Shaft, Front Part Number: 15183355
Product Specifications
- Other Name: Shaft Assembly-Front Axle Propeller; Driveshaft; Shaft, Propeller
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2012-2014 GMC Savana 1500 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX

GMC Savana 1500 Drive Shaft

Want to cut long-term maintenance and repair costs? Choose OEM Drive Shaft. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine GMC Savana 1500 parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM GMC Savana 1500 Drive Shaft includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

GMC Savana 1500 Drive Shaft Parts and Q&A

Drive Shaft
84675732
Q: How to replace a one-piece Drive Shaft on GMC Savana 1500?
A:
Vehicle elevation must occur by using suitable lifting tools prior to replacing the one-piece propeller shaft. Notice how the propeller shaft aligns with the yoke after which you should remove both the retainer bolts and retainers. U-joint bearing caps will stay bonded to the u-joint cross while maintaining needle bearings by applying tape to them. When working on 4wd systems remove the propeller shaft from the Transfer Case whereas 2wd systems require removing the shaft from the transmission. The installation process starts by inserting the propeller shaft into either the Transfer Case (for 4WD) or the transmission (for 2WD). After that, users need to remove tape from the u-joint and match its reference points. Sliding the propeller shaft inside the yoke you must then fasten it with u-joint retainers. Screw the retaining bolts into place before lowering the vehicle while applying torque of 25 nm (18 lb ft).
