OEM GMC Jimmy Catalytic Converter
Cat. Converter- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
17 Catalytic Converters found

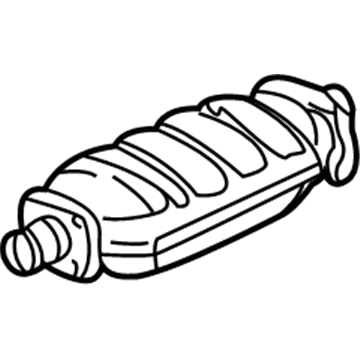

GMC Jimmy Catalytic Converter Part Number: 25146545
GMC Jimmy Catalytic Converter Part Number: 25101899
GMC Jimmy Catalytic Converter Part Number: 25056778
GMC Jimmy Catalytic Converter Part Number: 88968527
GMC Jimmy Catalytic Converter Part Number: 25314445
GMC Jimmy Catalytic Converter Part Number: 25314444

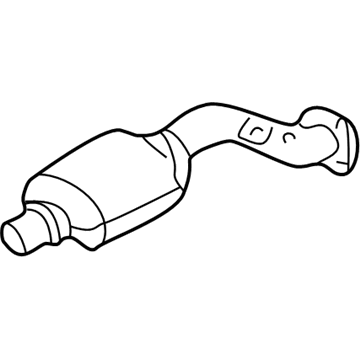

GMC Jimmy Converter Part Number: 25160212
GMC Jimmy Catalytic Converter Part Number: 25160211
GMC Jimmy Catalytic Converter Part Number: 25146092

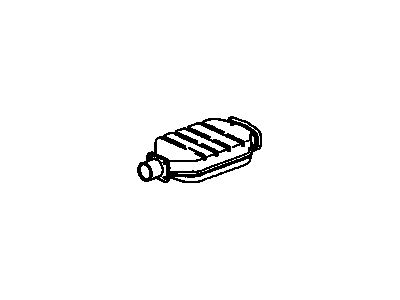

GMC Jimmy Catalytic Converter Part Number: 25130022
GMC Jimmy Front Pipe Part Number: 15744828

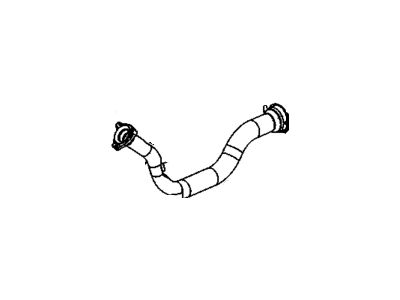

GMC Jimmy Front Pipe Part Number: 15744827
GMC Jimmy Front Pipe Part Number: 15744826

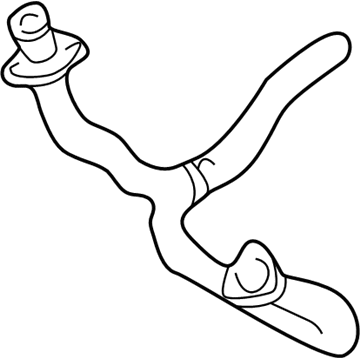

GMC Jimmy Front Pipe Part Number: 15744823
GMC Jimmy Front Pipe Part Number: 15156891
GMC Jimmy Front Pipe Part Number: 15006097
GMC Jimmy Front Pipe Part Number: 15006096
GMC Jimmy Catalytic Converter
Want to cut long-term maintenance and repair costs? Choose OEM Catalytic Converter. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine GMC Jimmy parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM GMC Jimmy Catalytic Converter includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.
The Catalytic Converter is another exhaust as well as emission system found in GMC Jimmy vehicles with the primary function of converting toxic gases emitted through the process of burning into less toxic products. It mainly converts carbon monoxide (CO), hydrocarbons (HC), and oxides of nitrogen (NOx) to water, carbon dioxide (CO2), and nitrogen (N2) are converted through a catalytic reaction by platinum, palladium and rhodium. In the years as GMC Jimmy was produced, different types of catalytic converters were used: two-way converters of the initial models of the car and three-way converters of the later models, which also minimize NOx emissions. No less than the design usually incorporates honeycomb substrate that increases gas circulation and catalyst, the previous versions may combine the ceramic beads. High performance catalytic converters are there, with flow rates high enough for necessary catalyst efficiency and are available in direct fit or universal design.
GMC Jimmy Catalytic Converter Parts and Q&A
- Q: How to service and repair a catalytic converter on GMC Jimmy?A:Always wear protective goggles and gloves when servicing or repairing the Catalytic Converter because they will protect you from rust drops and sharp edges. Make sure lift pads stay away from the three-way Catalytic Converter during vehicle lifts to prevent damage from occurring. Replacing exhaust system components with standard oem parts helps your vehicle maintain its performance levels. Start by securing the vehicle on a support and remove the transmission support bracket. Disengage the electrical wiring for lh pre-converter heated Oxygen Sensor (H02S) and rh pre-converter heated Oxygen Sensor (H02S) and post-converter heated Oxygen Sensor (H02S). Start by separating the Muffler from the Catalytic Converter and Exhaust Manifold using the appropriate nuts then remove the converter by itself. Use tools to remove the Catalytic Converter along with its gasket by separating it from its rubber hangers. Take out the needed heated oxygen sensors (H02S). After installing heated oxygen sensors (H02S) when required you should put the Catalytic Converter along with new gaskets in their proper position. The Catalytic Converter should be secured to rubber hangers before installation onto the Exhaust Manifold using flange nuts tightened to 53 nm (39 ft. Lbs.). Fix the Muffler together with its new gasket to the Catalytic Converter by tightening the flange nuts to 40 nm torque (30 ft. Lbs.). Connect electrical wires to the post-converter heated Oxygen Sensor (H02S) along with the rh pre-converter heated Oxygen Sensor (H02S) and lh pre-converter heated Oxygen Sensor (H02S). Lower the vehicle while reinstalling the transmission support.
- Q: How to replace the catalytic converter on a 4.3 L Utility on GMC Jimmy?A:In replacing a Catalytic Converter on a 4.3l utility, one first has to ensure wearing protective goggles and gloves. Start by lifting and supporting the vehicle, followed by the opening of the transmission support. Remove the lh pre converter heated Oxygen Sensor (HO2S) electrical connector, the rh pre converter heated Oxygen Sensor (HO2S) electrical connector, and the post converter heated Oxygen Sensor (HO2S) electrical connector. Then, unfasten the Catalytic Converter from the Muffler by removing the Catalytic Converter to Muffler flange nuts. Go ahead and remove the Catalytic Converter to Exhaust Manifold nuts and pull out the Catalytic Converter from the rubber Catalytic Converter hangers, including the gasket. If required, take out the heated Oxygen Sensor (HO2S). For installation, you should begin with the installation of the heated oxygen sensors (HO2S) if necessary, then the new gasket and Catalytic Converter back into the vehicle. Secure the rubber hangers to the Catalytic Converter and mount the Catalytic Converter to the Exhaust Manifold flange nuts by tightening them to 53 nm (39 ft. Lbs.). Next, put a new gasket and connect the Catalytic Converter to the Muffler ensuring the Muffler flange nuts are tightened up to 40 nm (30 ft. Lbs.). Reconnect the post converter heated Oxygen Sensor (HO2S) electrical connector, the rh pre converter heated Oxygen Sensor (HO2S) electrical connector and the lh pre converter heated Oxygen Sensor (HO2S) electrical connector. Finally install the transmission support and bring the vehicle into the lowered position.
