OEM GMC Envoy Window Regulator
Electric Power Window Regulator- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
6 Window Regulators found
GMC Envoy Window Regulator, Rear Driver Side Part Number: 19301979
$168.39 MSRP: $299.36You Save: $130.97 (44%)Ships in 1-2 Business Days

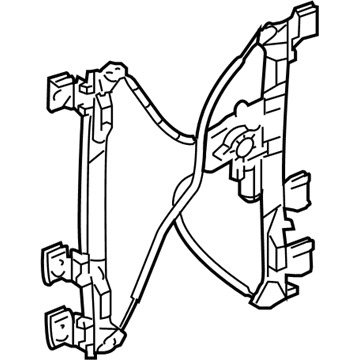

GMC Envoy Window Regulator, Front Driver Side Part Number: 19331466
$132.31 MSRP: $259.05You Save: $126.74 (49%)Ships in 1-2 Business Days

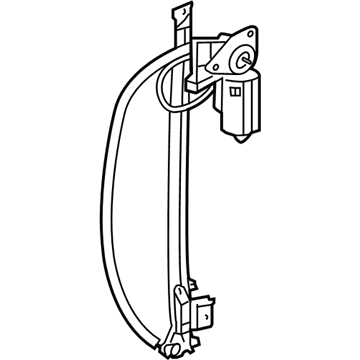

GMC Envoy Window Regulator, Rear Driver Side Part Number: 19331462
$200.60 MSRP: $363.07You Save: $162.47 (45%)Ships in 1-2 Business DaysGMC Envoy Window Regulator, Front Passenger Side Part Number: 19331461
$134.95 MSRP: $264.25You Save: $129.30 (49%)Ships in 1-3 Business DaysGMC Envoy Window Regulator, Rear Passenger Side Part Number: 19301978
GMC Envoy Window Regulator, Rear Passenger Side Part Number: 19331463
GMC Envoy Window Regulator
Want to cut long-term maintenance and repair costs? Choose OEM Window Regulator. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine GMC Envoy parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM GMC Envoy Window Regulator includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.
The Window Regulator in the GMC envoy vehicles has the major role of controlling and here powering the windows in the car and positioning the glass after it has been rolled up. These regulators can be driven through an electric motor or through a handle usually a crank. They are used often hence they are vulnerable to tear and wear, they can develop some issues for example the window can freeze. GMC Envoy has used both the scissor type and the cable type of the window regulators in its models in the past. The main differences between such types are based on the principles of their construction and the way they work, thus influencing the regulation of the window glass. There are OEM matching replacements possible, enabling compatibility and non-problematic installation for a fix of the window functionality.
GMC Envoy Window Regulator Parts and Q&A
- Q: How to replace the front side door window regulator on GMC Envoy?A:The procedure to change the front side door Window Regulator starts with removing the door trim panel, speaker and water deflector. The first step requires you to unbolt the regulator window carrier and lift the window up for support. First disconnect electrical power from the regulator motor followed by gently loosening the upper bolts which secure the regulator assembly to the door. Start by removing all three bolts which hold the Window Regulator assembly against the door. After this you should elevate the regulator assembly until you can pull out the upper retention bolts before gently turning the top section forward. Through the door opening you can extract the regulator assembly onto a prepared service. Once there remove the upper 2 retaining bolts from the assembly. Position the regulator assembly through the door opening with half-installed upper bolts in a semi-horizontal direction until it reaches the correct forward position in the door cavity before turning it to vertical. Lower the assembled component into the door sheet metal by using previously placed upper bolts and install the bolt that secures the motor to the door with a torque of 9 n.m (80 lb in). Complete regulator assembly installation by implementing the remaining bolts into the door before tightening them to 10 n.m (88 lb in) and connecting the electric connector to the motor. Place the regulator window carrier bolts loosely then operate the window from bottom to top position through the run channels before tightening the bolts to 10 n.m (88 lb in). As the final step you should mount the water deflector followed by the speaker and lastly the door trim panel.
- Q: How to Replace the Rear Door Window Regulator on GMC Envoy?A:The first step to replace the rear door Window Regulator on trailblazer and envoy and bravada involves removing the door trim panel then subsequently removing the water deflector and speaker. Beginning the Window Regulator replacement process requires loosening the carrier bolts before lifting and supporting the window. First disconnect the electrical connector from the regulator motor then unscrew the 3 bolts to take out the Window Regulator assembly from the door structure. Place the Window Regulator assembly into the door unit then install the 3 retaining bolts while tightening them to 10 n.m (88 lb in). Reinstall the electrical connector to the motor of the regulator before you detach the support and guide the window down onto its carrier. After positioning the regulator window carrier bolts at a loose torque, move the window until it reaches its fullest vertical extension into run channels before torquing them to 10 n.m (88 lb in). The completion steps require reattachment of the speaker together with the water deflector and door trim panel.
