How to replace the alternator on the LLV/LLR (2.9L/3.7L) on GMC Canyon?

The llv/llr generator replacement (2.9L/3.7L) must start with negative Battery Cable disconnection. Extract the Drive Belt and lift the vehicle for wheelhouse entry to the compressor. Lift up the vehicle and remove both the left front wheel and left wheelhouse liner. The process lacks requirements to evacuate a/c refrigerant so disconnect the A/C Compressor electrical connector. After disconnecting all bolts that secure the A/C Compressor except for the upper one keep the compressor attached lower the vehicle. The generator output bat terminal boot needs repositioning to expose the terminal before removing the terminal nut and separatiing the generator lead. Unplug the generator's wiring harness connector after that remove its three mounting bolts. Start by taking out the engine lift bracket to get clearance then move the A/C Compressor forward and finish by removing the generator from the engine. Operate by placing the generator in front of the engine after installing the engine lift bracket. Install the generator mounting bolts by following a sequence to achieve 50 nm (37 lb ft) torque values. Install the generator output bat terminal nut which must be tightened to 20 nm (15 lb ft) before pressing the protective boot onto the bat terminal. After connecting the wiring harness connector to the generator you can begin working on the A/C Compressor. Use the vehicle supports to reach the compressor then move it to the engine position allowing you to install and tighten the 50 nm (37 lb ft) mounting bolts. Reinstall the left wheelhouse liner along with the left front wheel while connecting the A/C Compressor electrical connector. The technician must lower the vehicle before installing the Drive Belt universal to the engine design then reconnect the battery negative lead.

OEM GMC Canyon Alternator

Generator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

11 Alternators found

View related parts

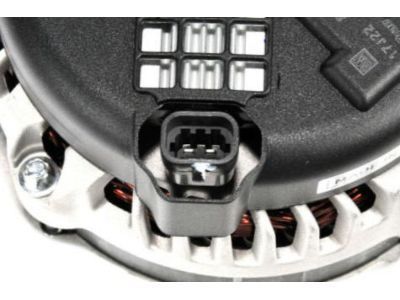

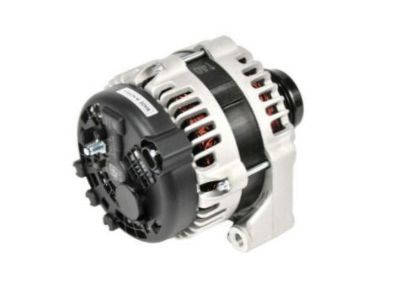

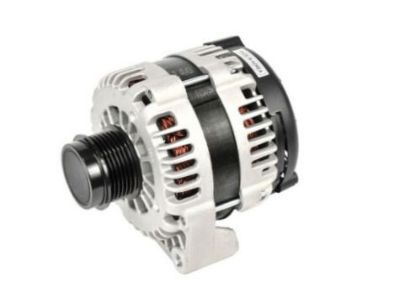

GMC Canyon Alternator Part Number: 84169187
$218.49 MSRP: $432.83
You Save: $214.34 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Generator Assembly-.; Generator, Engine Electrical
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2017-2022 GMC Canyon | All Terrain, AT4, Denali, Elevation, SLE, SLT | 4 Cyl 2.8 L DIESEL
View related parts
GMC Canyon Alternator Part Number: 25925948
$233.41 MSRP: $463.31
You Save: $229.90 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Generator; Alternator New; Alternators; Generator, Engine Electrical
- Replaces: 15918537, 15946765
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2012 GMC Canyon | SL, SLE, SLT, WT | 4 Cyl 2.9 L GAS, 5 Cyl 3.7 L GAS
View related parts
GMC Canyon Alternator Part Number: 20881337
$272.93 MSRP: $541.76
You Save: $268.83 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Generator Assembly; Generator, Engine Electrical
- Replaces: 15905874, 25869451, 15905872, 22781127, 25968616
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2012 GMC Canyon | SLE, SLT | 8 Cyl 5.3 L GAS
View related parts
GMC Canyon Alternator Part Number: 13592811
$168.30 MSRP: $473.84
You Save: $305.54 (65%)
ADD TO CART
Product Specifications
- Other Name: Generator Assembly
- Replaces: 22892569, 22996928
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2015-2019 GMC Canyon | Base, SL, SLE, SLT | 4 Cyl 2.5 L GAS
View related parts
GMC Canyon Alternator Part Number: 13597236
$377.87 MSRP: $728.21
You Save: $350.34 (49%)
ADD TO CART
Product Specifications
- Other Name: Generator Assembly; Generator, Engine Electrical
- Replaces: 13501720, 13502988, 13588313
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2015-2016 GMC Canyon | Base, SLE, SLT | 6 Cyl 3.6 L GAS
View related parts

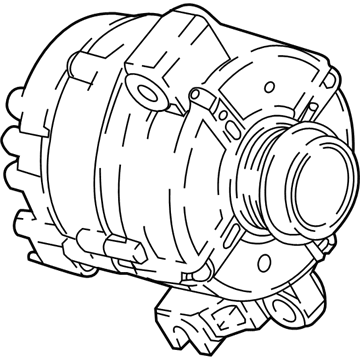

GMC Canyon Alternator Part Number: 84129223
$242.37 MSRP: $480.11
You Save: $237.74 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Generator Assembly-.; Generator, Engine Electrical
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2017-2022 GMC Canyon | All Terrain, AT4, Base, Denali, Elevation, Elevation Standard, SLE, SLT | 6 Cyl 3.6 L GAS
View related parts
GMC Canyon Alternator Part Number: 84062199
$185.02 MSRP: $366.52
You Save: $181.50 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Generator Assembly; Generator, Engine Electrical
- Replaces: 13593805
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2016 GMC Canyon | SLE, SLT | 4 Cyl 2.8 L DIESEL
View related parts
GMC Canyon Alternator Part Number: 13553565
$243.08 MSRP: $456.48
You Save: $213.40 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Generator Assembly-.; Generator, Engine Electrical
- Replaced by: 13561040
- Replaces: 13534991
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2023 GMC Canyon | AT4, AT4X, Denali, Elevation | 4 Cyl 2.7 L GAS
View related parts
GMC Canyon Alternator Part Number: 13553564
$191.81 MSRP: $360.20
You Save: $168.39 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Generator Assembly-.; Generator, Engine Electrical
- Replaced by: 13561039
- Replaces: 13534990
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2023 GMC Canyon | AT4, AT4X, Denali, Elevation | 4 Cyl 2.7 L GAS
View related parts
GMC Canyon Alternator Part Number: 13520817
$246.08 MSRP: $487.50
You Save: $241.42 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Generator Assembly-.; Generator, Engine Electrical
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2016-2022 GMC Canyon | Base, Elevation, Elevation Standard, SL, SLE | 4 Cyl 2.5 L GAS
View related parts

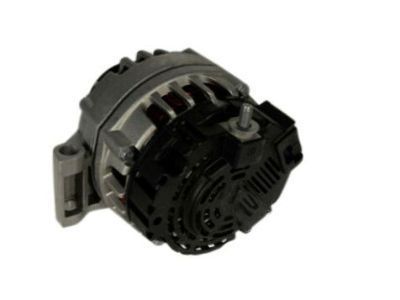

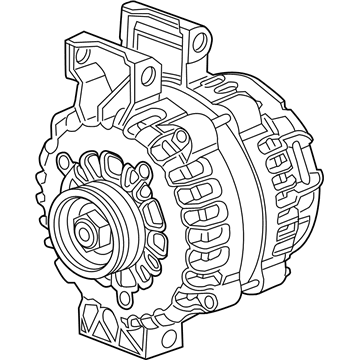

GMC Canyon Alternator Part Number: 15831639
Product Specifications
- Other Name: Generator Assembly; Alternator New; Alternators; Generator, Engine Electrical
- Replaces: 97241516
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2007 GMC Canyon | SL, SLE, SLT, WT, Z71 Fleet, Z71 SL, Z71 SLE, Z85 SL, Z85 SLE | 4 Cyl 2.8 L GAS, 4 Cyl 2.9 L GAS, 5 Cyl 3.5 L GAS, 5 Cyl 3.7 L GAS

GMC Canyon Alternator

Want to cut long-term maintenance and repair costs? Choose OEM Alternator. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine GMC Canyon parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM GMC Canyon Alternator includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Alternator in GMC Canyon cars is one of the integral car parts that helps to recharge the battery and supply electrical gears when the car is on. Usually positioned ahead of the Motor, the alternator is the component that changes mechanical energy in to electrical energy for the electrical components including the battery. Through the rotating magnetic field while the armature is kept fixed, the Alternator produces the alternating current to charge the battery and the automobile electrical requirements. As if managing voltage output to prevent the battery from being overcharged or undercharged the Alternator is a very key component of electrical system of the automobile. Sometimes because of increased electrical loads developed by those parts, a higher amperage of an high output Alternators can be installed to meet those expectations without straining the vehicle's charging system.

GMC Canyon Alternator Parts and Q&A

Alternator
20881337
Q: How to replace the alternator on the LLV/LLR (2.9L/3.7L) on GMC Canyon?
A:
The llv/llr generator replacement (2.9L/3.7L) must start with negative Battery Cable disconnection. Extract the Drive Belt and lift the vehicle for wheelhouse entry to the compressor. Lift up the vehicle and remove both the left front wheel and left wheelhouse liner. The process lacks requirements to evacuate a/c refrigerant so disconnect the A/C Compressor electrical connector. After disconnecting all bolts that secure the A/C Compressor except for the upper one keep the compressor attached lower the vehicle. The generator output bat terminal boot needs repositioning to expose the terminal before removing the terminal nut and separatiing the generator lead. Unplug the generator's wiring harness connector after that remove its three mounting bolts. Start by taking out the engine lift bracket to get clearance then move the A/C Compressor forward and finish by removing the generator from the engine. Operate by placing the generator in front of the engine after installing the engine lift bracket. Install the generator mounting bolts by following a sequence to achieve 50 nm (37 lb ft) torque values. Install the generator output bat terminal nut which must be tightened to 20 nm (15 lb ft) before pressing the protective boot onto the bat terminal. After connecting the wiring harness connector to the generator you can begin working on the A/C Compressor. Use the vehicle supports to reach the compressor then move it to the engine position allowing you to install and tighten the 50 nm (37 lb ft) mounting bolts. Reinstall the left wheelhouse liner along with the left front wheel while connecting the A/C Compressor electrical connector. The technician must lower the vehicle before installing the Drive Belt universal to the engine design then reconnect the battery negative lead.
