OEM GMC C2500 Blend Door Actuator

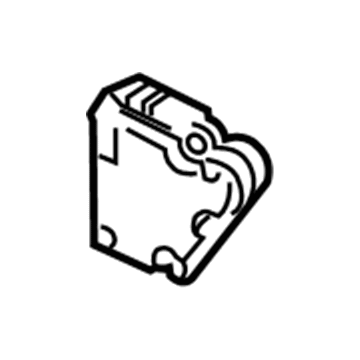

GMC C2500 Blend Door Actuator Parts and Q&A

• Actuator
  89018367
  Q: How to service the Blend Door Actuator on GMC C2500?

  A:

  Before servicing the Air Door Actuator / Motor in the Heating, Ventilation and Air Conditioning system, you need to take off the right rear quarter trim panel. After that, take out the electrical connector from the temperature actuator and unscrew the retaining screws that hold the temperature actuator to the rear HVAC module (1). Install the temperature actuator (1) at the rear HVAC module and use the accompanying screws to secure it. Reattach the electrical plug to the temperature actuator and then fix the right rear quarter trim panel in place.
• Controller
  89018681
  Q: How to replace the Air Inlet Blend Door Actuator on GMC C2500?

  A:

  The process starts with instrument panel (IP) upper trim panel removal followed by IP lower trim panel removal and glove box assembly removal. Start by taking out the passenger side air bag and disconnecting the electrical connection from the air inlet actuator . The actuator removal begins with screw removal from the air inlet and concludes with extracting the actuator itself. Install the new air inlet actuator into position then fasten it via retaining screws until they reach 1.6 N.m (14 lb in). Reinstall the passenger side air bag later followed by the IP lower trim panel and glove box assembly before securing everything with the IP upper trim panel. Finish by connecting the electrical connector on the air inlet actuator. The inspection procedure should confirm that all systems are functioning correctly.
