OEM Chevrolet Prizm Throttle Cable

Chevrolet Prizm Throttle Cable Parts and Q&A

• Throttle Cable
  94857757
  Q: How to Replace the Throttle Cable for the Automatic Transmission - 3 Speed-MB3 on Chevrolet Prizm?

  A:

  A replacement of the Throttle Cable for the automatic transmission - 3 speed-mb3 begins with loosening the Throttle Cable locknut and adjust nut before separating the Throttle Cable from the throttle valve linkage and Throttle Cable bracket and the Throttle Cable guide bracket. The next step involves lifting the vehicle while supporting it with stands followed by removing 6 bolts together with the left splash shield. The next step requires removing both pop nuts and pnp switch from the transaxle followed by placing a drain pan under the transaxle fluid pan. Pull out the transaxle Drain Plug to drain fluid and proceed to remove the 15 fluid pan bolts as well as the fluid pan and its gasket. The Throttle Cable requires separation from the throttle valve cam on the valve body assembly before removing its retaining bolt. Check the Throttle Cable o-ring for damage before performing a replacement if needed. Secure the Throttle Cable along with its retaining bolt inside the transaxle case while torquing the bolt to 8 nm (71 inch lbs.). After you connect the Throttle Cable to the throttle valve cam, you should install a new fluid pan gasket followed by the fluid pan with 15 bolts tightened at 4.9 nm (43 inch lbs.). When finished drain the pan remove it before tightening the Drain Plug to 49 nm (36 ft. Lbs.). The pnp switch must be reinstalled using 8 nm (71 inch lbs.) torque while the left splash shield can be secured with 6 bolts set to 5 nm (44 inch lbs.). After lowering the vehicle, install the Throttle Cable on the accelerator cable then place them in the retaining bracket before installing the Throttle Cable adjustment cover. Complete the process by adding necessary transaxle fluid to the system.

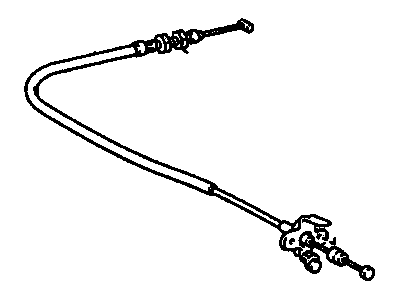

• Throttle Cable
  94858800
  Q: How to service and repair the throttle cable/linkage without cruise on Chevrolet Prizm?

  A:

  To service and modify throttle cable/linkage (without cruise), fist loosen cable adjusting locknuts and take off accelerator cable from bracket. Pull the cable off the throttle lever using a hand to facilitate the removal of the throttle lever as well as pulling off the cable from the accelerator pedal. Then, remove 2 bolts, accelerator cable and bracket at bulkhead, and then, disconnect accelerator control cable from the vehicle. Firstly, install the accelerator cable and bracket to the bulkhead, by tightening the 2 bolts to 15 N.m (11 lb ft). The accelerator cable should be connected to the accelerator pedal, and connect it to the throttle lever using hand movement to allow the connection. Lastly, position the accelerator cable on the accelerator cable bracket and tighten it with the 2 nuts, bringing the locknuts up to 8 N.m (71 lb in).
