How to service the right Blend Door Actuator on Chevrolet Monte Carlo?

The right air temperature actuator service process begins by removing the right side instrument panel (IP) insulator followed by the IP compartment. Begin by disconnecting electrical power from the right air temperature actuator followed by screw removal and extraction of the component itself. Position the right air temperature actuator while verifying that electric actuator driver slots match flats on the shaft and the locating hole matches the alignment pin on the HVAC module case. Push the actuator along the shaft until both the actuator driver fully seats while keeping all mounting holes level with the HVAC module case screws. Fasten the right air temperature actuator screws with 1.5 N.m (13 lb in) torque while attaching the electrical connector to the actuator. The last phase involves returning the IP compartment as well as right side IP insulator to its original position.

How to replace the Blend Door Actuator (LH) on Chevrolet Monte Carlo?

To replace the Temperature Actuator (LH), first take out the left instrument panel insulator and the knee bolster. Remove the electrical connector from the temperature valve electric actuator, then unfasten the mounting bolts as well as the actuator itself. For installation, align the slots in the electric actuator driver with the flats in the temperature valve shaft. Mount the electric actuator driver at its forward end on the shaft whereby the Actuator Locating hole of the Actuator is aligning with Forward Alignment pin on HVAC module case so that the actuator driver can seat fully and the mounting holes are flush with the mounting bosses. Ideally, to the temperature actuator, mount the mounting bolts not too tight, otherwise apply a tightening of 1.5 N.m (13 lb.in). Reconnect electrical connector of the temperature actuator and reinstall knee bolster and left instrument panel insulator.

OEM Chevrolet Monte Carlo Blend Door Actuator

Air Blend Door Actuator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 Blend Door Actuators found

View related parts
Chevrolet Monte Carlo Door Actuator Part Number: 89018365
$173.26 MSRP: $356.04
You Save: $182.78 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Actuator, Air Conditioner Control; HVAC Heater Blend Door Actuator; HVAC Blend Door Actuator; Temperature Door Actuator; Switch; Controller; Actuator; Actuator, A/C Vacuum Control; Actuator, A/C Control
- Replaces: 16163982
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2005 Chevrolet Monte Carlo | LS, LS Competition, LS Sport, LT, SS, SS 35th Anniversary Edition, SS Dale Earnhardt Signature Edition, SS High Sport, SS Pace Car | 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
View related parts

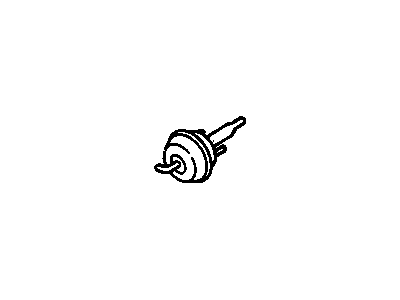

Chevrolet Monte Carlo Actuator Part Number: 16124932
$26.85 MSRP: $48.60
You Save: $21.75 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Actuator, Air Conditioner Control; HVAC Heater Blend Door Actuator; Actuator, A/C Control
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995-1999 Chevrolet Monte Carlo | LS, Z34 | 6 Cyl 3.1 L GAS, 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
View related parts
Chevrolet Monte Carlo Controller Part Number: 89018681
$57.71 MSRP: $118.58
You Save: $60.87 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Actuator, Air Conditioner Vacuum Control; HVAC Heater Blend Door Actuator; Actuator; Actuator, A/C Vacuum Control; Actuator, A/C Control
- Replaces: 16177412, 89018395
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2003 Chevrolet Monte Carlo | LS, LS Competition, LS Sport, SS, SS 35th Anniversary Edition, SS Dale Earnhardt Signature Edition, SS High Sport, SS Pace Car | 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
View related parts
Chevrolet Monte Carlo Actuator Part Number: 22754988
$41.88 MSRP: $86.08
You Save: $44.20 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Actuator, Air Conditioner Control; HVAC Heater Blend Door Actuator; HVAC Blend Door Actuator; Actuator, A/C Control
- Replaces: 10356910, 15142056, 10325404, 15249473, 15844096
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2007 Chevrolet Monte Carlo | LS, LT, LTZ, SS | 6 Cyl 3.4 L GAS, 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.8 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 5.3 L GAS
View related parts
Chevrolet Monte Carlo Actuator Part Number: 22754989
$50.36 MSRP: $94.57
You Save: $44.21 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Actuator, Air Conditioner Control; HVAC Heater Blend Door Actuator; HVAC Blend Door Actuator; Actuator, A/C Control
- Replaces: 10325407, 10349563, 15844095
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2007 Chevrolet Monte Carlo | LS, LT, LTZ, SS | 6 Cyl 3.4 L GAS, 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.8 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 5.3 L GAS
View related parts
Chevrolet Monte Carlo Defroster Valve Part Number: 52489028
Product Specifications
- Other Name: Actuator, Air Conditioner Control; HVAC Heater Blend Door Actuator; Actuator; Actuator, A/C Control
- Replaces: 52473133
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995-1999 Chevrolet Monte Carlo | LS, Z34 | 6 Cyl 3.1 L GAS, 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
View related parts
Chevrolet Monte Carlo Door Actuator Part Number: 52487750
Product Specifications
- Other Name: Actuator Assembly, Mode Valve; HVAC Heater Blend Door Actuator; Controller; Actuator; Actuator, A/C Control
- Replaces: 52482059
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2005 Chevrolet Monte Carlo | LS, LS Competition, LS Sport, LT, SS, SS 35th Anniversary Edition, SS Dale Earnhardt Signature Edition, SS High Sport, SS Pace Car | 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
View related parts
Chevrolet Monte Carlo Actuator Part Number: 52487607
Product Specifications
- Other Name: Actuator, Air Conditioner Control; HVAC Heater Blend Door Actuator; Actuator, A/C Control
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2003 Chevrolet Monte Carlo | LS, LS Competition, LS Sport, SS, SS 35th Anniversary Edition, SS Dale Earnhardt Signature Edition, SS High Sport, SS Pace Car | 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
View related parts
Chevrolet Monte Carlo Door Actuator Part Number: 52487593
Product Specifications
- Other Name: Actuator, Air Conditioner Control; HVAC Heater Blend Door Actuator; Controller; Actuator; Actuator, A/C Control
- Replaces: 52472510
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2005 Chevrolet Monte Carlo | LS, LS Competition, LS Sport, LT, SS, SS 35th Anniversary Edition, SS Dale Earnhardt Signature Edition, SS High Sport, SS Pace Car | 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
View related parts

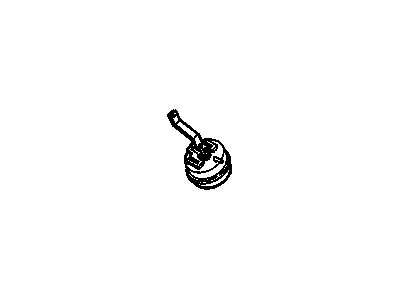

Chevrolet Monte Carlo Defroster Valve Part Number: 1996812
Product Specifications
- Other Name: Actuator Assembly, Defroster Valve; HVAC Heater Blend Door Actuator; Actuator; Actuator, A/C Control
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995 Chevrolet Monte Carlo | LS, Z34 | 6 Cyl 3.1 L GAS, 6 Cyl 3.4 L GAS
View related parts
Chevrolet Monte Carlo Actuator Part Number: 1996811
Product Specifications
- Other Name: Actuator Assembly, Mode Valve; HVAC Heater Blend Door Actuator; Actuator, A/C Control
- Replaces: 1996751
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995-1999 Chevrolet Monte Carlo | LS, Z34 | 6 Cyl 3.1 L GAS, 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
View related parts

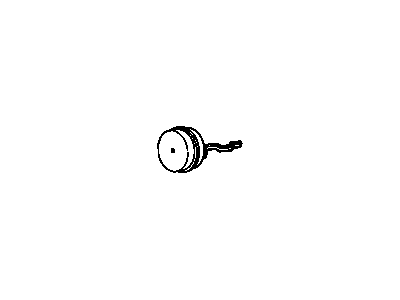

Chevrolet Monte Carlo Actuator Part Number: 1996801
Product Specifications
- Other Name: Actuator, W/Link, Vacuum; HVAC Heater Blend Door Actuator; Actuator, A/C Control
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995-1999 Chevrolet Monte Carlo | LS, Z34 | 6 Cyl 3.1 L GAS, 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS

Chevrolet Monte Carlo Blend Door Actuator

Want to cut long-term maintenance and repair costs? Choose OEM Blend Door Actuator. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Monte Carlo parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Monte Carlo Blend Door Actuator includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Chevrolet Monte Carlo Blend Door Actuator forms an essential element for Chevrolet Monte Carlo HVAC systems that delivers high reliability and strong performance. Through specialized electronic management of airflow this motor directs air from different outlets to produce balanced temperatures in the cabin compartment. Through efficient heat core direction the Chevrolet Monte Carlo Blend Door Actuator eliminates unneeded heated air flow to improve efficiency while also enhancing cabin safety. The actuator provides similar functionality to different generation Monte Carlo models which makes it necessary for maintaining driving comfort. Between 1969 and 2007 Chevrolet produced the Monte Carlo which gained fame for its premium sporty performance while the Blend Door Actuator centrally contributed to passenger comfort in this historical vehicle. A broken blend door actuator creates temperature control issues together with airflow problems that results in poor vehicle comfort. The Chevrolet automobile Blend Door Actuator positions itself through its sturdy build quality and simple replacement capabilities despite price changes which depend on model and manufacturer. As a vital component the make car Blend Door Actuator brings driving comfort to the forefront by maintaining safe cabin conditions and thus preserves the model legacy as a personal luxury vehicle.

Chevrolet Monte Carlo Blend Door Actuator Parts and Q&A

Door Actuator
89018365
Q: How to service the right Blend Door Actuator on Chevrolet Monte Carlo?
A:
The right air temperature actuator service process begins by removing the right side instrument panel (IP) insulator followed by the IP compartment. Begin by disconnecting electrical power from the right air temperature actuator followed by screw removal and extraction of the component itself. Position the right air temperature actuator while verifying that electric actuator driver slots match flats on the shaft and the locating hole matches the alignment pin on the HVAC module case. Push the actuator along the shaft until both the actuator driver fully seats while keeping all mounting holes level with the HVAC module case screws. Fasten the right air temperature actuator screws with 1.5 N.m (13 lb in) torque while attaching the electrical connector to the actuator. The last phase involves returning the IP compartment as well as right side IP insulator to its original position.
Controller
89018681
Q: How to replace the Blend Door Actuator (LH) on Chevrolet Monte Carlo?
A:
To replace the Temperature Actuator (LH), first take out the left instrument panel insulator and the knee bolster. Remove the electrical connector from the temperature valve electric actuator, then unfasten the mounting bolts as well as the actuator itself. For installation, align the slots in the electric actuator driver with the flats in the temperature valve shaft. Mount the electric actuator driver at its forward end on the shaft whereby the Actuator Locating hole of the Actuator is aligning with Forward Alignment pin on HVAC module case so that the actuator driver can seat fully and the mounting holes are flush with the mounting bosses. Ideally, to the temperature actuator, mount the mounting bolts not too tight, otherwise apply a tightening of 1.5 N.m (13 lb.in). Reconnect electrical connector of the temperature actuator and reinstall knee bolster and left instrument panel insulator.
