What should be done if engine mounts are broken or deteriorated on Chevrolet Metro?

The engine mounts are nonadjustable and are not serviced usually. however, damaged or disintegrated mounts should be replaced immediately to avoid extra stress to other mounts and drive line parts. To check for faulty engine mounts, raise engine, to relieve weight at the mounts and create slight tension in the rubber. When lifting the engine, check mounts and replace them if found to have hard rubber surfaces, heat check cracks, rubber separated from metal plate, or split rubber down the middle. If there is play between a metal plate of the mount and the points the mount connects to, then set the engine on mounts and tighten bolts or nuts connecting the mount to the frame or bracket of the engine.

How to replace the rear engine mount on Chevrolet Metro?

The replacement of the rear engine mount requires engine support through the combination of J 28467-A Universal Support Fixture along with J 28467-89 Engine Support Fixture Adapters (Metro). The procedure starts by unfastening the rear engine mount through-bolt with the nut and continuing to remove the two rear engine mount-to-bulkhead bolts to detach the rear engine mount from its upper rear mounting bracket. First uninstall the lower rear mounting bracket by discarding two retaining nuts then removing the upper rear bracket from this mounting bracket. After that detach the three retaining bolts and the lower mounting bracket from the vehicle. Begin installation by attaching the lower rear mounting bracket to the vehicle through the use of three retaining bolts that you should tighten up to 55 Nm (41 ft. lbs.). Attach the upper rear mounting bracket to the lower rear mounting bracket while fastening with two retaining nuts but do not tighten them fully. You should connect the rear engine mount to the upper rear mounting bracket while leaving the two rear engine mount-to-bulkhead bolts loose. According to the maintenance sequence it is vital to finish installation by establishing the rear engine mount through-bolt with a nut and bolting both the rear engine mount through-bolt and nut and the rear engine mount-to-bulkhead bolts and the upper rear mounting bracket retaining bolts and nuts to 55 Nm (41 ft. lbs.), and then removing the J 28467-A and J 28467-89.

OEM Chevrolet Metro Engine Mount

Engine Motor Mount

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

21 Engine Mounts found

View related parts
Chevrolet Metro Motor Mount Part Number: 96065052
$66.68 MSRP: $73.49
You Save: $6.81 (10%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Mount, Engine Mounting; Front Mount; Mount, Engine
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2001 Chevrolet Metro | Base, LSi | 3 Cyl 1.0 L GAS, 4 Cyl 1.3 L GAS
View related parts

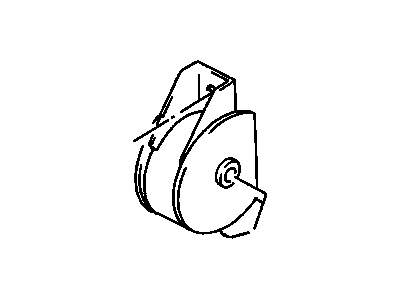

Chevrolet Metro Motor Mount Part Number: 96066384
Product Specifications
- Other Name: Trans Mount; Rear Mount; Mount, Engine Mounting; Mount, Engine
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2000 Chevrolet Metro | Base, LSi | 3 Cyl 1.0 L GAS, 4 Cyl 1.3 L GAS
View related parts
Chevrolet Metro Motor Mount, Front Passenger Side Part Number: 30014235
Product Specifications
- Other Name: Mount, Engine Front; Engine Mount Bracket; Front Mount; Mount, Engine Mounting; Mount, Engine
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2001 Chevrolet Metro | Base, LSi | 4 Cyl 1.3 L GAS
View related parts
Chevrolet Metro Rear Bracket Part Number: 30001637
Product Specifications
- Other Name: Bracket, Engine Mounting
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2000 Chevrolet Metro | Base, LSi | 4 Cyl 1.3 L GAS
View related parts
Chevrolet Metro Front Bracket Part Number: 96066383
Product Specifications
- Other Name: Engine Mount Bracket; Motor Mount; Bracket, Engine Mounting
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2001 Chevrolet Metro | Base, LSi | 4 Cyl 1.3 L GAS
View related parts
Chevrolet Metro Front Bracket Part Number: 96066382
Product Specifications
- Other Name: Engine Mount Bracket; Motor Mount; Bracket, Engine Mounting
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2001 Chevrolet Metro | Base, LSi | 4 Cyl 1.3 L GAS
View related parts
Chevrolet Metro Rear Bracket Part Number: 96060024
Product Specifications
- Other Name: Bracket; Bracket, Engine Mounting
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2000 Chevrolet Metro | Base | 3 Cyl 1.0 L GAS
View related parts
Chevrolet Metro Strut Mount Part Number: 96060030
Product Specifications
- Other Name: Strut, Engine Mounting; Engine Mount Torque Strut; Motor Mount; Torque Rod; Torque Strut; Strut, Engine
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2001 Chevrolet Metro | Base, LSi | 4 Cyl 1.3 L GAS
View related parts
Chevrolet Metro Motor Mount Part Number: 91174085
Product Specifications
- Other Name: Mount, Engine Rear; Rear Mount; Mount, Engine Mounting; Mount, Engine
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2001 Chevrolet Metro | Base, LSi | 4 Cyl 1.3 L GAS
View related parts
Chevrolet Metro Motor Mount Part Number: 96060012
Product Specifications
- Other Name: Torque Strut; Front Mount; Mount, Engine Mounting; Mount, Engine
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2000 Chevrolet Metro | Base | 3 Cyl 1.0 L GAS
View related parts
Chevrolet Metro Front Bracket Part Number: 96060019
Product Specifications
- Other Name: Bracket; Bracket, Engine Mounting
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2000 Chevrolet Metro | Base | 3 Cyl 1.0 L GAS
View related parts
Chevrolet Metro Rear Bracket Part Number: 30013070
Product Specifications
- Other Name: Support, Engine Mounting
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2001 Chevrolet Metro | Base, LSi | 4 Cyl 1.3 L GAS
View related parts
Chevrolet Metro Motor Mount, Passenger Side Part Number: 30014491
Product Specifications
- Other Name: Mount, Engine Front; Engine Mount Bracket; Front Mount; Mount, Engine Mounting; Mount, Engine
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2000 Chevrolet Metro | Base, LSi | 4 Cyl 1.3 L GAS
View related parts
Chevrolet Metro Stiffener Part Number: 30001634
Product Specifications
- Other Name: Brace, Engine Mounting
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2000 Chevrolet Metro | Base, LSi | 4 Cyl 1.3 L GAS
View related parts
Chevrolet Metro Torque Strut Brace Part Number: 30005529
Product Specifications
- Other Name: Brace, Engine Mounting
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2001 Chevrolet Metro | Base, LSi | 4 Cyl 1.3 L GAS
View related parts
Chevrolet Metro Side Bracket Part Number: 30009761
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Bracket; Motor Mount; Rear Bracket Support; Rear Bracket
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2000 Chevrolet Metro | Base | 3 Cyl 1.0 L GAS
View related parts
Chevrolet Metro Torque Strut Bracket Part Number: 96067564
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Torque Strut
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2000 Chevrolet Metro | Base, LSi | 4 Cyl 1.3 L GAS
View related parts
Chevrolet Metro Rear Bracket Part Number: 30001639
Product Specifications
- Other Name: Bracket, Engine Mounting
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2000 Chevrolet Metro | Base, LSi | 4 Cyl 1.3 L GAS
View related parts
Chevrolet Metro Torque Strut Damper Part Number: 96066385
Product Specifications
- Other Name: Dampener, Engine; Dampener, Engine Mounting
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2001 Chevrolet Metro | Base, LSi | 4 Cyl 1.3 L GAS
View related parts
Chevrolet Metro Front Bracket, Driver Side Part Number: 30002601
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Bracket; Motor Mount
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2000 Chevrolet Metro | Base, LSi | 4 Cyl 1.3 L GAS

| Page 1 of 2 |Next >

1-20 of 21 Results

Chevrolet Metro Engine Mount

Want to cut long-term maintenance and repair costs? Choose OEM Engine Mount. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Metro parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Metro Engine Mount includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Chevrolet Metro Engine Mount Parts and Q&A

Motor Mount
96060012
Q: What should be done if engine mounts are broken or deteriorated on Chevrolet Metro?
A:
The engine mounts are nonadjustable and are not serviced usually. however, damaged or disintegrated mounts should be replaced immediately to avoid extra stress to other mounts and drive line parts. To check for faulty engine mounts, raise engine, to relieve weight at the mounts and create slight tension in the rubber. When lifting the engine, check mounts and replace them if found to have hard rubber surfaces, heat check cracks, rubber separated from metal plate, or split rubber down the middle. If there is play between a metal plate of the mount and the points the mount connects to, then set the engine on mounts and tighten bolts or nuts connecting the mount to the frame or bracket of the engine.
Motor Mount
96065052
Q: How to replace the rear engine mount on Chevrolet Metro?
A:
The replacement of the rear engine mount requires engine support through the combination of J 28467-A Universal Support Fixture along with J 28467-89 Engine Support Fixture Adapters (Metro). The procedure starts by unfastening the rear engine mount through-bolt with the nut and continuing to remove the two rear engine mount-to-bulkhead bolts to detach the rear engine mount from its upper rear mounting bracket. First uninstall the lower rear mounting bracket by discarding two retaining nuts then removing the upper rear bracket from this mounting bracket. After that detach the three retaining bolts and the lower mounting bracket from the vehicle. Begin installation by attaching the lower rear mounting bracket to the vehicle through the use of three retaining bolts that you should tighten up to 55 Nm (41 ft. lbs.). Attach the upper rear mounting bracket to the lower rear mounting bracket while fastening with two retaining nuts but do not tighten them fully. You should connect the rear engine mount to the upper rear mounting bracket while leaving the two rear engine mount-to-bulkhead bolts loose. According to the maintenance sequence it is vital to finish installation by establishing the rear engine mount through-bolt with a nut and bolting both the rear engine mount through-bolt and nut and the rear engine mount-to-bulkhead bolts and the upper rear mounting bracket retaining bolts and nuts to 55 Nm (41 ft. lbs.), and then removing the J 28467-A and J 28467-89.
