OEM Chevrolet Malibu Oil Pan
Oil Drain Pan- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
14 Oil Pans found
Chevrolet Malibu Oil Pan Part Number: 12676340
$25.62 MSRP: $42.19You Save: $16.57 (40%)Ships in 1-2 Business Days
Chevrolet Malibu Oil Pan Part Number: 12637773
$39.77 MSRP: $65.49You Save: $25.72 (40%)Ships in 1-2 Business Days
Chevrolet Malibu Oil Pan, Green Line Part Number: 12601240
$155.59 MSRP: $267.21You Save: $111.62 (42%)Ships in 1-2 Business Days

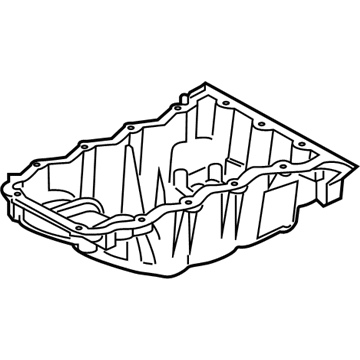

Chevrolet Malibu Oil Pan Part Number: 55581539
$107.77 MSRP: $177.53You Save: $69.76 (40%)
Chevrolet Malibu Oil Pan Part Number: 28289985
$115.52 MSRP: $183.36You Save: $67.84 (37%)Ships in 1-3 Business Days
Chevrolet Malibu Oil Pan, Upper Part Number: 12686797
$93.43 MSRP: $159.06You Save: $65.63 (42%)Ships in 1-3 Business Days
Chevrolet Malibu Oil Pan Part Number: 12604911
$178.79 MSRP: $283.89You Save: $105.10 (38%)Ships in 1-3 Business Days
Chevrolet Malibu Oil Pan Part Number: 12603201
$188.99 MSRP: $299.93You Save: $110.94 (37%)Ships in 1-3 Business Days
Chevrolet Malibu Oil Pan Part Number: 12593455
$134.19 MSRP: $220.95You Save: $86.76 (40%)Ships in 1-3 Business Days
Chevrolet Malibu Oil Pan Part Number: 12512670
$186.28 MSRP: $276.52You Save: $90.24 (33%)Ships in 1-2 Business Days
Chevrolet Malibu Oil Pan Part Number: 12666374
$179.01 MSRP: $281.67You Save: $102.66 (37%)
Chevrolet Malibu Oil Pan Part Number: 19210614
Chevrolet Malibu Oil Pan Part Number: 12676336
Chevrolet Malibu Oil Pan Part Number: 24576443
Chevrolet Malibu Oil Pan
Want to cut long-term maintenance and repair costs? Choose OEM Oil Pan. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Malibu parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Malibu Oil Pan includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.
The Oil Pan in Chevrolet Malibu vehicles is the container where the engine oil is stored which is very vital in lubricating and cooling the different auxiliary parts of the engine. For instance, most of the Malibu models installed ordinary wet sump system, whereby the oil pan is located at the underside of the engine to provide accommodation for the oil pump so that it can pump oil through pick-up tube, suction it and circulate it within the engine and then return it to the oil pan. This design is useful to ensure that there is always a supply of correct type of oil as is required for the proper running of the engine. In older models, Chevrolet Malibu oil pans were constructed from stamped steel however in newer models, manufacturers have considered using cast aluminum materials for better reliability and performance. Although wet sump system is conventional the idea of a dry sump system where there are separate containers and multiple pumps is observed for high-performance vehicles though not present in Malibu vehicles.
Chevrolet Malibu Oil Pan Parts and Q&A
- Q: How to service and repair the oil pan on Chevrolet Malibu?A:The first step when servicing and repairing the Oil Pan is to collect the necessary tools. Harmonic Balancer installer (WE 3.89344), crankshaft balancer remover (J 4.1316), and engine support fixture (J 28467-360). Start by breaking the negative Battery Cable, and recover the air conditioning (A/C) refrigerant. Pull out the Drive Belt and the upper as well as lower Radiator Hoses. Loosen, but not remove, the upper A/C Compressor bolts, then use the engine support fixture and raise the vehicle. Drain the crankcase, dismantle the right front tire and wheel assembly, and remove the right splash shield. Remove the following components from the right front antilock brake system (ABS) wheel speed harness, followed by the right front Ball Joint, cotter pin and nut in order to separate the Ball Joint from the Control Arm. Pull the right otlr cotter and nut and remove the lower A/C Compressor bolts and compressor, as well as lift it out of place. Take off the Evaporator to accumulator a/c line, the transmission flywheel inspection cover, and the right front and rear engine cradle bolts. Next, take off the balancer, crankshaft, Starter, side bolts of the Oil Pan, and Oil Pan bolts followed by Oil Pan Gasket. Clean the Oil Pan flanges, Oil Pan rail, front cover, rear main bearings cap, and threaded holes. For an installation, insert a new gasket and apply sealant to Oil Pan Gasket tabs if installing the rear main bearing cap, using gm p/n 1052080 or equivalent. Ah, tighten the Oil Pan retaining bolt to the value 25 nm (18 ft. Lbs.) and side bolts to the value 50 nm (37 ft. Lbs.). Reinstall the transmission cover changer, the Starter, flywheel inspection cover and the crankshaft balancer. Dish out the A/C Compressor spacer and upper bolts loosely, and fasten them before fitting the A/C Compressor and lines. Replace frame bolts on right side, right side Ball Joint, and Tie Rod End to the spindle and attach right front abs wheel speed sensor harness, splash shield, and right front tire and wheel assembly. Bring down the vehicle, take off the engine support fixture, and fix the top and bottom radiator hoses and then the Drive Belt. Refill the crankcase, reconnect the negative Battery Cable, and top off the a/c system.
- Q: How to Replace an Oil Pan on Chevrolet Malibu?A:The Oil Pan replacement process begins with vehicle elevation and support followed by drain pan positioning under the Drain Plug for engine oil removal. Remove the engine Drive Belt and the lower ac compressor bolt before beginning to remove the Oil Pan bolts from this component. Clear all trace of previous Oil Pan sealant from the surface of installation. After cleaning both the Oil Pan and the lower crankcase sealing surface, apply a 2 mm (0.079 in) bead of sealant around the Oil Pan perimeter and the oil suction port opening while being mindful not to exceed recommended coverage. Fasten the Oil Pan with its bolts according to the specified sequence using a torque of 25 n.m (18 lb ft). Secure the lower ac compressor bolt at 50 n.m (37 lb ft) torque while making sure the Oil Pan Drain Plug reaches a torque of 25 n.m (18 lb ft). To finish the replacement process you must install the Drive Belt before lowering your vehicle and filling the crankcase with oil.
