How to service and repair the timing cover on Chevrolet Lumina?

The first step in serving or repairing the Timing Cover is disconnecting the battery ground (negative) cable. The service begins with drainning both engine coolant and oil followed by removing the coolant recovery reservoir as well as the crankshaft balancer and drive belt tensioner and Power Steering Pump with attached lines before relocating the pump to the side. Remove the bypass pipe from the front cover and disconnect the hose departing from the coolant pump. Dismantle the lower Crankshaft Position Sensor wiring harness bracket while removing the coolant pump pulley then disconnect its electrical connector. Disassemble the engine front cover bolts and engine front cover gasket while removing both the front cover and its gasket. Inspection of the engine front cover should take place after cleaning its gasket sealing surfaces. When replacing the engine front cover it is necessary to remove three components: drive belt shield, crankshaft position sensor, and coolant pump. When replacing these components initiate their installation by first securing the coolant pump and Crankshaft Position Sensor to the front engine cover then continue with the drive belt shield. Screw the drive belt shield bolt while tightening it to 10 nm (89 inch lbs.). The installation requires gm p/n 1052080 sealant or equivalent for both sides of the lower tabs on the engine front cover gasket before gasket and cover installation. Tighten the five small engine front cover bolts to 21 nm (15 ft.lbs.) and the three large bolts to 55 nm (41 ft.lbs.) while the two large bolts require 47 nm (35 ft.lbs.). The lower Crankshaft Position Sensor wiring harness bracket returns to position before connecting the electrical connector to the sensor harness. Begin by mounting the coolant pump pulley followed by attaching a radiator outlet hose to the pump before completing the connection of a thermostat bypass pipe to the engine front cover. Safely reinstall the Power Steering Pump followed by its lines alongside the drive belt tensioner and crankshaft balancer. Place engine oil into the vehicle's engine and engine coolant into its cooling system before reconnecting the battery's negative (ground) cable. Conclude with the execution of ckp system variation learn operations.

OEM Chevrolet Lumina Timing Cover

Engine Timing Cover

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 Timing Covers found

View related parts
Chevrolet Lumina Timing Cover Part Number: 10101799
$33.12 MSRP: $66.05
You Save: $32.93 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover Assembly-Engine Front; Cover, Engine Front Cover
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991-1992 Chevrolet Lumina | Base | 4 Cyl 2.5 L GAS
View related parts
Chevrolet Lumina Timing Cover Part Number: 12576033
Product Specifications
- Other Name: Cover Assembly-Engine Front; Front Cover
- Position: Front
- Replaces: 24502241
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-1999 Chevrolet Lumina | Base, LS, LTZ | 6 Cyl 3.8 L GAS
View related parts
Chevrolet Lumina Timing Cover, Front Part Number: 12568797
Product Specifications
- Other Name: Cover, Engine Front Cover; Front Cover
- Position: Front
- Replaces: 24505667
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995-2001 Chevrolet Lumina | Base, LS, LTZ | 6 Cyl 3.1 L GAS
View related parts
Chevrolet Lumina Timing Cover, Front Part Number: 14090022
$90.53 MSRP: $149.13
You Save: $58.60 (40%)
Product Specifications
- Other Name: Cover, Engine Front; Front Cover; Cover, Engine Front Cover
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1993 Chevrolet Lumina | Base
View related parts
Chevrolet Lumina Timing Cover, Front Part Number: 10228077
Product Specifications
- Other Name: Cover, Engine Front Cover; Lower Timing Cover
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991-1997 Chevrolet Lumina | Euro, LS, LTZ, Z34 | 6 Cyl 3.4 L GAS
View related parts
Chevrolet Lumina Timing Cover Part Number: 10044603
Product Specifications
- Other Name: Cover Assembly-Engine Front; Front Cover; Cover; Cover, Engine Front Cover
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1990 Chevrolet Lumina | Base | 4 Cyl 2.5 L GAS
View related parts
Chevrolet Lumina Timing Cover Part Number: 88960662
Product Specifications
- Other Name: Cover, Engine Front Cover
- Position: Front
- Replaces: 10151678, 12522019, 12522018
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-1994 Chevrolet Lumina | Base, Euro | 6 Cyl 3.1 L FLEX, 6 Cyl 3.1 L GAS, 6 Cyl 3.4 L GAS
View related parts

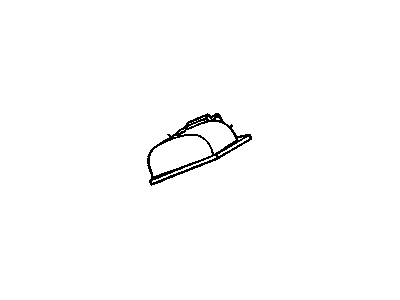

Chevrolet Lumina Timing Cover, Upper Passenger Side Part Number: 24505153
Product Specifications
- Other Name: Cover-Timing Belt Upper; Upper Timing Cover; Cover, Engine Front Cover
- Position: Upper Passenger Side
- Replaces: 10131040
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991-1997 Chevrolet Lumina | Euro, LS, LTZ, Z34 | 6 Cyl 3.4 L GAS
View related parts
Chevrolet Lumina Front Cover Part Number: 24504460
Product Specifications
- Other Name: Cover, Engine Front Cover; Timing Cover; Lower Timing Cover
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995-1997 Chevrolet Lumina | LS, LTZ | 6 Cyl 3.4 L GAS
View related parts
Chevrolet Lumina Timing Cover, Front Part Number: 12521221
Product Specifications
- Other Name: Cover Assembly-Crankcase Front End; Cover, Engine Front Cover
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1990-1991 Chevrolet Lumina | Base, Euro | 6 Cyl 3.1 L GAS
View related parts
Chevrolet Lumina Timing Cover, Upper Driver Side Part Number: 10131041
Product Specifications
- Other Name: Cover-Timing Belt Upper; Upper Timing Cover; Cover, Engine Front Cover
- Position: Upper Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991-1997 Chevrolet Lumina | Euro, LS, LTZ, Z34 | 6 Cyl 3.4 L GAS
View related parts
Chevrolet Lumina Timing Cover, Front Part Number: 10127443
Product Specifications
- Other Name: Cover, Engine Front Cover; Front Cover; Lower Timing Cover
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991-1994 Chevrolet Lumina | Euro, Z34 | 6 Cyl 3.4 L GAS

Chevrolet Lumina Timing Cover

Want to cut long-term maintenance and repair costs? Choose OEM Timing Cover. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Lumina parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Lumina Timing Cover includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Chevrolet Lumina Timing Cover is actually a part that holds a very essential part of the engine known as the timing mechanism which is either a timing belt, timing chain, or cam belt. Well known to be very dependable and functional, the Timing Cover is usually made from tough resources that include aluminum, plastic or steel while playing the role of a protector of other tender parts in an engine from probable harms amidst menaces like debris. This characteristic is especially appropriate to different models of Chevrolet Lumina since the proper functioning of the Timing Cover plays a role of paramount importance to engines work properly and with no threat to the life of its users. The Lumina has been manufactured by Chevrolet between 1989 and 2013 and comes with five generations, and accepts multiple models of cars hence Timing Cover comes in a variety to meet the consumers' needs. Timing Covers are commonly fitted with gaskets that add to the level of protection in a cover and contributes significantly to the functionality of a car. Whereas, the Chevrolet Lumina has been made through some design modifications over the years, in present market the Timing Cover has been proved to be highly reliable. Sustainable static features are important to maintain the running system and avoid accidents due to failure. In summary, the Chevrolet Lumina Timing Cover is a true testament to the company's focus on quality and the improvement of this particular car model; the Chevrolet Lumina is a midsize car that does not fail to strike the right balance between power, fuel efficiency, and security.

Chevrolet Lumina Timing Cover Parts and Q&A

Timing Cover, Front
12568797
Q: How to service and repair the timing cover on Chevrolet Lumina?
A:
The first step in serving or repairing the Timing Cover is disconnecting the battery ground (negative) cable. The service begins with drainning both engine coolant and oil followed by removing the coolant recovery reservoir as well as the crankshaft balancer and drive belt tensioner and Power Steering Pump with attached lines before relocating the pump to the side. Remove the bypass pipe from the front cover and disconnect the hose departing from the coolant pump. Dismantle the lower Crankshaft Position Sensor wiring harness bracket while removing the coolant pump pulley then disconnect its electrical connector. Disassemble the engine front cover bolts and engine front cover gasket while removing both the front cover and its gasket. Inspection of the engine front cover should take place after cleaning its gasket sealing surfaces. When replacing the engine front cover it is necessary to remove three components: drive belt shield, crankshaft position sensor, and coolant pump. When replacing these components initiate their installation by first securing the coolant pump and Crankshaft Position Sensor to the front engine cover then continue with the drive belt shield. Screw the drive belt shield bolt while tightening it to 10 nm (89 inch lbs.). The installation requires gm p/n 1052080 sealant or equivalent for both sides of the lower tabs on the engine front cover gasket before gasket and cover installation. Tighten the five small engine front cover bolts to 21 nm (15 ft.lbs.) and the three large bolts to 55 nm (41 ft.lbs.) while the two large bolts require 47 nm (35 ft.lbs.). The lower Crankshaft Position Sensor wiring harness bracket returns to position before connecting the electrical connector to the sensor harness. Begin by mounting the coolant pump pulley followed by attaching a radiator outlet hose to the pump before completing the connection of a thermostat bypass pipe to the engine front cover. Safely reinstall the Power Steering Pump followed by its lines alongside the drive belt tensioner and crankshaft balancer. Place engine oil into the vehicle's engine and engine coolant into its cooling system before reconnecting the battery's negative (ground) cable. Conclude with the execution of ckp system variation learn operations.
