How to replace the front Fender Splash Shield on Chevrolet Impala?

The replacement process starts by drilling out plastic rivets between the front fascia extension corner and front fender splash shield when this feature is present in the vehicle. Begin by removing the screws attached to the front fender splash shield at both front bumper fascia and the stud at its rear and then remove the bolt fastened to the front tab of the fender splash shield at the lower engine compartment side rail. Begin work by removing the screws from the front fender splash shield then drill out the plastic rivet from the front rocker panel to the front fender splash shield when this part is present. Place the fender splash shield onto the fender while it extends over the stud underneath the rocker molding. Fasten and torque the nut on this stud located at the rear part of the front fender splash shield until it reaches 4 N.m (35 lb in torque setting). First install two screws from the front fender splash shield to the front bumper fascia then tighten them to 2 N.m (18 lb in) and after that install the two screws into the front fender splash shield while tightening them to 2 N.m (18 lb in). Place a new plastic rivet between the rocker panel and front fender splash shield when present and then insert the bolt at the front fender splash shield front tab positioned at the lower engine compartment side rail while tightening it to 7 N.m (61 lb in). Install the plastic rivets to the front fascia extension corners while using new rivets to fasten them to the front fender splash shield.

How to replace the rear Fender Splash Shield on Chevrolet Impala?

A mechanic should work on lifting and supporting the vehicle before starting the replacement of the rear fender splash shield. Start by removing the rear tires and wheels before extracting the rocker panel to rear fender splash shield screw together with the quarter panel to rear fender splash shield screws and the lower quarter panel to rear fender splash shield screw. You need the J 38778 Door Trim Pad Clip Remover (J 38778) to detach the lower quarter panel to rear fender splash shield push-in retainer. The next step is to remove rear fender splash shield to rear fender palnuts before taking the rear fender splash shield out of the vehicle. Mount the rear fender splash shield onto the rear fender while the palnuts should be tightened to 2 N.m (18 lb in). Begin with installing the lower quarter panel to rear fender splash shield push-in retainer before securing the lower quarter panel to rear fender splash shield screw at 2 N.m (18 lb in). Single out the screws and attach the quarter panel to rear fender splash shield screws before securing them to 2 N.m (18 lb in). The last step includes attaching the rocker panel to rear fender splash shield screw and tightening it to also reach 2 N.m (18 lb in). Place the rear tires together with their wheels before lowering the car down.

OEM Chevrolet Impala Fender Splash Shield

Wheelhouse Liner

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

26 Fender Splash Shields found

View related parts

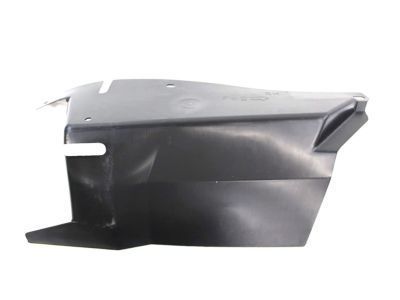

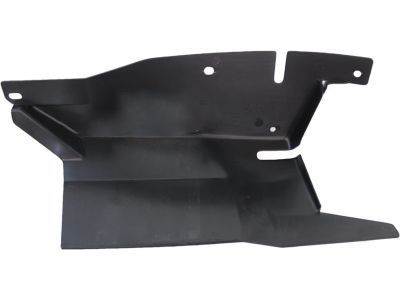

Chevrolet Impala Splash Shield, Passenger Side Part Number: 10349808
$14.30 MSRP: $21.29
You Save: $6.99 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shield-Engine Splash; Fender Splash Shield; Shield, Front Fender Inner Wheel House
- Position: Passenger Side
- Replaces: 10298111
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2011 Chevrolet Impala | 50th Anniversary Edition, Base, LS, LS Sport, LT, LTZ, Police, SS | 6 Cyl 3.4 L GAS, 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.8 L GAS, 6 Cyl 3.9 L FLEX, 6 Cyl 3.9 L GAS
View related parts
Chevrolet Impala Front Panel Part Number: 89025200
$183.21 MSRP: $273.90
You Save: $90.69 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Extension, Front Fender Inner Wheel House
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2013 Chevrolet Impala | 50th Anniversary Edition, LS, LT, LTZ, Police, SS | 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.9 L FLEX, 6 Cyl 3.9 L GAS, 8 Cyl 5.3 L GAS
View related parts
Chevrolet Impala Wheelhouse Liner, Rear Passenger Side Part Number: 15876945
$94.09 MSRP: $140.04
You Save: $45.95 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Liner, Rear Wheelhouse; Fender Splash Shield
- Position: Rear Passenger Side
- Replaces: 15823911
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2013 Chevrolet Impala | 50th Anniversary Edition, LS, LT, LTZ, Police, SS | 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.9 L FLEX, 6 Cyl 3.9 L GAS, 8 Cyl 5.3 L GAS
View related parts
Chevrolet Impala Splash Shield, Front Inner Passenger Side Part Number: 22998751
$27.74 MSRP: $41.29
You Save: $13.55 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shield, Front Fender Inner Wheel House; Underbody Shield; Lower Shield; Lower Baffle
- Position: Front Inner Passenger Side
- Replaces: 22789407
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2014-2020 Chevrolet Impala | Eco, LS, LT, LTZ, Premier | 4 Cyl 2.4 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS, 6 Cyl 3.6 L BI-FUEL, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts

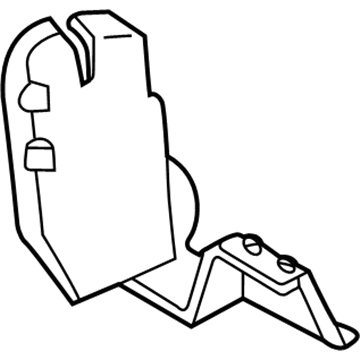

Chevrolet Impala Wheelhouse Liner, Rear Passenger Side Part Number: 10439809
$56.94 MSRP: $84.75
You Save: $27.81 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Liner Assembly-Rear Wheelhouse Panel (Right-Hand); Fender Splash Shield; Shield; Liner, Rear Wheelhouse
- Position: Rear Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2005 Chevrolet Impala | Base, LS, LS Sport, SS | 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
View related parts
Chevrolet Impala Fender Liner, Front Driver Side Part Number: 84204441
$101.55 MSRP: $151.15
You Save: $49.60 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Liner-Front Wheelhouse; Fender Splash Shield; Liner, Front Fender Inner Wheel House
- Position: Front Driver Side
- Replaces: 23104624, 23174751, 84062759
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2014-2020 Chevrolet Impala | Eco, LS, LT, LTZ, Premier | 4 Cyl 2.4 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS, 6 Cyl 3.6 L BI-FUEL, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Chevrolet Impala Wheelhouse Liner, Rear Driver Side Part Number: 15952291
$94.09 MSRP: $140.04
You Save: $45.95 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Liner, Rear Wheelhouse; Fender Splash Shield
- Position: Rear Driver Side
- Replaces: 15876946, 15823923
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2013 Chevrolet Impala | 50th Anniversary Edition, LS, LT, LTZ, Police, SS | 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.9 L FLEX, 6 Cyl 3.9 L GAS, 8 Cyl 5.3 L GAS
View related parts
Chevrolet Impala Fender Liner, Front Inner Driver Side Part Number: 10333703
Product Specifications
- Other Name: Liner, Front Fender Inner Wheel House; Fender Splash Shield
- Position: Front Inner Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2013 Chevrolet Impala | 50th Anniversary Edition, LS, LT, LTZ, Police, SS | 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.9 L FLEX, 6 Cyl 3.9 L GAS, 8 Cyl 5.3 L GAS
View related parts
Chevrolet Impala Fender Liner, Front Inner Passenger Side Part Number: 10333702
Product Specifications
- Other Name: Liner, Front Fender Inner Wheel House; Fender Splash Shield
- Position: Front Inner Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2013 Chevrolet Impala | 50th Anniversary Edition, LS, LT, LTZ, Police, SS | 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.9 L FLEX, 6 Cyl 3.9 L GAS, 8 Cyl 5.3 L GAS
View related parts

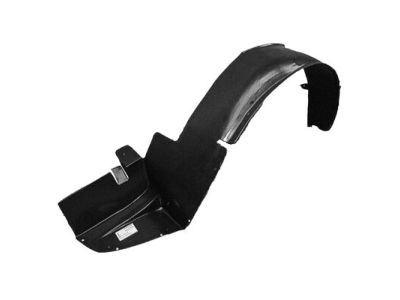

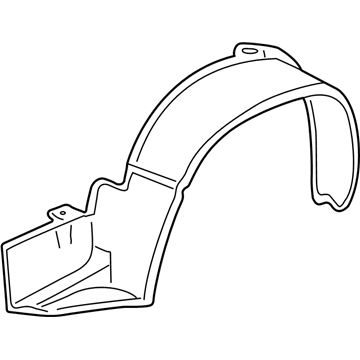

Chevrolet Impala Fender Liner, Front Inner Driver Side Part Number: 15214874
Product Specifications
- Other Name: Liner, Front Fender Inner Wheel House; Fender Splash Shield
- Position: Front Inner Driver Side
- Replaces: 10290251, 10446550, 10428211
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2005 Chevrolet Impala | Base, LS, LS Sport, SS | 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
View related parts
Chevrolet Impala Splash Shield, Passenger Side Part Number: 10350810
Product Specifications
- Other Name: Shield-Engine Splash; Fender Splash Shield; Shield, Front Fender Inner Wheel House
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2009 Chevrolet Impala | SS | 8 Cyl 5.3 L GAS
View related parts
Chevrolet Impala Front Panel, Inner Passenger Side Part Number: 10299383
Product Specifications
- Other Name: Extension, Front Fender Inner Wheel House
- Position: Front Inner Passenger Side
- Replaces: 10241006
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2005 Chevrolet Impala | Base, LS, LS Sport, SS | 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
View related parts
Chevrolet Impala Outer Wheelhouse, Passenger Side Part Number: 20104478
Product Specifications
- Other Name: Panel; Fender Splash Shield; Wheelhouse
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1985 Chevrolet Impala | Base | 6 Cyl 3.8 L GAS, 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L DIESEL, 8 Cyl 5.7 L GAS
View related parts

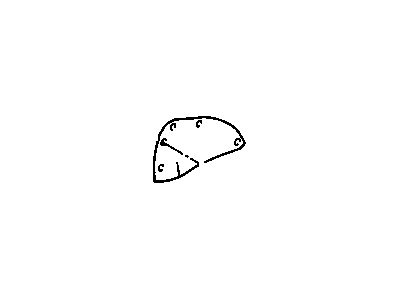

Chevrolet Impala Splash Shield, Front Part Number: 14090117
Product Specifications
- Other Name: Shield-Front Wheelhouse Panel Splash; Fender Splash Shield; Dust Seal; Shield, Front Fender Inner Wheel House
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-1996, 1984-1985 Chevrolet Impala | Base, SS | 6 Cyl 3.8 L GAS, 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L DIESEL, 8 Cyl 5.7 L GAS
View related parts

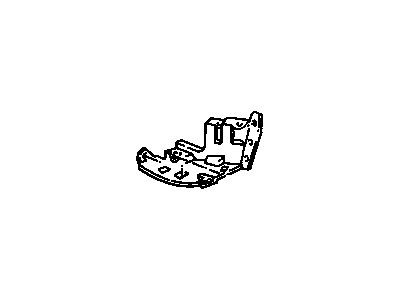

Chevrolet Impala Extension, Front Inner Passenger Side Part Number: 10109524
Product Specifications
- Other Name: Extension, Front Fender Inner Wheel House
- Position: Front Inner Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-1996 Chevrolet Impala | SS | 8 Cyl 5.7 L GAS
View related parts
Chevrolet Impala Extension, Front Inner Driver Side Part Number: 10214350
Product Specifications
- Other Name: Extension, Front Fender Inner Wheel House
- Position: Front Inner Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-1996 Chevrolet Impala | SS | 8 Cyl 5.7 L GAS
View related parts
Chevrolet Impala Splash Shield, Driver Side Part Number: 15244131
Product Specifications
- Other Name: Shield-Engine Splash; Fender Splash Shield; Shield, Front Fender Inner Wheel House
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2009 Chevrolet Impala | SS | 8 Cyl 5.3 L GAS
View related parts
Chevrolet Impala Fender Liner, Front Inner Passenger Side Part Number: 15214873
Product Specifications
- Other Name: Liner, Front Fender Inner Wheel House; Fender Splash Shield
- Position: Front Inner Passenger Side
- Replaces: 10290250, 10446549
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2005 Chevrolet Impala | Base, LS, LS Sport, SS | 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
View related parts
Chevrolet Impala Front Panel, Inner Driver Side Part Number: 10241007
Product Specifications
- Other Name: Extension, Front Fender Inner Wheel House
- Position: Front Inner Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2005 Chevrolet Impala | Base, LS, LS Sport, SS | 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
View related parts
Chevrolet Impala Front Panel Part Number: 89025201
Product Specifications
- Other Name: Extension, Front Fender Inner Wheel House
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2013 Chevrolet Impala | 50th Anniversary Edition, LS, LT, LTZ, Police, SS | 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.9 L FLEX, 6 Cyl 3.9 L GAS, 8 Cyl 5.3 L GAS

| Page 1 of 2 |Next >

1-20 of 26 Results

Chevrolet Impala Fender Splash Shield

Want to cut long-term maintenance and repair costs? Choose OEM Fender Splash Shield. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Impala parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Impala Fender Splash Shield includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Chevrolet Impala Fender Splash Shield stands as an important element which proves the quality performance together with dependability of each Chevrolet Impala model. The Fender Splash Shield based at the Chevy Impala serves as a protectant for fenders and under-hood elements against road hazards in addition to water infiltration and damaging substances to boost the car's efficiency and safety level. Such protective shielding blocks damaging tire splash and accumulating mud to minimize the possibility of vehicle rust and deterioration and extends the lifetime of the automobile. The Fender Splash Shield has adapted to different generations of the Chevrolet Impala by transitioning from metal panels to modern thermoplastic materials which reflect changes in automotive design that emphasize increased durability and weight reduction. This evolutionary development protects both the Chevrolet Impala structure itself and the correct installation of other body components. The car Fender Splash Shield has earned market distinction through its solid design and defensive features which make it a favorite solution for Chevrolet model drivers. The Fender Splash Shield accelerates both performance protection and safety measures which demonstrates the automaker's dedication to quality development thus making the car a reliable high-performing full-sized sedan.

Chevrolet Impala Fender Splash Shield Parts and Q&A

Splash Shield, Passenger Side
10349808
Q: How to replace the front Fender Splash Shield on Chevrolet Impala?
A:
The replacement process starts by drilling out plastic rivets between the front fascia extension corner and front fender splash shield when this feature is present in the vehicle. Begin by removing the screws attached to the front fender splash shield at both front bumper fascia and the stud at its rear and then remove the bolt fastened to the front tab of the fender splash shield at the lower engine compartment side rail. Begin work by removing the screws from the front fender splash shield then drill out the plastic rivet from the front rocker panel to the front fender splash shield when this part is present. Place the fender splash shield onto the fender while it extends over the stud underneath the rocker molding. Fasten and torque the nut on this stud located at the rear part of the front fender splash shield until it reaches 4 N.m (35 lb in torque setting). First install two screws from the front fender splash shield to the front bumper fascia then tighten them to 2 N.m (18 lb in) and after that install the two screws into the front fender splash shield while tightening them to 2 N.m (18 lb in). Place a new plastic rivet between the rocker panel and front fender splash shield when present and then insert the bolt at the front fender splash shield front tab positioned at the lower engine compartment side rail while tightening it to 7 N.m (61 lb in). Install the plastic rivets to the front fascia extension corners while using new rivets to fasten them to the front fender splash shield.
Wheelhouse Liner, Rear Driver Side
10439810
Q: How to replace the rear Fender Splash Shield on Chevrolet Impala?
A:
A mechanic should work on lifting and supporting the vehicle before starting the replacement of the rear fender splash shield. Start by removing the rear tires and wheels before extracting the rocker panel to rear fender splash shield screw together with the quarter panel to rear fender splash shield screws and the lower quarter panel to rear fender splash shield screw. You need the J 38778 Door Trim Pad Clip Remover (J 38778) to detach the lower quarter panel to rear fender splash shield push-in retainer. The next step is to remove rear fender splash shield to rear fender palnuts before taking the rear fender splash shield out of the vehicle. Mount the rear fender splash shield onto the rear fender while the palnuts should be tightened to 2 N.m (18 lb in). Begin with installing the lower quarter panel to rear fender splash shield push-in retainer before securing the lower quarter panel to rear fender splash shield screw at 2 N.m (18 lb in). Single out the screws and attach the quarter panel to rear fender splash shield screws before securing them to 2 N.m (18 lb in). The last step includes attaching the rocker panel to rear fender splash shield screw and tightening it to also reach 2 N.m (18 lb in). Place the rear tires together with their wheels before lowering the car down.
